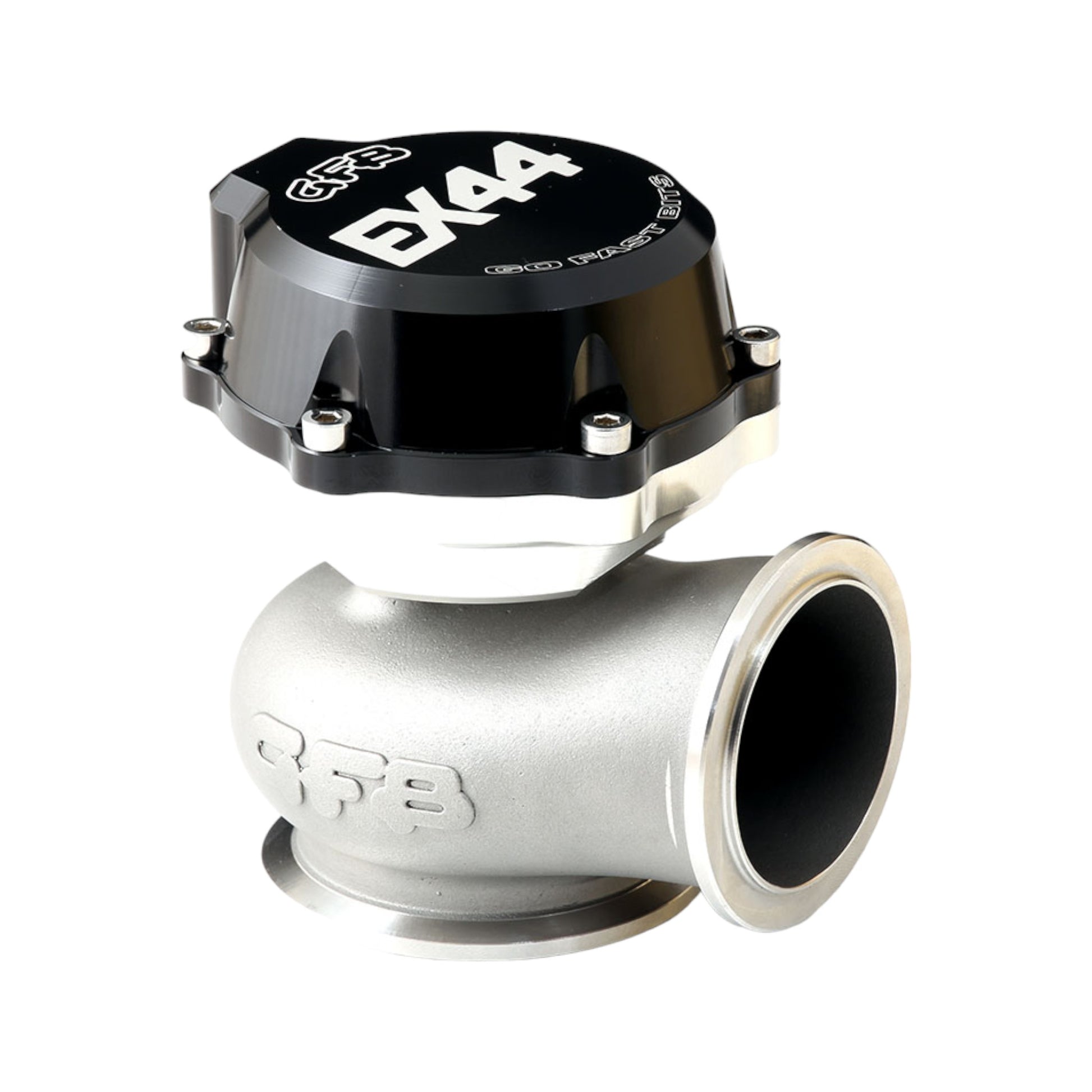

EX44 Wastegate - 44mm

EX44 Wastegate - 44mm

Regular price $619.00 NZD
Regular price Sale price $619.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
Add-ons

The GFB 44mm wastegate has been designed to cope with the brutal conditions of extreme exhaust temperatures, the wastegate features not only a huge flow capacity but also a compact size that is unmatched by competitors for a 44mm wastegate

  • Most compact wastegate range on the market
  • Body, valve, seat and all mounting hardware is CNC machined from high-temp stainless steel
  • Actuator housing CNC machined from billet 6061 aluminium
  • Nomex-reinfoced silicone diaphragm
  • Internal shroud protects valve stem from excessive heat and prevents carbon-related sticking
  • V-band clamp mounting system
  • Made in Australia under ISO 9001

Supplied with a 5psi & 10psi spring already fitted, 7psi springs are available and can be ganged together in various combinations to allow boost pressures of 5psi, 7psi, 10psi, 12psi, 15psi, 17psi and 22psi. This is the largest range of boost pressures off-the-shelf

  • Actuator housing machined from billet 7075 aluminium - much stronger & harder that 6061
  • Internal valve shroud protects valve stem from excessive heat and prevents carbon-related sticking
  • Top hat style Nomex-reinforced silicone rolling diaphragm for longer valve travel
  • Brass boost hose connectors
  • V-band clamp mounting system, supplied with 304 stainless weld-on adaptors (base flange is compatible with TIAL 44 flange)
  • Quality and Performance unsurpassed



All GFB wastegates feature an investment cast body made from 253MA chromium-nickel stainless steel, a CNC machined billet stainless valve, and all stainless steel weld-on fittings and hardware, whilst the diaphragm is nomex-reinforced silicone. All this adds up to a wastegate built to handle extreme conditions with reliability you can trust!
