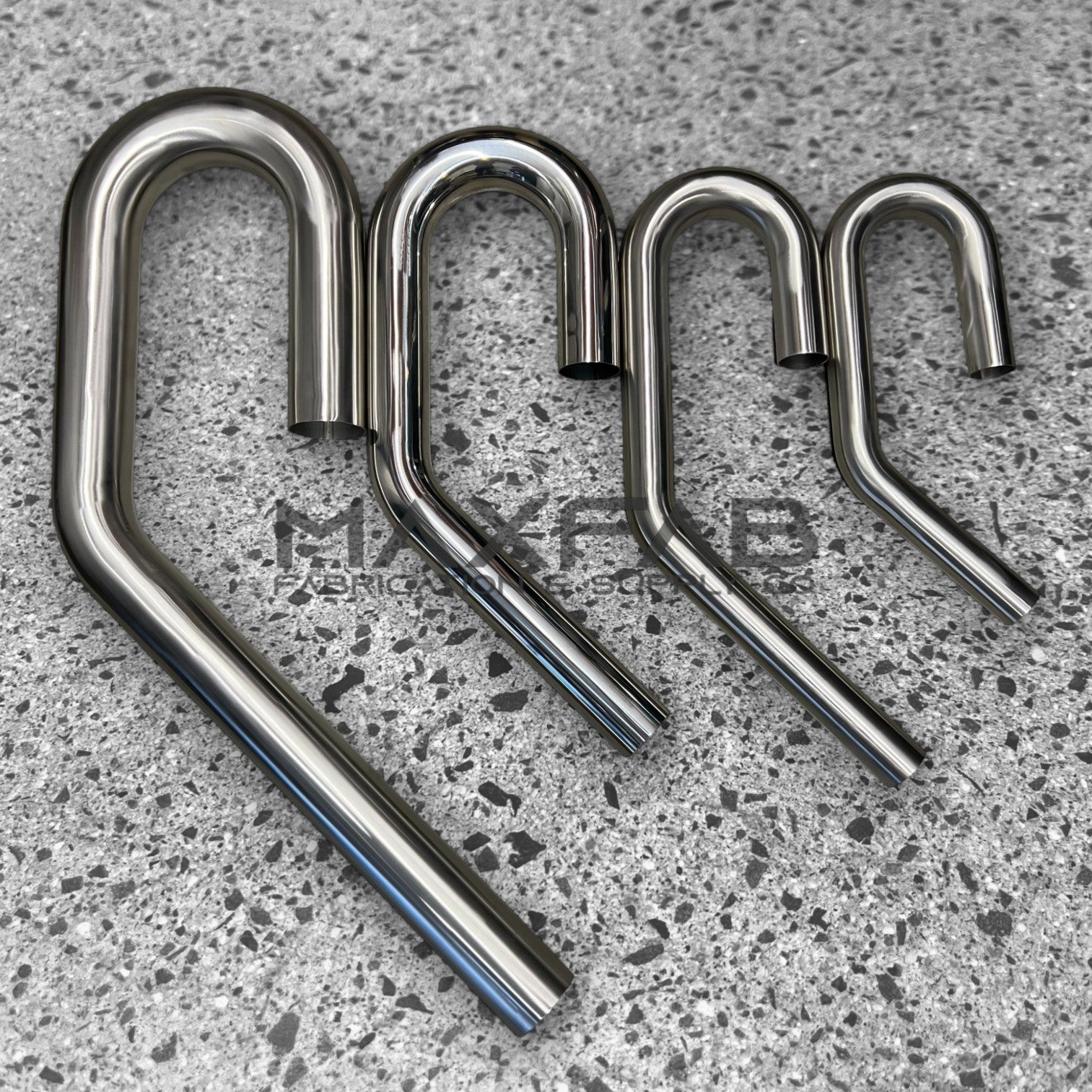

UJ Combination Bend - Aluminum - Stainless - Mild Steel
UJ Combination Bend - Aluminum - Stainless - Mild Steel
Our combination bends are designed for automotive fabrication, exhaust systems, 4X4 snorkels, custom intakes and intercooler piping, some of our customers use these for 4WD bumper light hoops and even custom Harley handle bars.

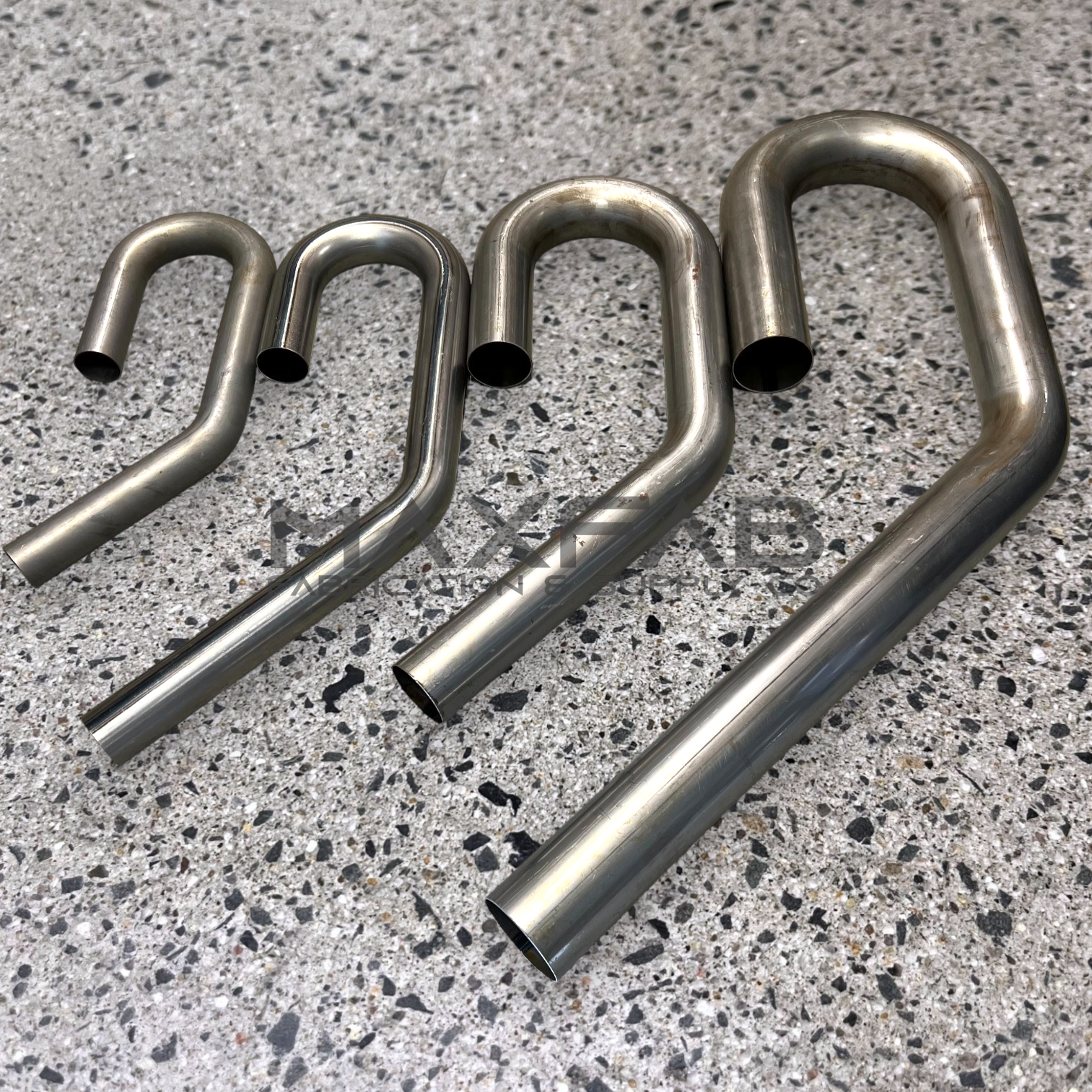

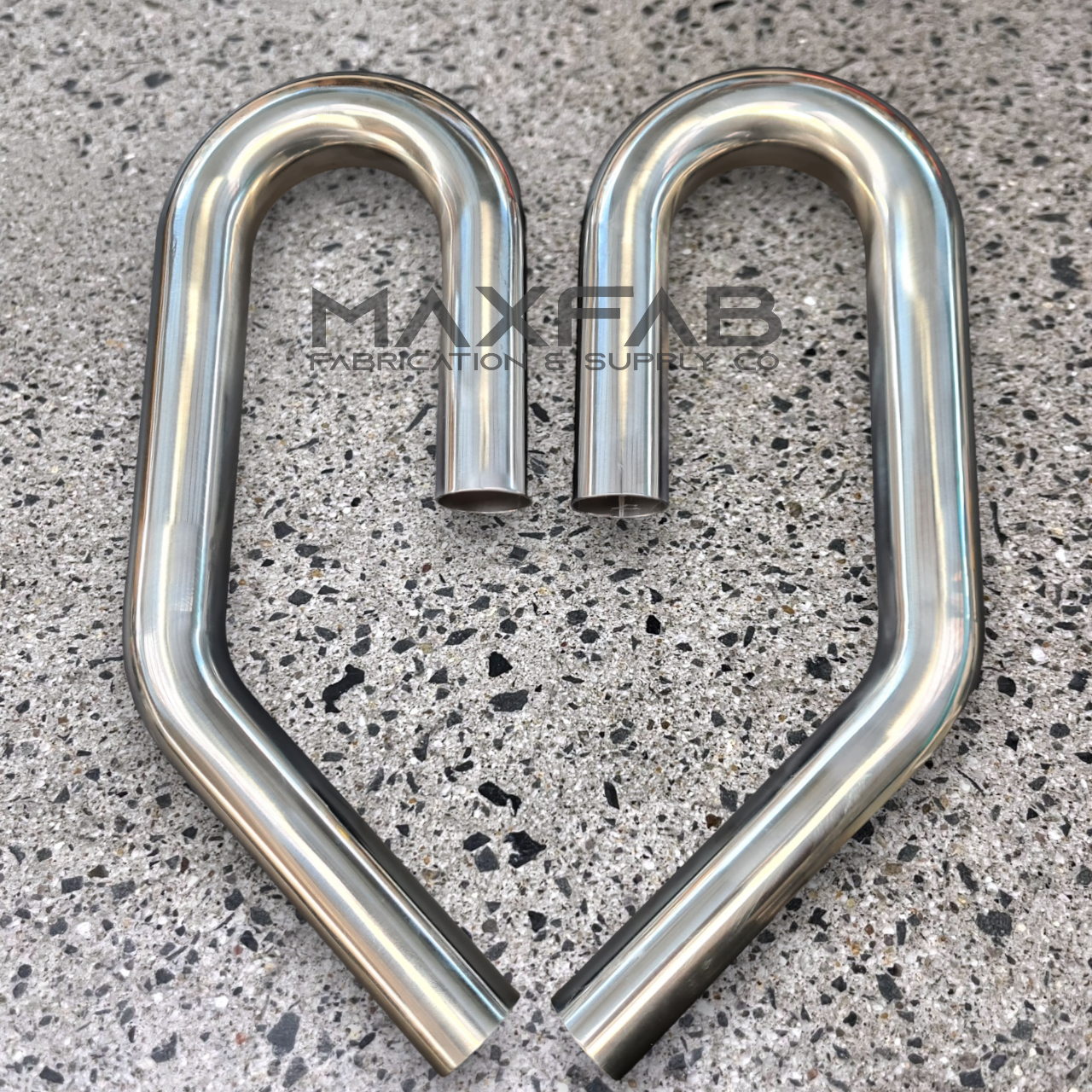

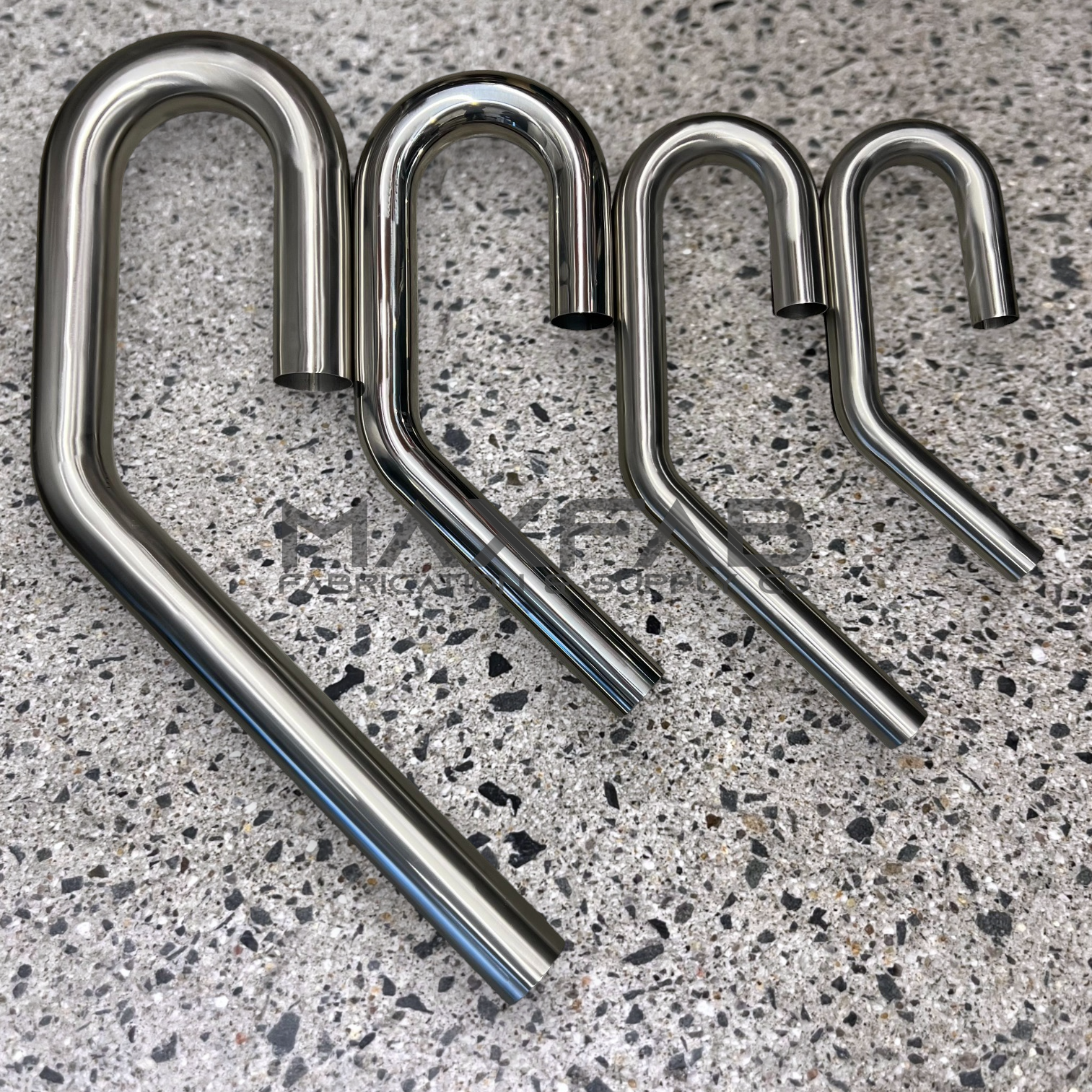

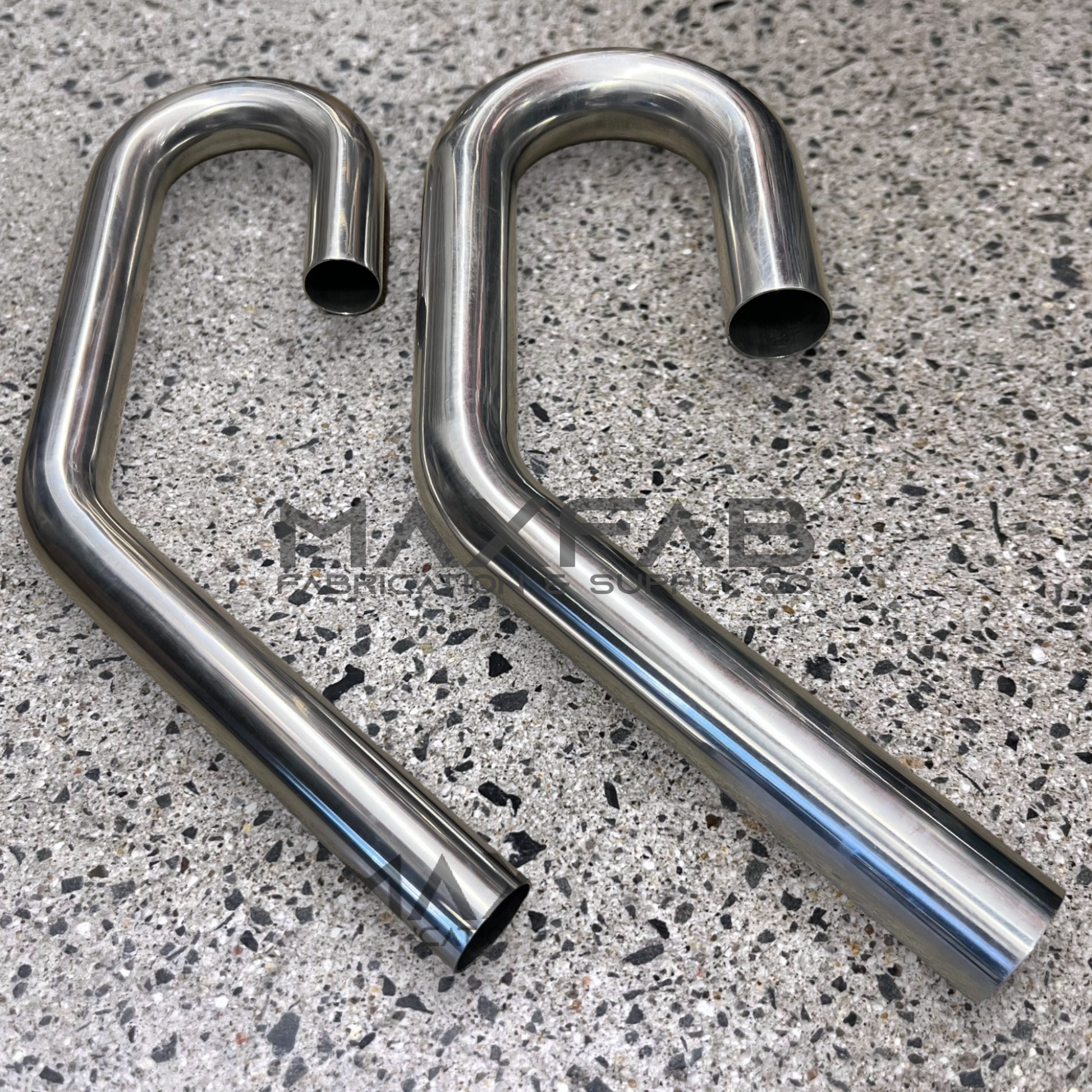

They have a 45 degree bend and a U-bend, which can be cut down into two 90 degree bends. Great for building down pipes and plumbing waste gates back into the exhaust too

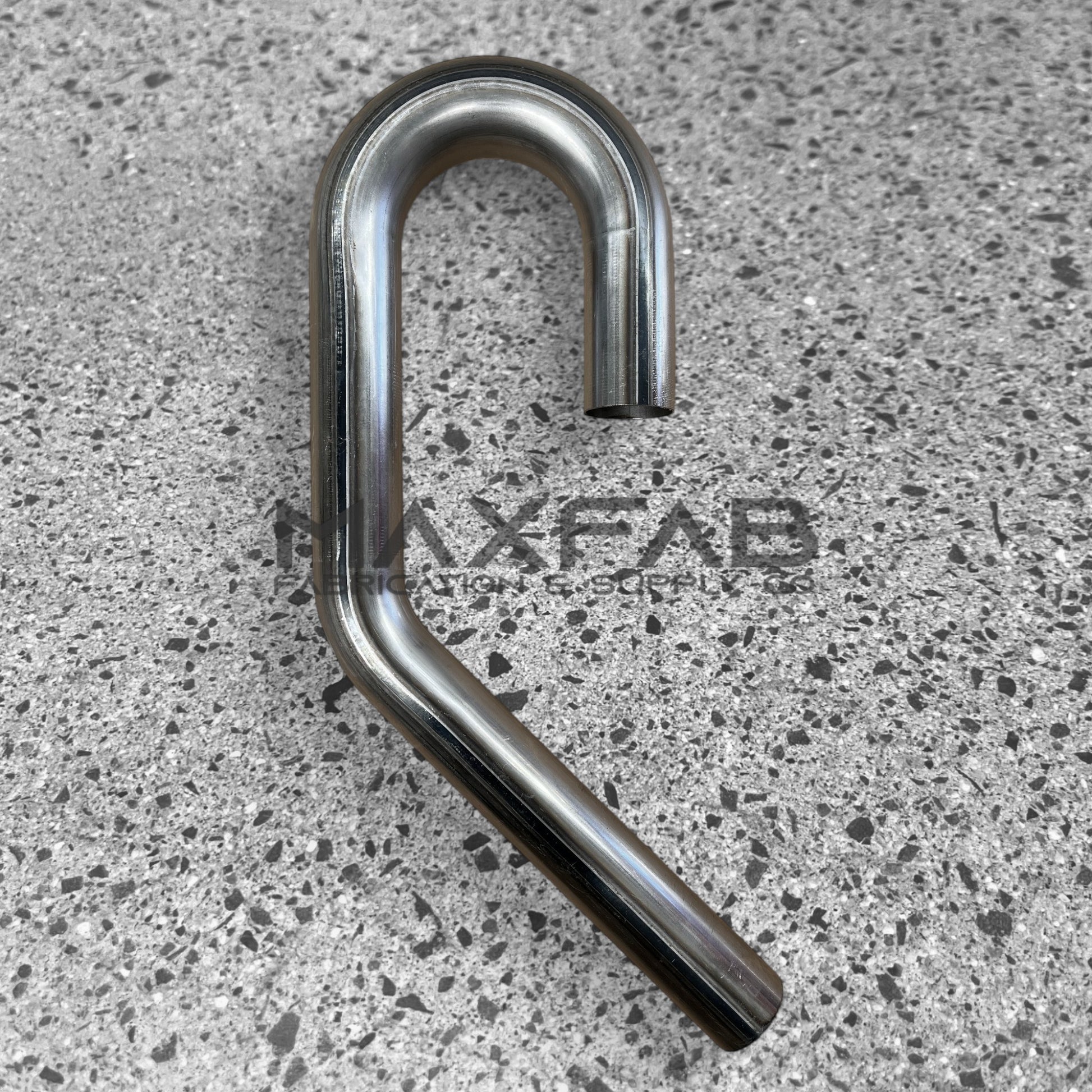

Depending on stock and atmosphere conditions our mild steel UJ's may have some surface rust on them which can generally be wiped off with a rag or scotch block
Available in:

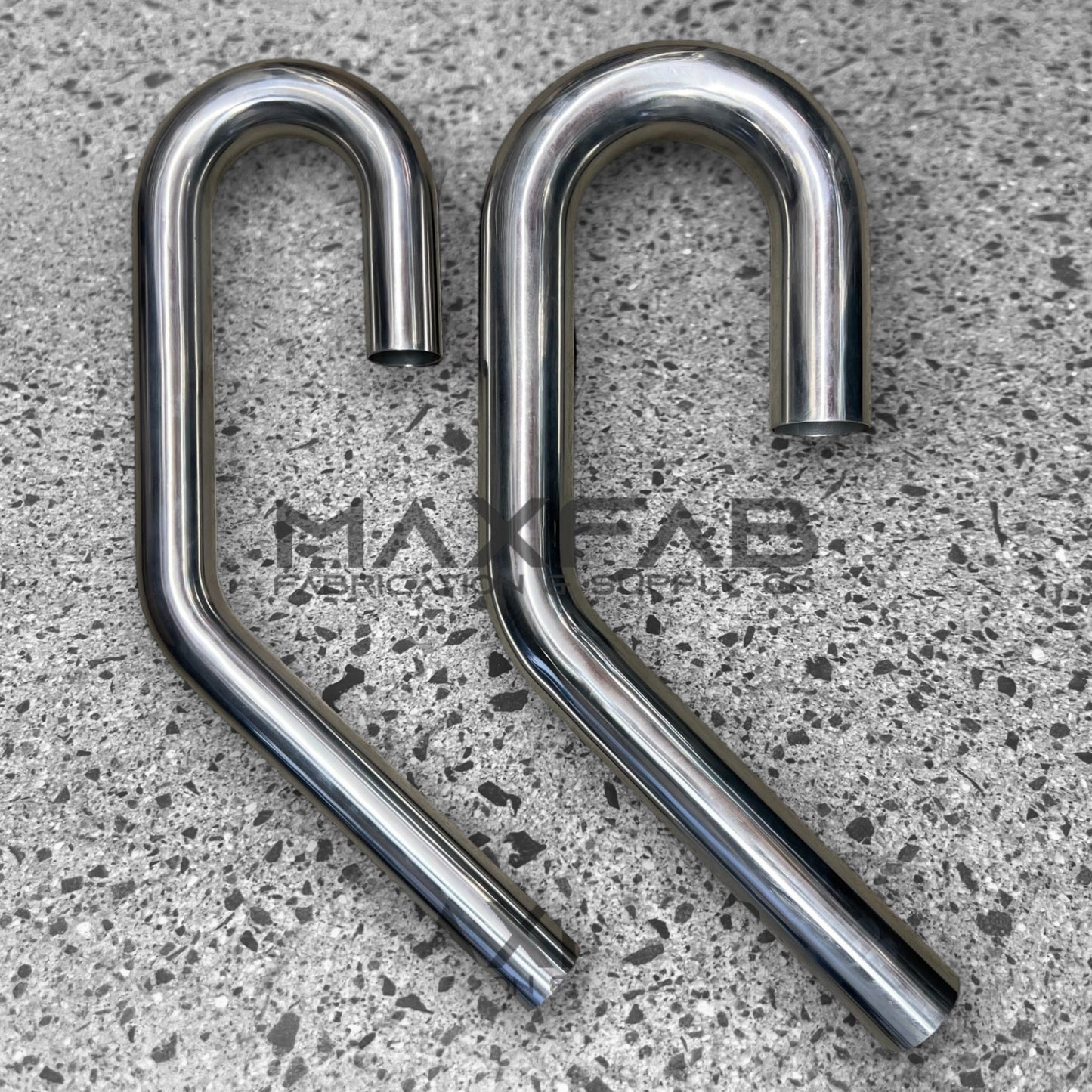

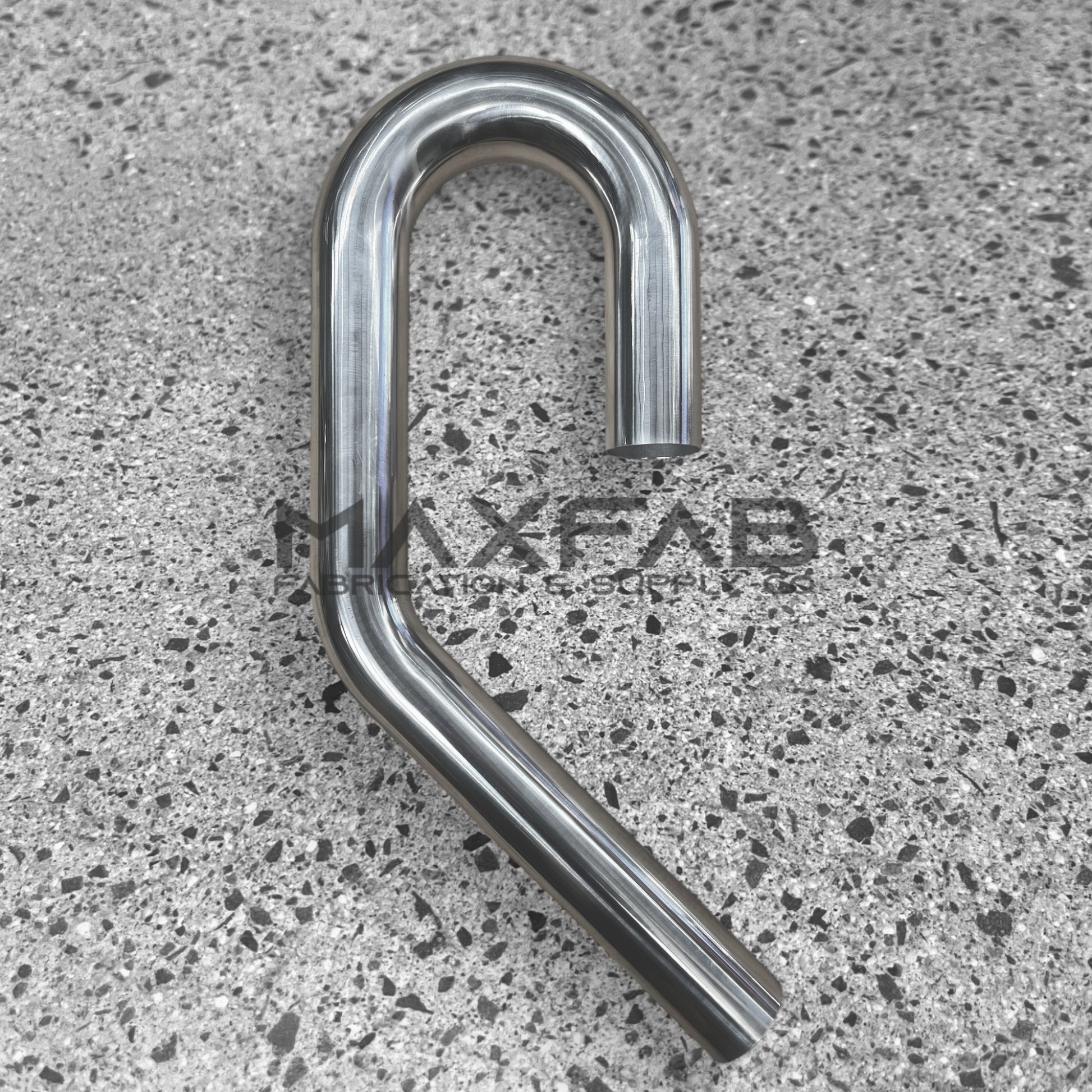

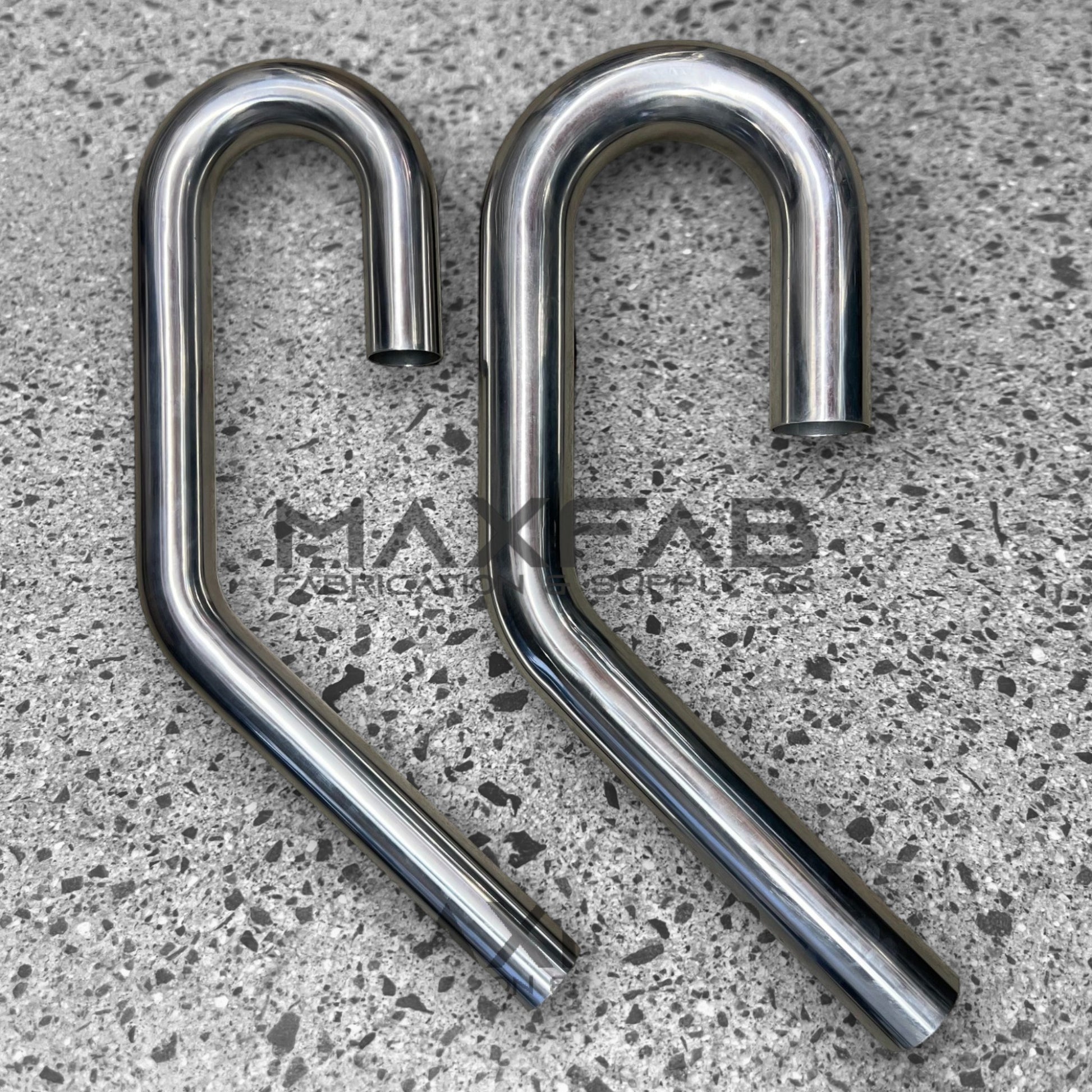

- Aluminum, 304 Stainless Steel & Mild Steel
- Tight 180' bend, with a 45' and long tail as per dimension sheet below
Approximate Dimensions | ||||
Diameter | A | B | C | R |
1.75" | 127mm | 178mm | 178mm | 66.7mm |
2.0" | 102mm | 229mm | 305mm | 76.2mm |
2.25" | 102mm | 203mm | 305mm | 85.5mm |
2.5" | 127mm | 203mm | 305mm | 95.3mm |
3.0" | 203mm | 254mm | 584mm | 114.3mm |
3.5" | 178mm | 330mm | 533mm | 113.4mm |
4.0" | 178mm | 400mm | 813mm | 152.4mm |
