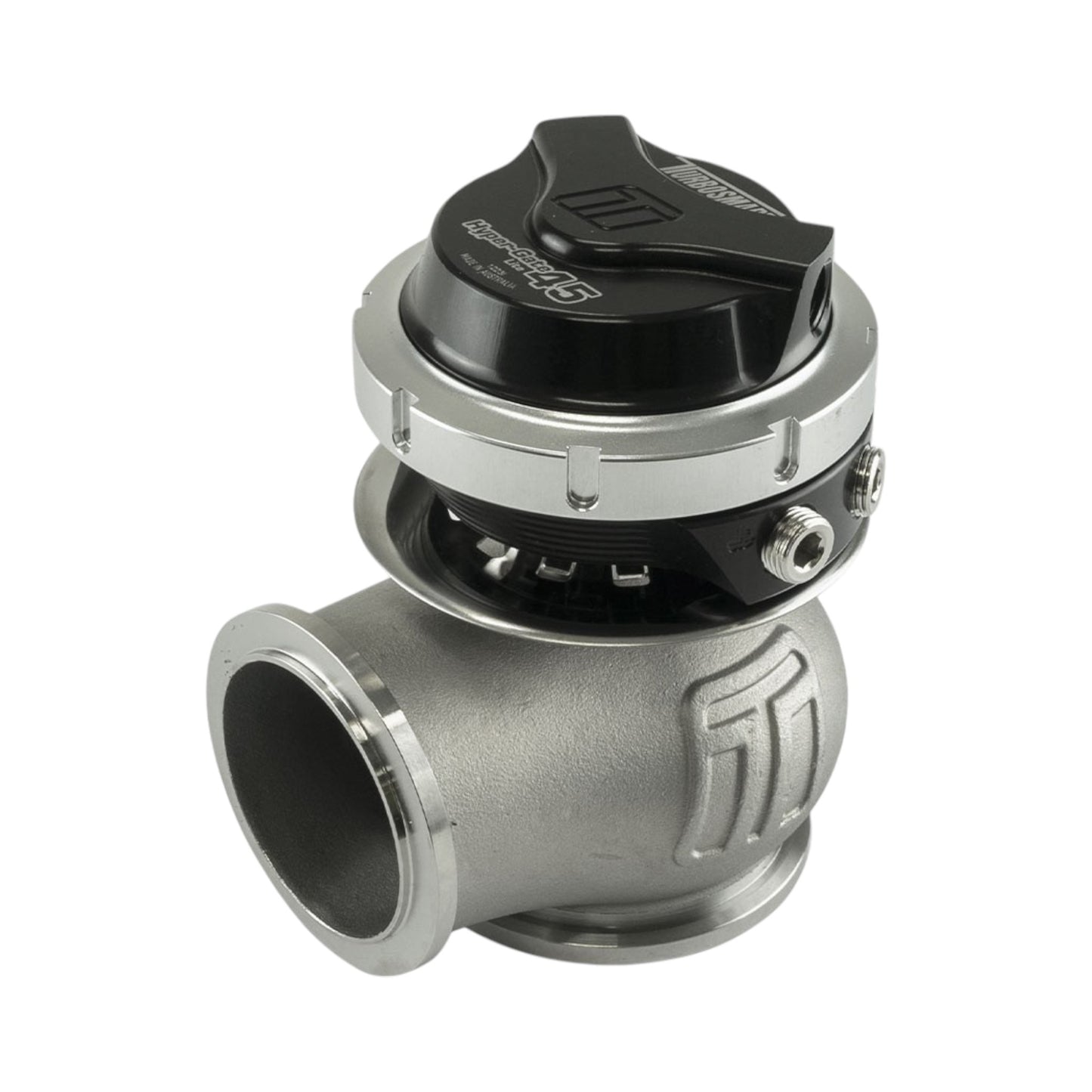

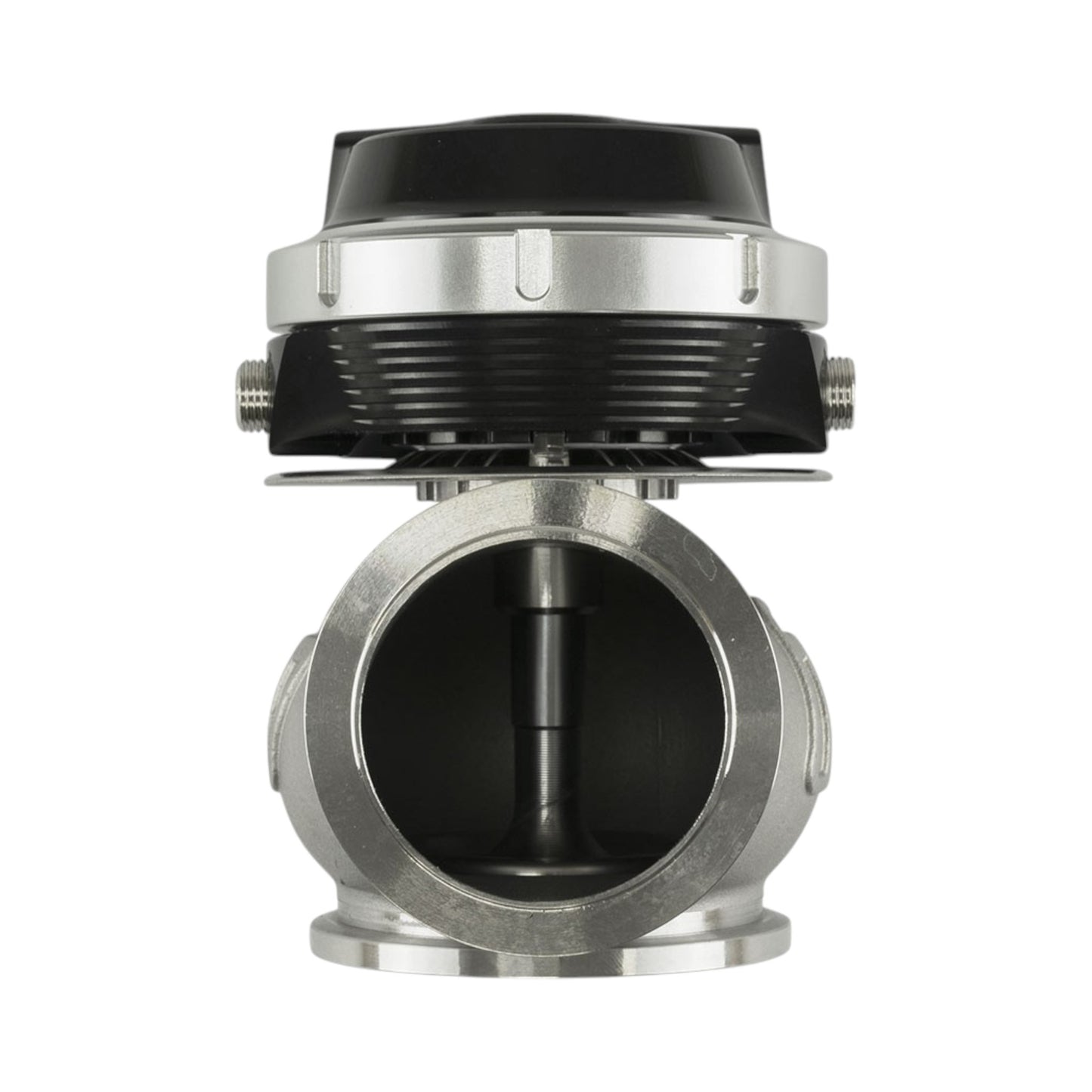

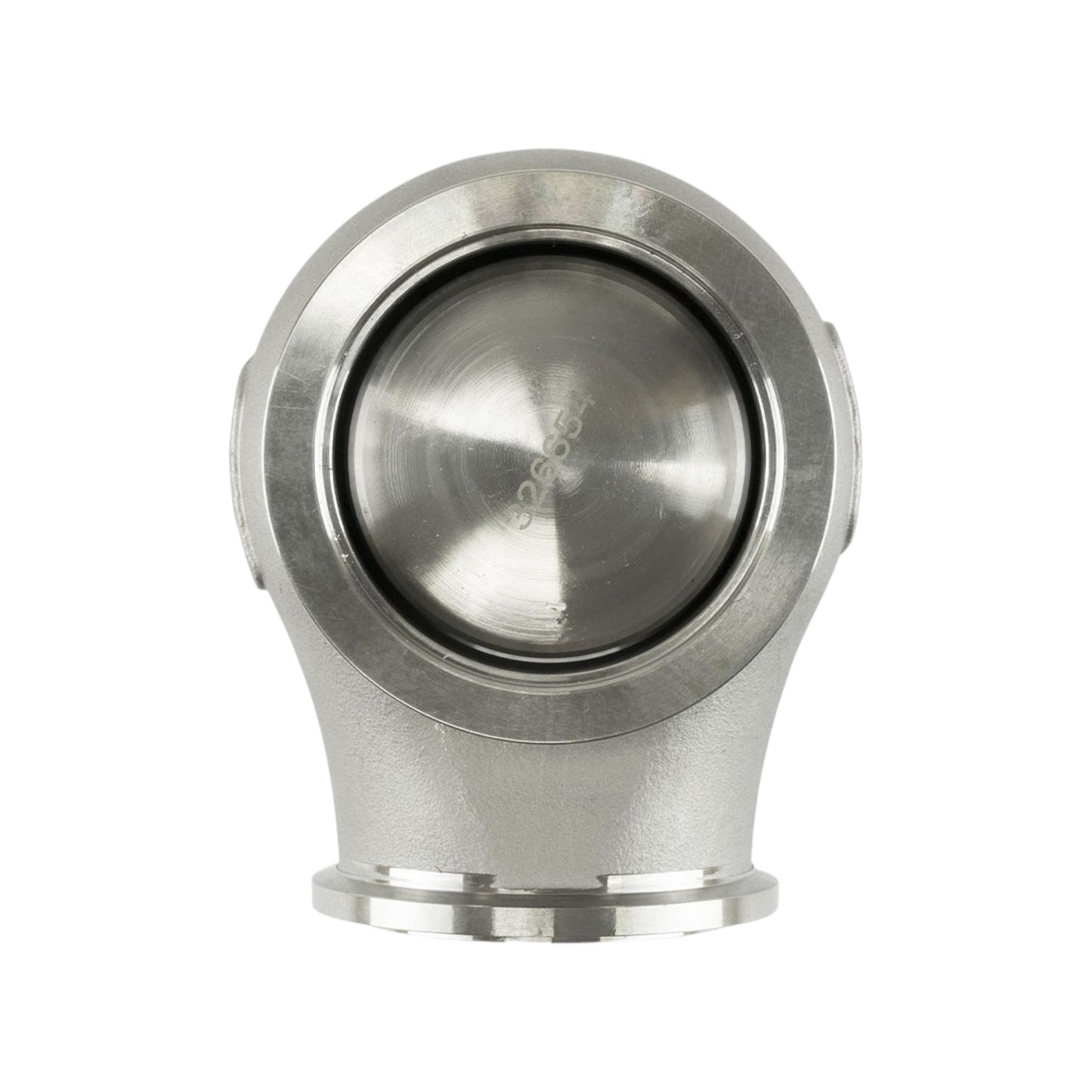

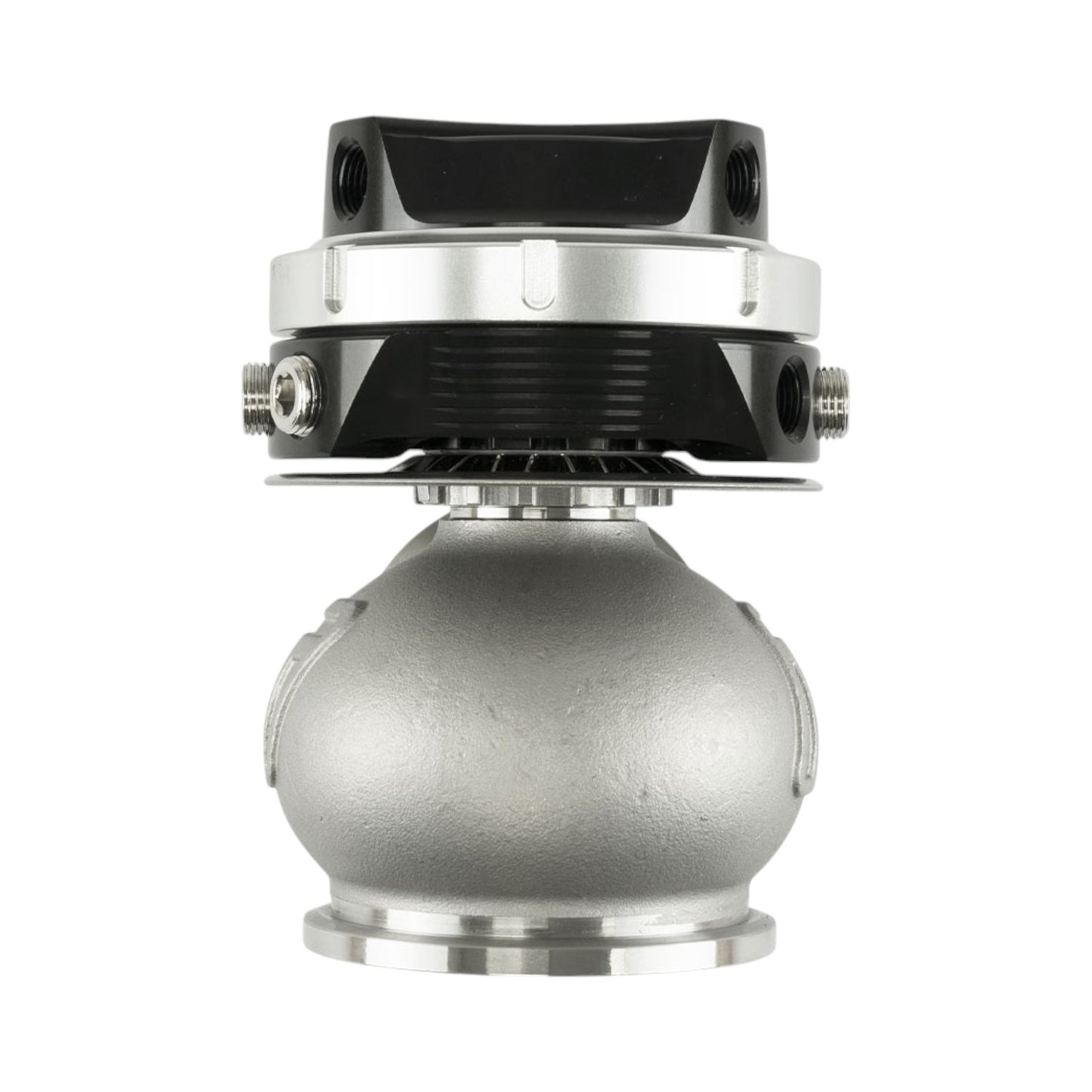

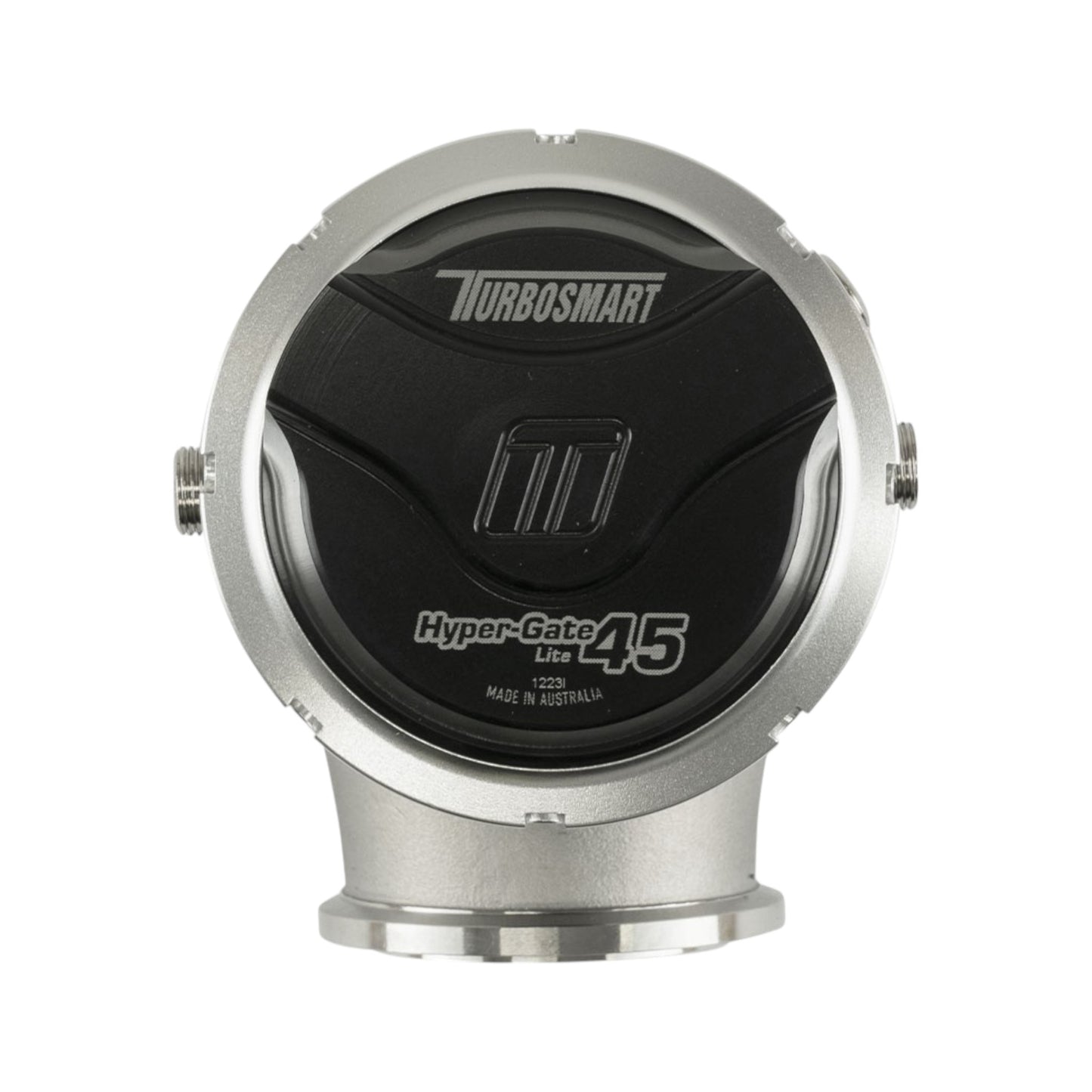

Turbosmart GenV WG45 Hypergate 45 Lite 7psi Black
Turbosmart GenV WG45 Hypergate 45 Lite 7psi Black
The GenV HyperGate45 Lite external wastegate is a cost-effective, high performing 45mm external wastegate with a compact actuator for use in engine bays with limited space. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

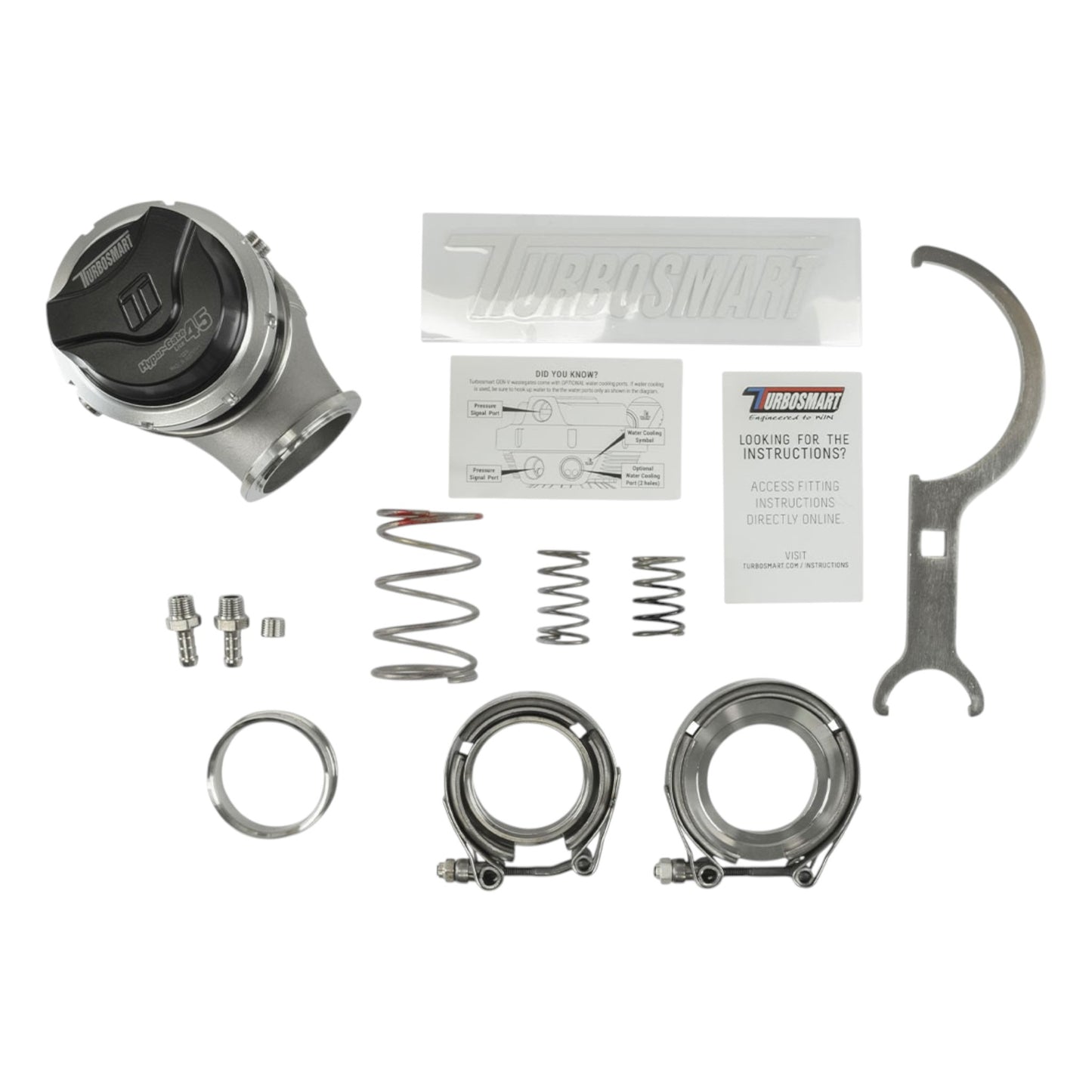

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.
Features
Low Profile (Reduced hieght & Diameter) Actuator Housing
Class Leading Thermal Performance
Class Leading CFD Driven & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Cooling
Optional Position Sensor Available Seperately
Rotatable / Clockable Actuator Housing
45mm V-Band Fitment
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
