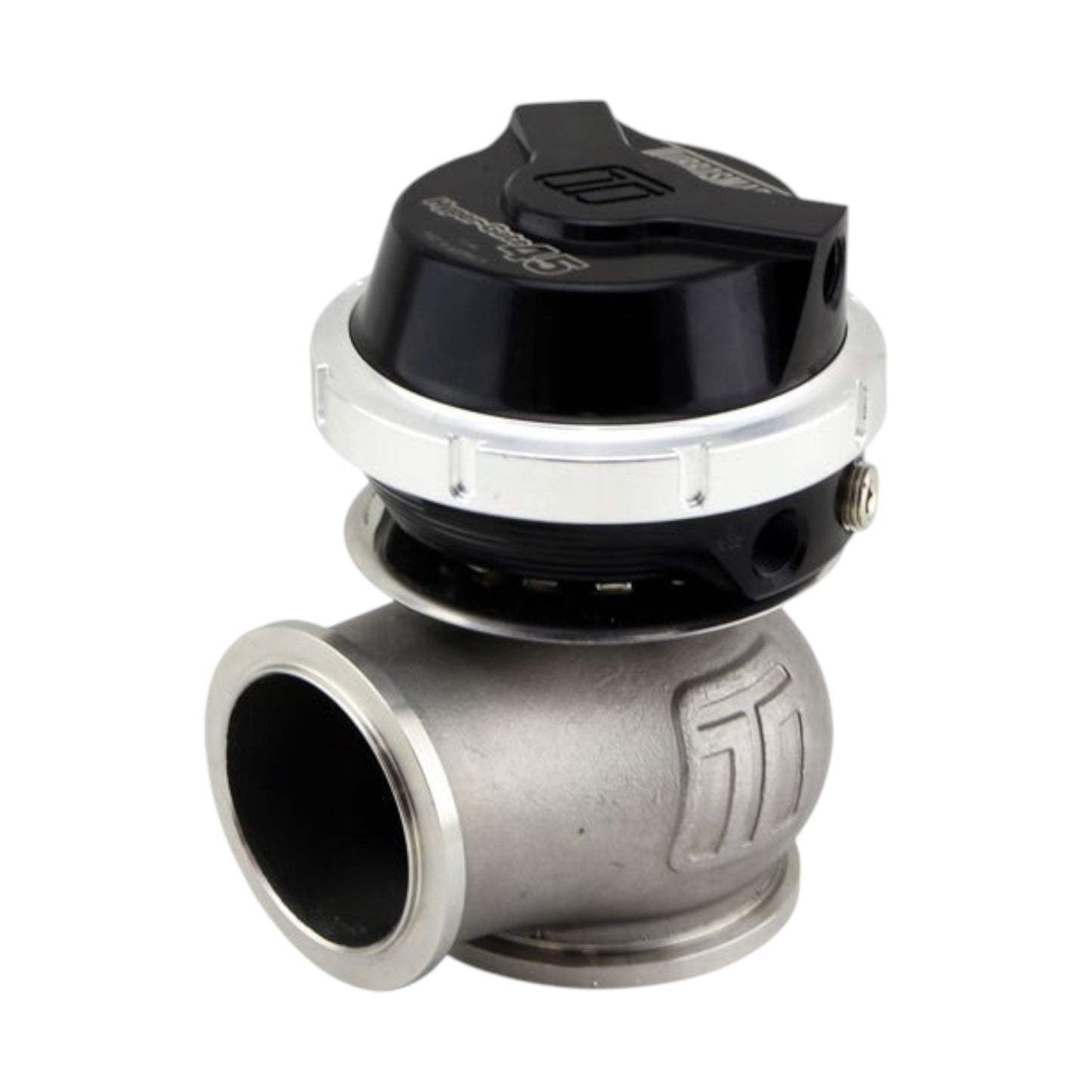

GenV HyperGate 45 Lite - 14psi

The GenV HyperGate45 Lite external wastegate is a cost-effective, high performing 45mm external wastegate with a compact actuator for use in engine bays with limited space. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

Features

• Low Profile (Reduced height & Diameter) Actuator Housing
• Class Leading Thermal Performance
• Class Leading CFD Driven & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clockable Actuator Housing
• 45mm V-Band Fitment
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• 17-7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps

Supplied with

• GenV Wastegate Unit
• All Spring Included in Box
• Wastegare Pre-fitted as per description
• GenV SS316 Valve Seat
• Inlet & Outlet Weld Flanges
• Inlet & Outlet V-Bands
• Locking Collar Tool
• 4 x 1/8 NPT plugs
• 2 x 1/8 NPT Hose Tail Fittings
• Turbosmart Decal
