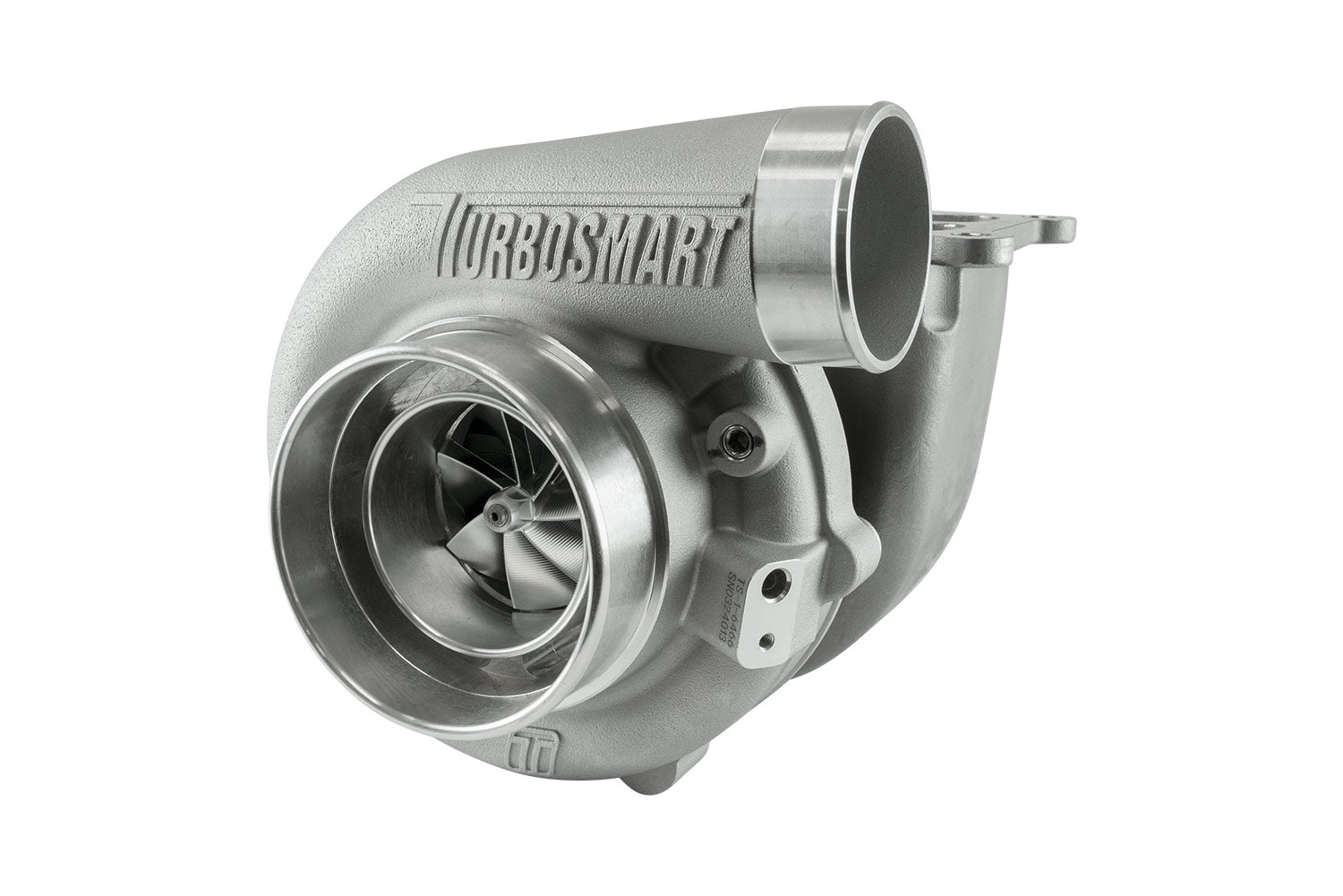

TS-1 Turbocharger 6466 T4 Divided 1.00AR Externally Wastegated

TS-1 Turbocharger 6466 T4 Divided 1.00AR Externally Wastegated
SKU: TS-1-6466B-D4100E

Smaller, lighter and faster - the Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

 The TS-1 series are oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high-performance levels at lower shaft speeds. It is mated with a unique turbine wheel to provide power at high loads and maintain flow.

The TS-1 turbocharger series has taken an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines while being smaller, lighter, and faster in response than other solutions on the market.

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 splitter wheels

• Lightweight 310s stainless steel investment cast turbine housings

• Lightweight, Aluminium compressor covers

• CFD-driven designed housings for optimal A/R’s and flow

• T14 Inconel turbine wheel for extreme EGT’s

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated Iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: T4 Divided Flange

• Turbine Exducer: 66mm

• Turbine AR: 1.00

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 750-930HP

Supplied with

• 1 x Turbosmart Performance Turbocharger
• 1 x Weld Flange (Turbine outlet)
• 1 x V-Band Clamp (Turbine outlet)
• 1 x Oil drain gasket
