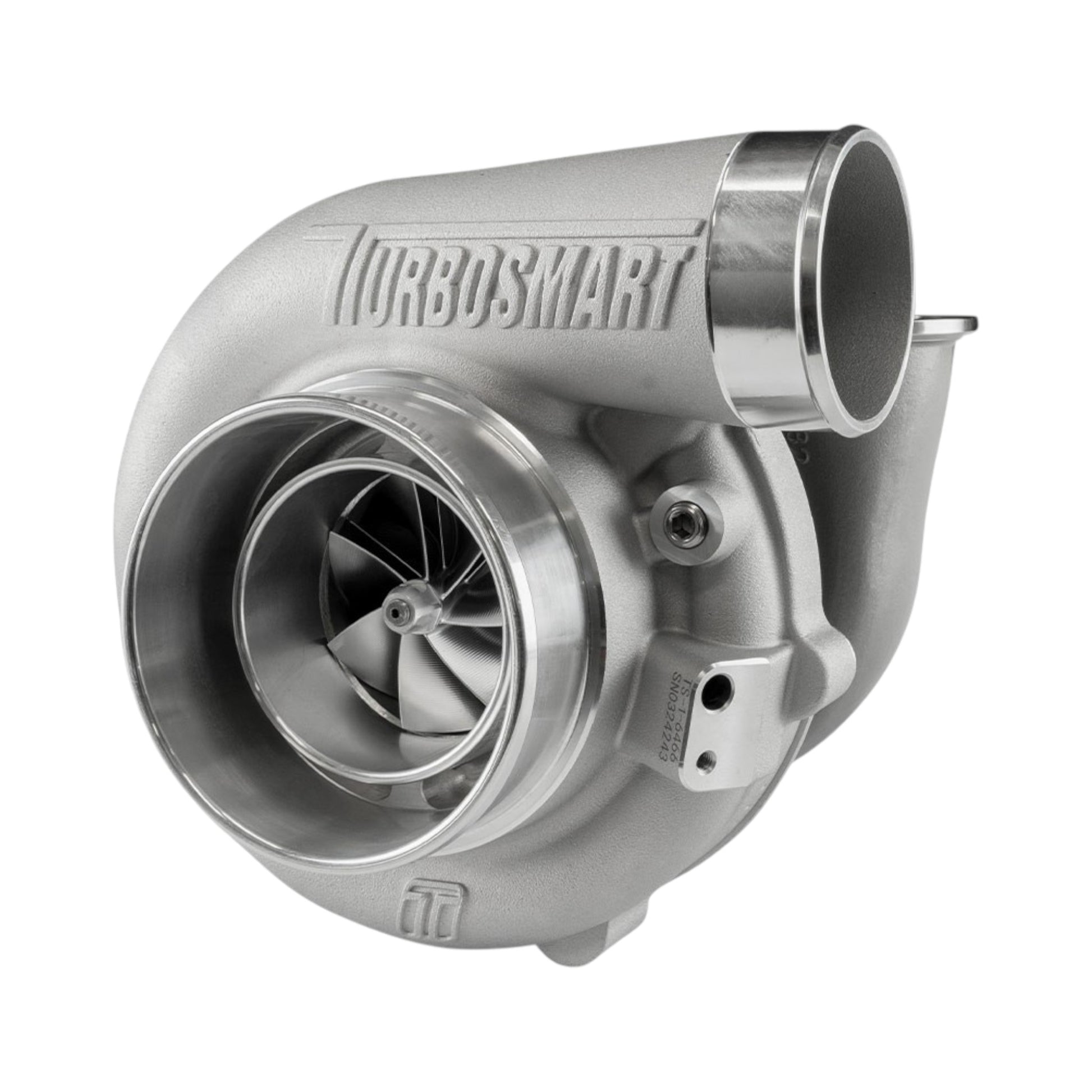

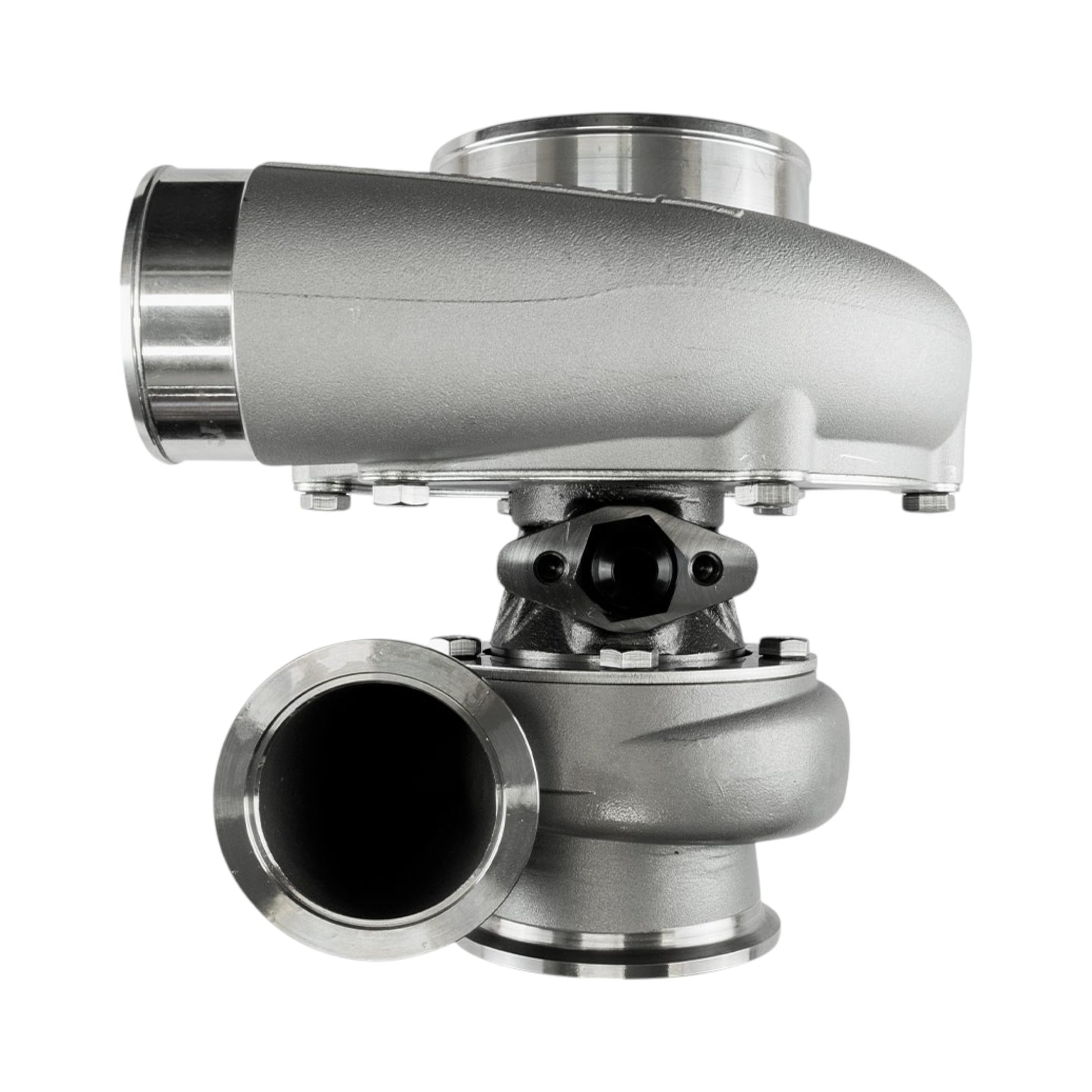

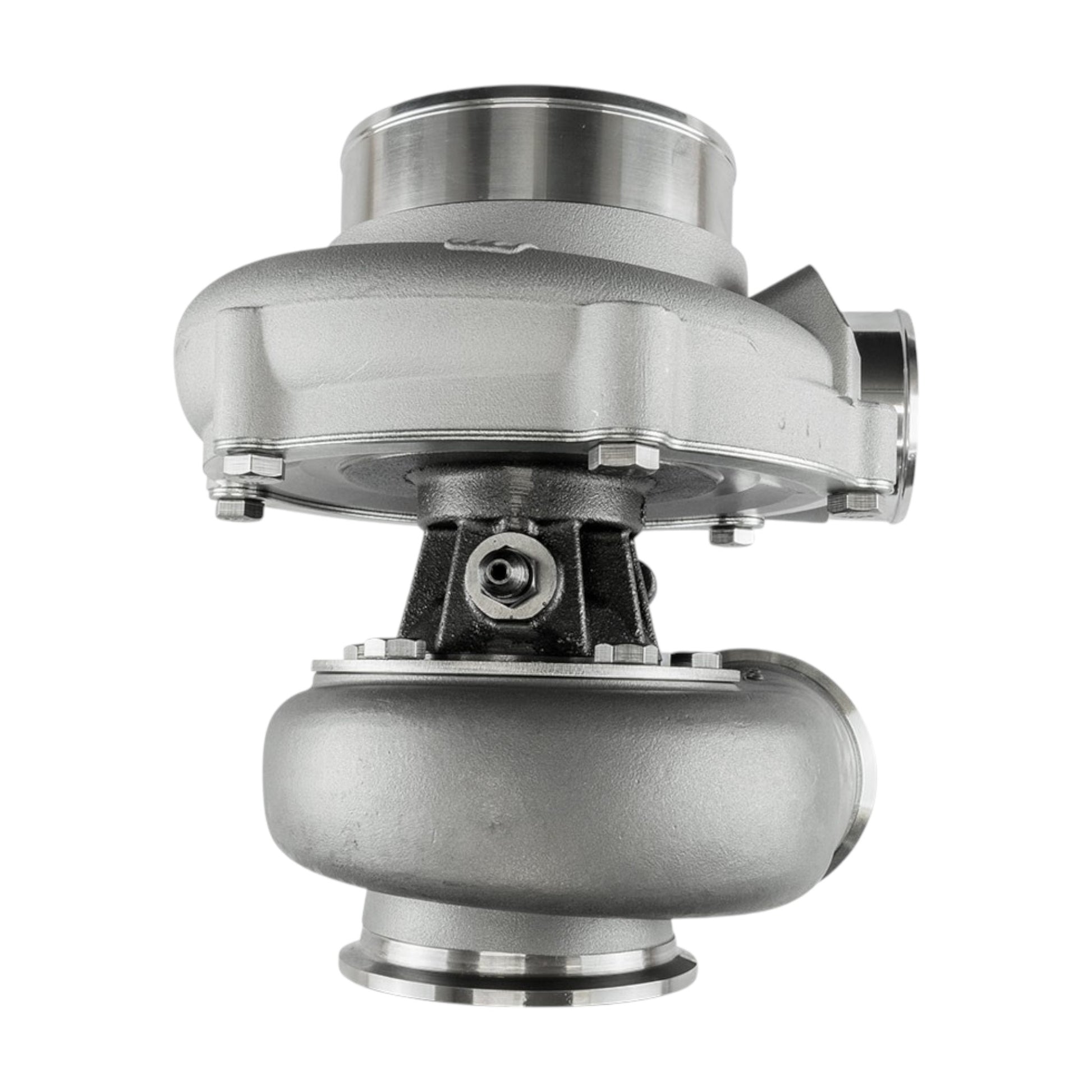

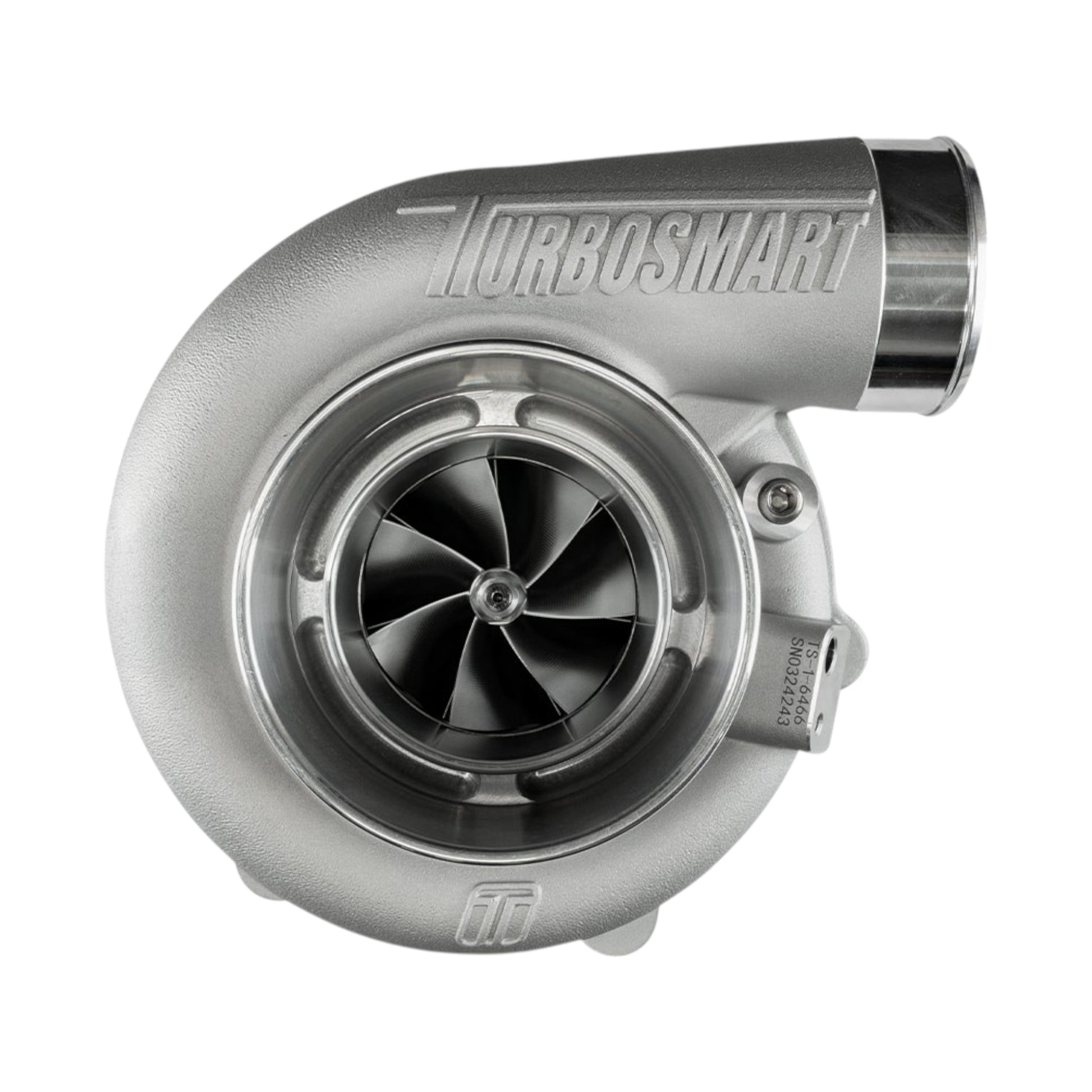

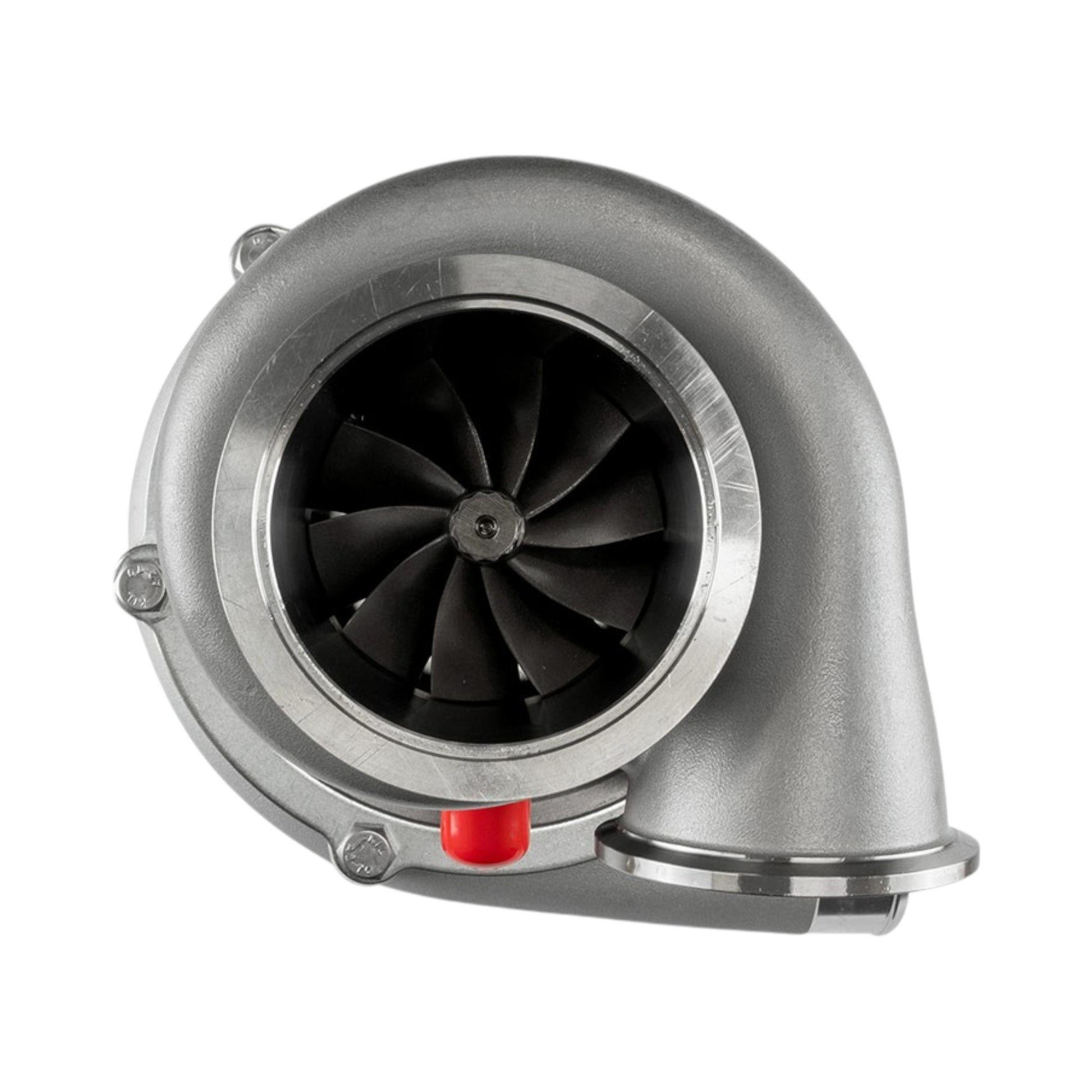

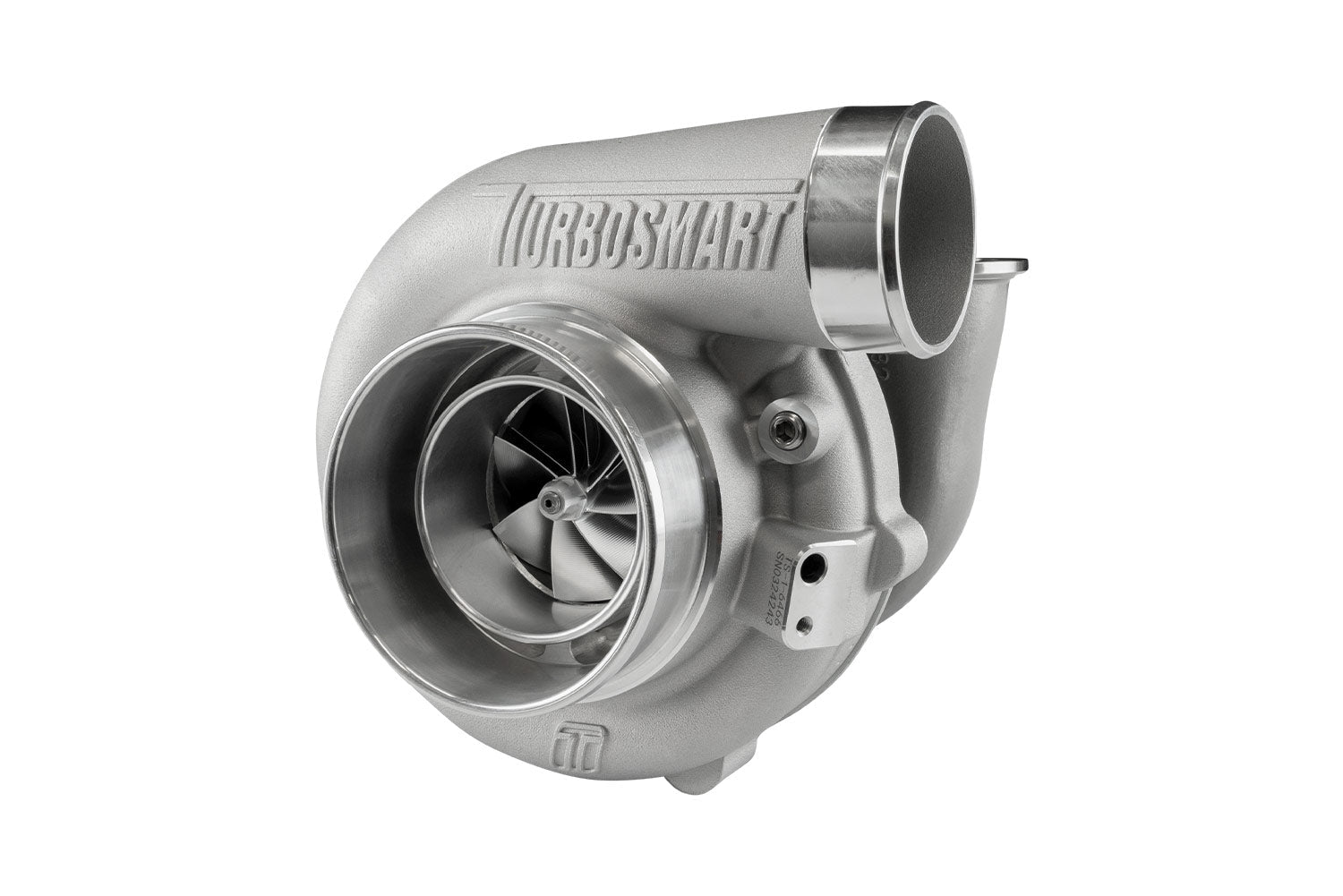

TS-1 Performance Turbocharger 6466 V-Band 1.07AR Externally Wastegated

TS-1 Performance Turbocharger 6466 V-Band 1.07AR Externally Wastegated
SKU: TS-1-6466B-VB107E

Smaller, Lighter, & Faster—The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.

The TS-1 series are oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-1 turbocharger series has taken an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines while being smaller, lighter, and faster in response than other solutions on the market.

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 splitter wheels

• Lightweight 310s stainless steel investment cast turbine housings

• Lightweight, Aluminium compressor covers

• CFD-driven designed housings for optimal AR’s and flow

• T14 Inconel turbine wheel for extreme EGT's

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated Iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66mm
• Turbine AR: 1.07
• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 750-930HP

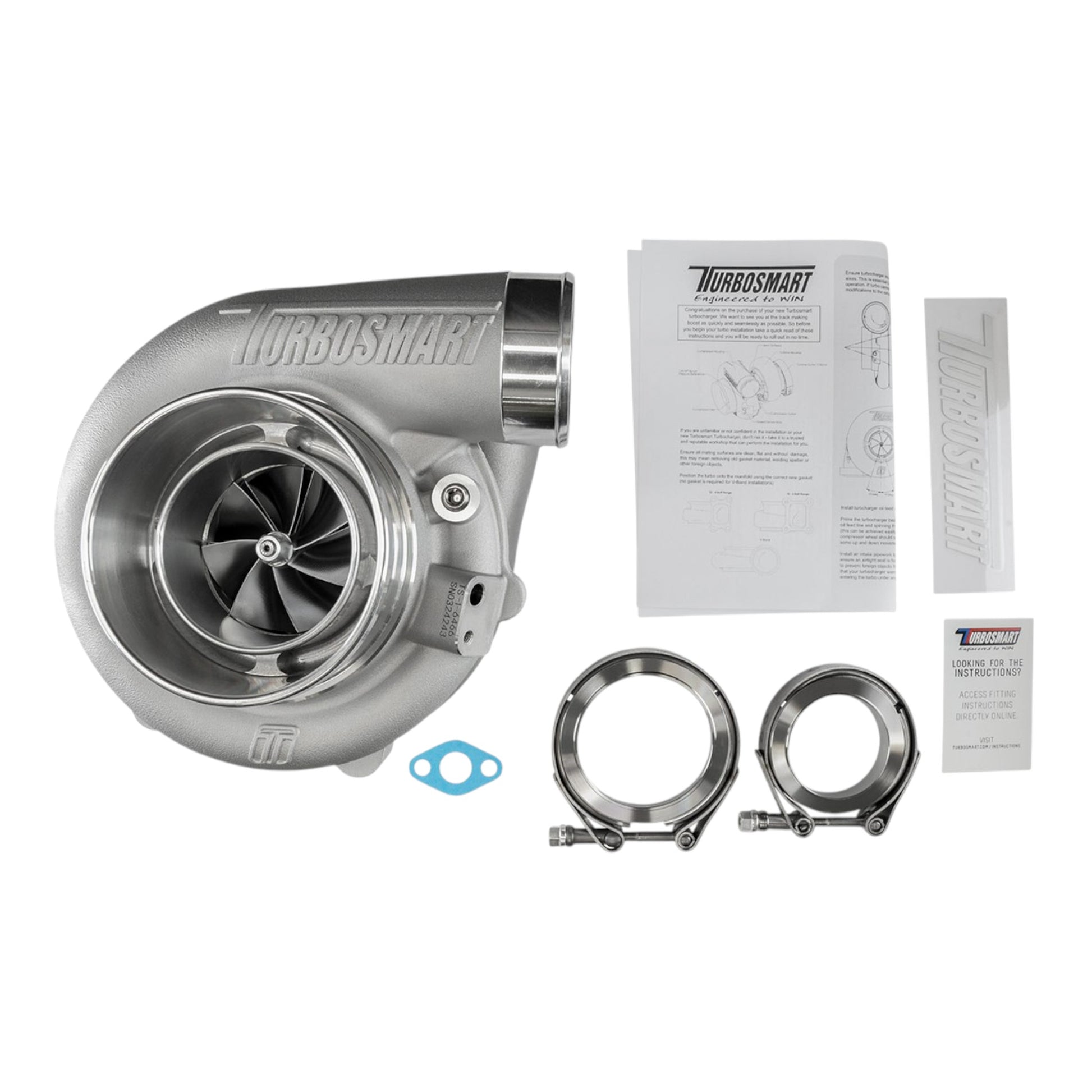

Supplied with

• 1 x Turbosmart Performance Turbocharger
• 2 x Weld Flanges (Turbine Inlet and Outlet)

• 2 x V-Band Clamps (Turbine Inlet and Outlet)

• 1 x Oil drain gasket
