SCH10/40 Steampipe Elbows & Tee's

Our steampipe elbows are what we use for building custom turbo manifolds

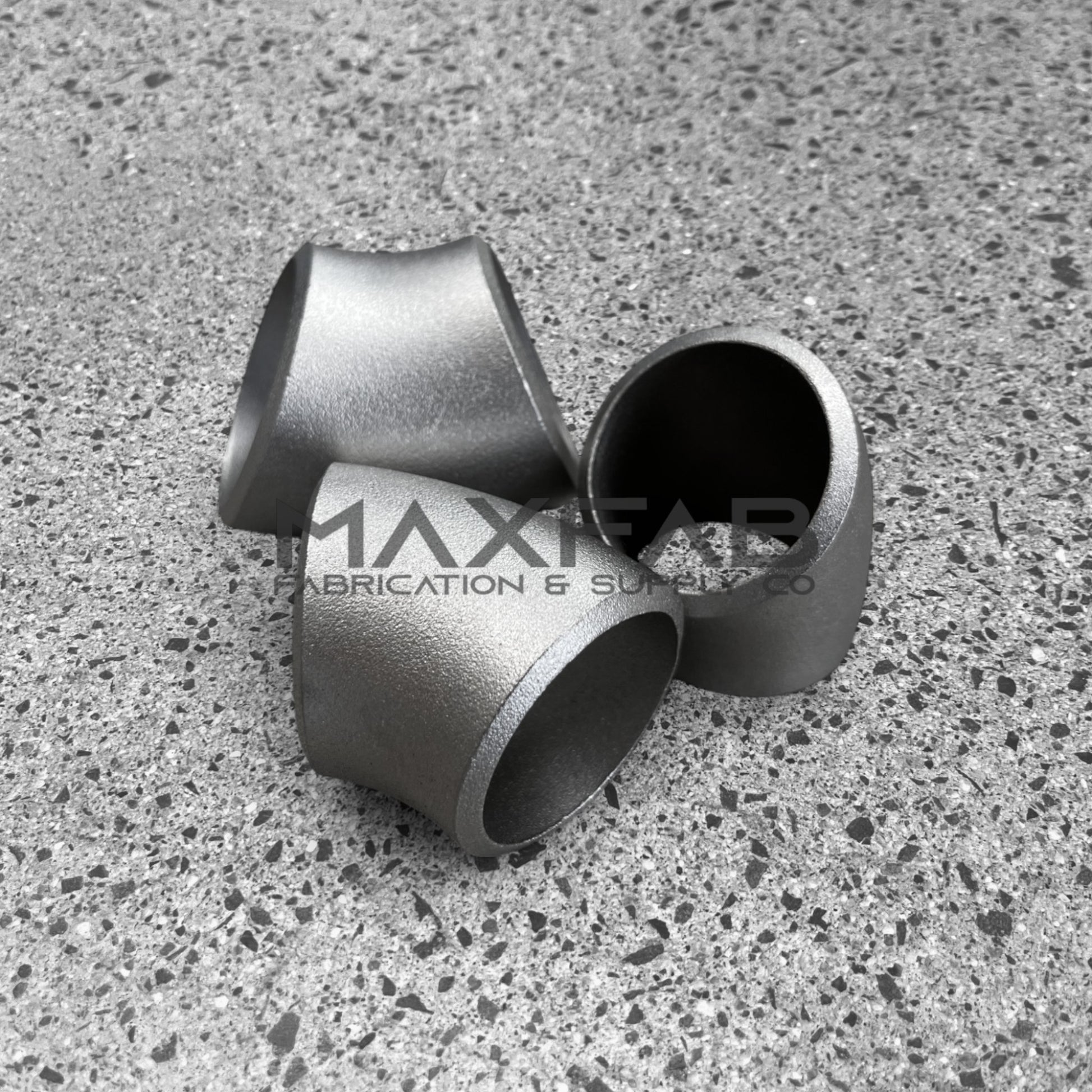

Available in SS304 SCH10, - 304 Stainless Steel, Schedule 10,  ASTM A403

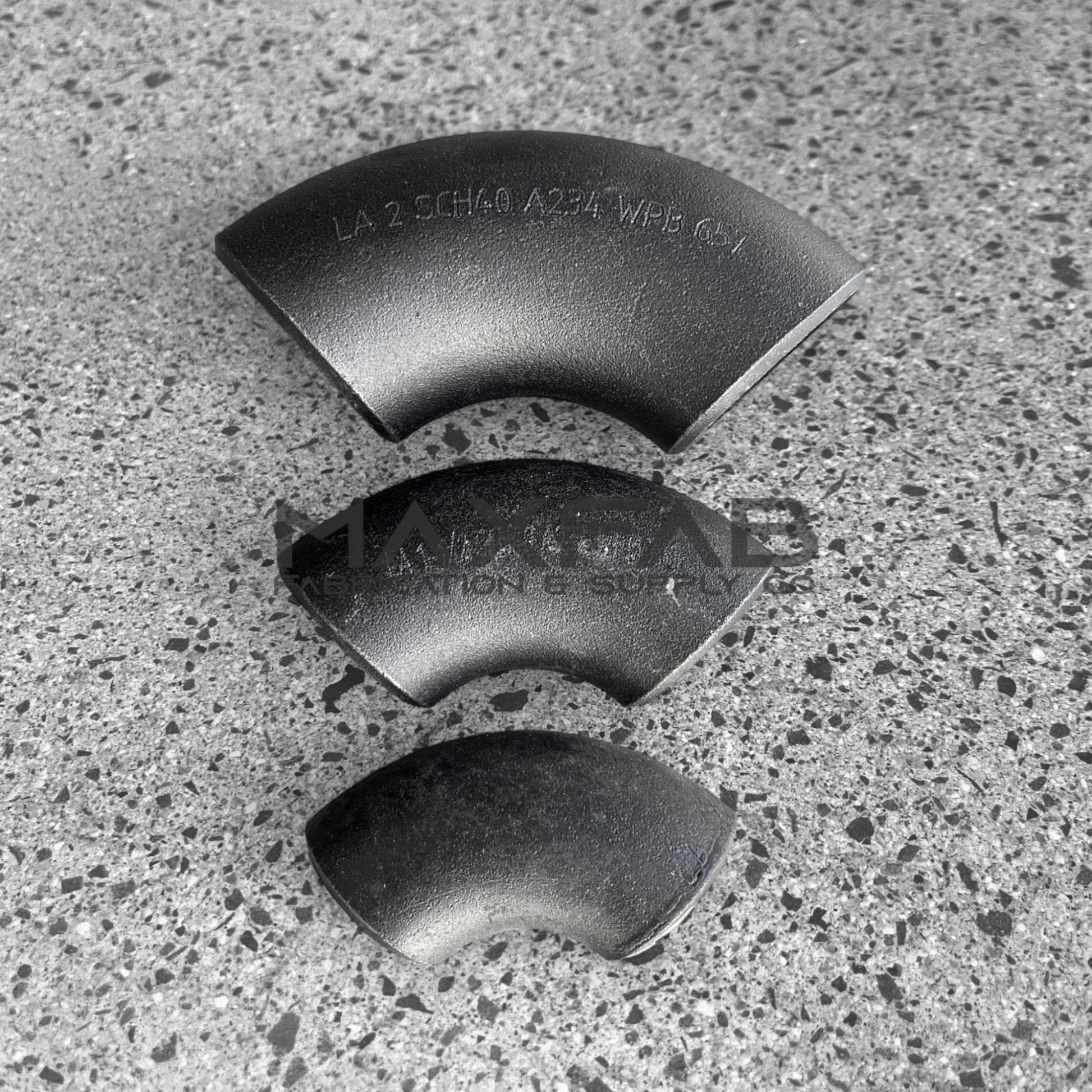

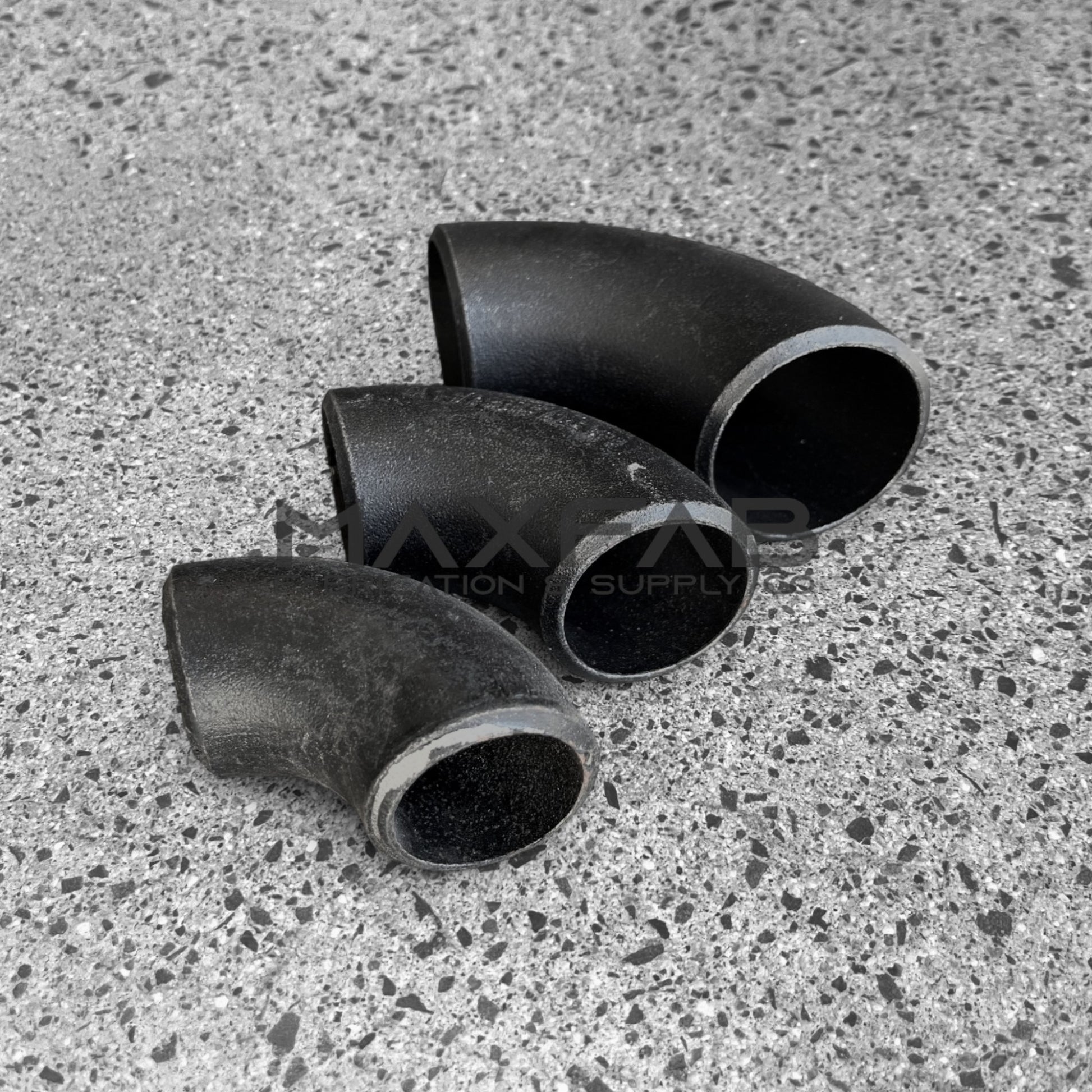

Mild Steel SCH40 - Carbon Steel, Schedule 40 ASTM A234

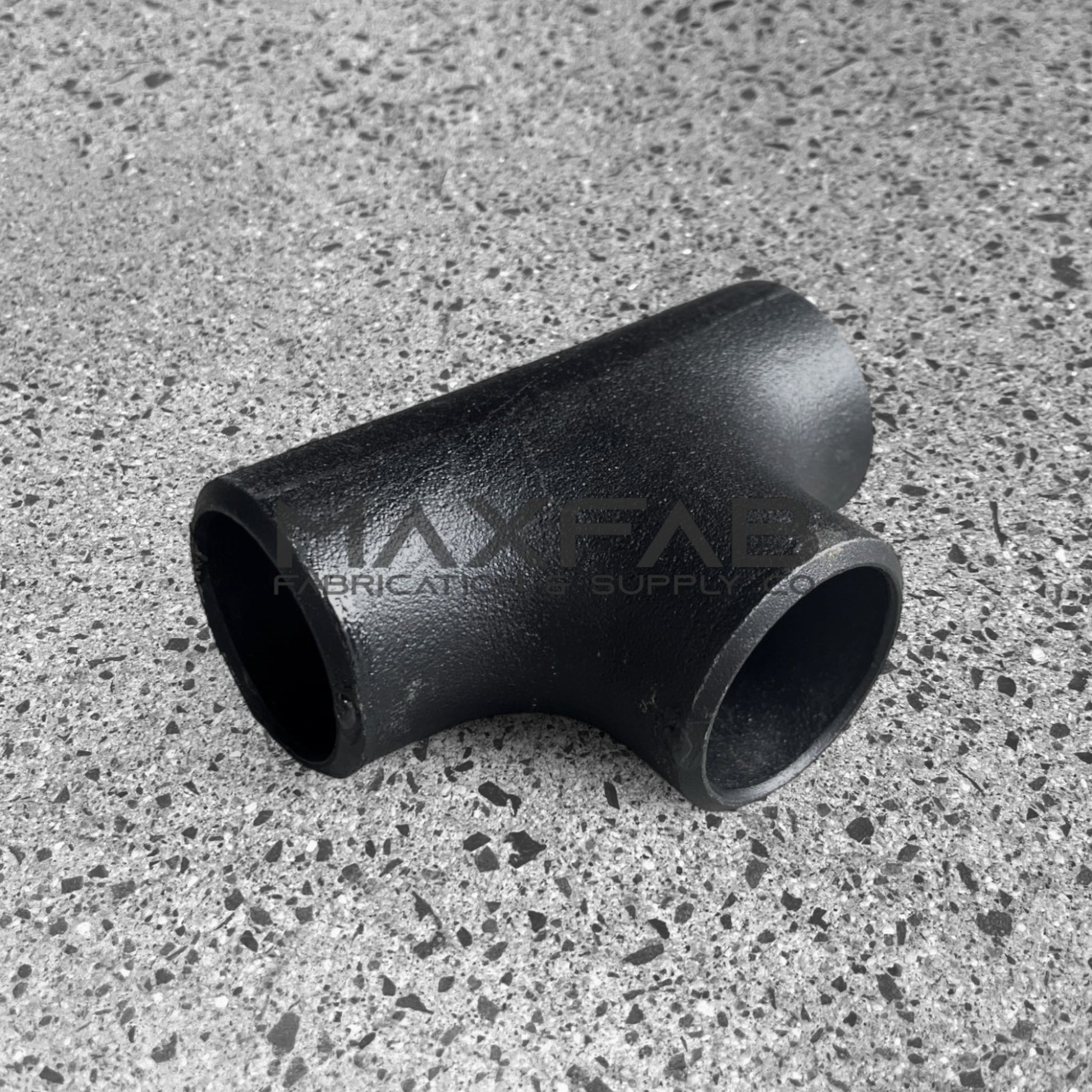

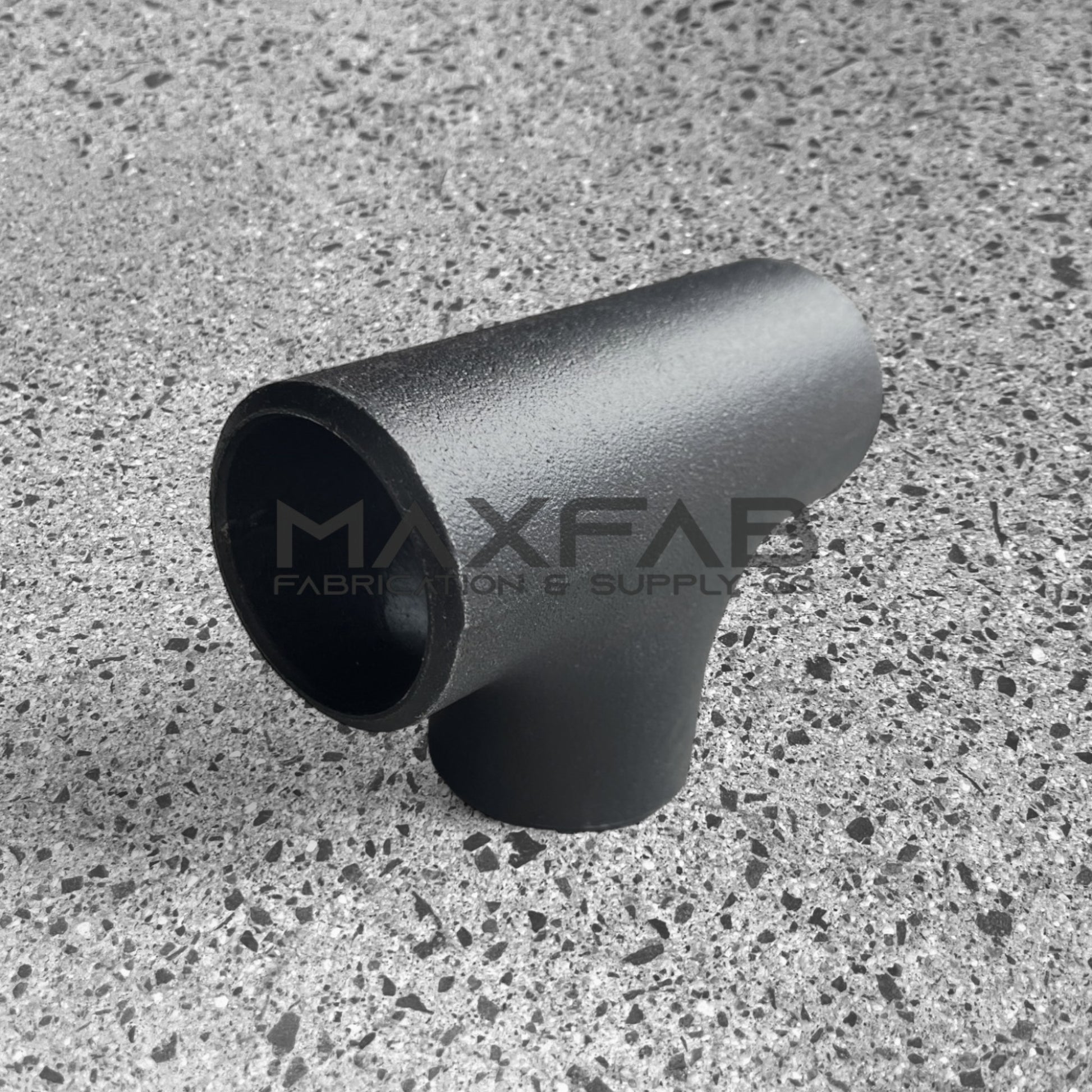

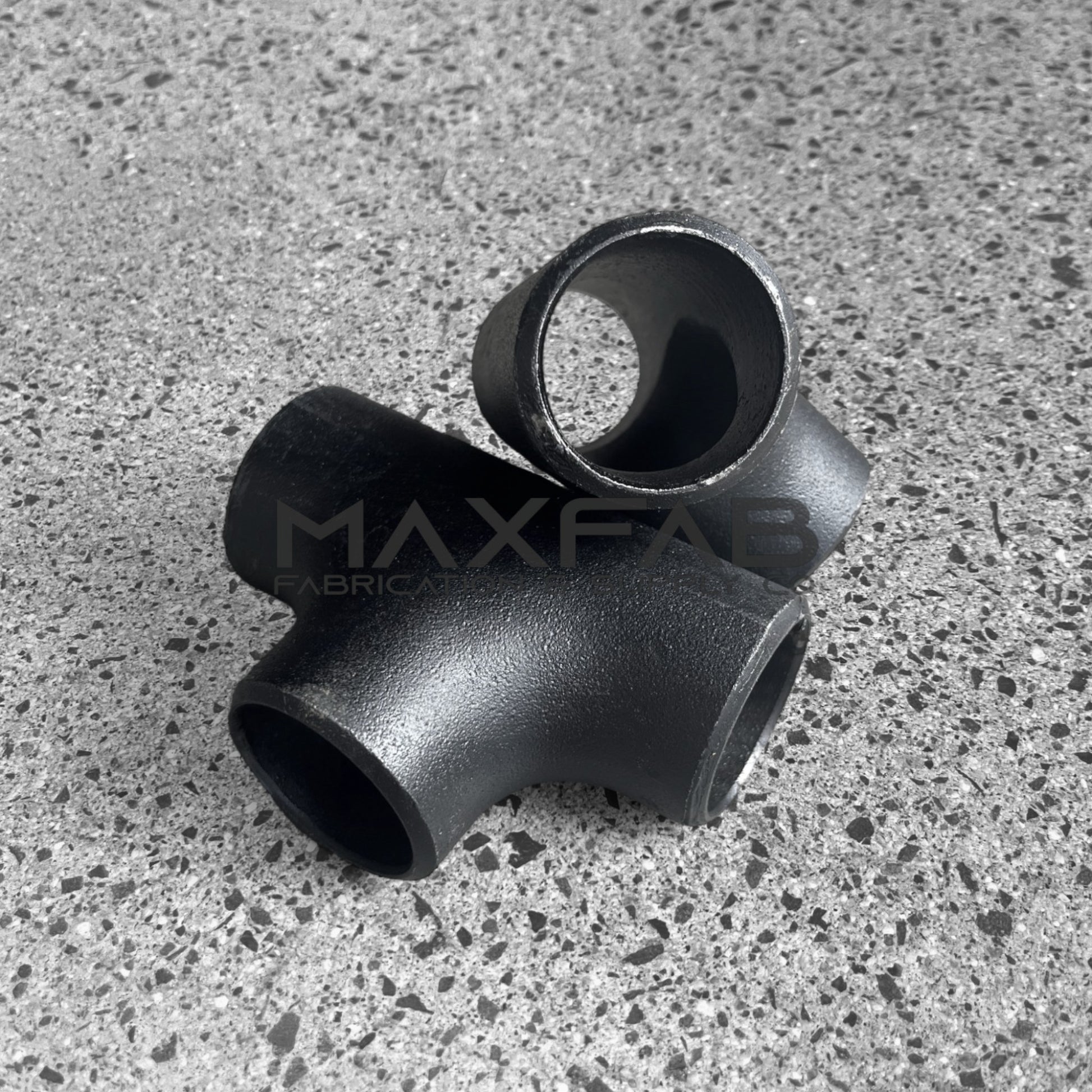

The Tee's are currently only available in Mild Steel

Thick wall pipe for fabrication of turbo manifolds. Made from carbon (mild) steel SCH40 or stainless steel SCH10. Commonly referred to as schedule pipe, steam tube or line pipe

32NB - 32mm, 1-1/4"

40NB - 40mm, 1-1/2"

50NB - 50mm, 2"

These are measured on the ID, and referred to as nominal bore NB

SIZING

32NB Mild Steel - Schedule 40

- Outside Diameter - 42mm

- Inside Diameter - 35.4mm

- Wall Thickness - 3.5mm

40NB Mild Steel - Schedule 40

- Outside Diameter - 47.4

- Inside Diameter - 40.2mm

- Wall Thickness - 3.8mm

50NB Mild Steel - Schedule 40

- Outside Diameter - 61mm

- Inside Diameter - 52.4mm

- Wall Thickness - 4.4mm

32NB Stainless Steel -Schedule 10

- Outside Diameter - 42mm

- Inside Diameter - 36.4mm

- Wall Thickness - 2.7mm

40NB Stainless Steel- Schedule 10

- Outside Diameter - 47.4mm

- Inside Diameter - 41mm

- Wall Thickness - 3.1m

50NB Stainless Steel - Schedule 10

- Outside Diameter - 61mm

- Inside Diameter - 54.6mm

- Wall Thickness - 3.6mm

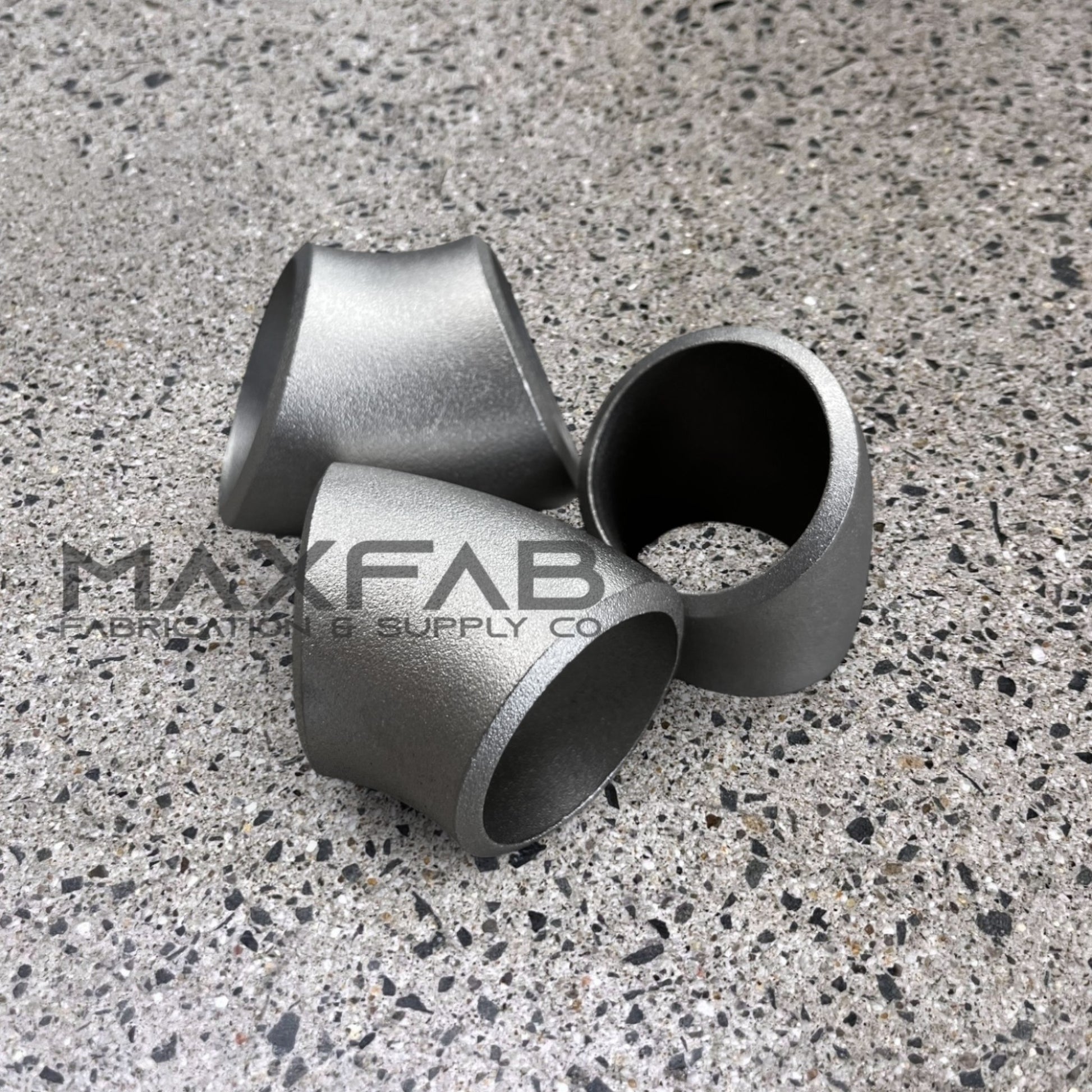

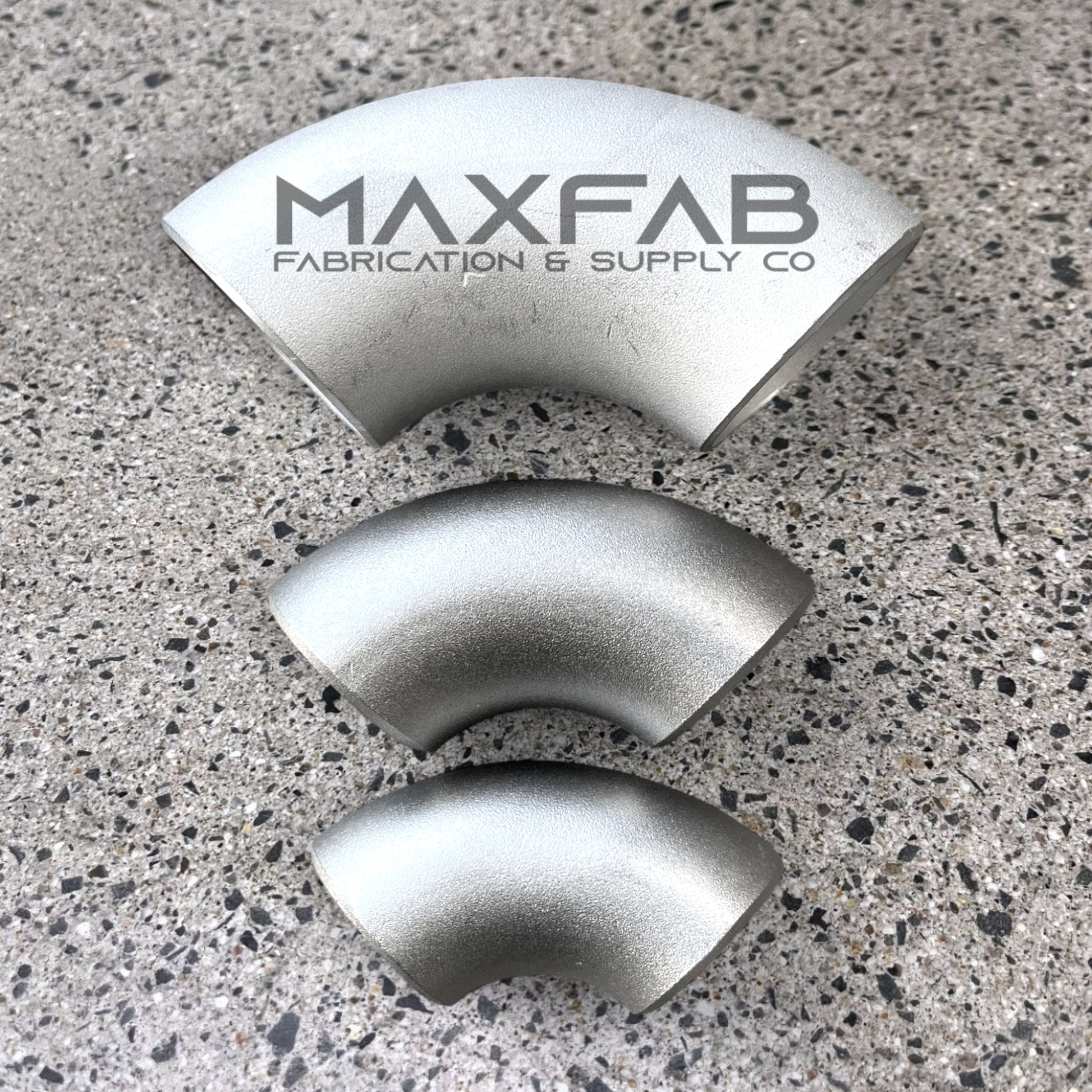

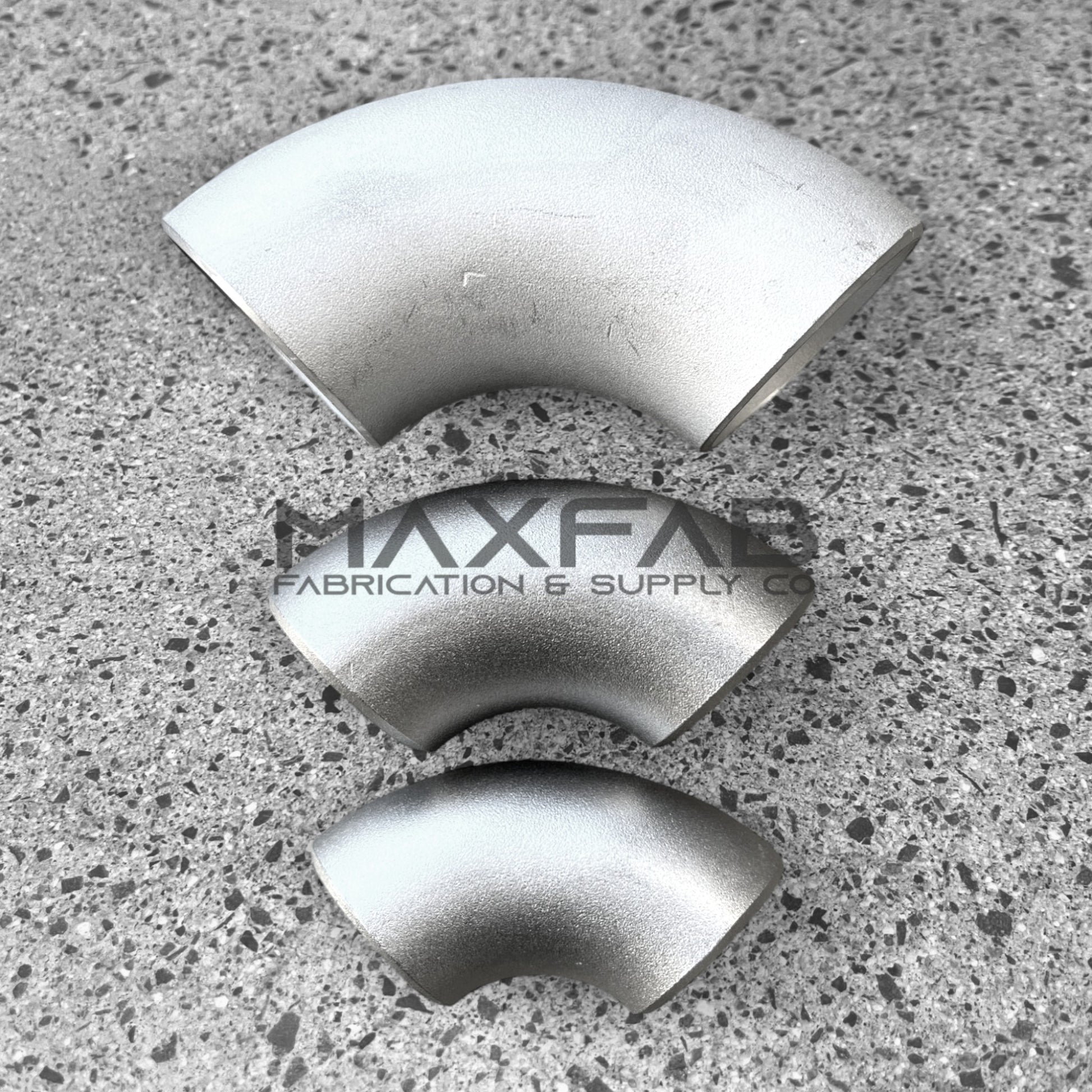

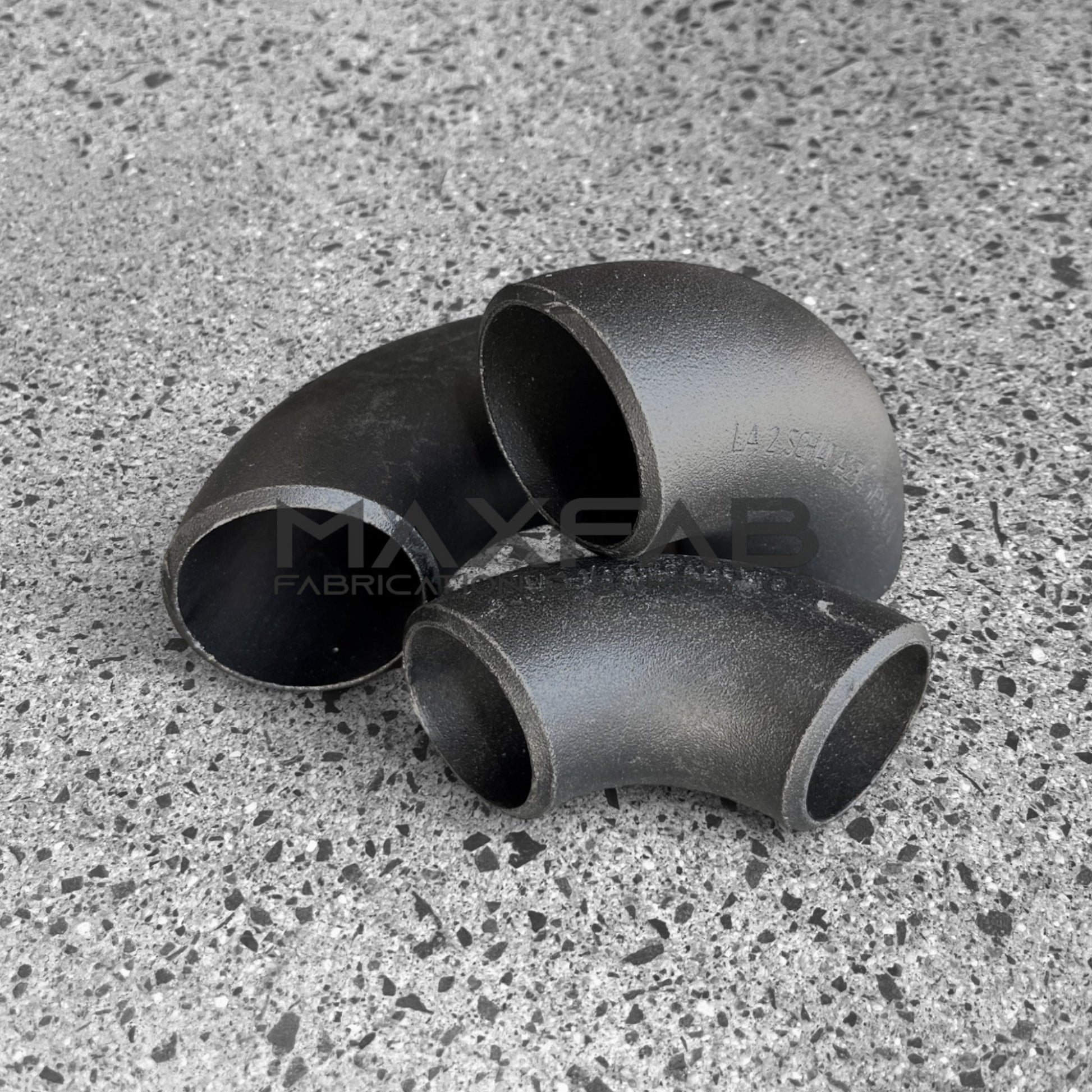

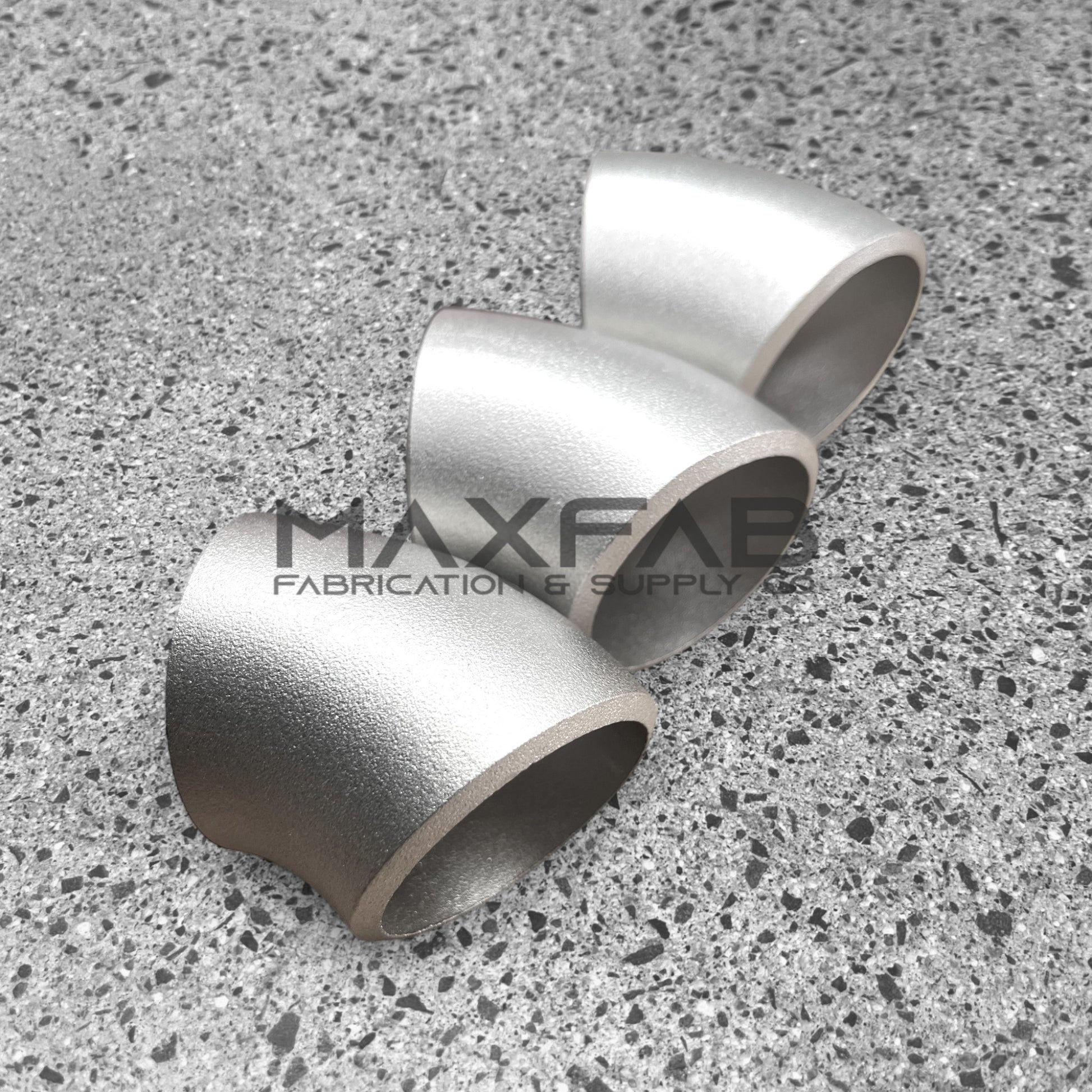

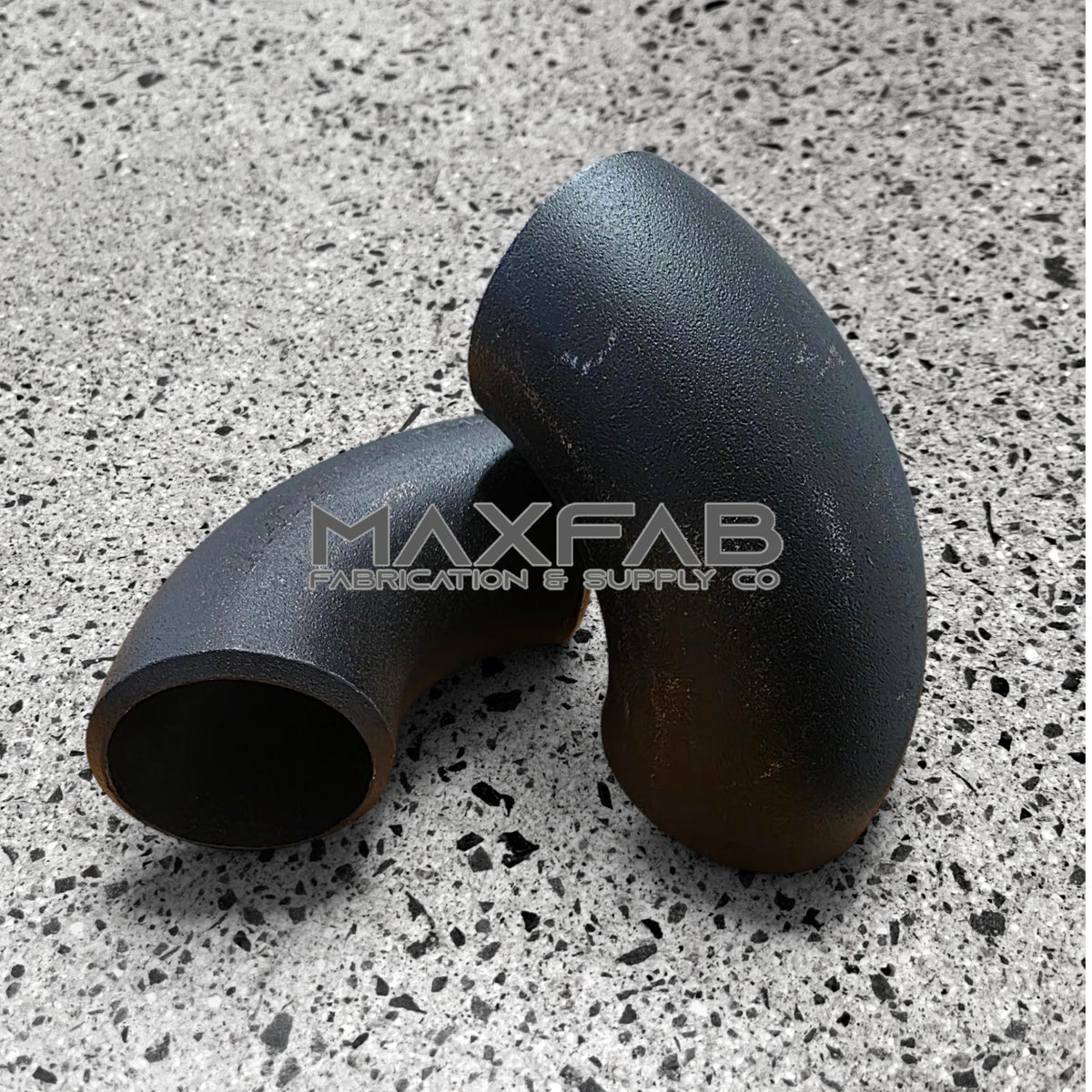

Steam tube elbows, weld elbows, steam pipe bends, waterpipe bend, these have many names. They are a formed elbow, with a heavy wall suitable to withstand turbo manifold applications
