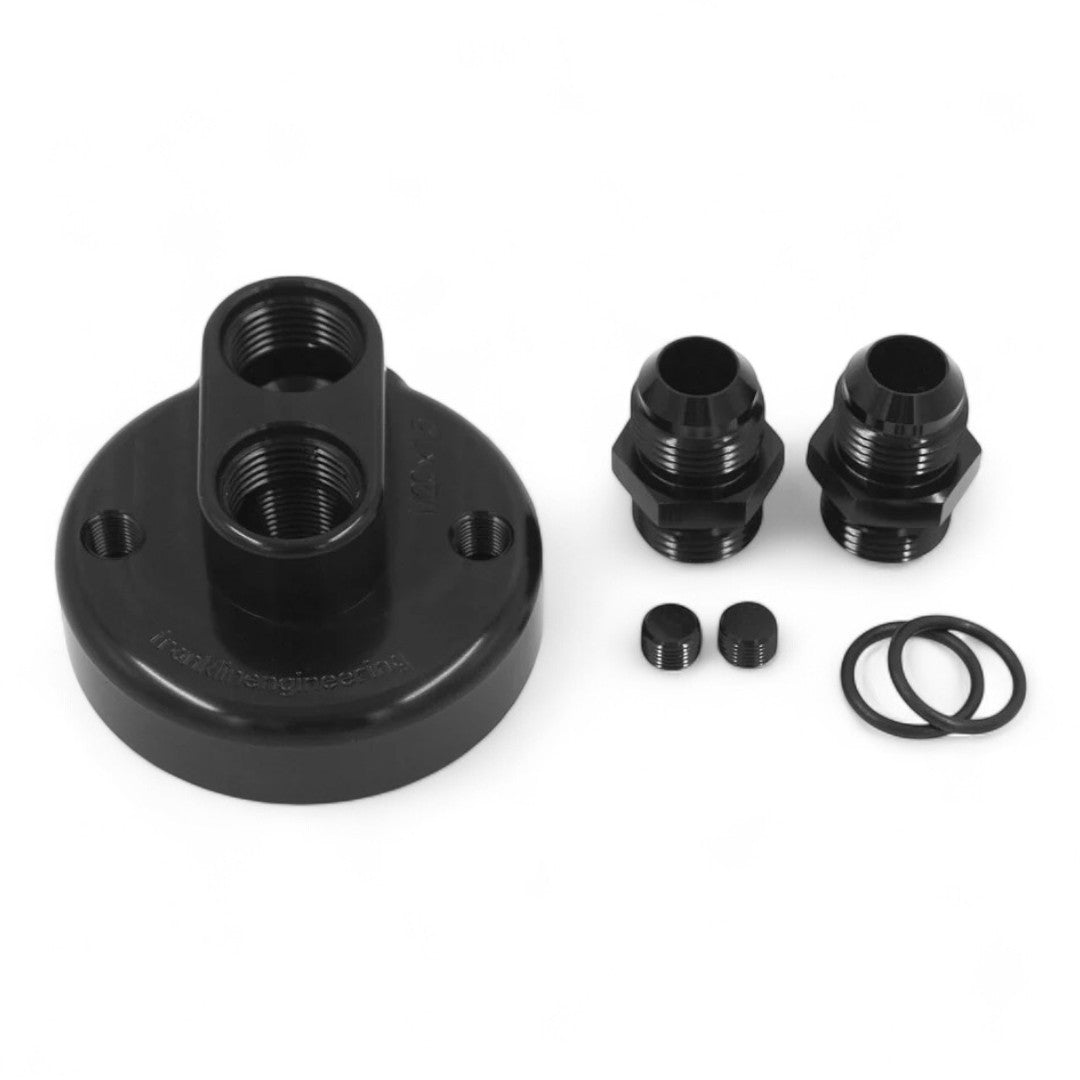

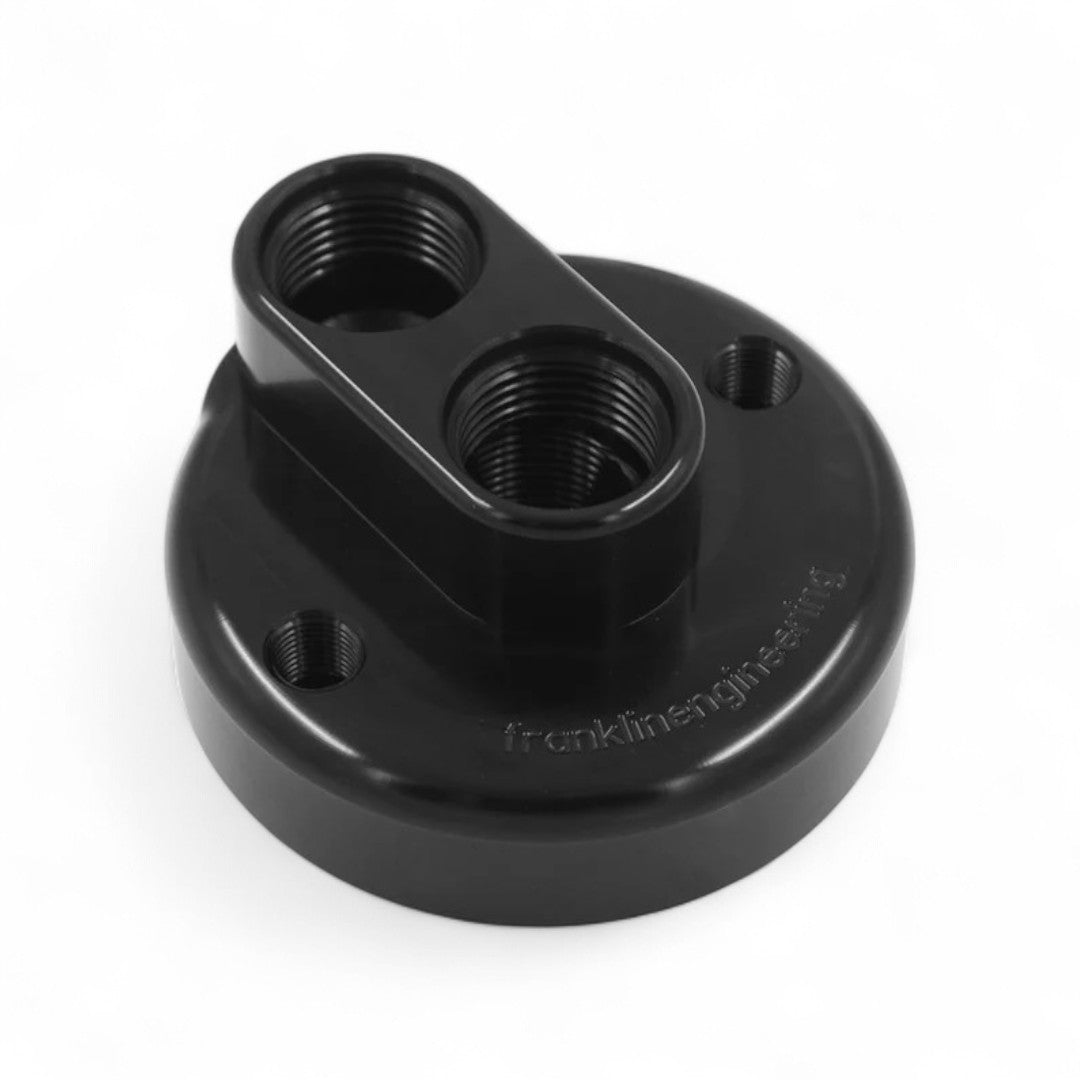

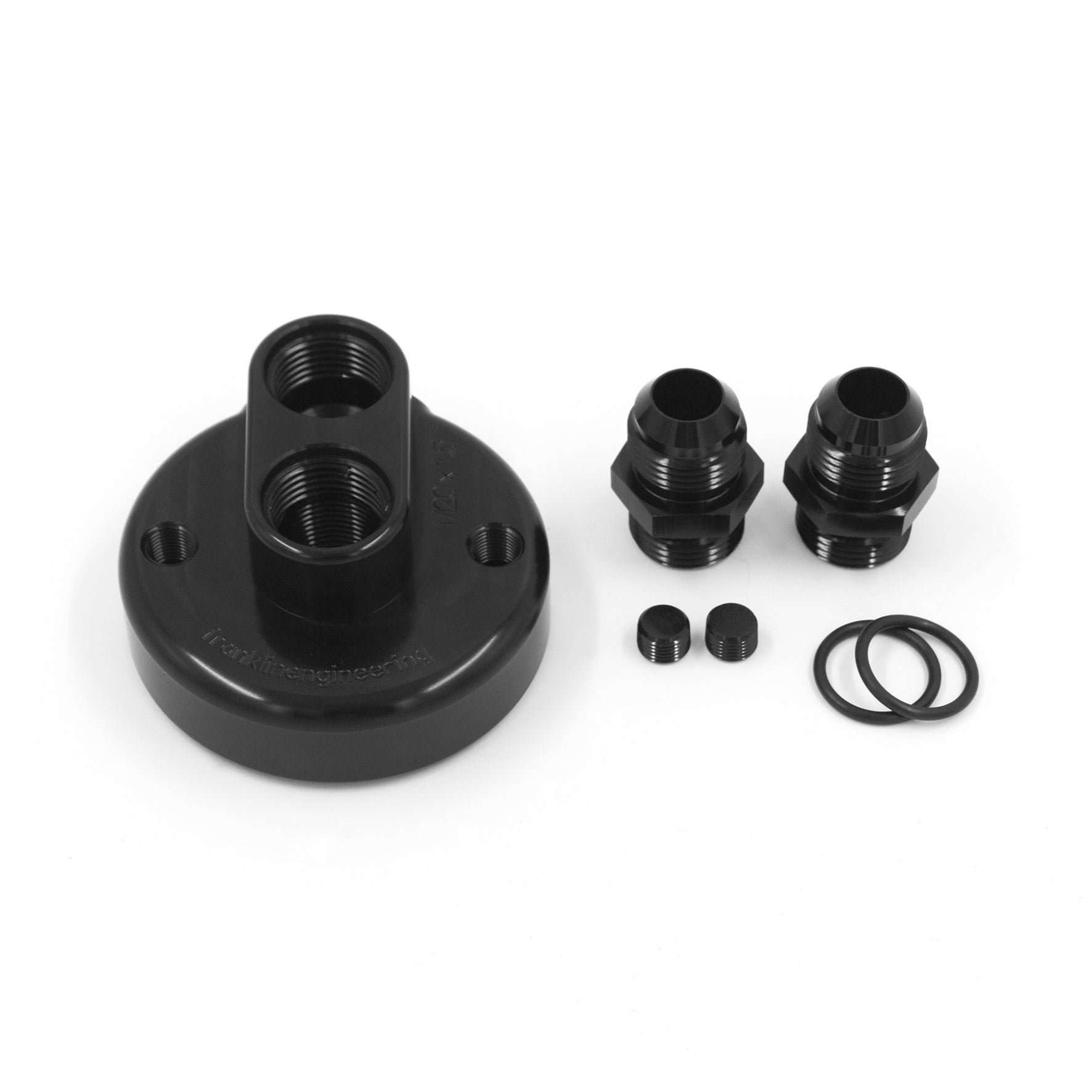

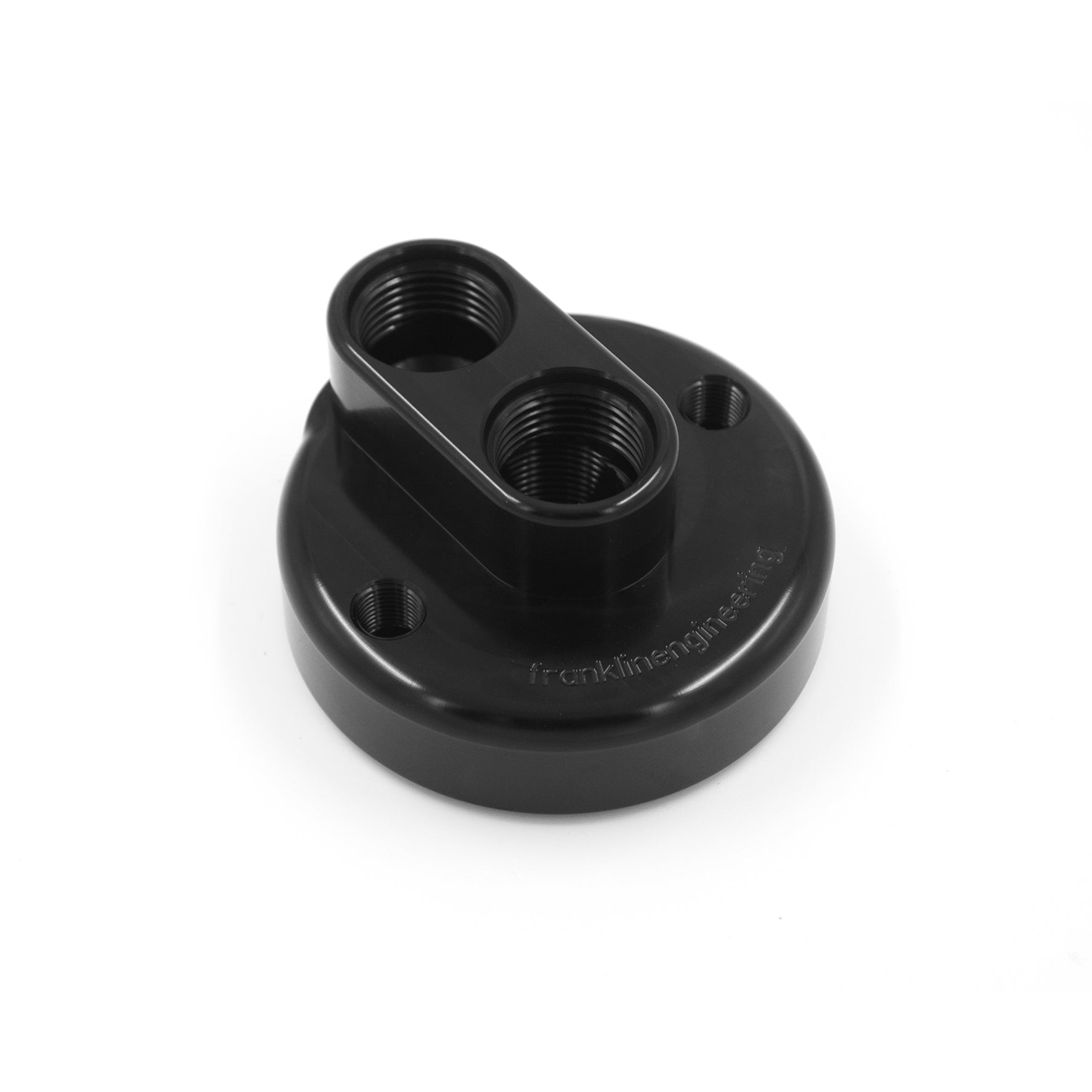

Oil Filter Relocation Block Fitting

Remote oil filter block fitting manufactured by Franklin Performance for plumbing a remote oil filter, making filter changes easier or where space is limited in the engine bay

This is a high quality product that has been designed and manufactured the the Franklin Performance factory in Napier, New Zealand. the product has many features to improve oil flow that you wont find on other remote filter block fittings

10AN sized ORB ports are provided for plumbing the engine oil to and from a filter mount. Two 1/8" NPT ports are also provided for filtered oil feeds to gauges or a turbo

The block adaptor is manufactured with either a 3/4" UNF or M20 x1.5 internal thread to screw on to the same location as your facotry oil filter. Please choose the correct adaptor you require

O-Ring inside diameter: 62mm

O-Ring outside diameter: 70mm

It is manufactured from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance
