Mazda Rotary Modular Steel Bell Housing - Tremec TKX/TKO

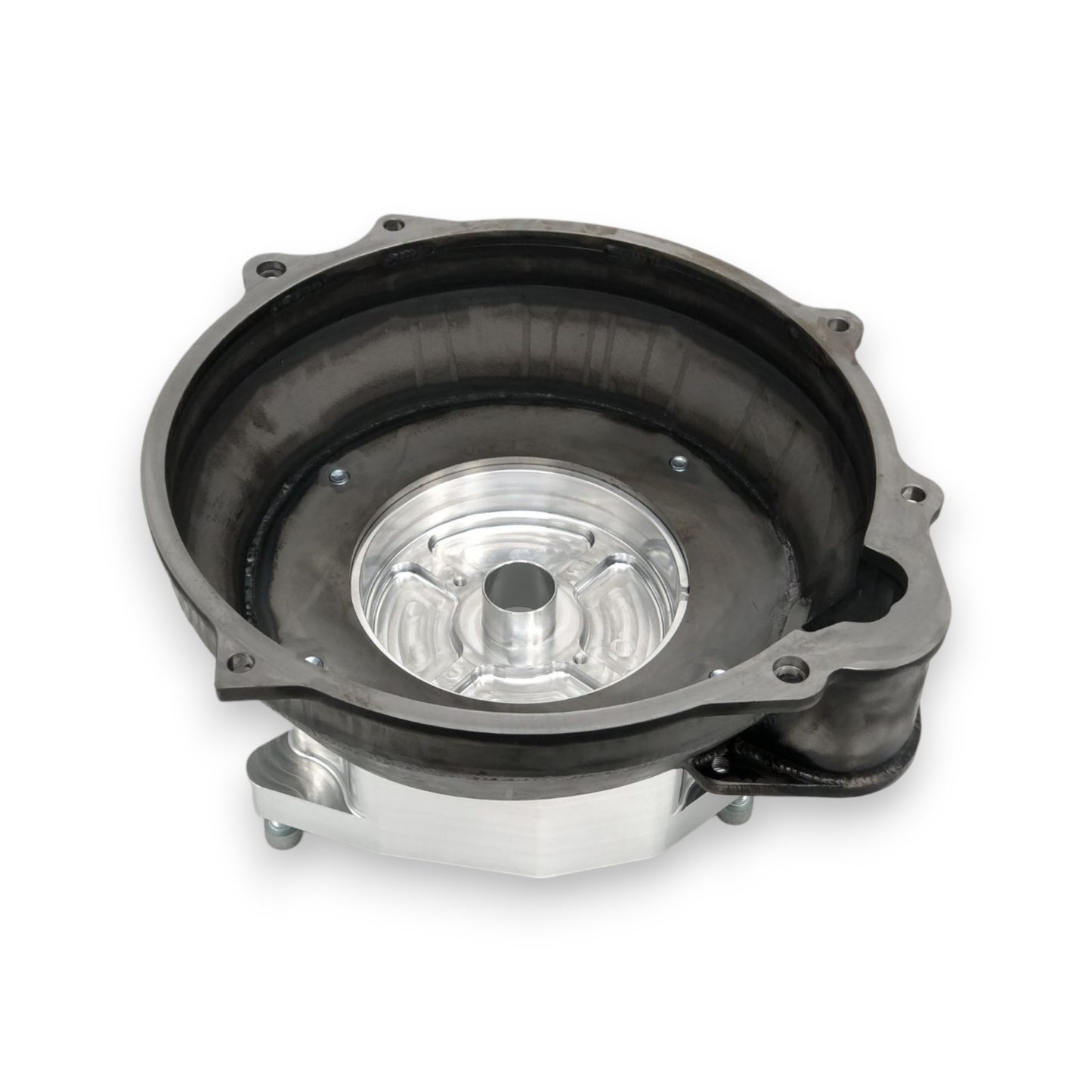

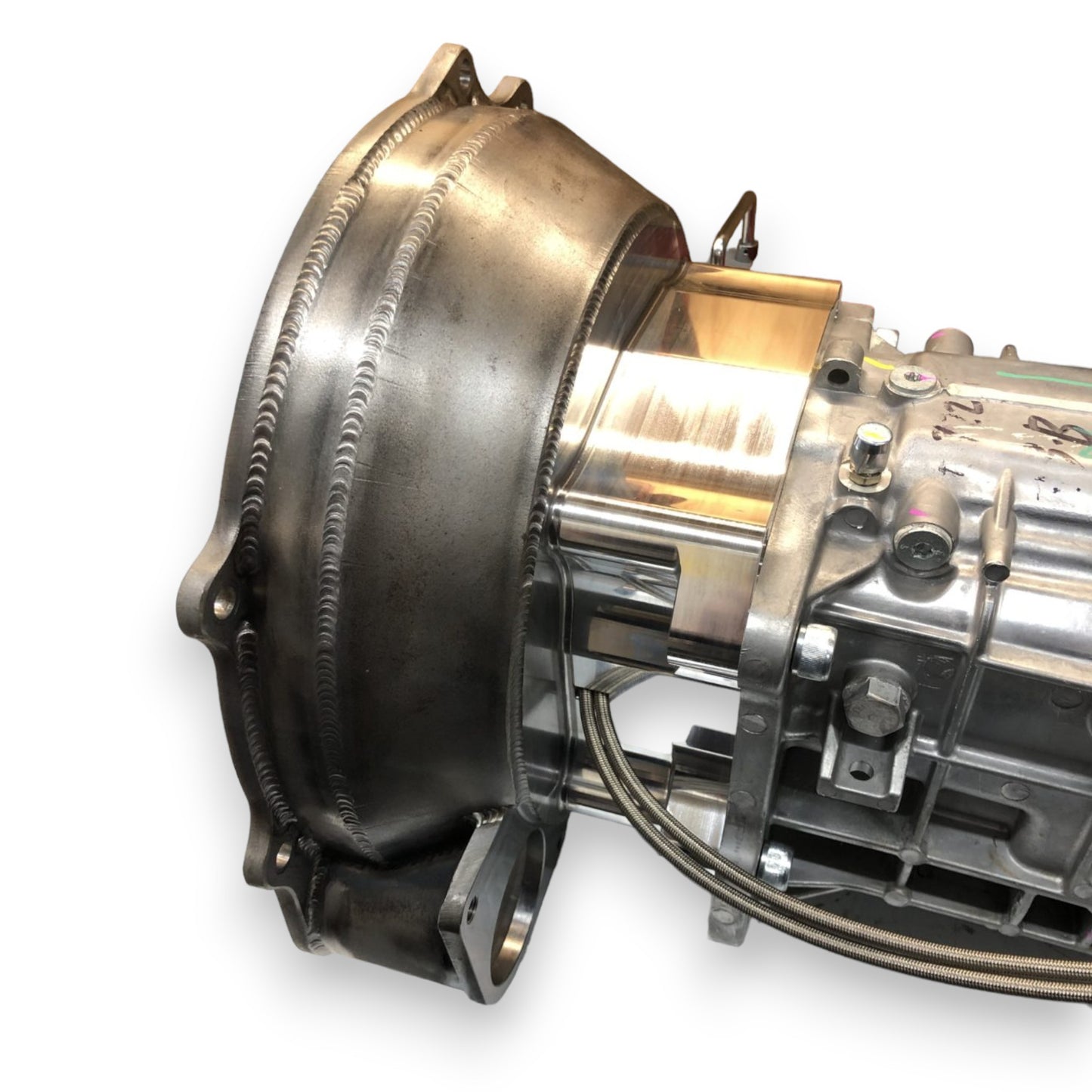

Green Brothers modular steel bell housing - direct bolt up to Tremec TKX / TKO and most other GM bolt pattern transmissions

• Bolts to any 12A, 13B, 20B billet rear plate (except twin distributor models)
• Slightly more compact in diameter vs stock FC bell housings
• Fabricated & CNC machined in-house from1/4 cold rolled steel plate &waterjet cut flanges

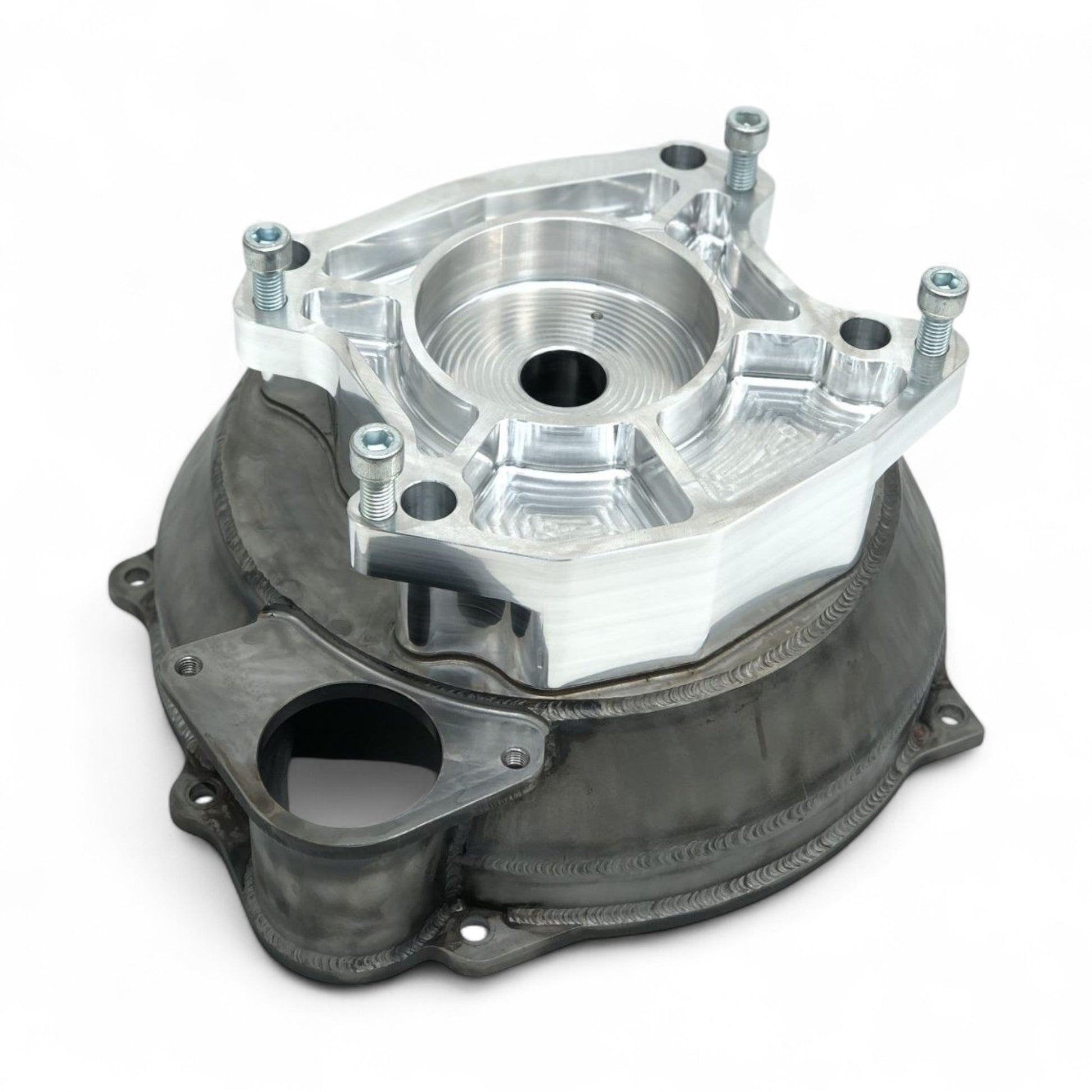

• Adapter is CNC machined in-house using 6061 T6 aluminium
• Adapter can be unbolted from the rear side, greatly simplifying in-car gearbox installation & removal
• Adapter can be swapped with any of our modular adapters
• Fits most common clutches included stock Mazda size. 7.2in single, twin and triple plate, 8in Direct Clutch and twin plate, 9.5in single plate
• Compatible with stock FC 1.2KW and 2.0KW starter motors
• Double lip input shaft seal

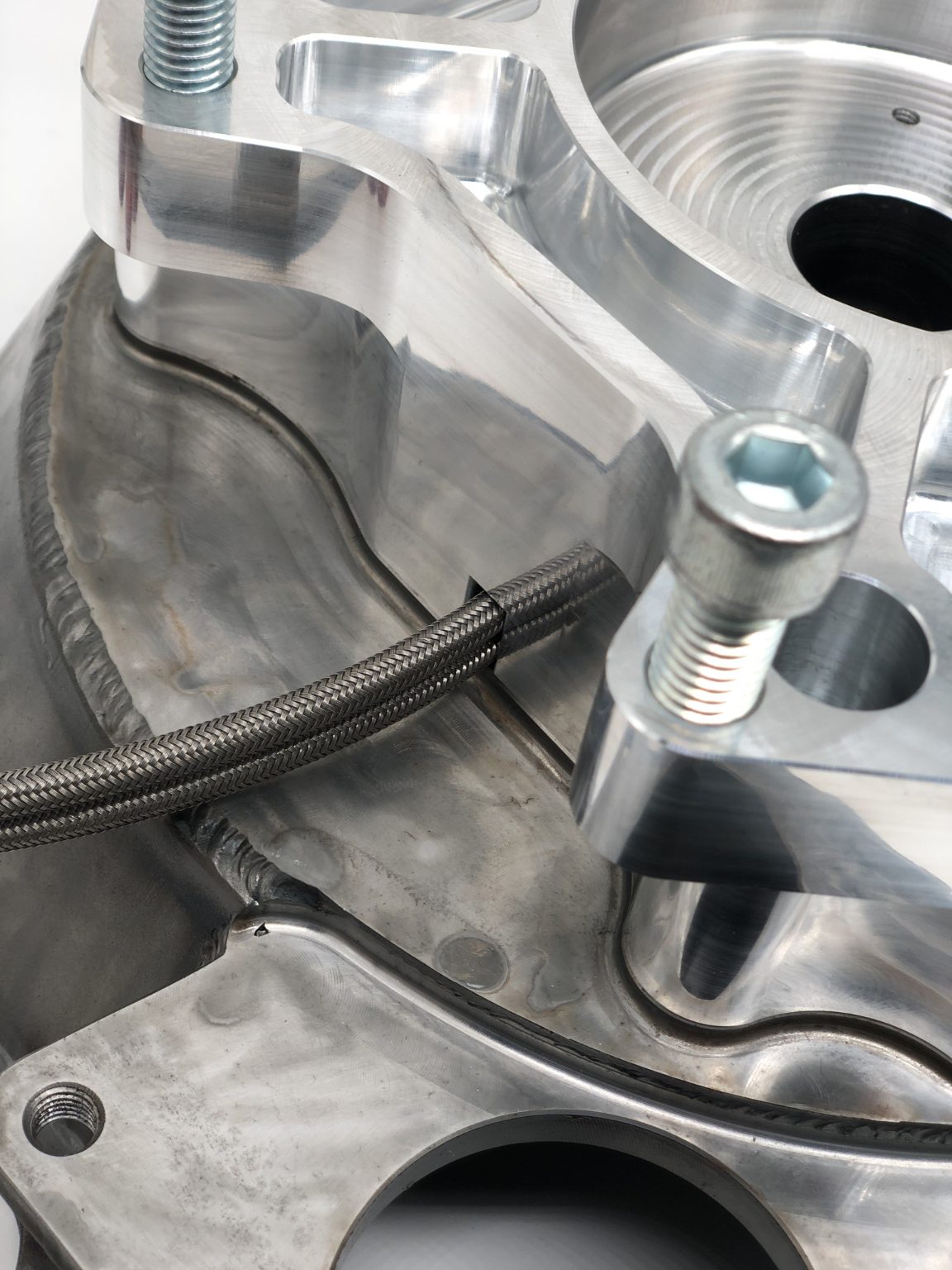

• All machining is done post welding. Alignment tolerance within 0.08mm
• Anti-rust Epiphos coated (can be painted over)
• Meets NZDRA, IHRA and ANDRA bell housing requirements
• No provision for clutch fork

NOT INCLUDED:

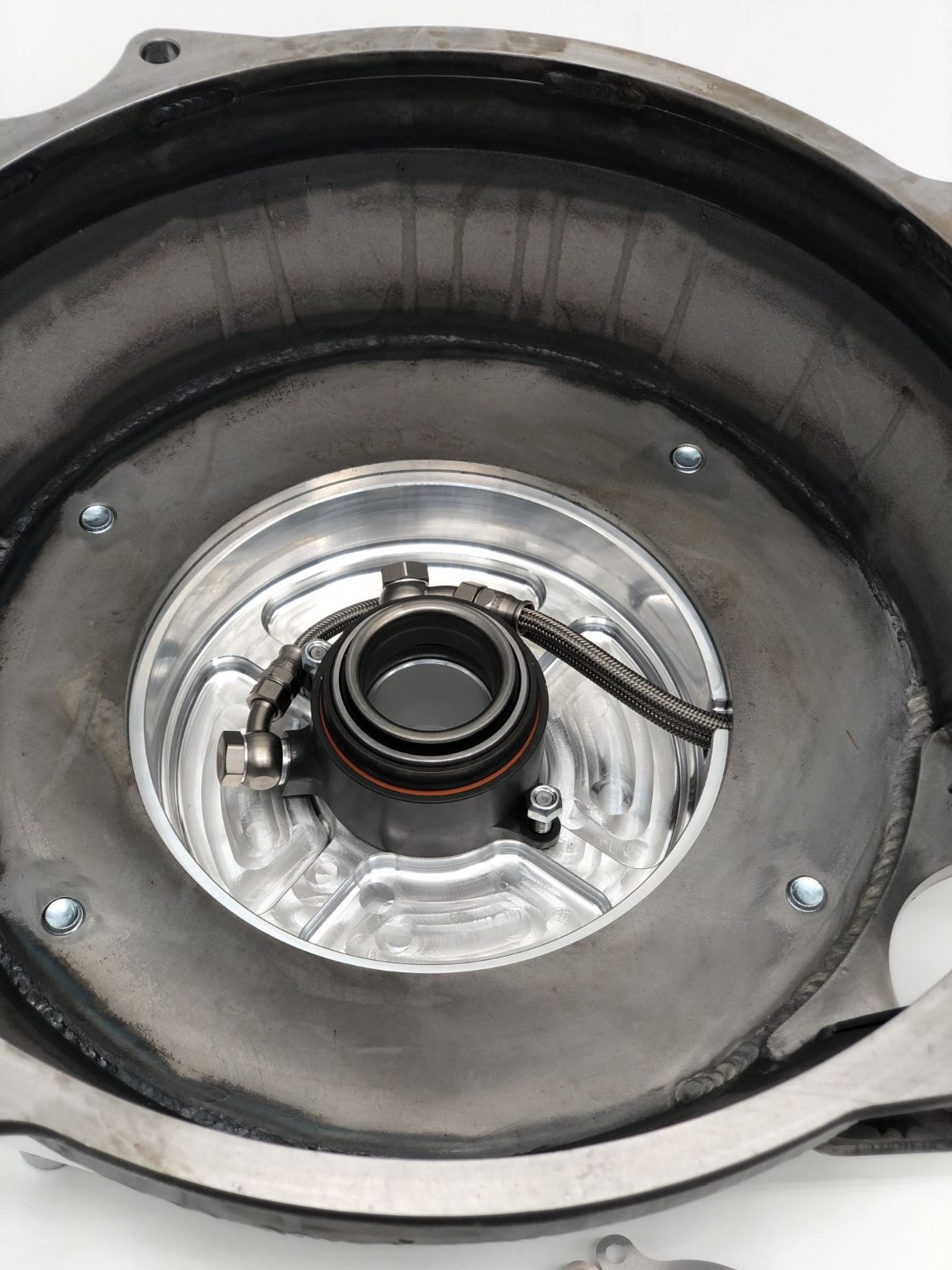

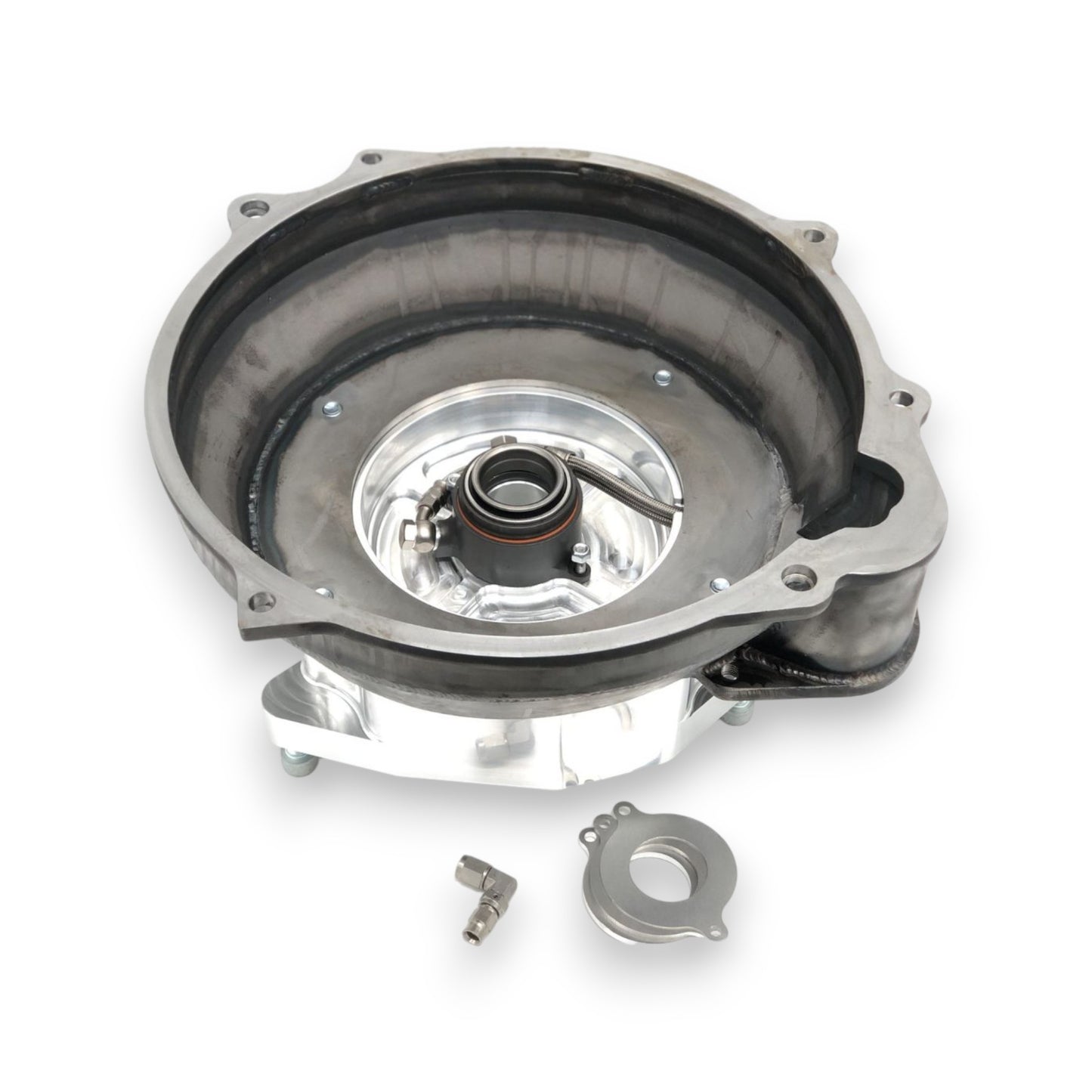

Optional Tilton Hydraulic release bearing kit. Three bearing diameters available to suit most clutch types. Including mounting hardware, 3AN plumbing, bleeder and height shims

Extra $1050
