Exhaust Hanger Brackets

Name: Exhaust Hanger Brackets
Brand: Maxfab Fabrication Supply Co.
SKU: RUB-EX-HANGER-12
Price: 6.75 NZD
Availability: InStock

$6.75 NZD

Sale Sold out

Tax included. Shipping calculated at checkout.

Style Rubber Mount Hanger Short Curved Stainless Hanger Long Curved Stainless Hanger Flat Base Stainless Hanger 2 bolt rubber block with hanger rod Double winged exhaust hanger 76mm Double winged exhaust hanger 80mm

Product variants

Quantity

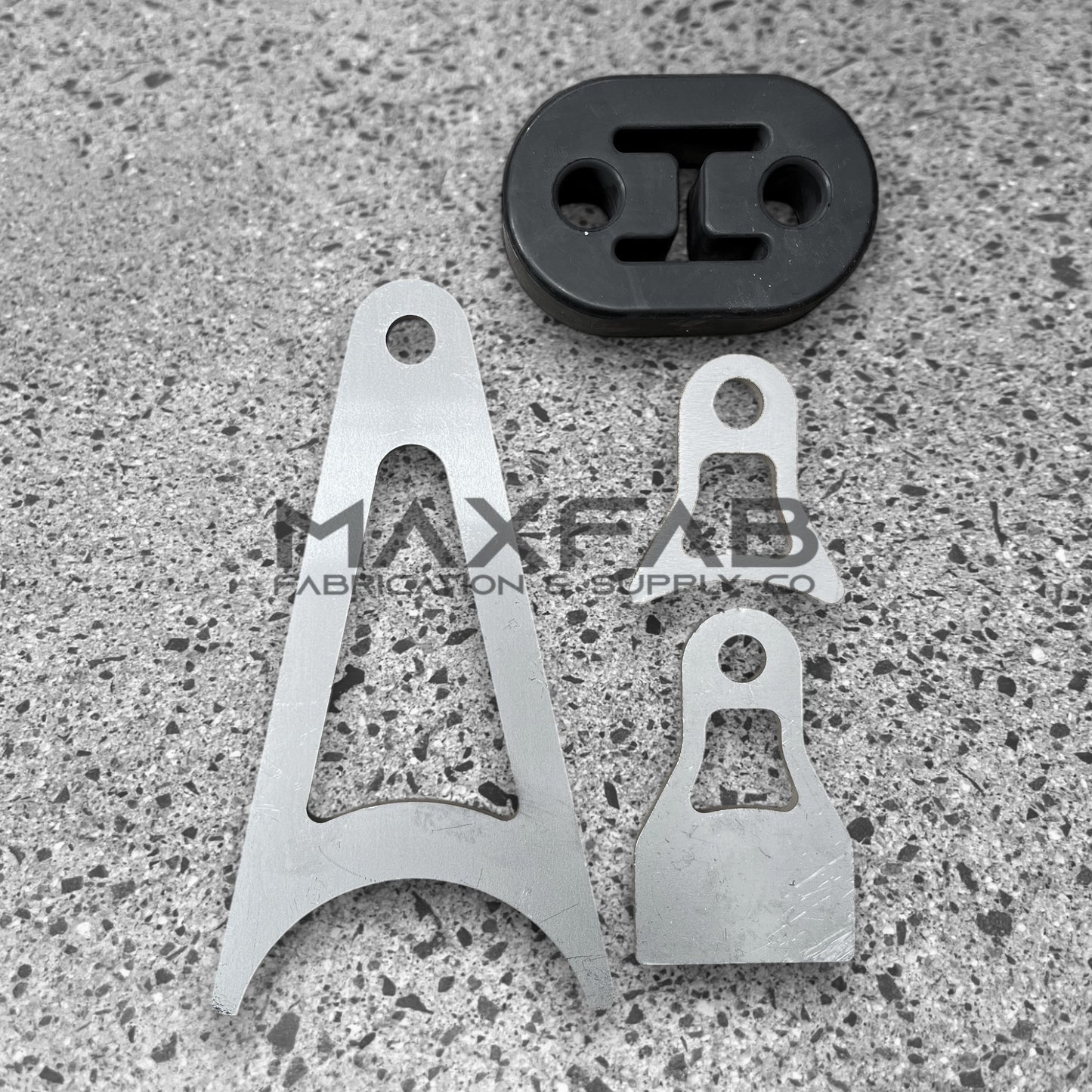

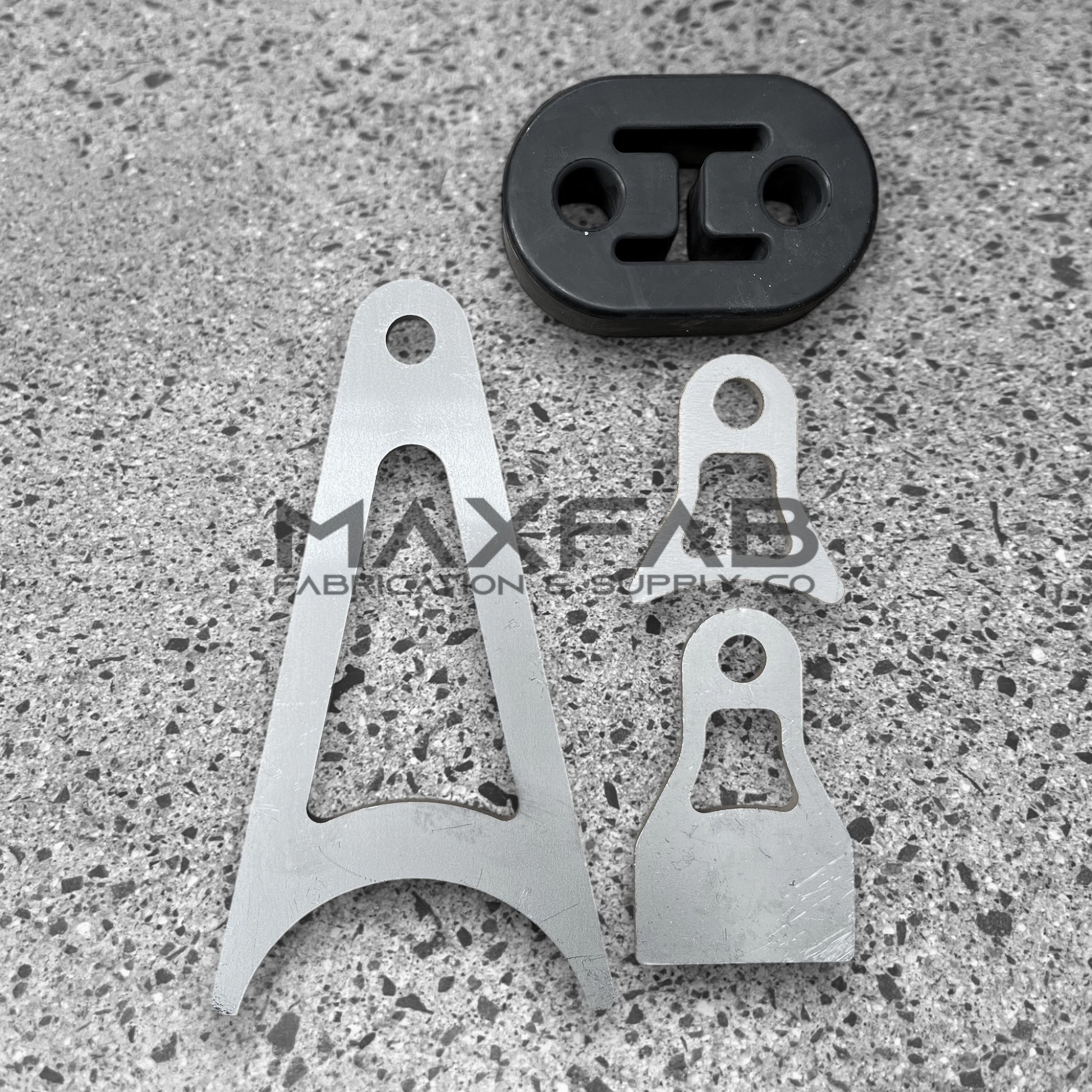

Our Exhaust Hanger Brackets are constructed with either stainless steel or rubber, ensuring reliable support and longevity. With the resilience of stainless steel and the vibration absorption of rubber, these brackets will provide a secure connection for your exhaust system

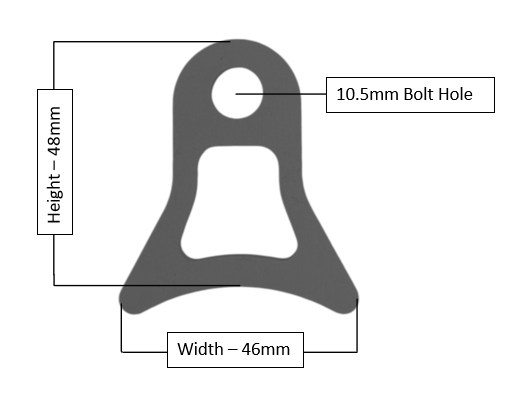

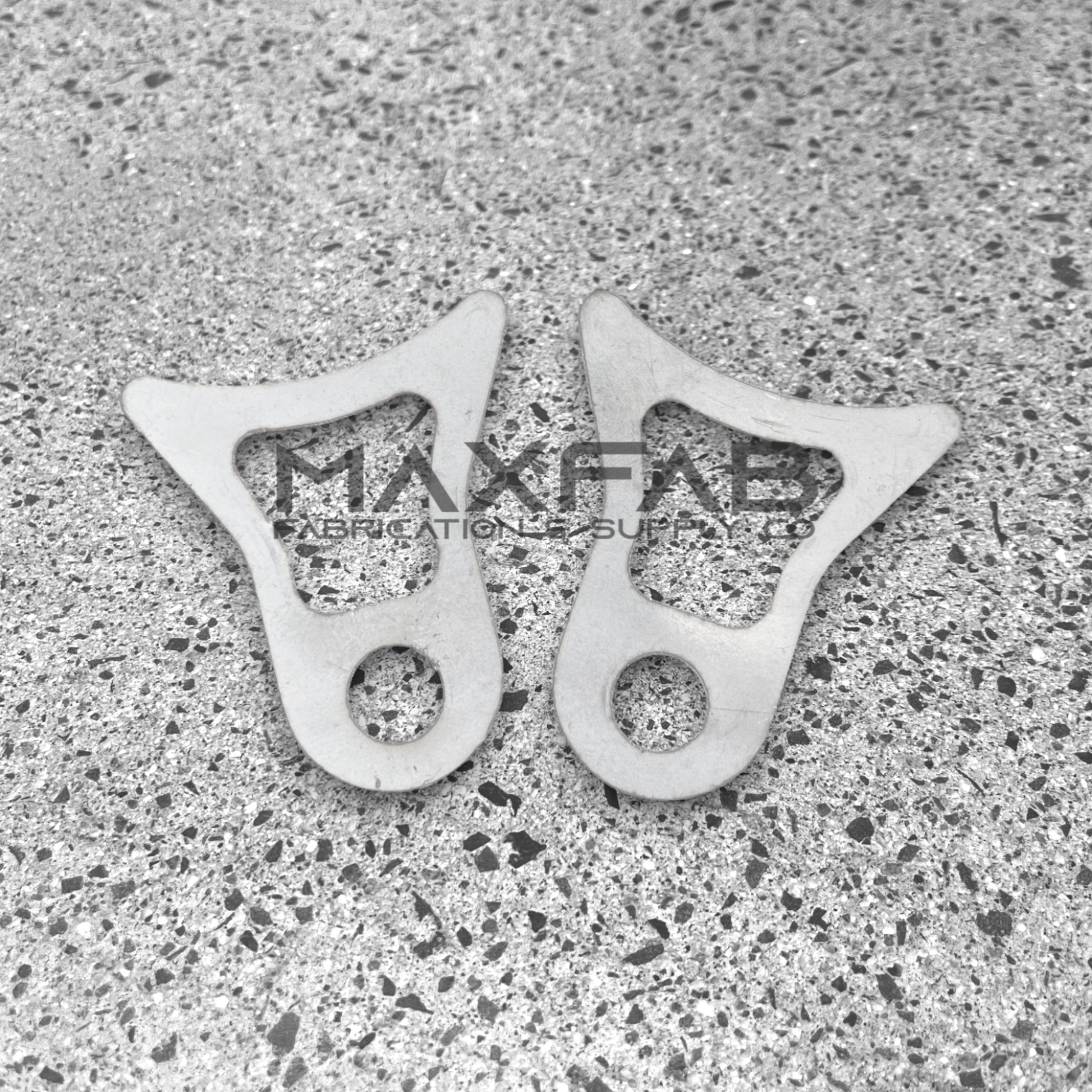

SS304 Stainless curved bracket, 5mm with a 38mm radius to suit 3" however with a light sand/linish they will work with 2"-5" tube

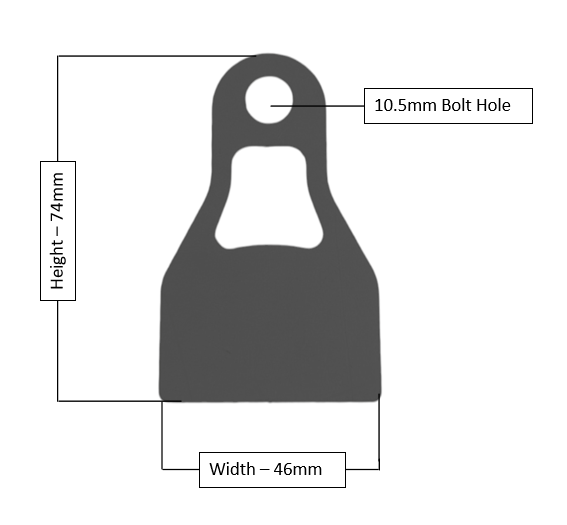

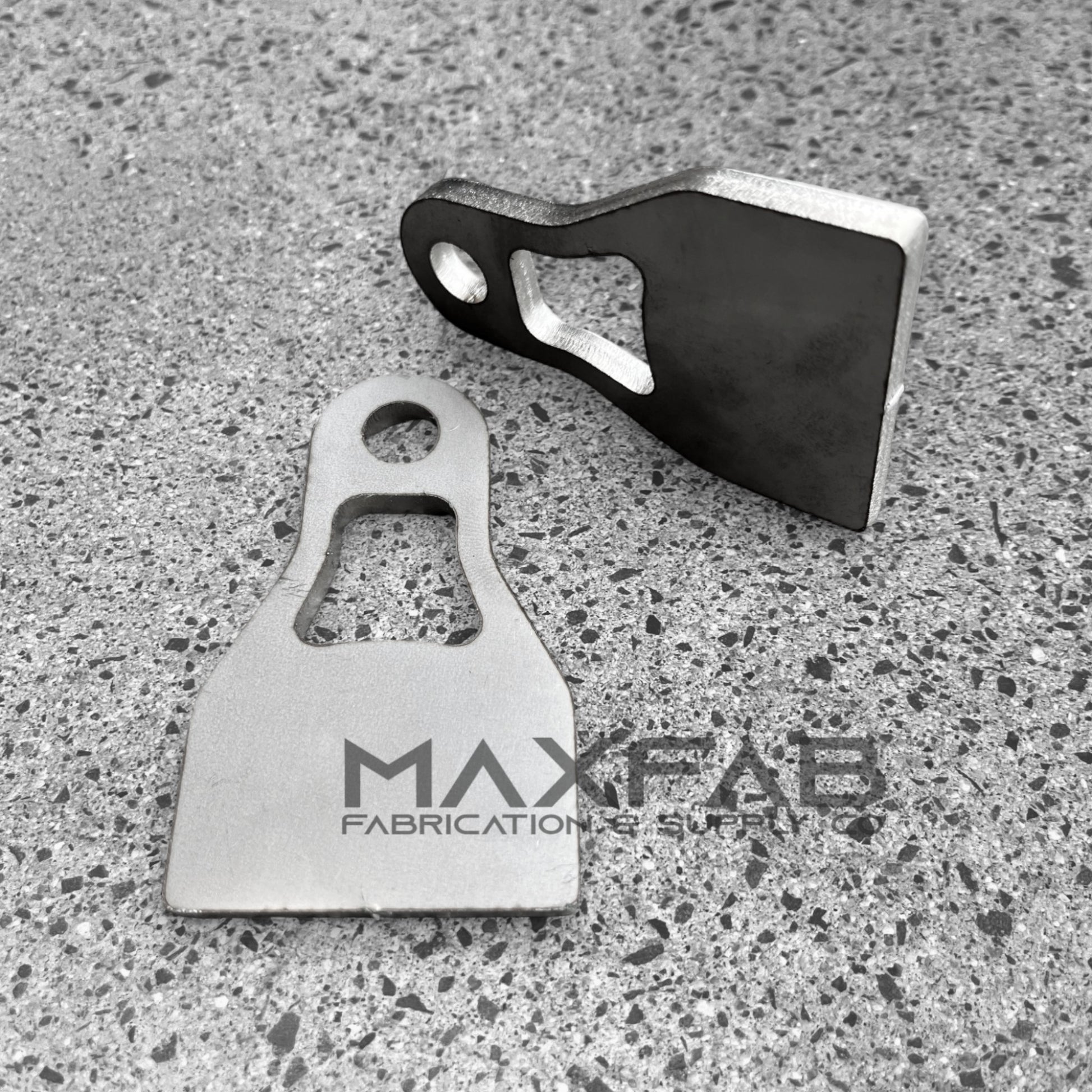

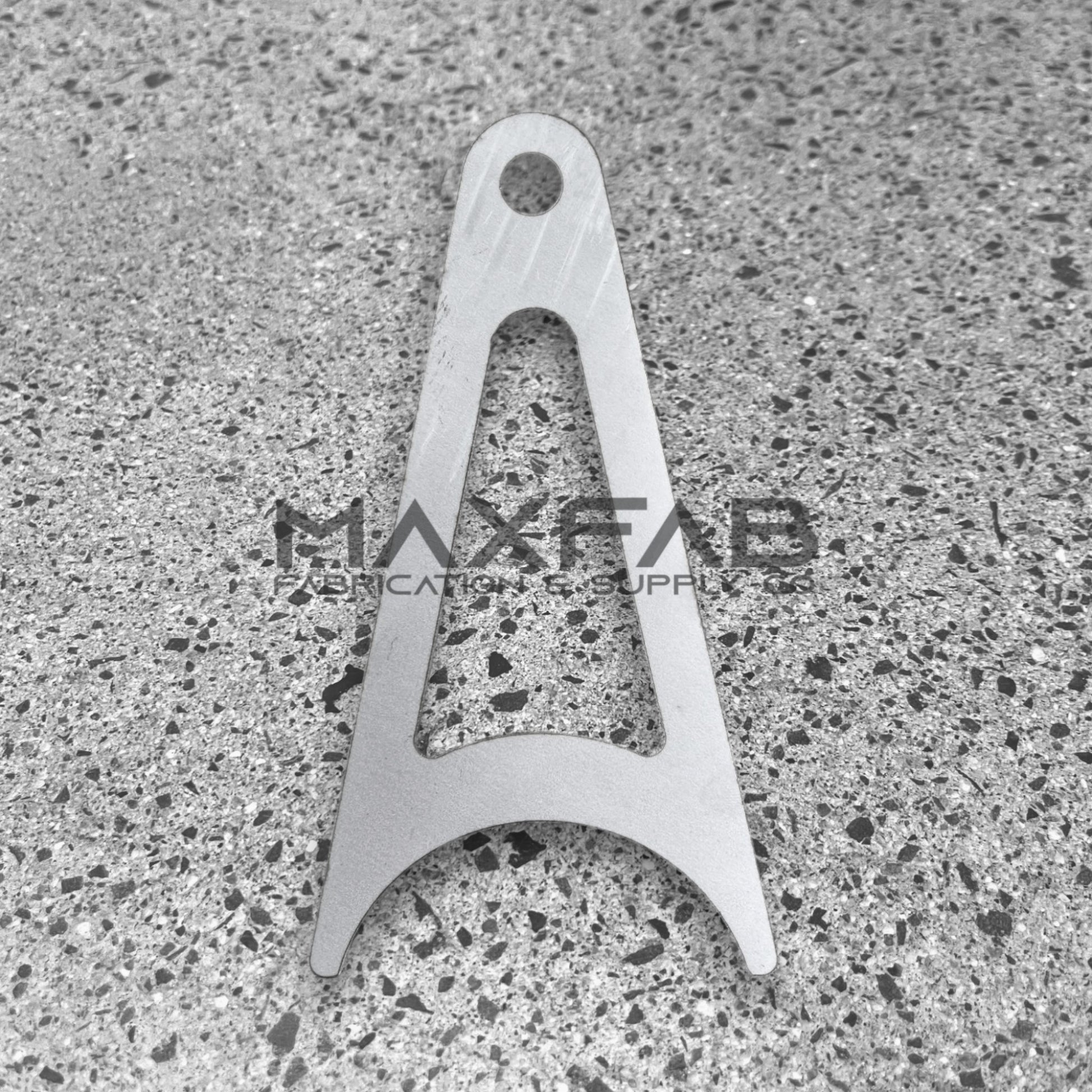

SS304 Stainless long hanger bracket, 5mm x 74 long x 46 wide

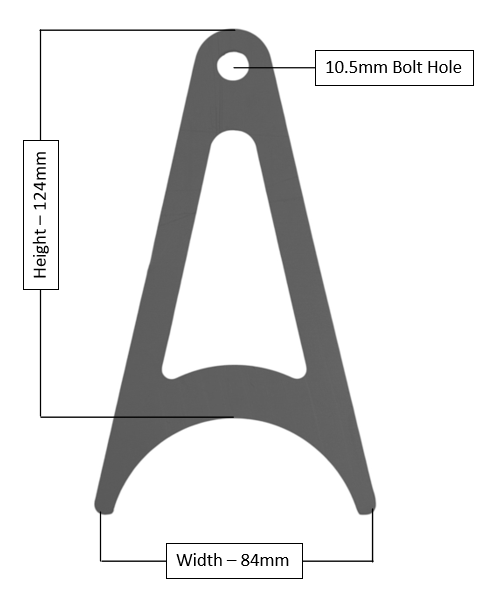

SS304 Stainless large hanger bracket, 5mm x 124 long x 84 wide

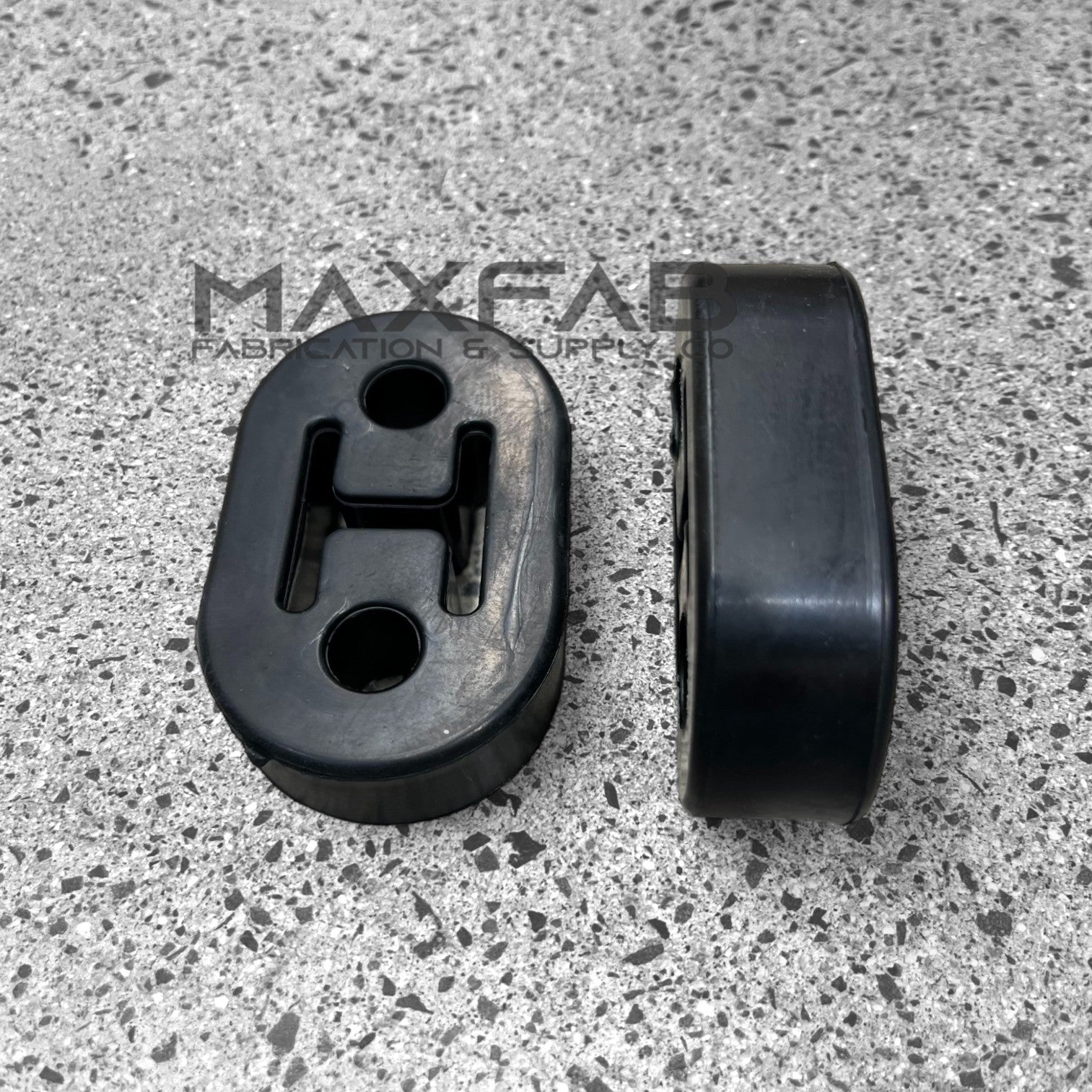

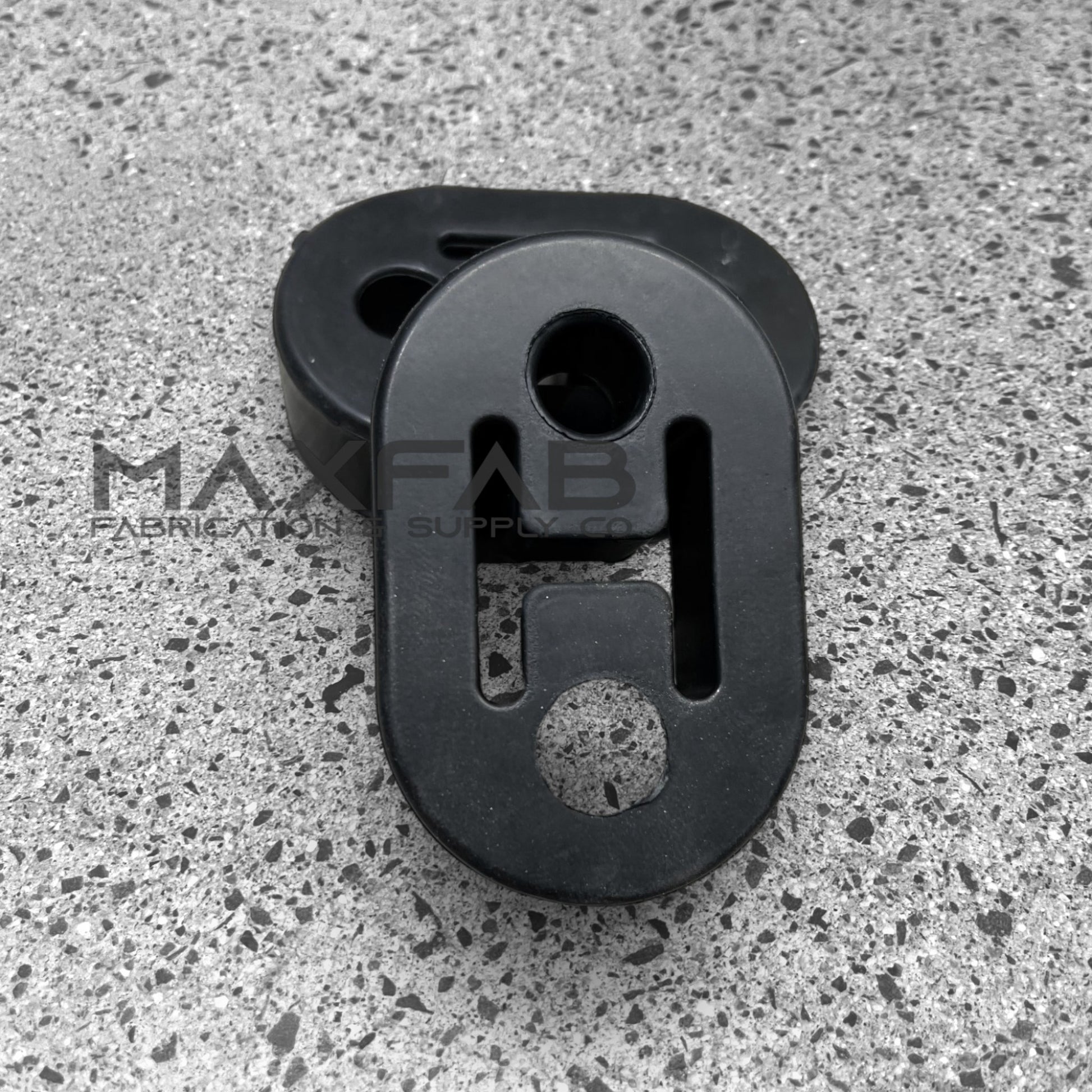

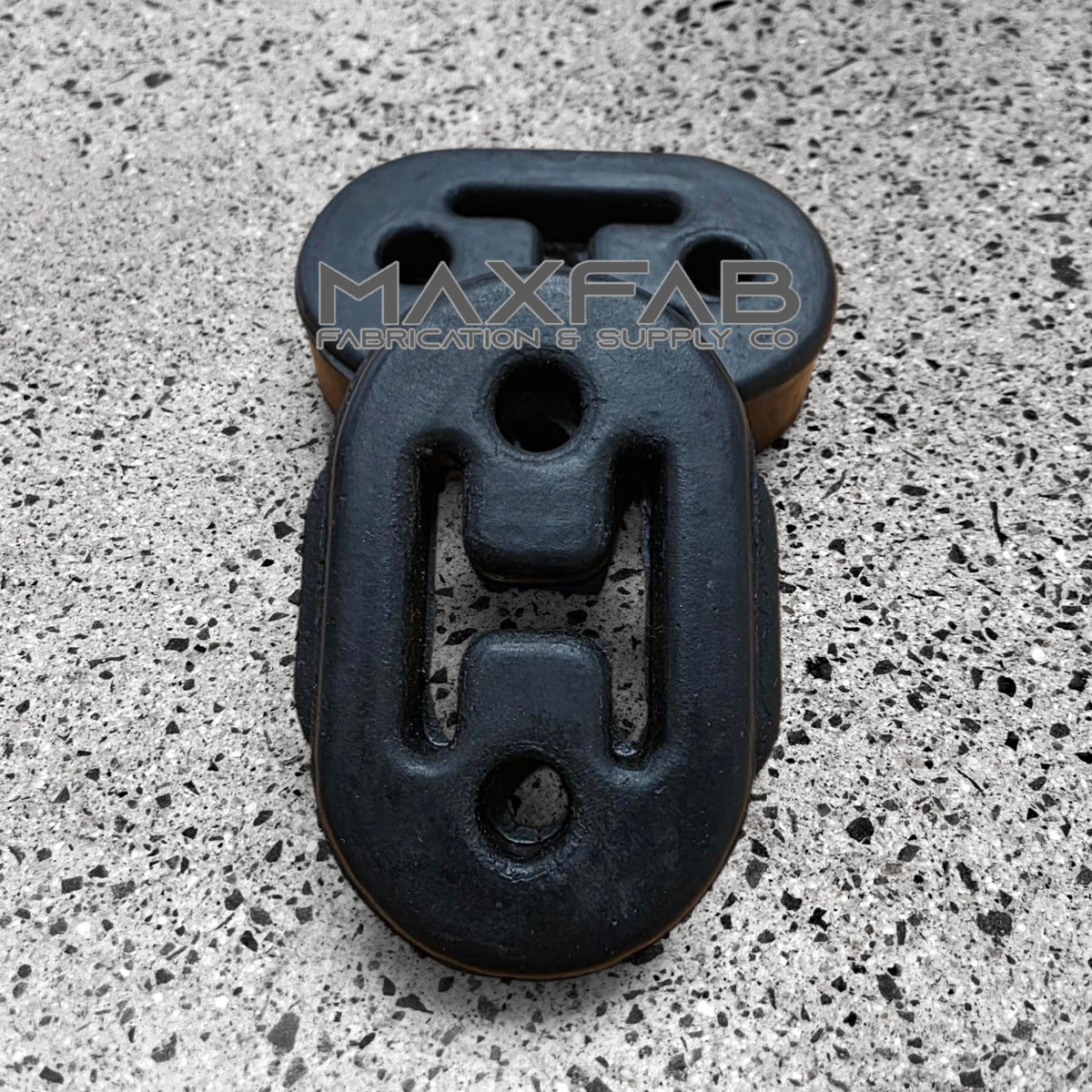

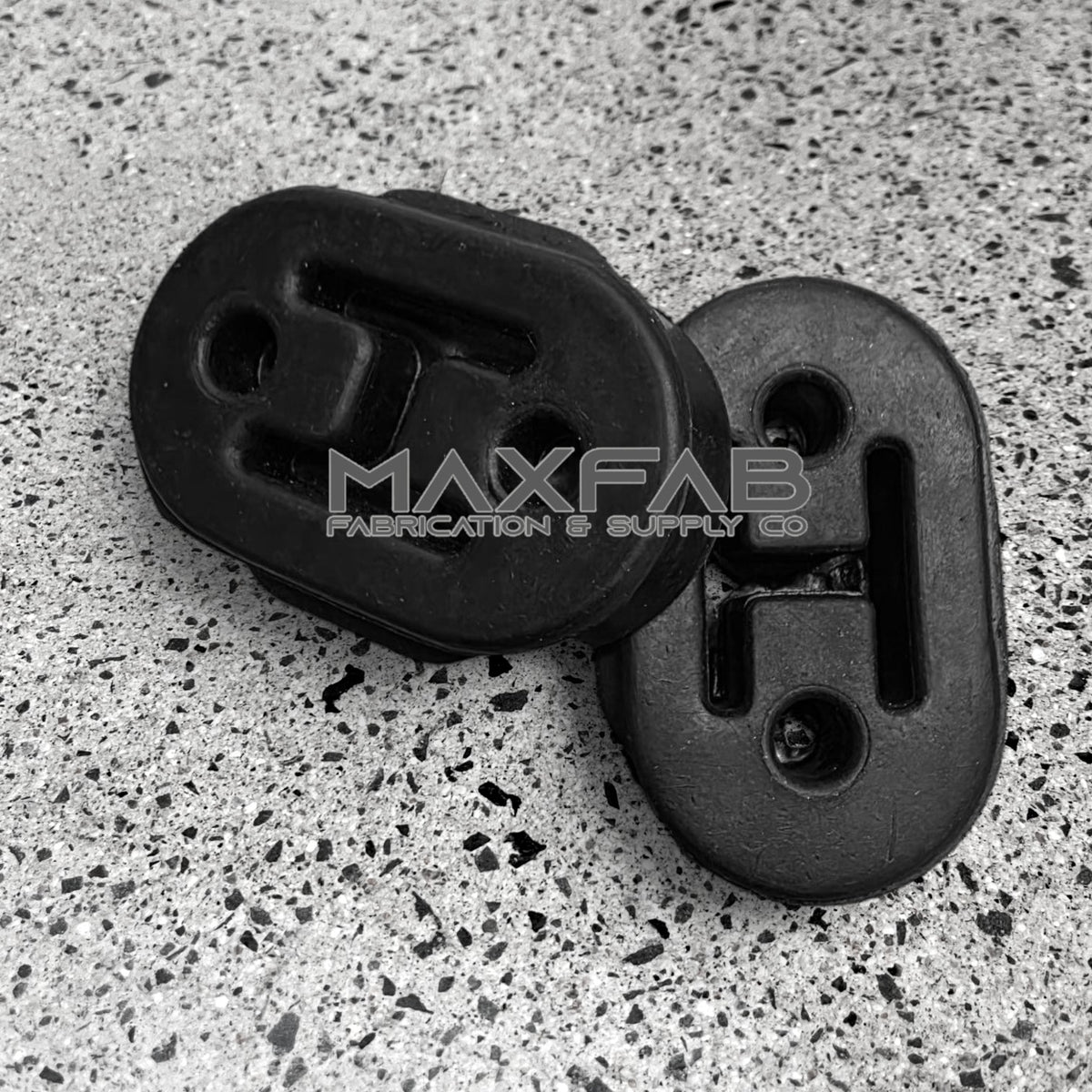

Rubber exhaust hangers - 12mm mounting holes 47w x 73h x 21 thick, and 39mm hole centres
2 bolt rubber block with mounting rod, 10mm bolt holes, rubber isolator and 3/8" hanger rod, approx. 240mm long

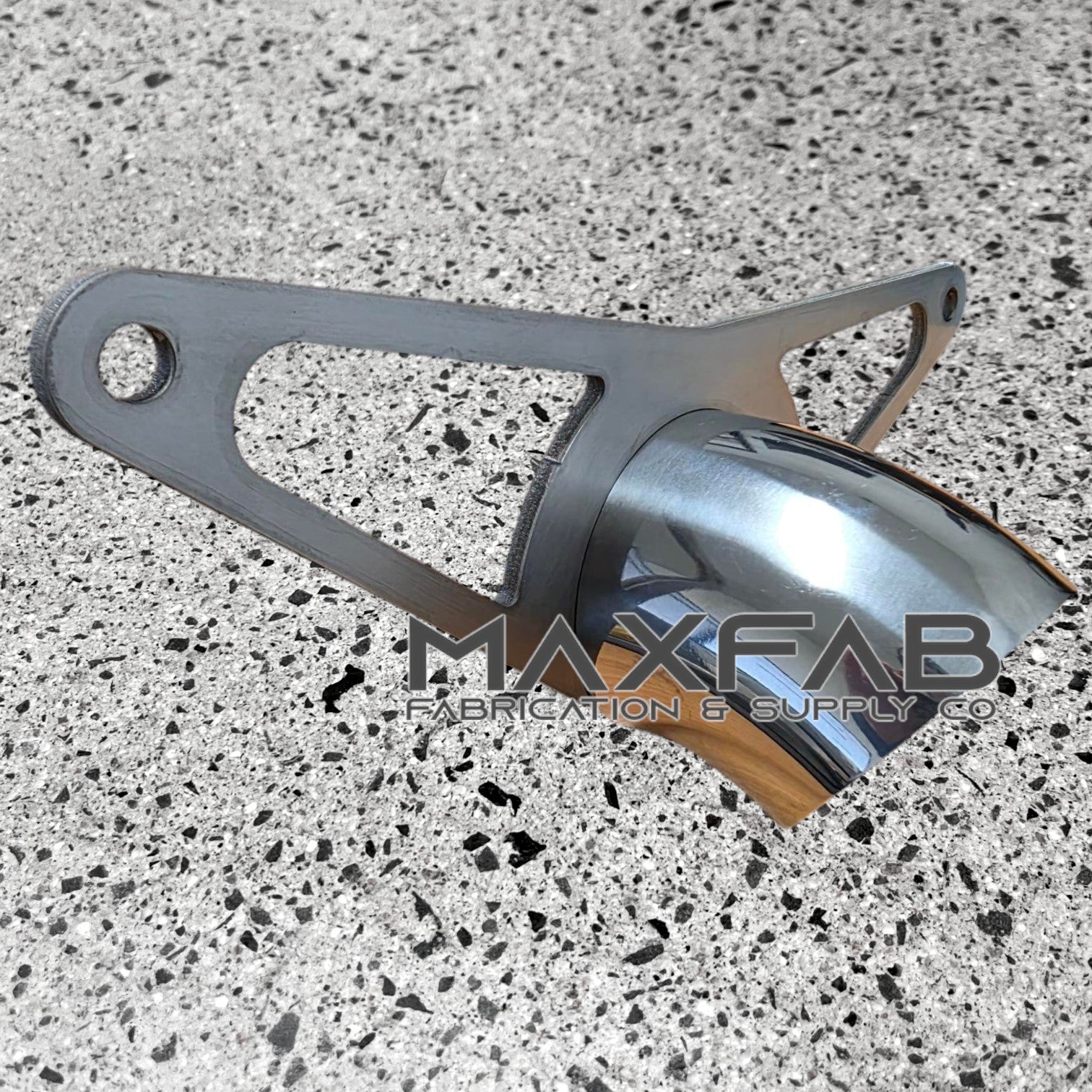

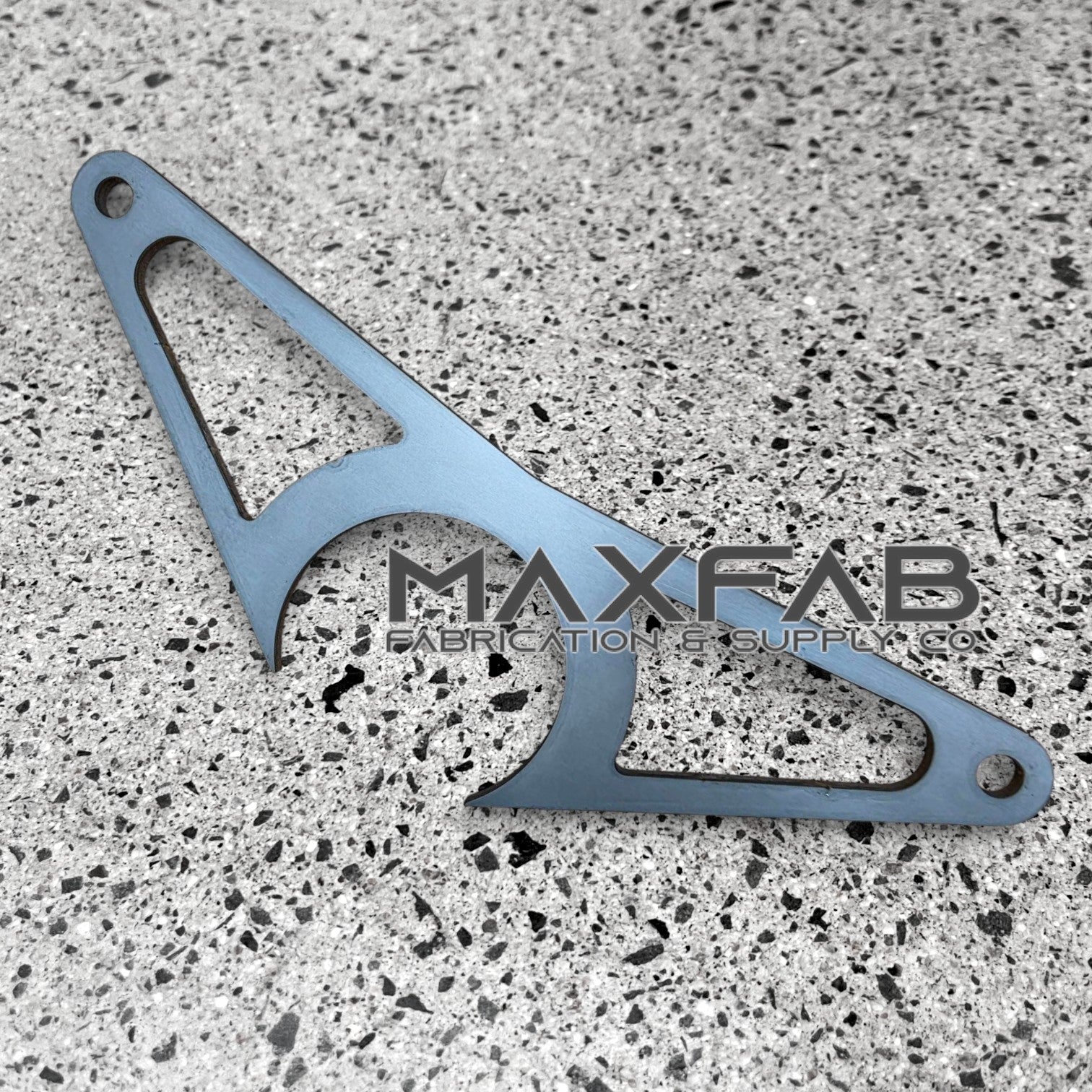

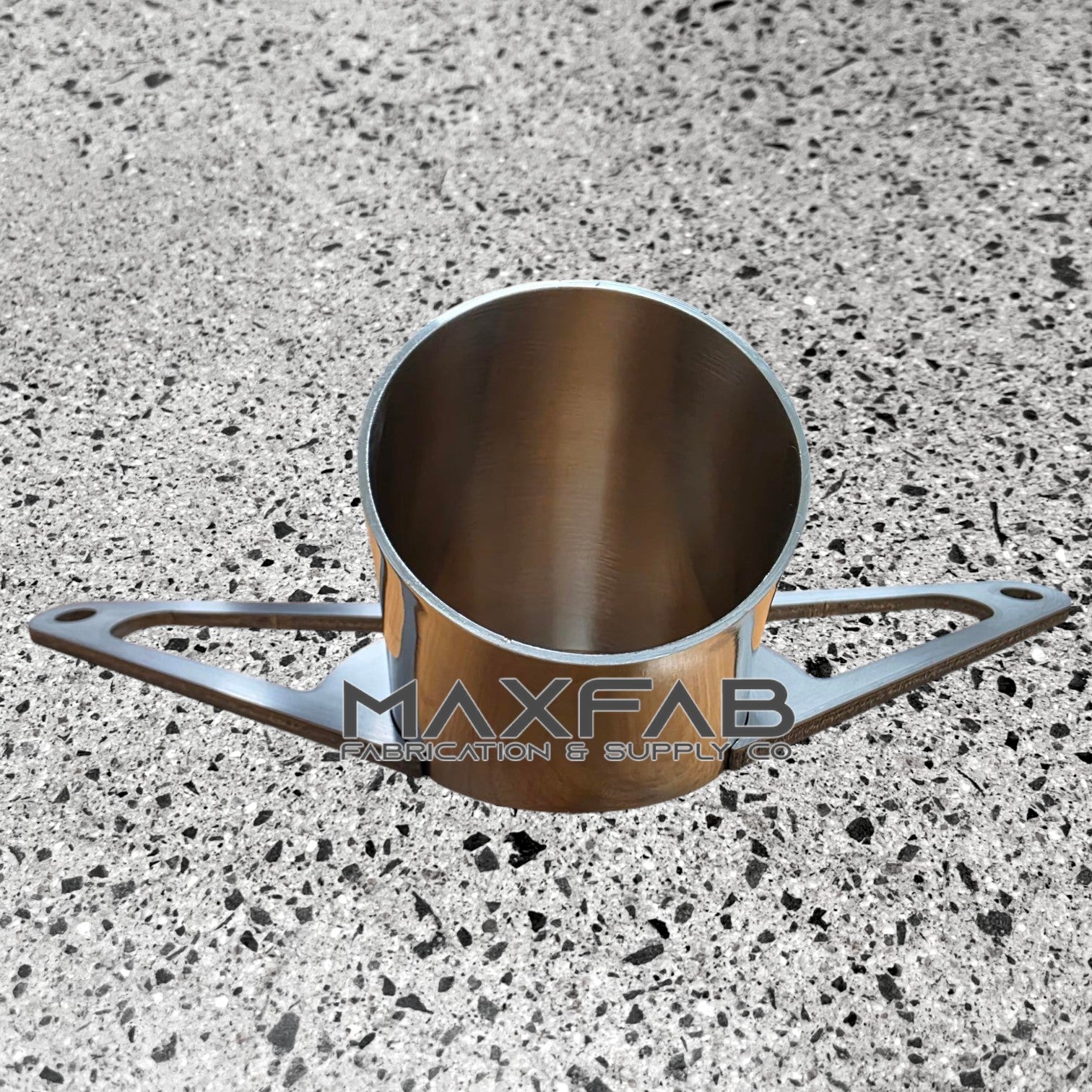

SS304 Stainless double winged exhaust bracket, centre hole 76mm to suit 3". 5mm thick and 26mm bolt centres.

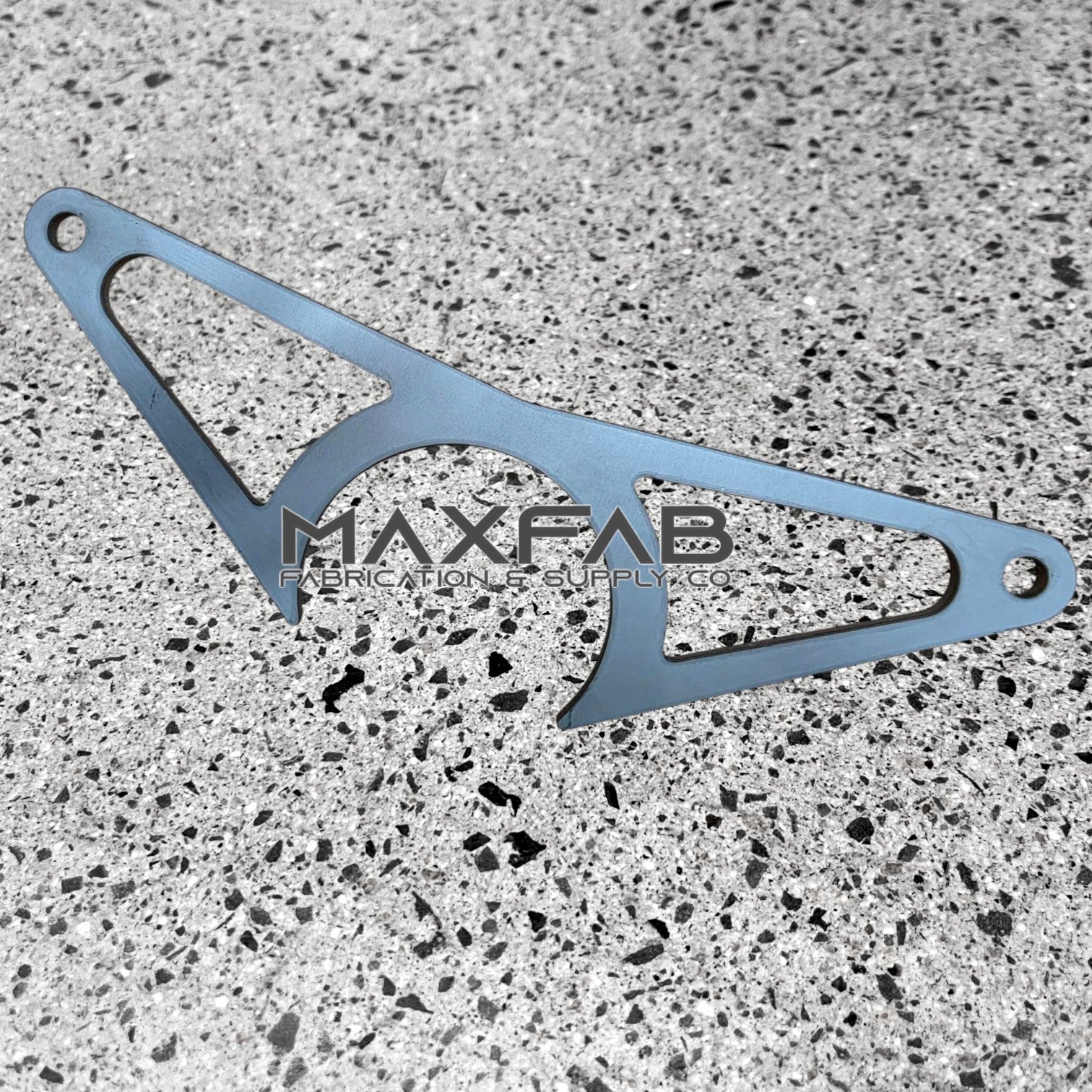

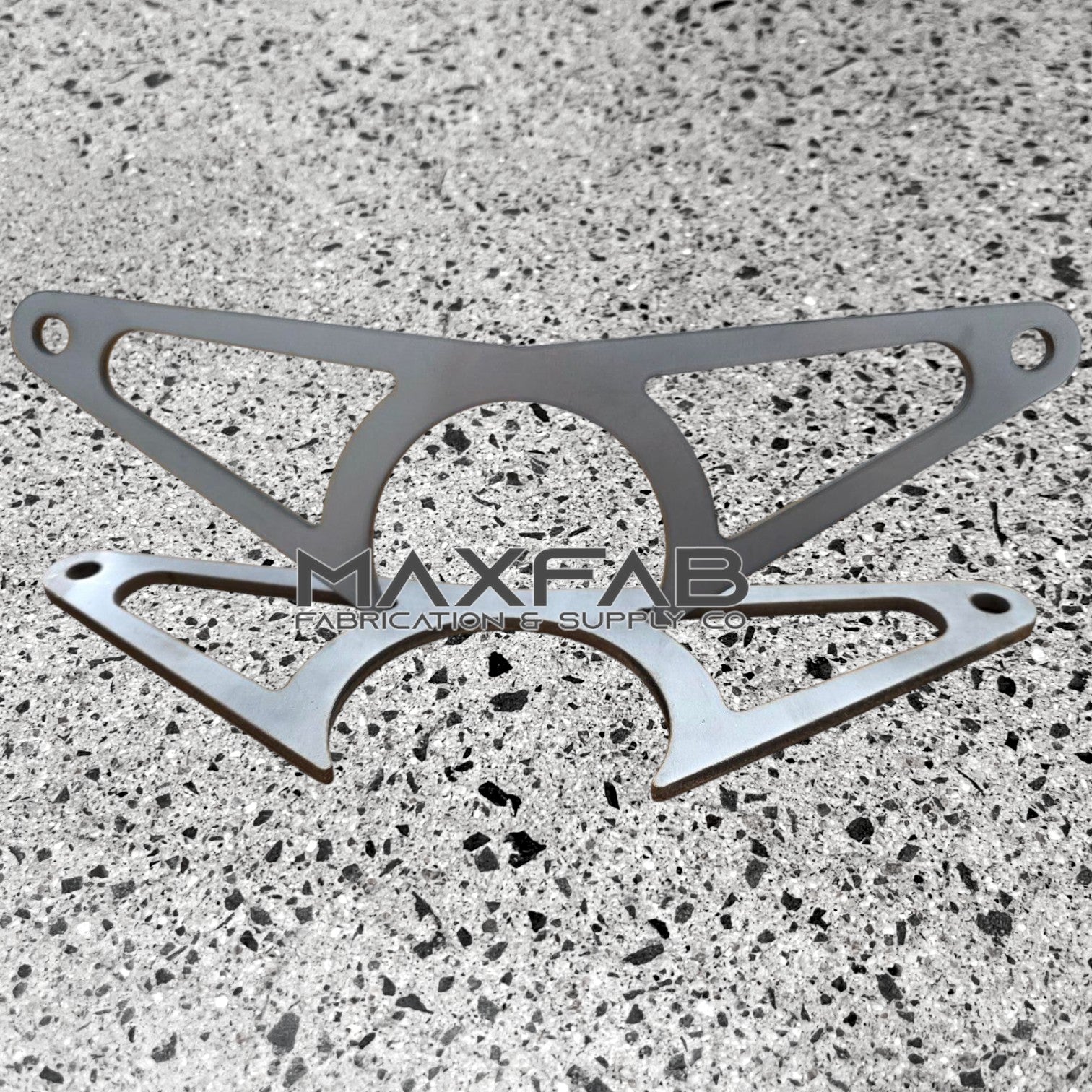

SS304 Stainless double winged exhaust bracket, centre hole 80mm to suit an expanded end on a 3" inch muffler. 5mm thick and 26mm bolt centres.

ALL HANGERS ARE SOLD INDIVIDUALLY
