Exhaust Flexi - Convoluted bellow
Exhaust Flexi - Convoluted bellow

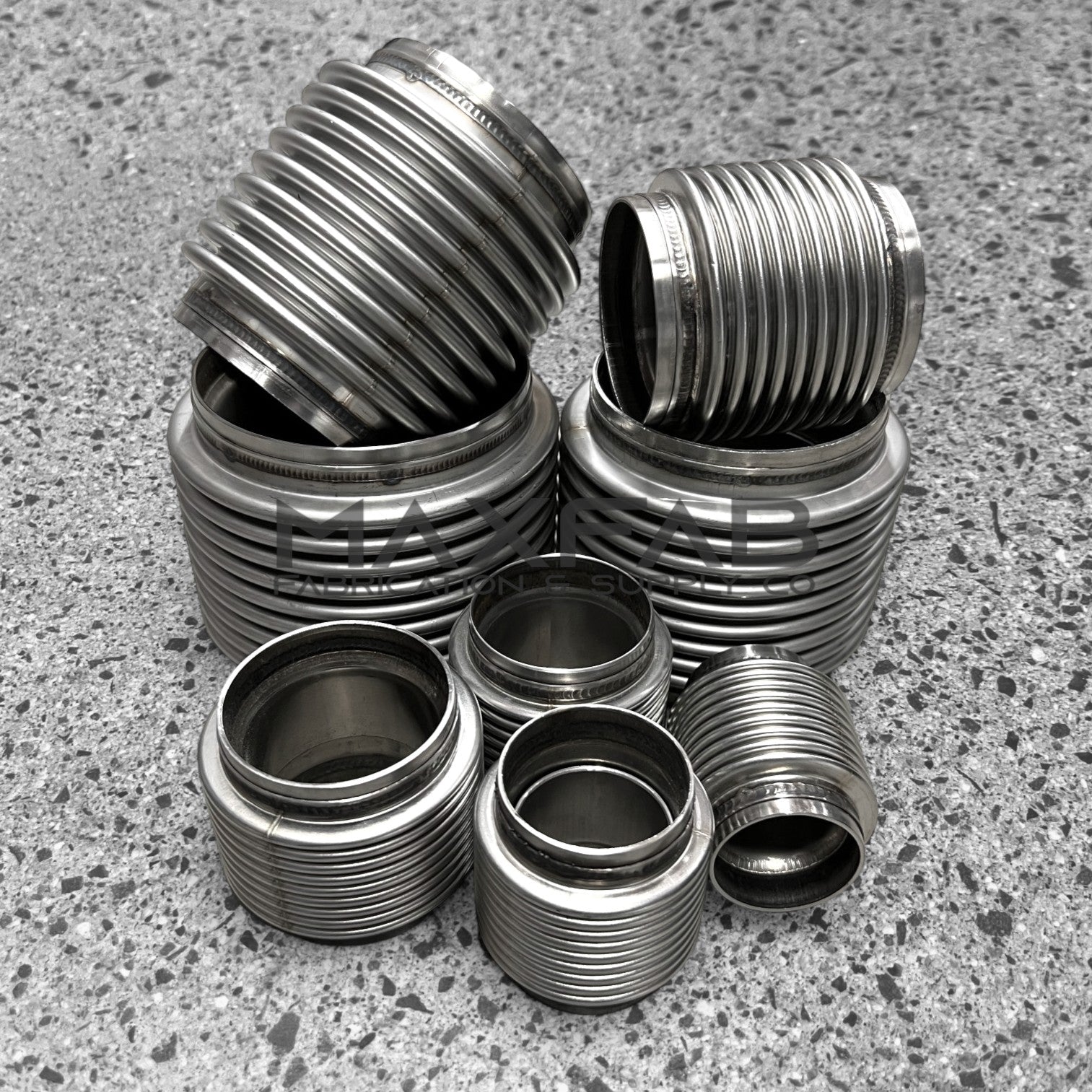

Top of the line 304 stainless exhaust flexi / exhaust bellows.
If you are setting up an external wastegate plumb back into your exhaust then a exhaust bellow is something you will want to consider using. These are also great for exhaust systems where length is an issue
Our exhaust bellows help with alignment of v-bands or flanges by giving movement when bolting together and are specifically designed to fit in tight spaces where length is limited. When thermal expansion is creating issues of cracking pipes these will aid with this by allowing pipes to move while heating and cooling from every day use of your vehicle

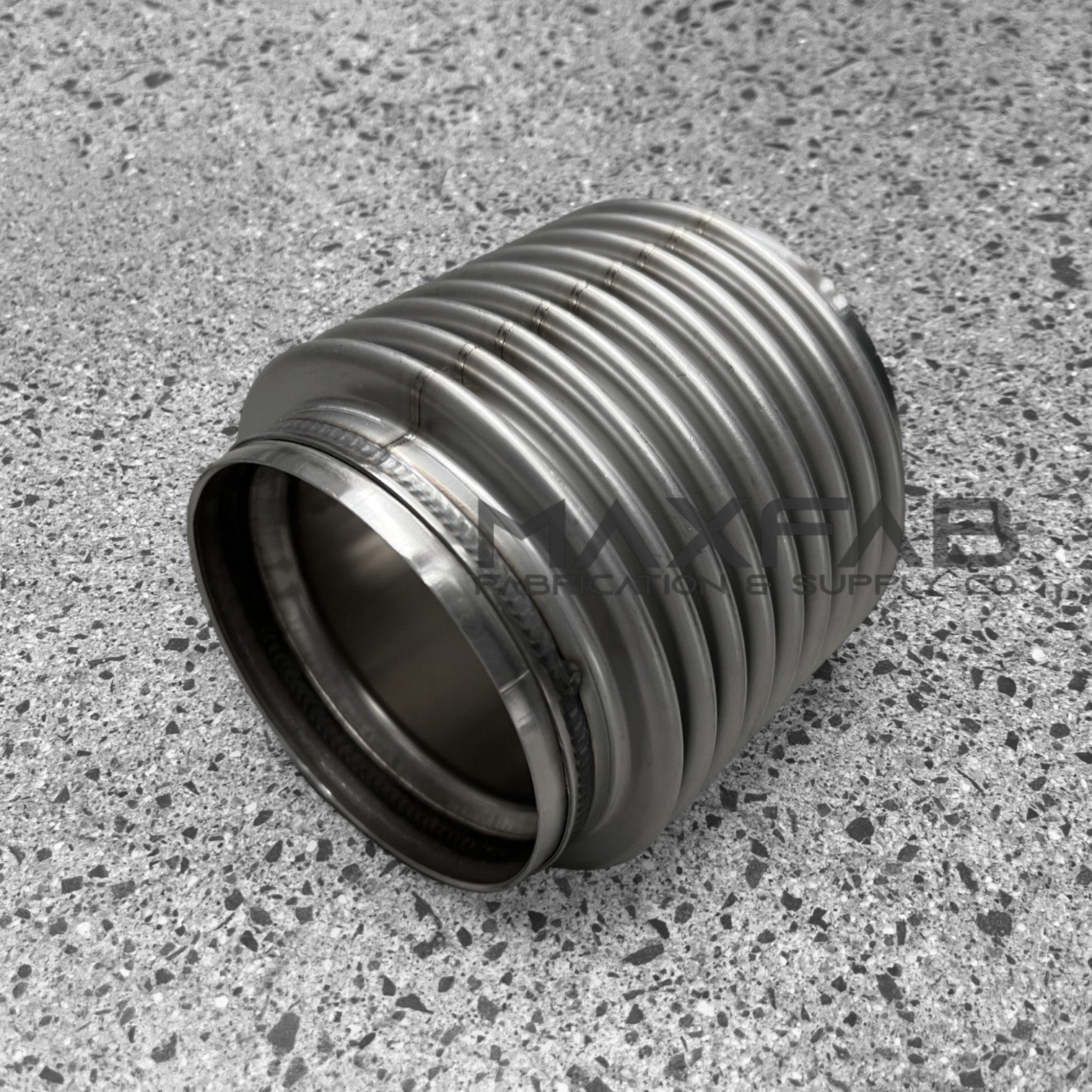

Convoluted outside with an internal slip join construction, the ends are welded. No stainless weave to collapse and create a restriction, these are ideal for high power automotive, waste gate plumbing, marine or truck exhaust applications. We offer them in a variety of styles including braided exterior, welded and crimped

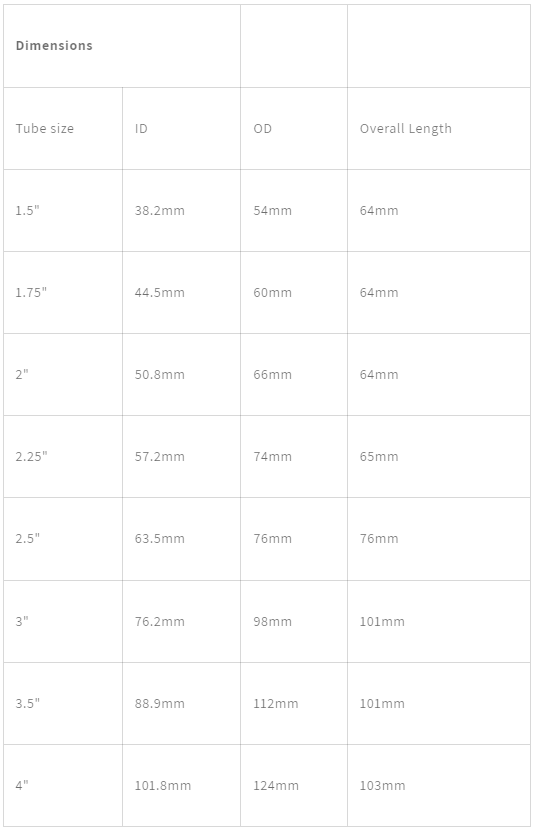

Dimensions |
|
|
|
Tube size |
ID |
OD |
Overall Length |
1.5" |
38.2mm |
54mm |
64mm |
1.75" |
44.5mm |
60mm |
64mm |
2" |
50.8mm |
66mm |
64mm |
2.25" |
57.2mm |
74mm |
65mm |
2.5" |
63.5mm |
76mm |
76mm |
3" |
76.2mm |
98mm |
101mm |
3.5" |
88.9mm |
112mm |
101mm |
4" |
101.8mm |
124mm |
103mm |
