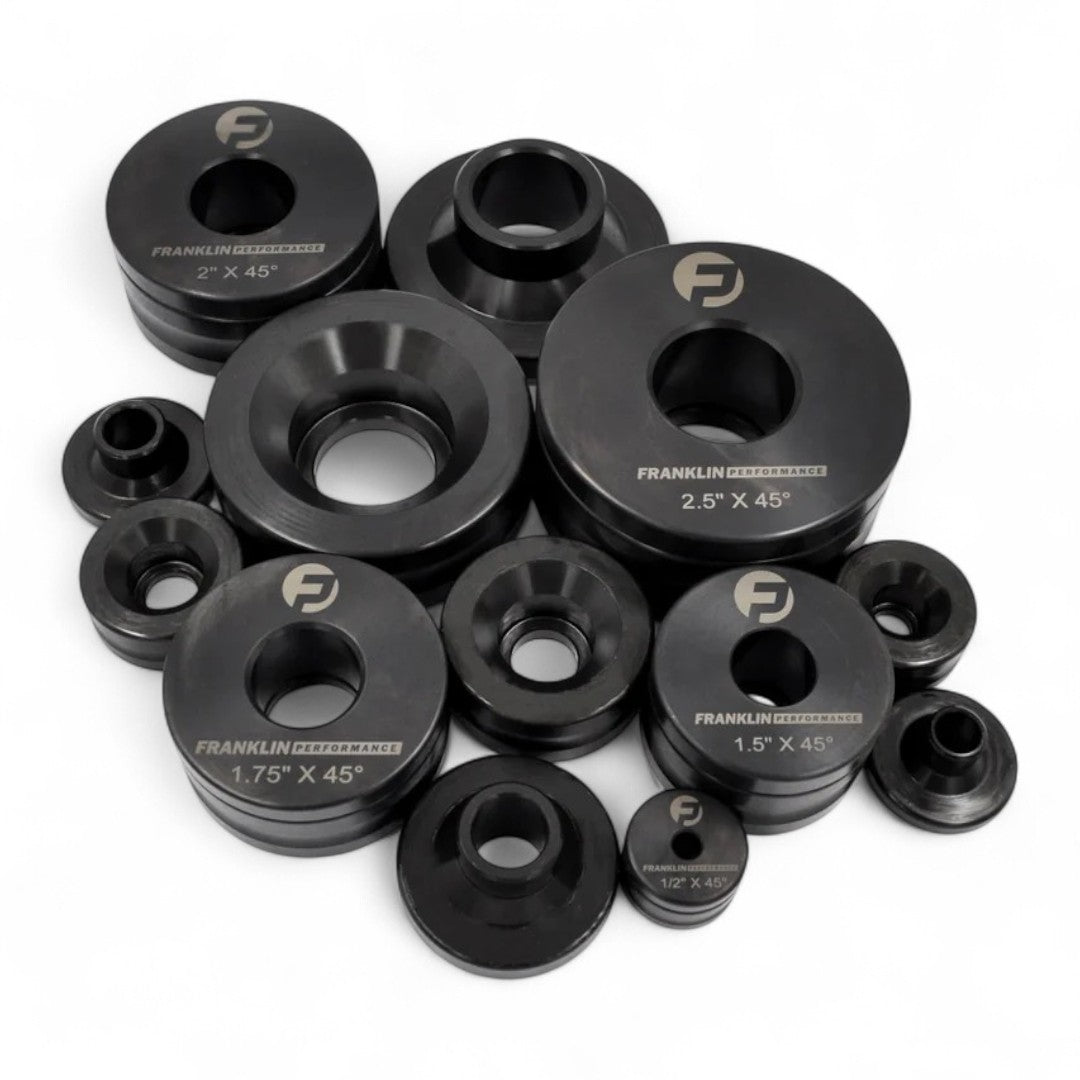

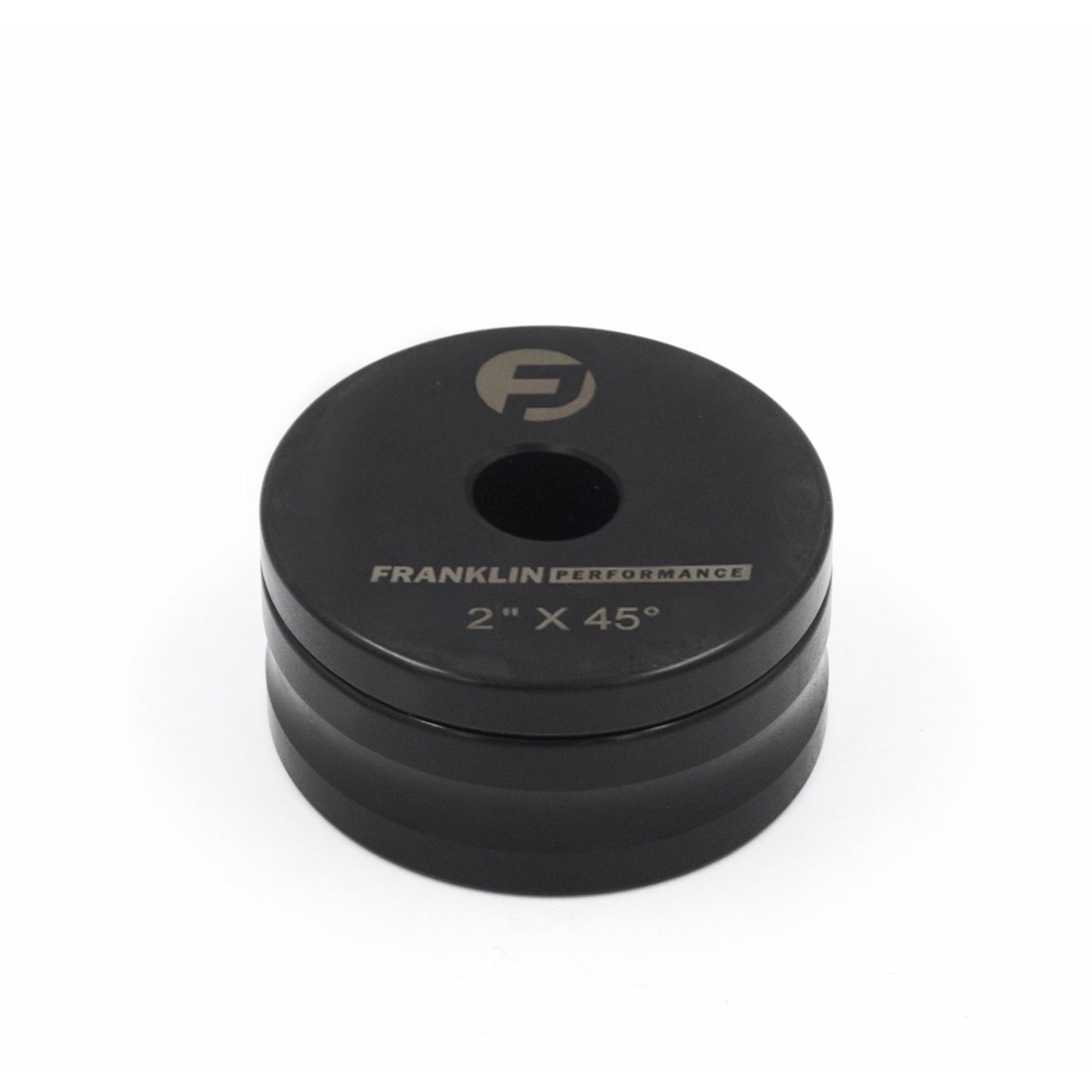

Dimple Dies

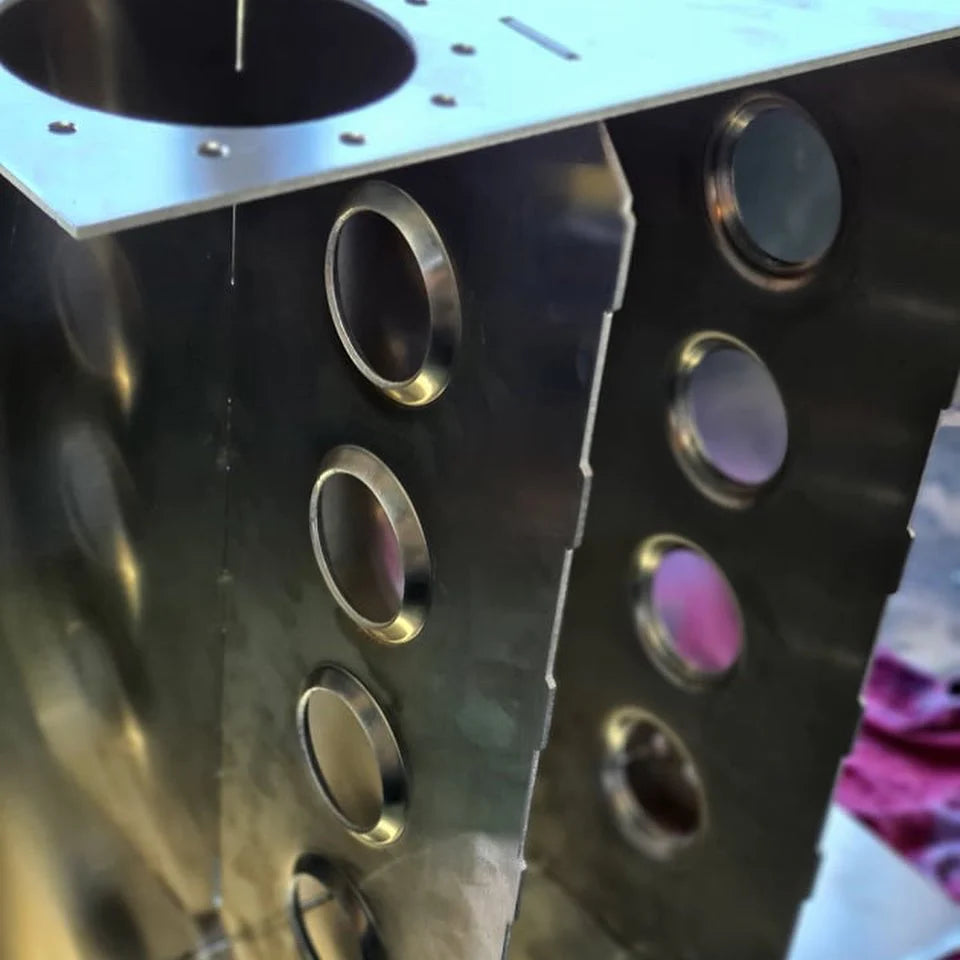

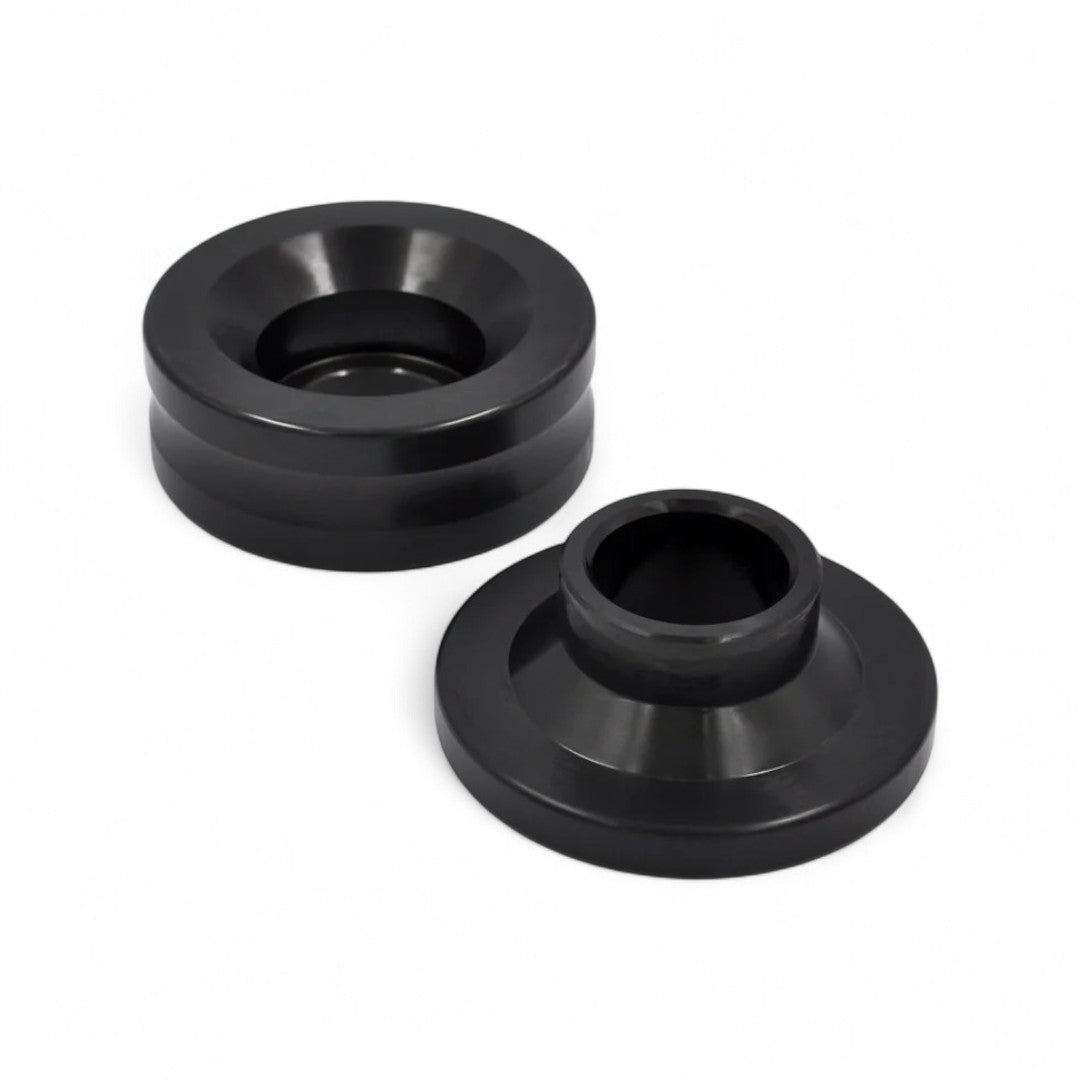

Franklin Performance Dimple dies are used to improve the strength and appearance of a panel by flaring an existing hole in sheet metal up to 1/8" or 3mm thick.

The dies work great in a press or ironworker, and the smaller sizes can also be used with a nut & bolt on lighter steel or aluminium.

Being made from high strength alloy steel and having a heat treatment with a unique oil impregnation to prevent corrosion, the dies are built to last a life time.

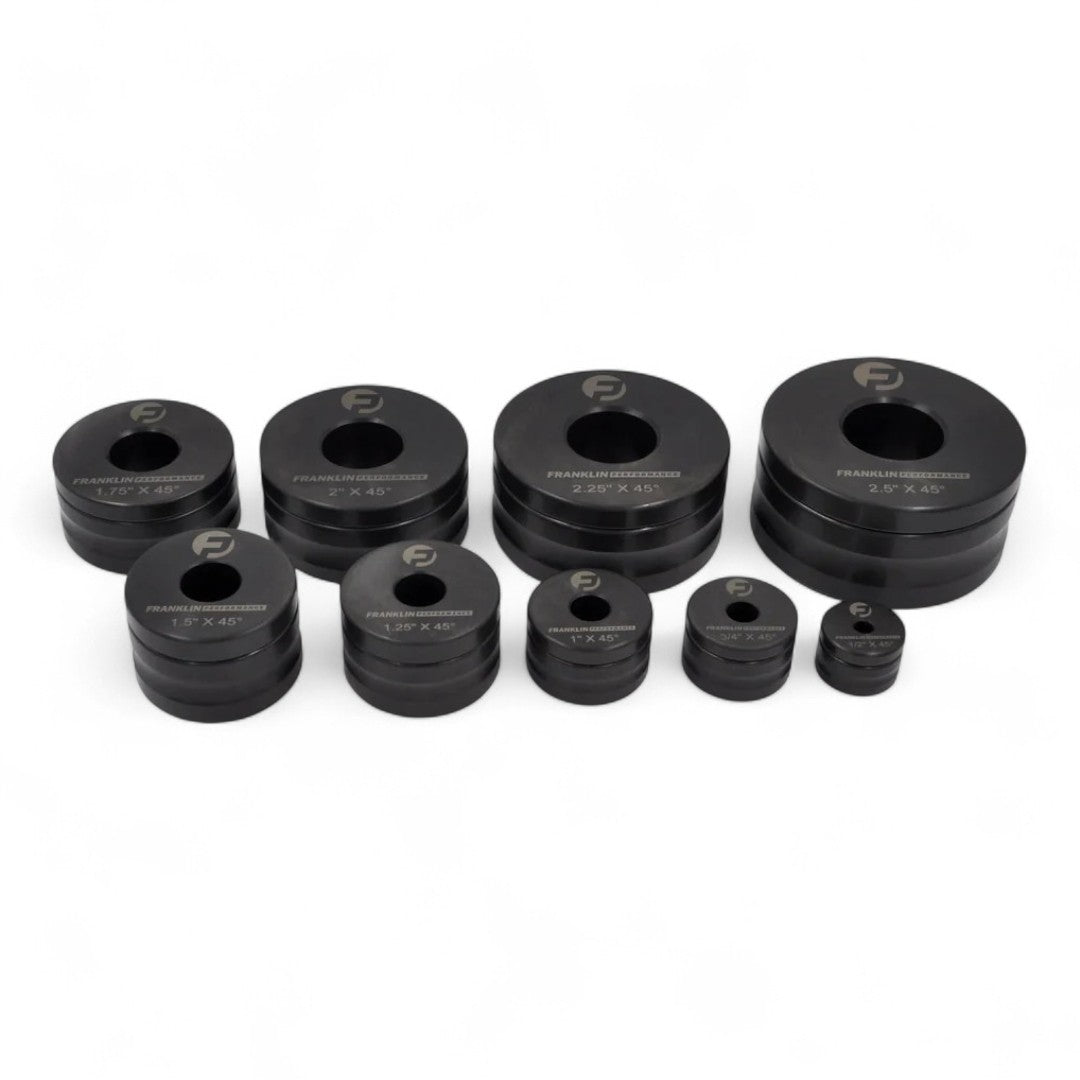

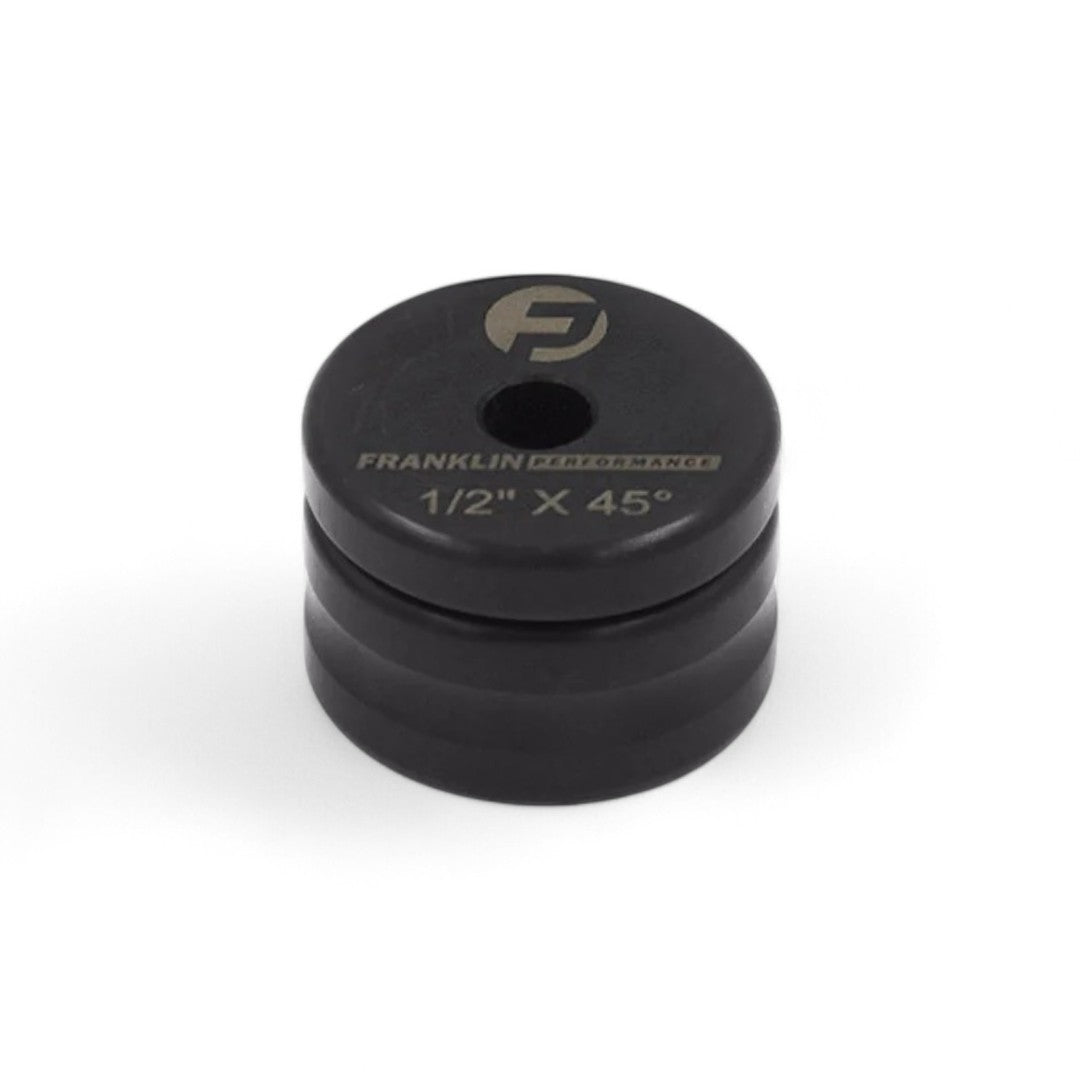

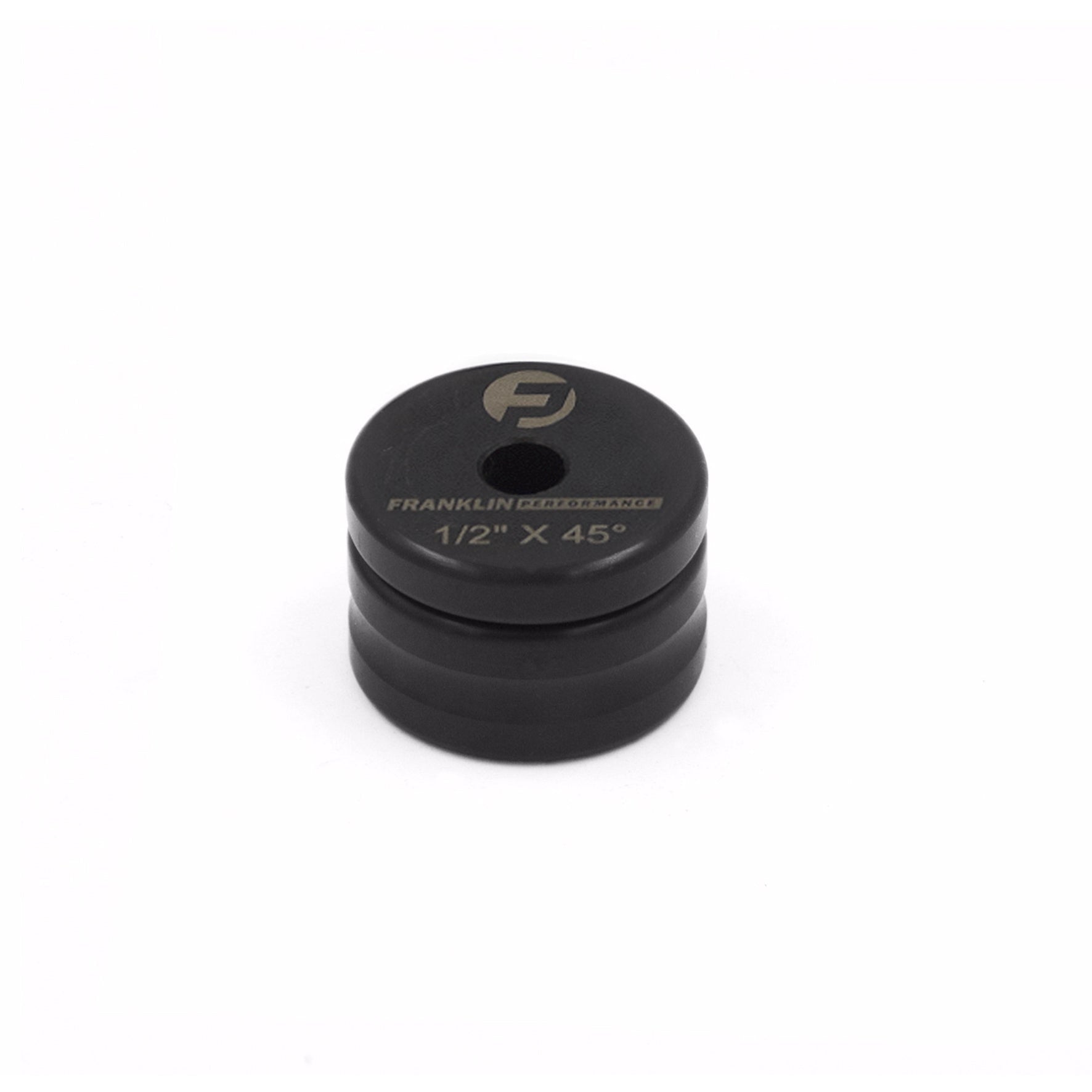

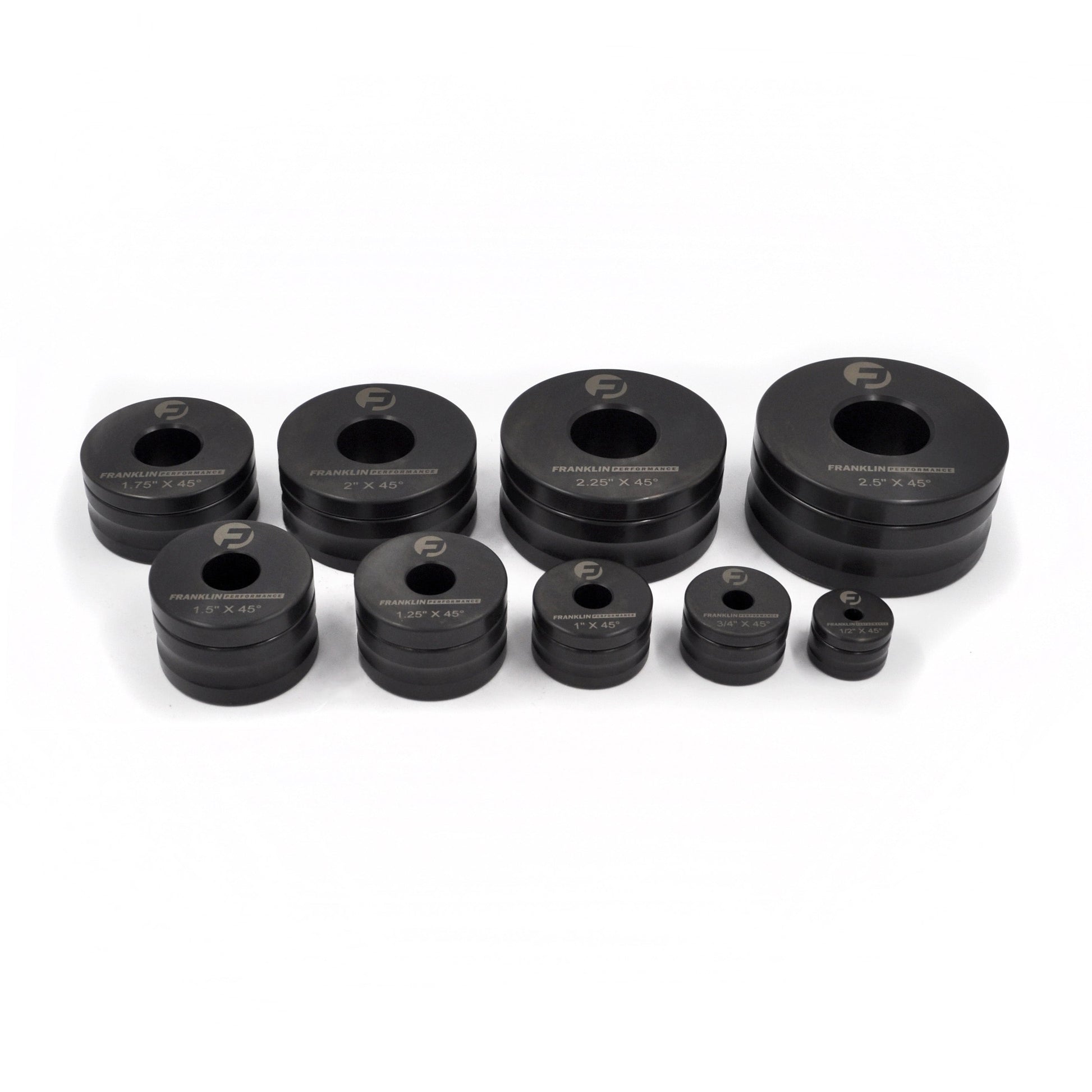

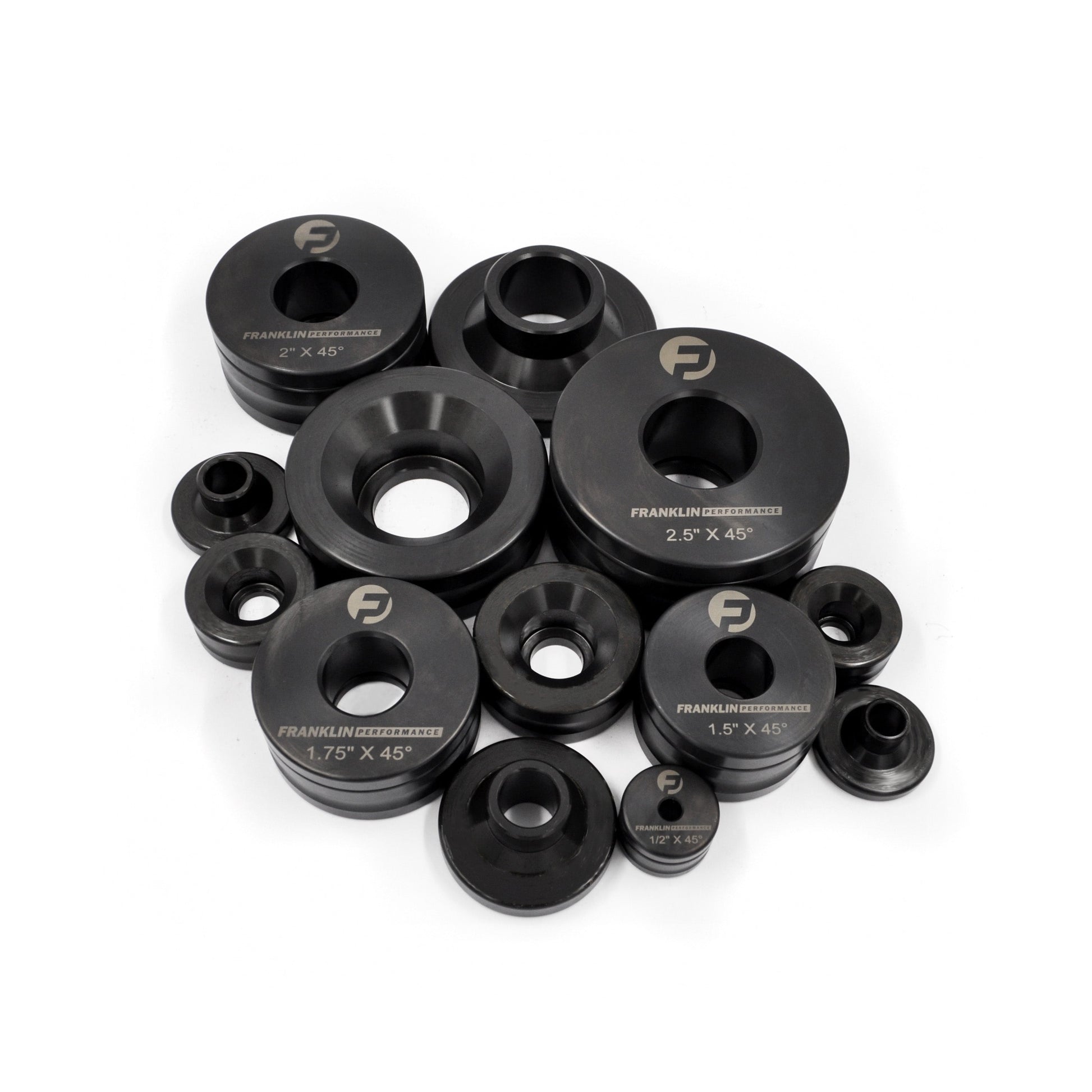

• Size: 1/2" (12.7mm) x 45

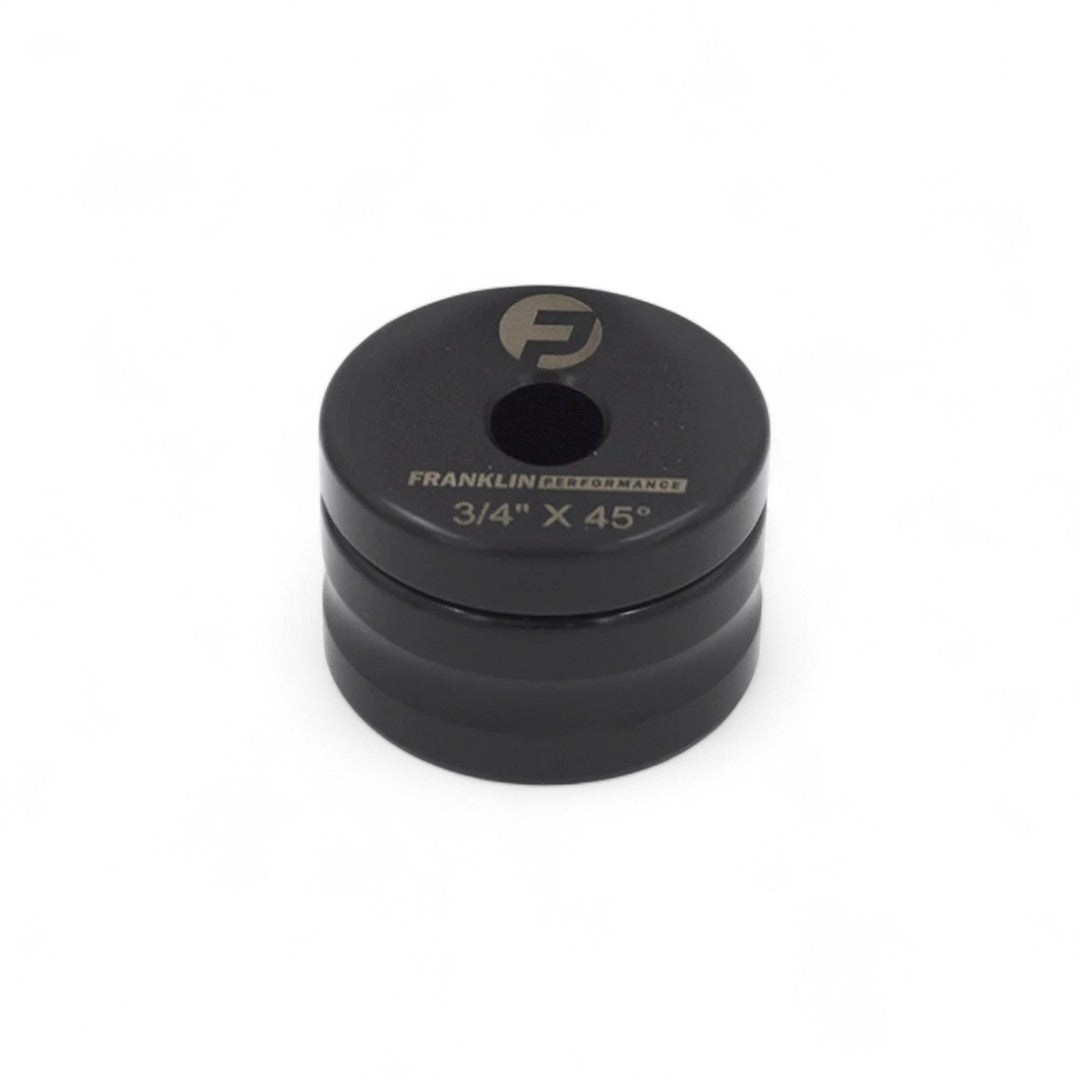

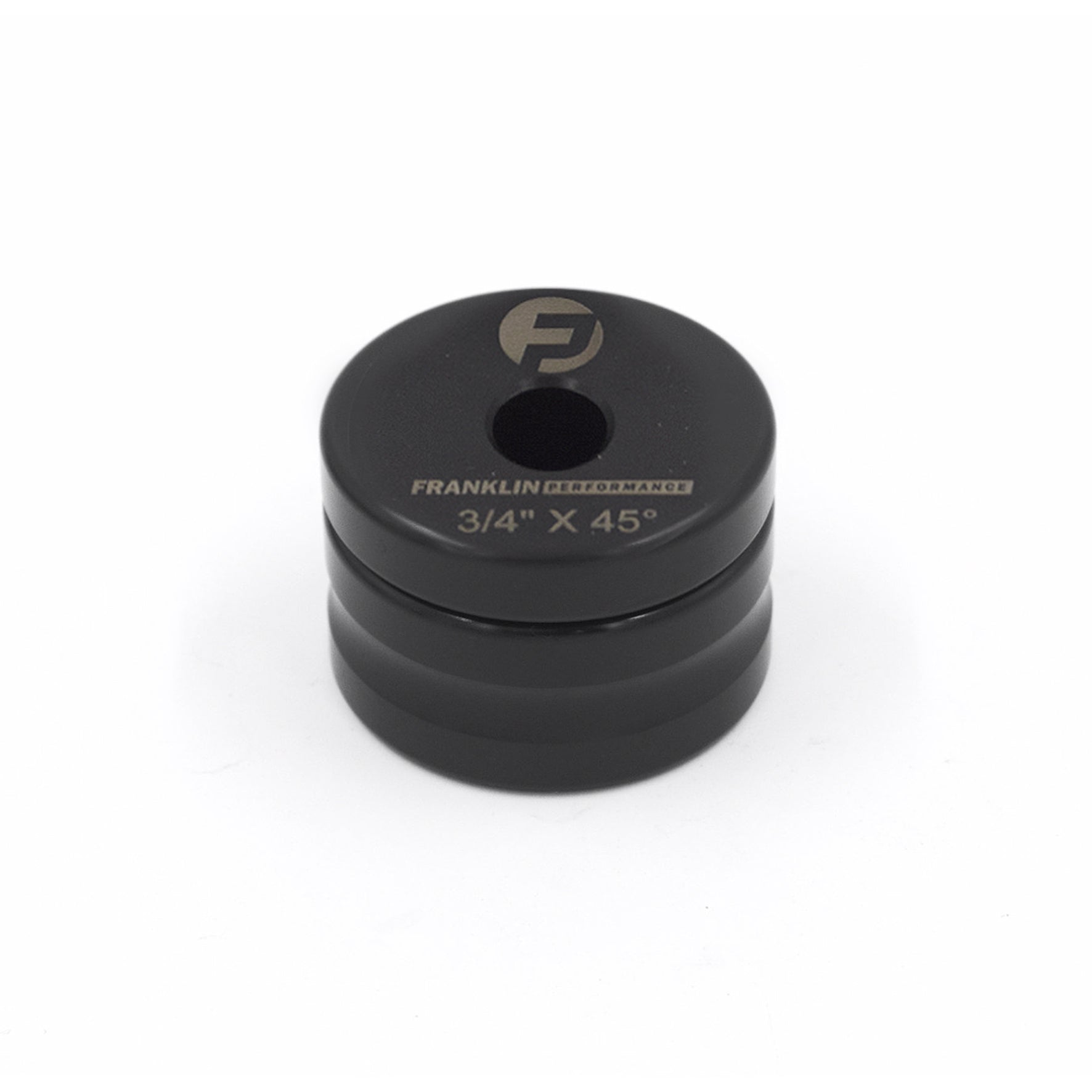

• Size: 3/4" (19.05mm) x 45

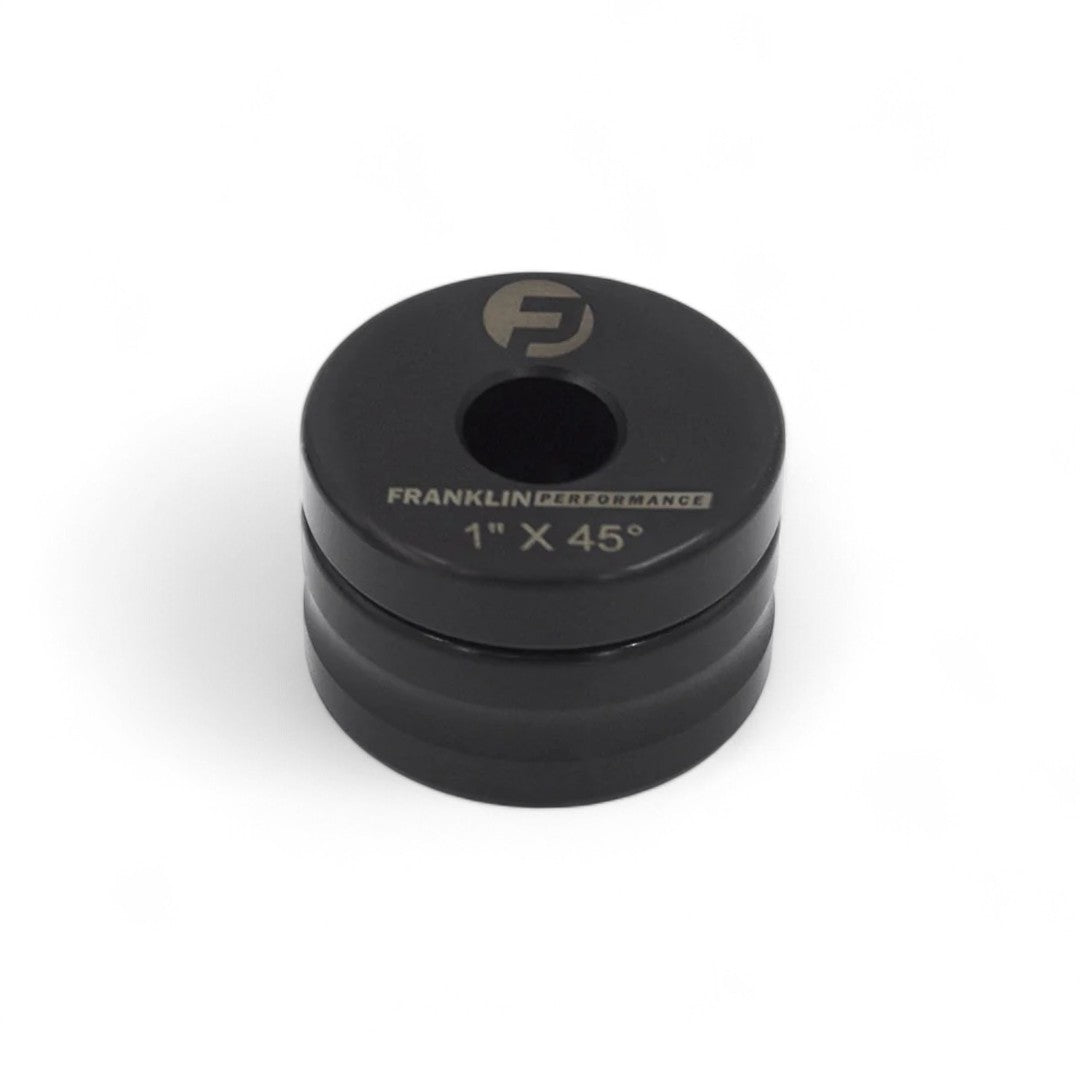

• Size: 1" (25.4mm) x 45

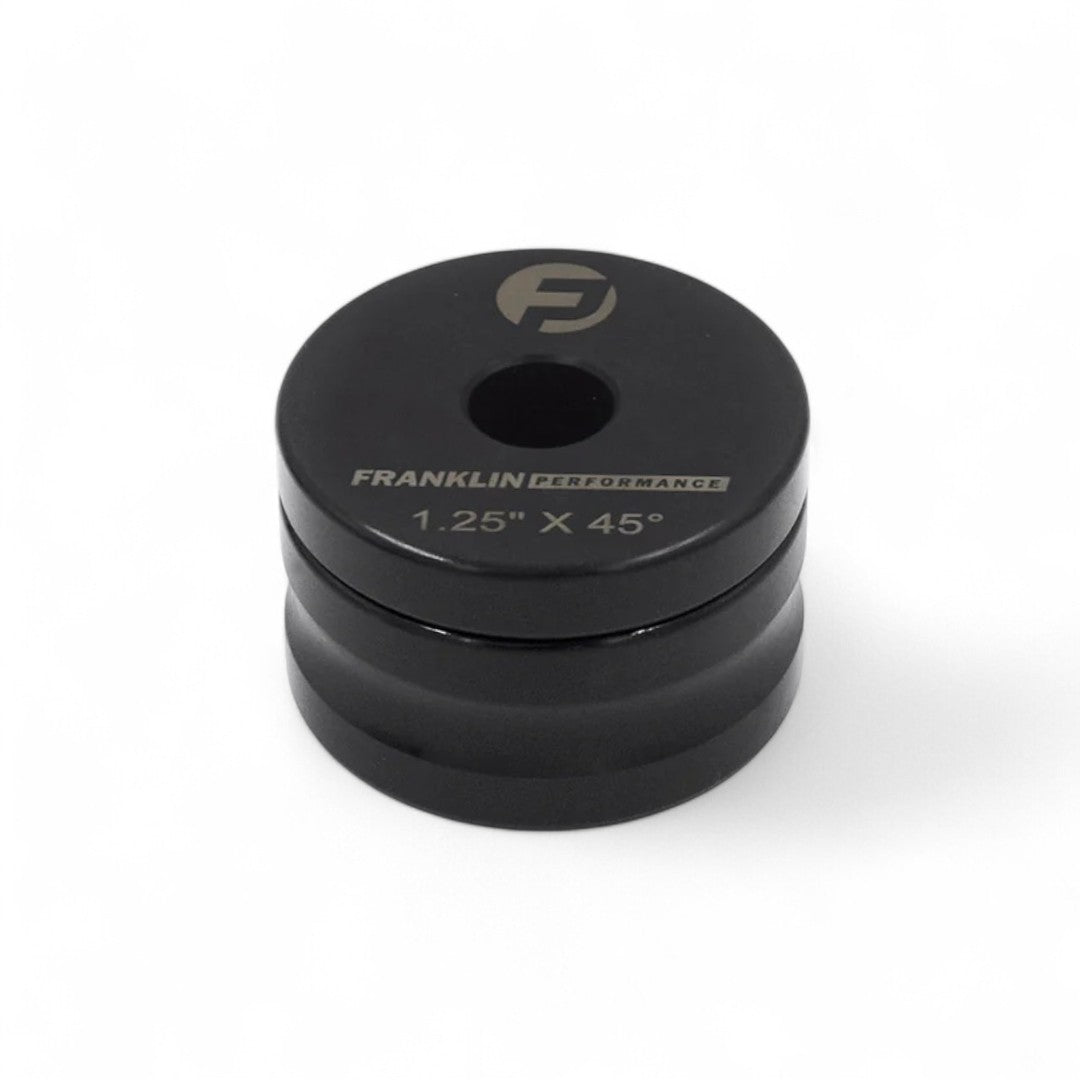

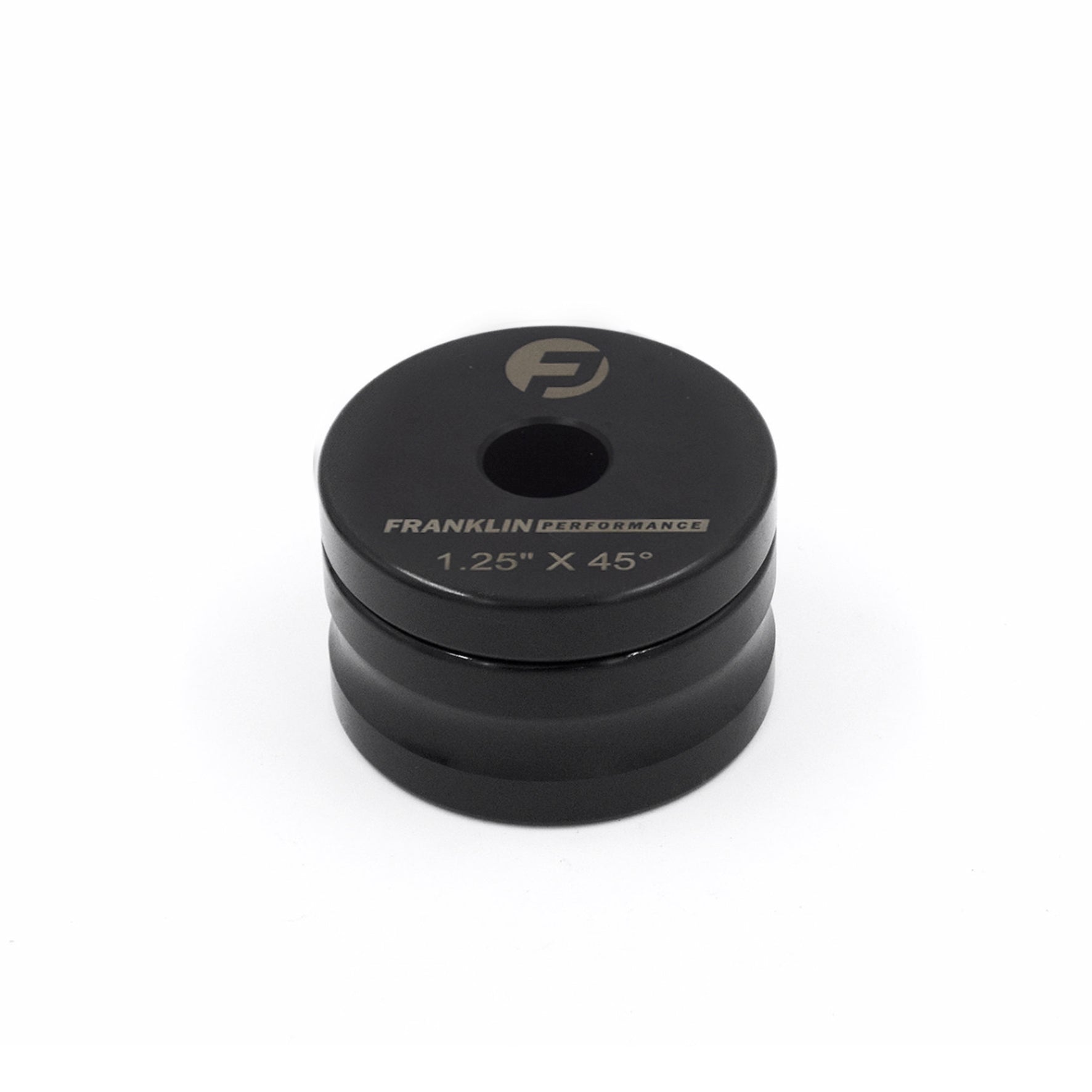

• Size: 1.25" (31.8mm) x 45

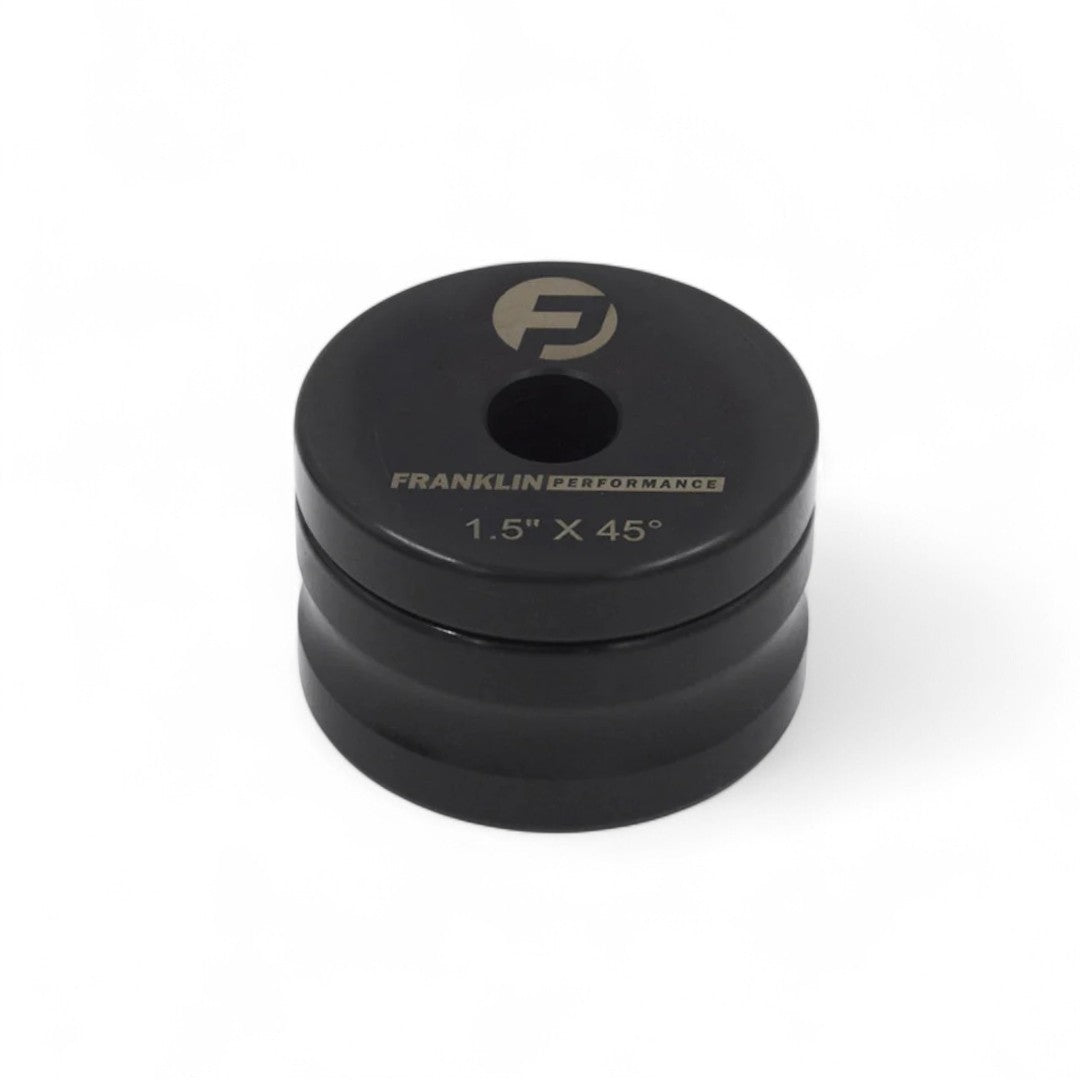

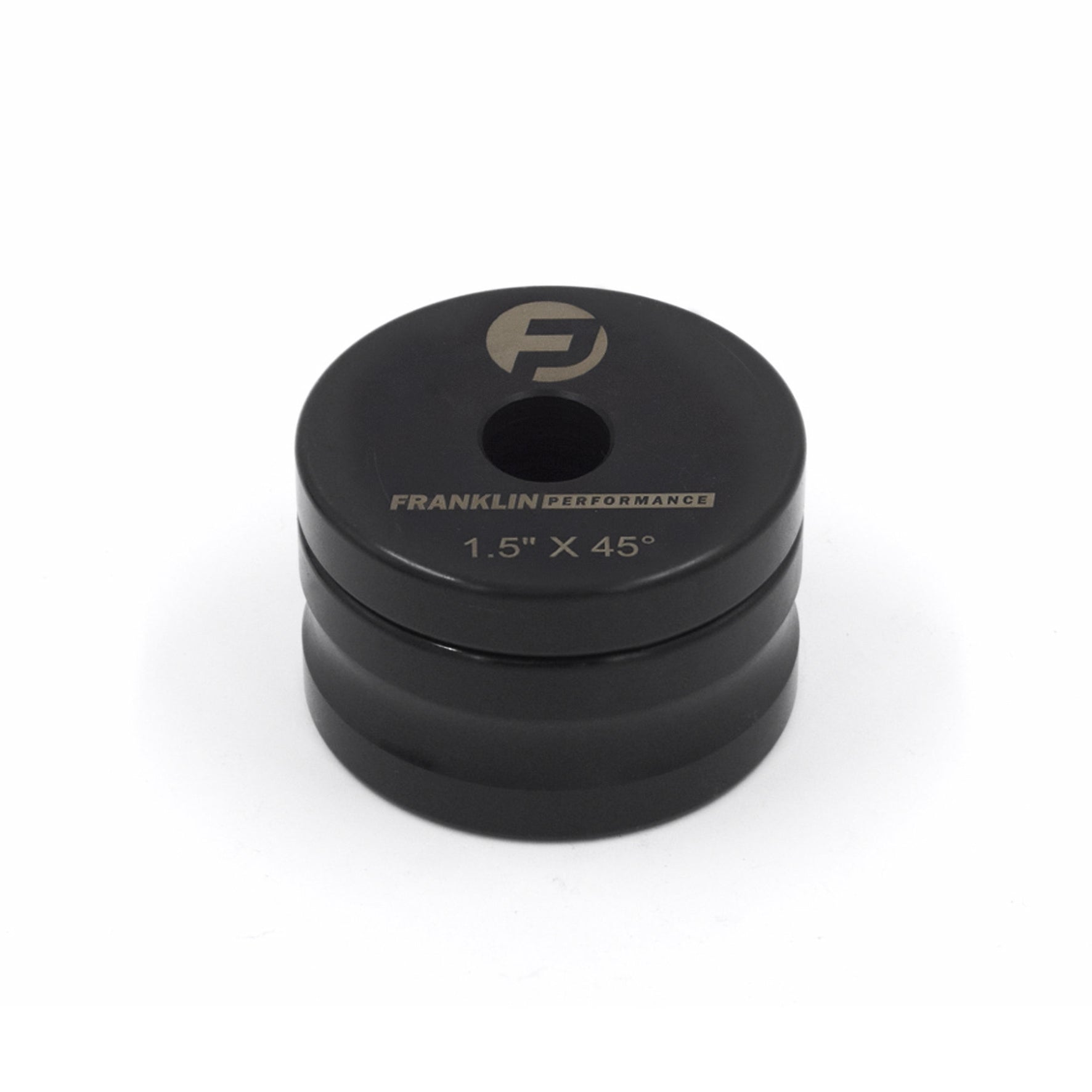

• Size: 1.5" (38.1mm) x 45

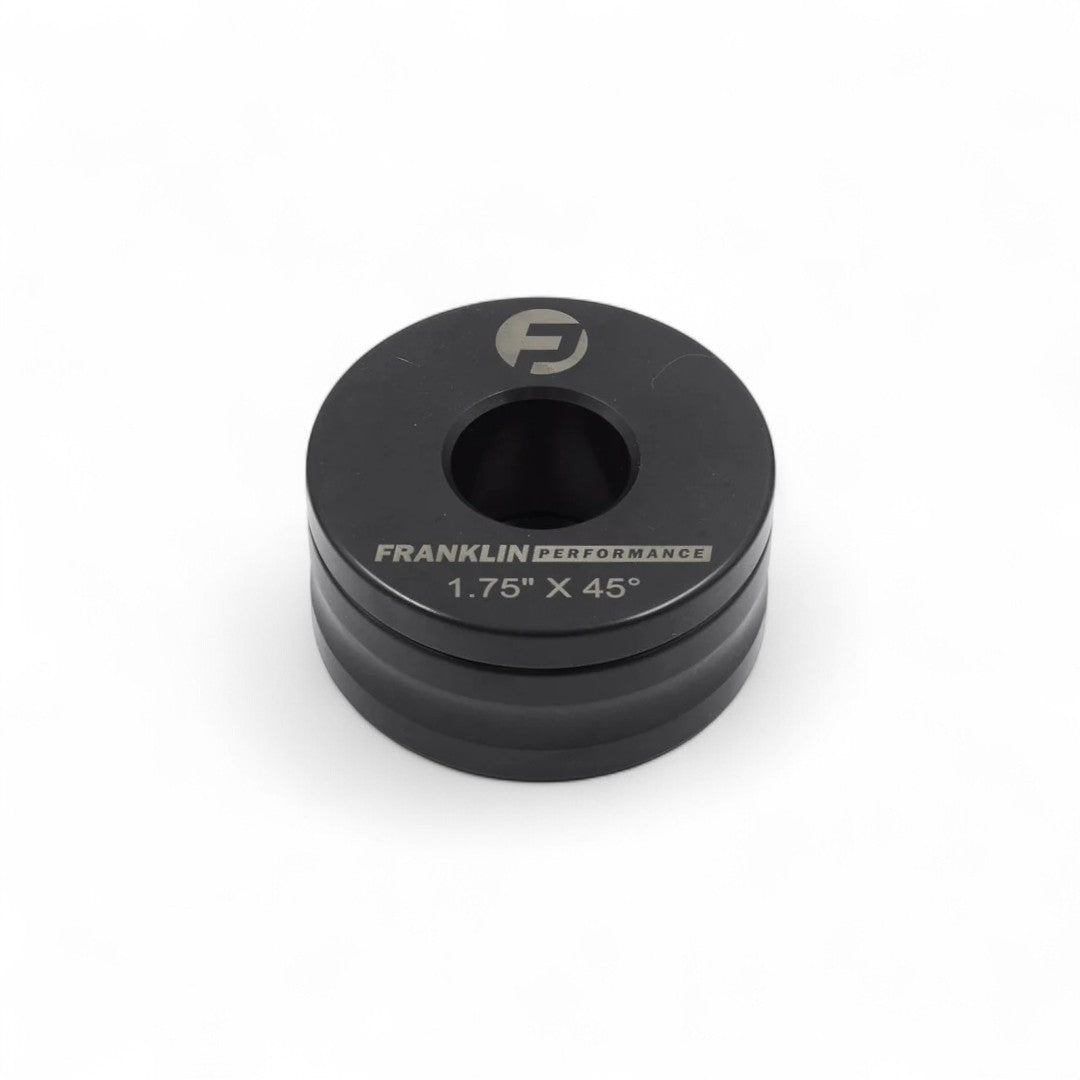

• Size: 1.75" (44.45mm) x 45

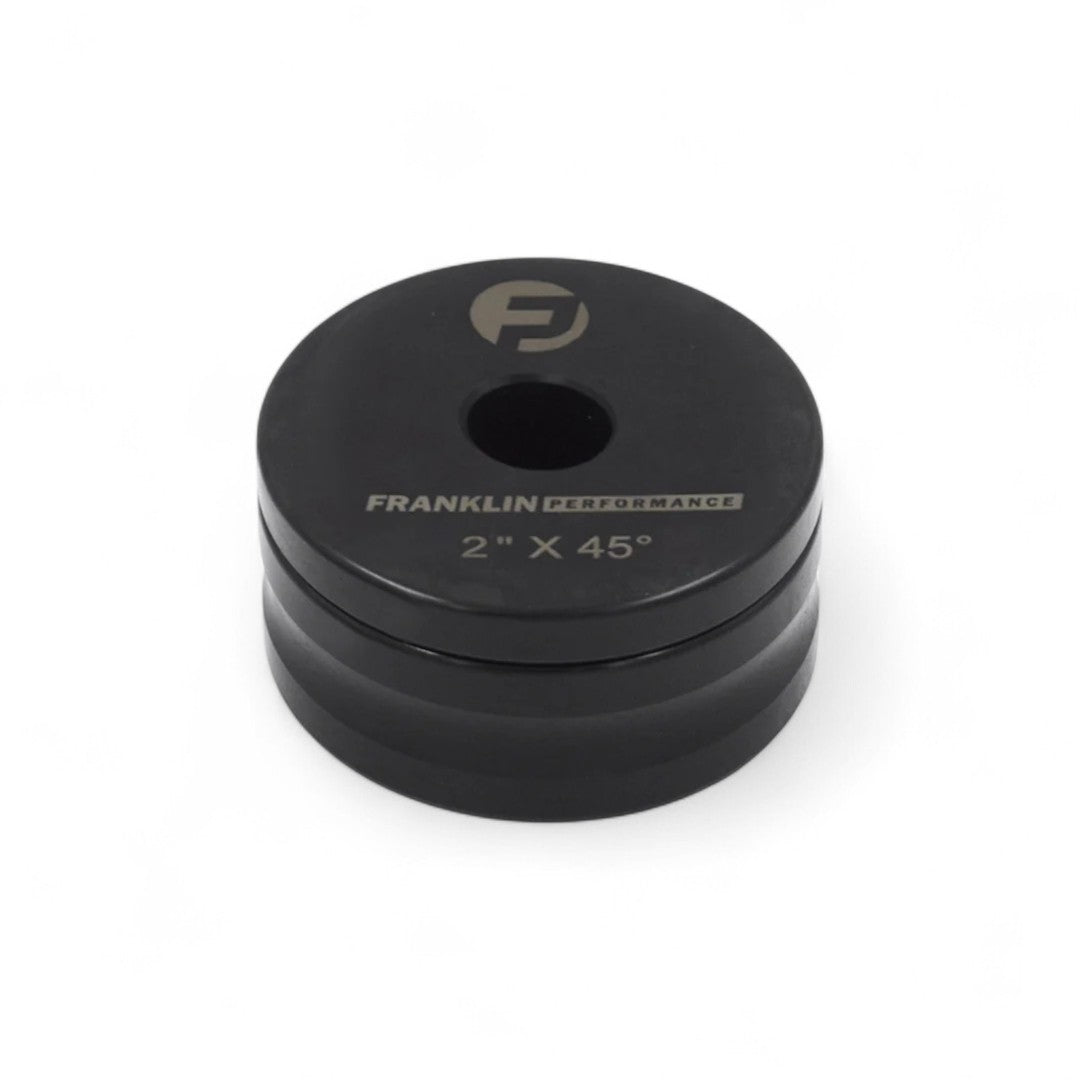

• Size: 2.0" (50.8mm) x 45

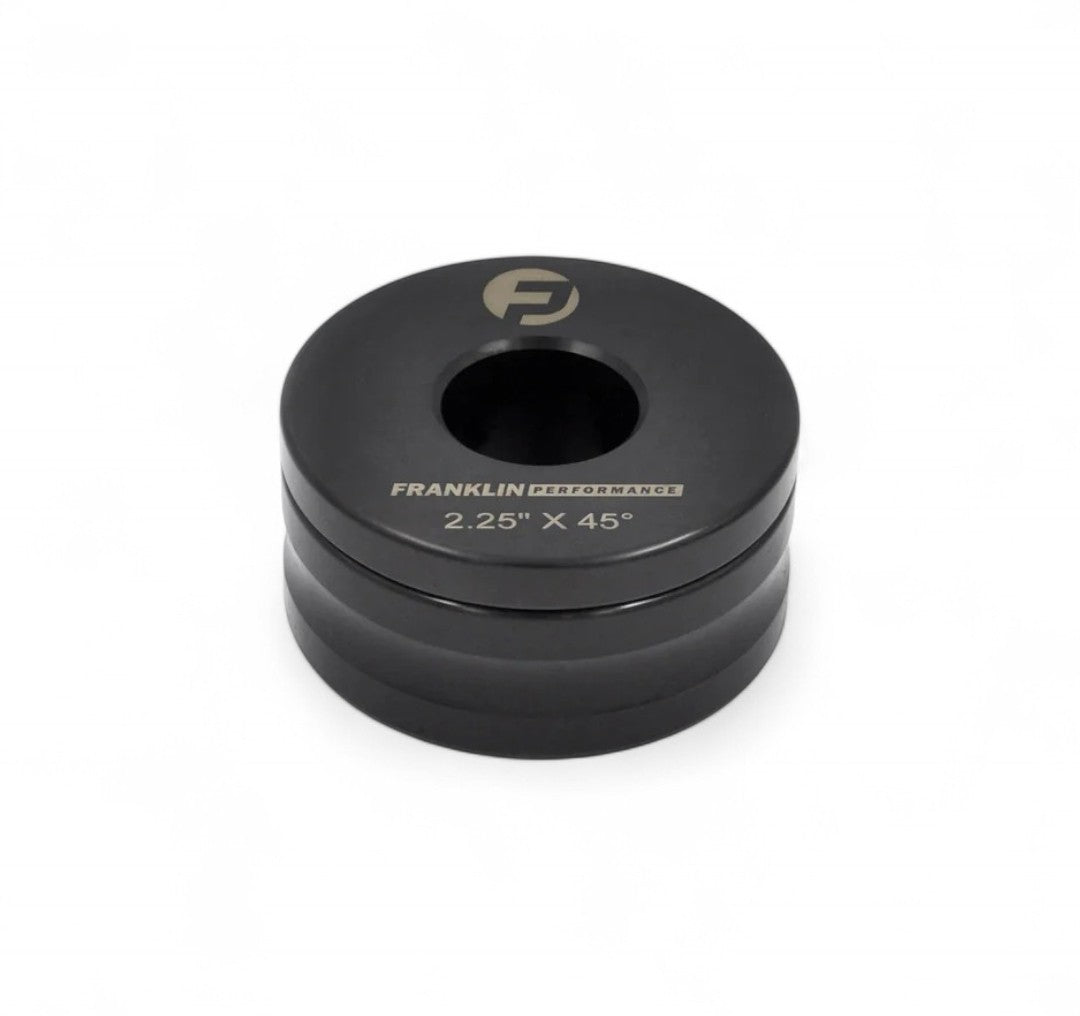

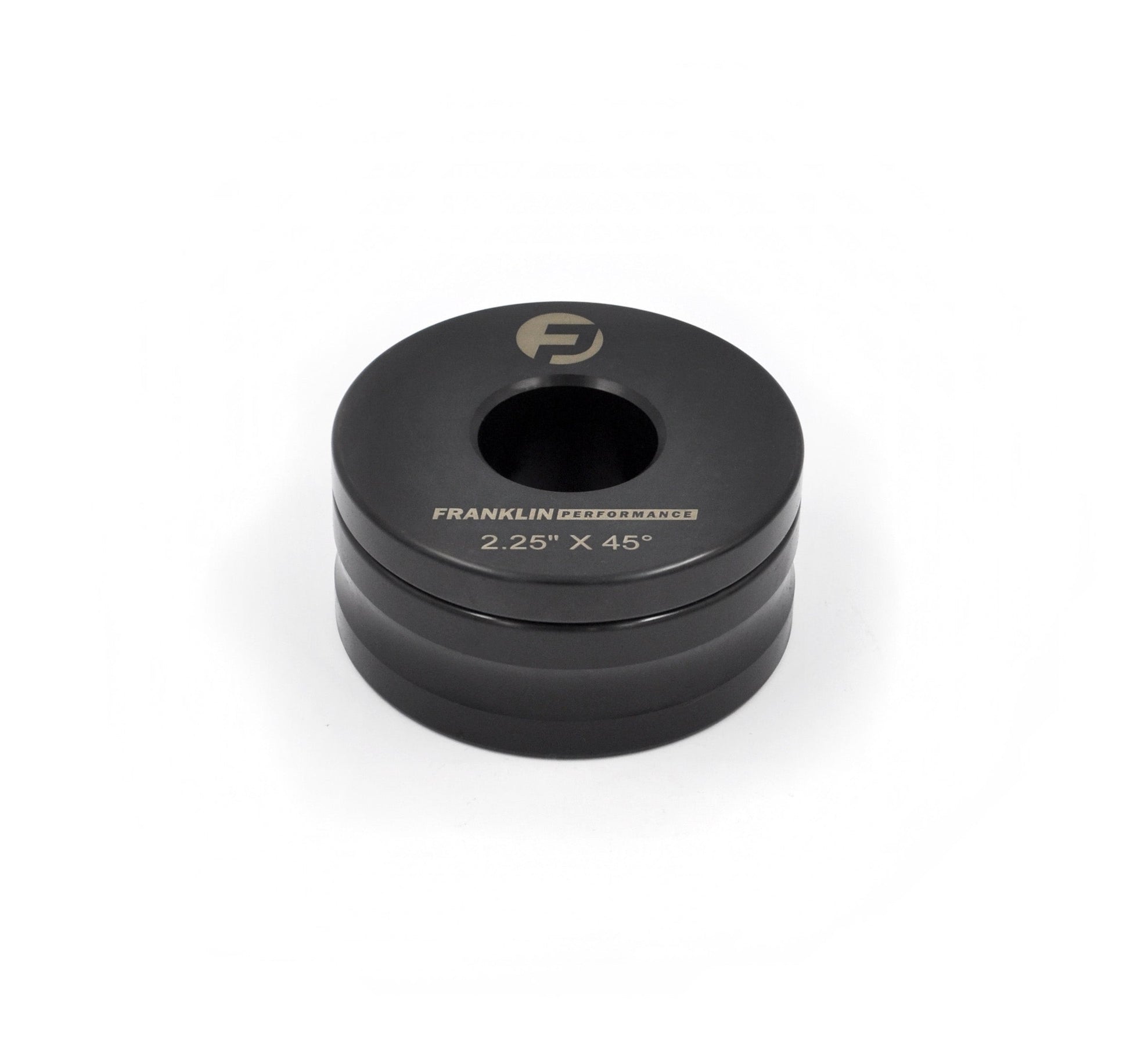

• Size: 2.25" (57.15 mm) x 45

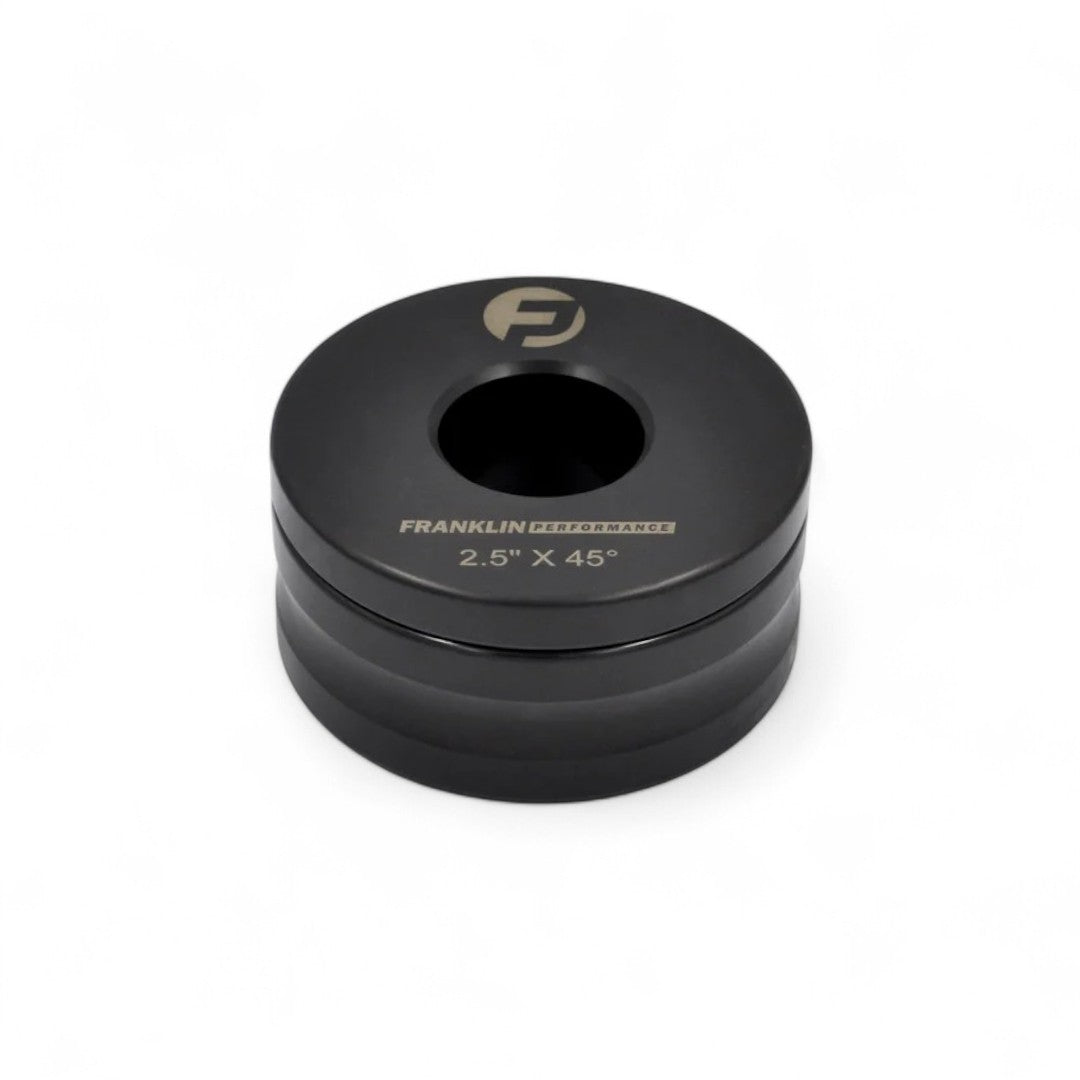

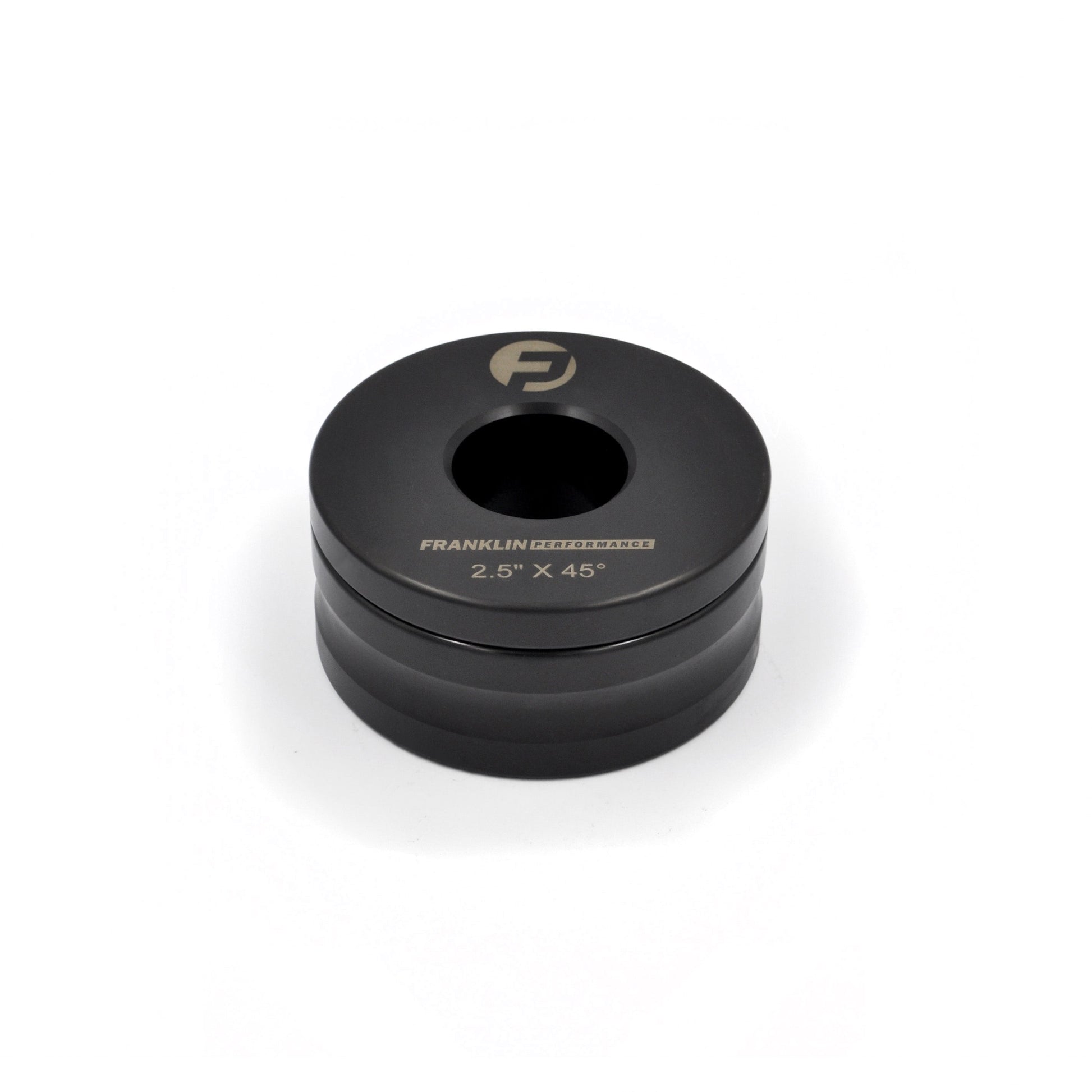

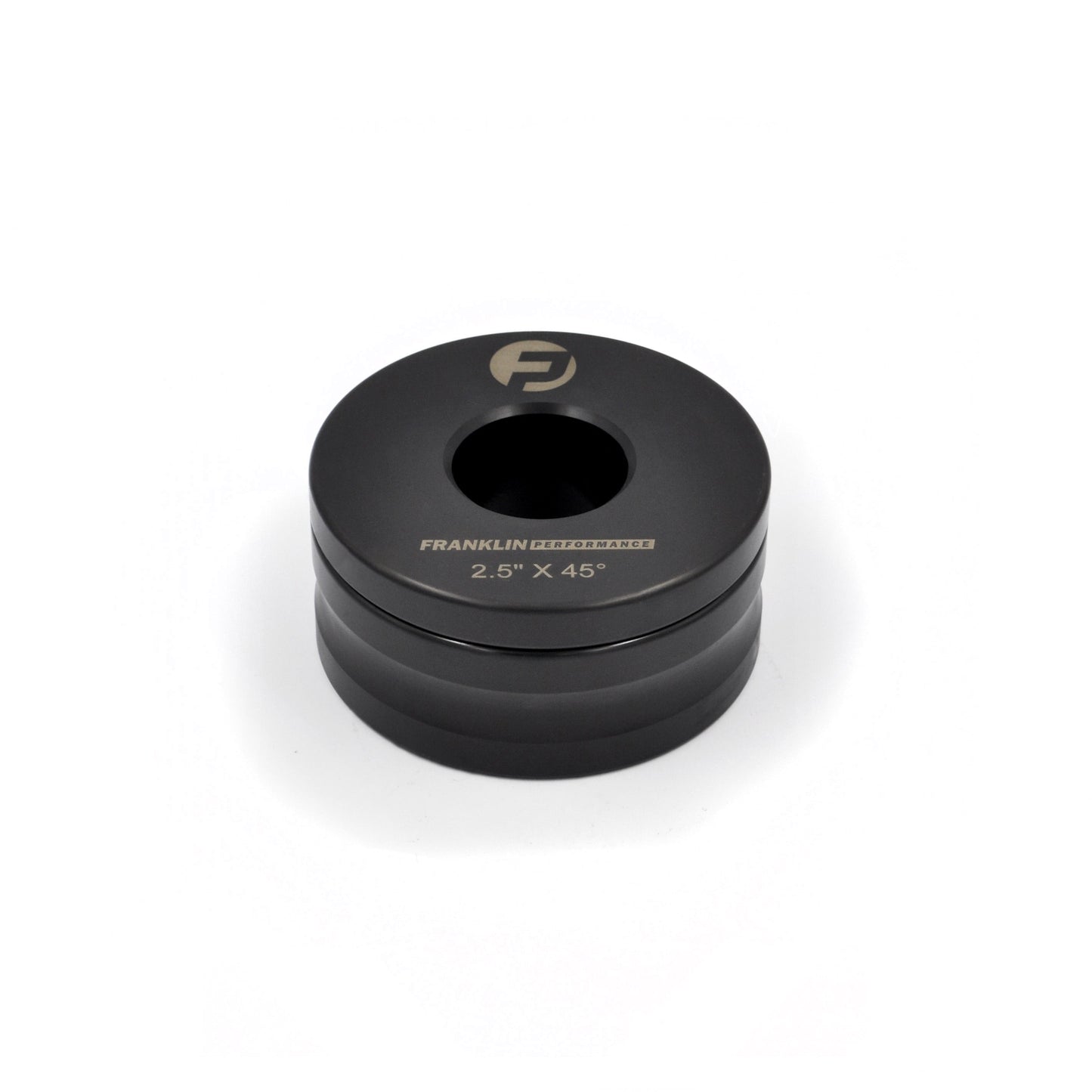

• Size: 2.5" (63.5 mm) x 45

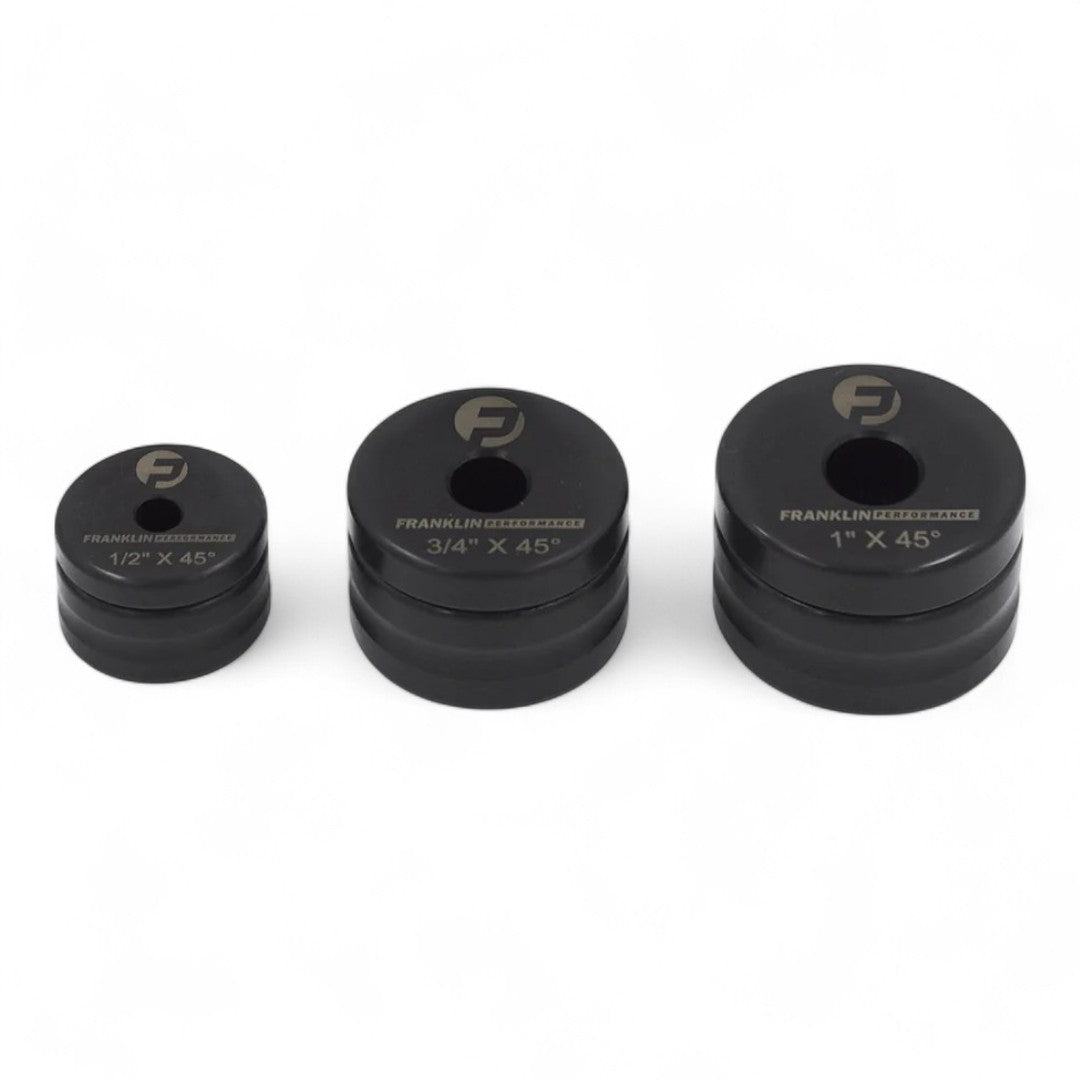

Small Set Includes;

• Size: 1/2" (12.7mm) x 45

• Size: 3/4" (19.05mm) x 45

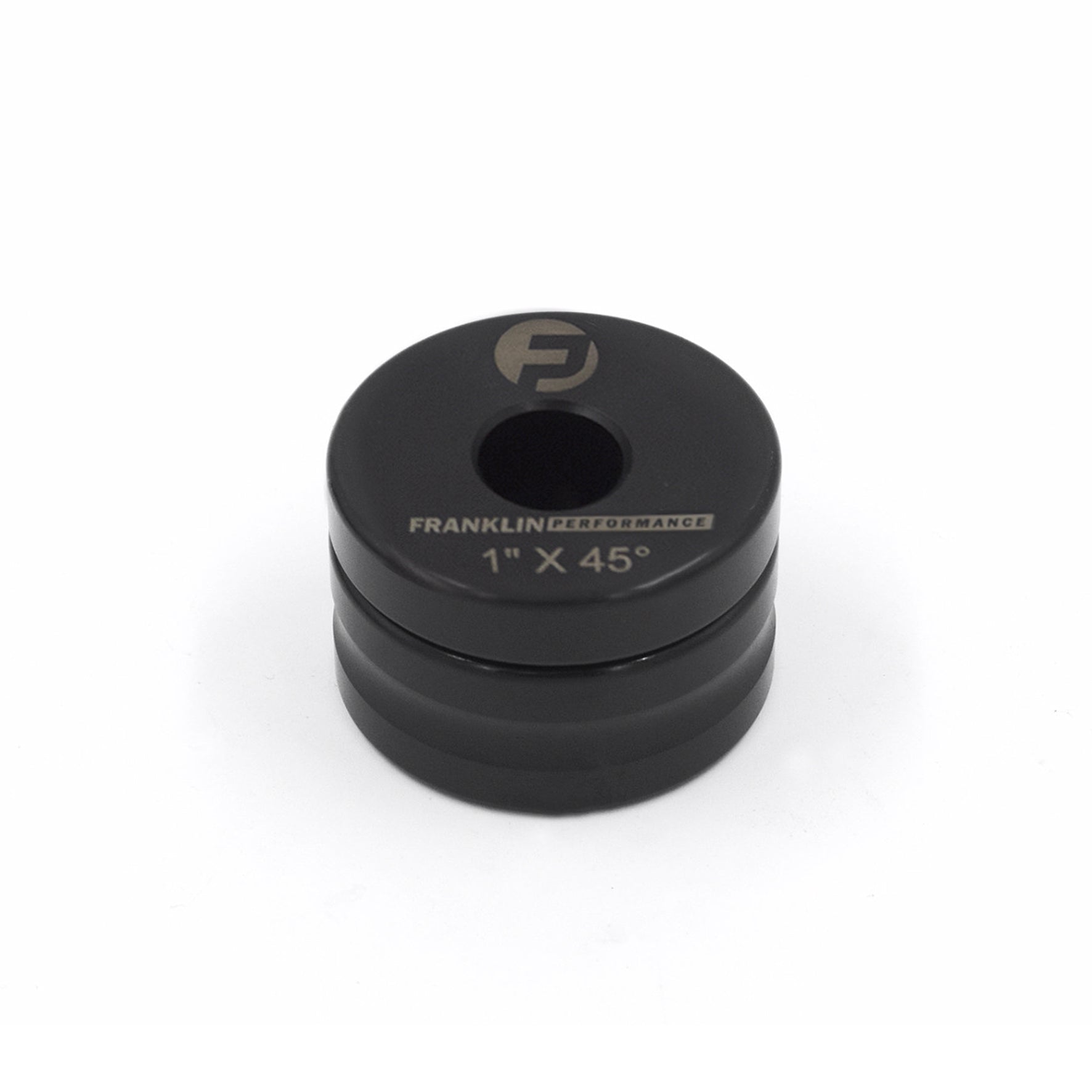

• Size: 1" (25.4mm) x 45

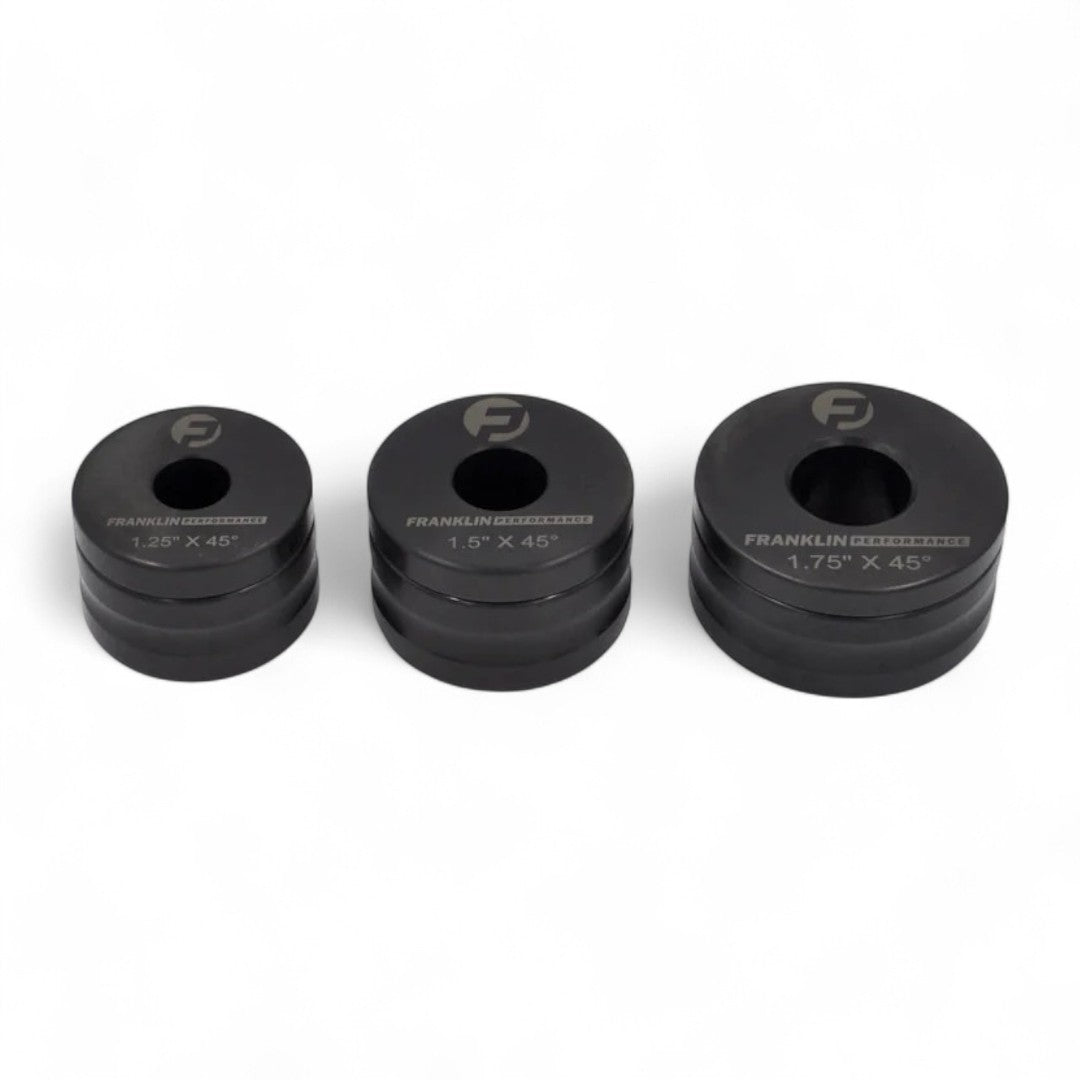

Medium Set Includes;

• Size: 1.25" (31.8mm) x 45

• Size: 1.5" (38.1mm) x 45

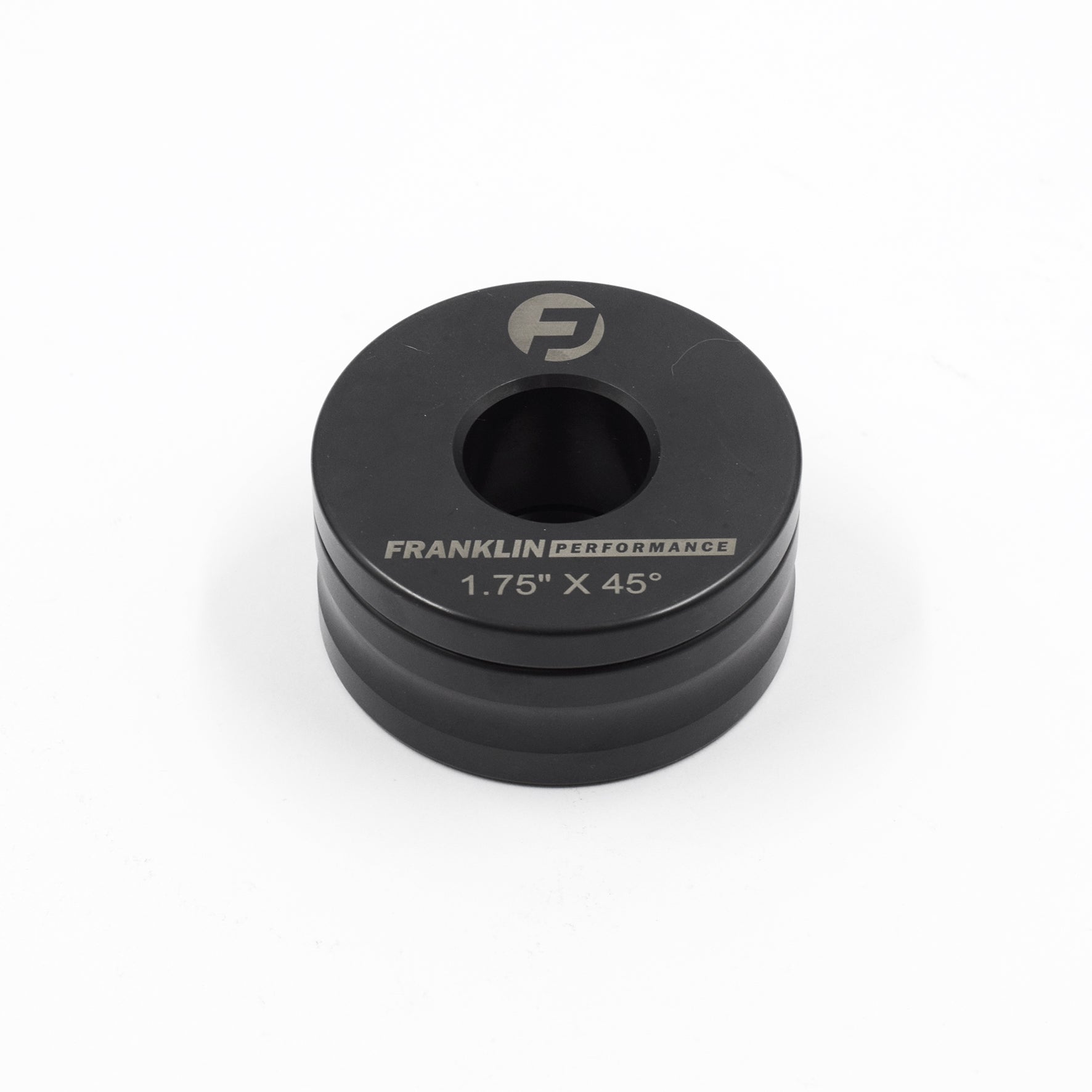

• Size: 1.75" (44.45mm) x 45

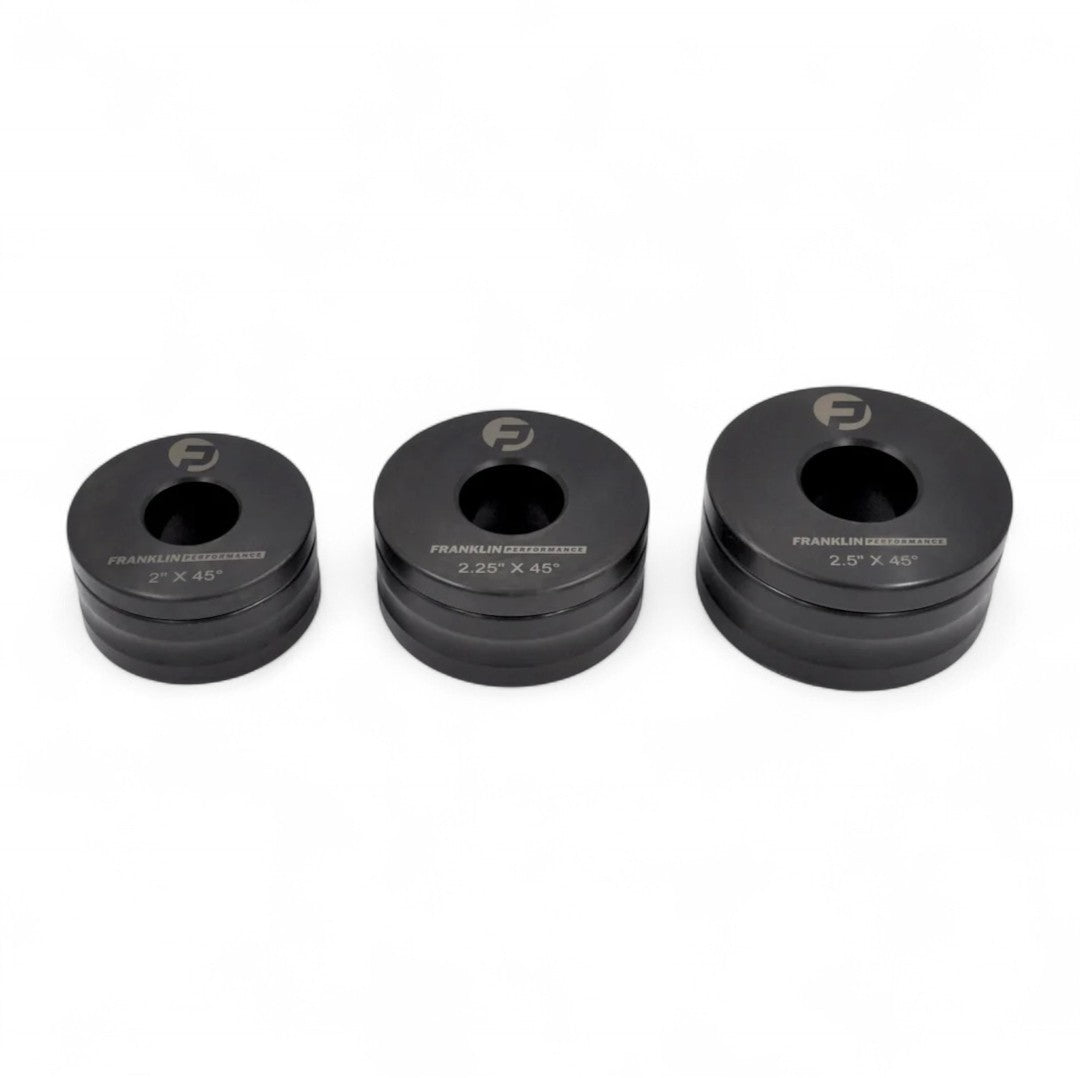

Large Set Includes;

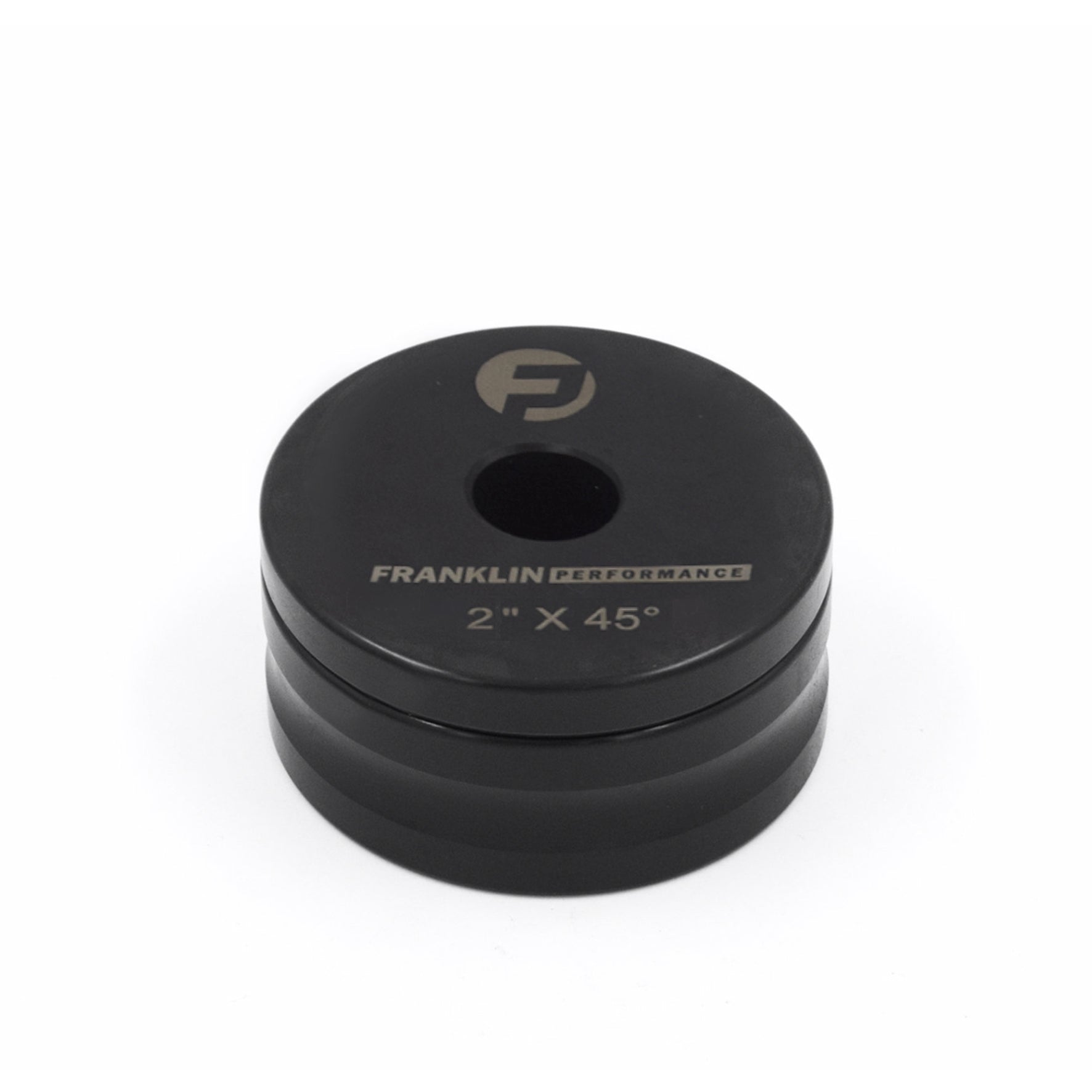

• Size: 2.0" (50.8mm) x 45

• Size: 2.25" (57.15 mm) x 45

• Size: 2.5" (63.5 mm) x 45
