Maxfab Fabrication Supply Co.

Barra Inlet

Barra Inlet

Regular price $1,175.00 NZD
Regular price Sale price $1,175.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

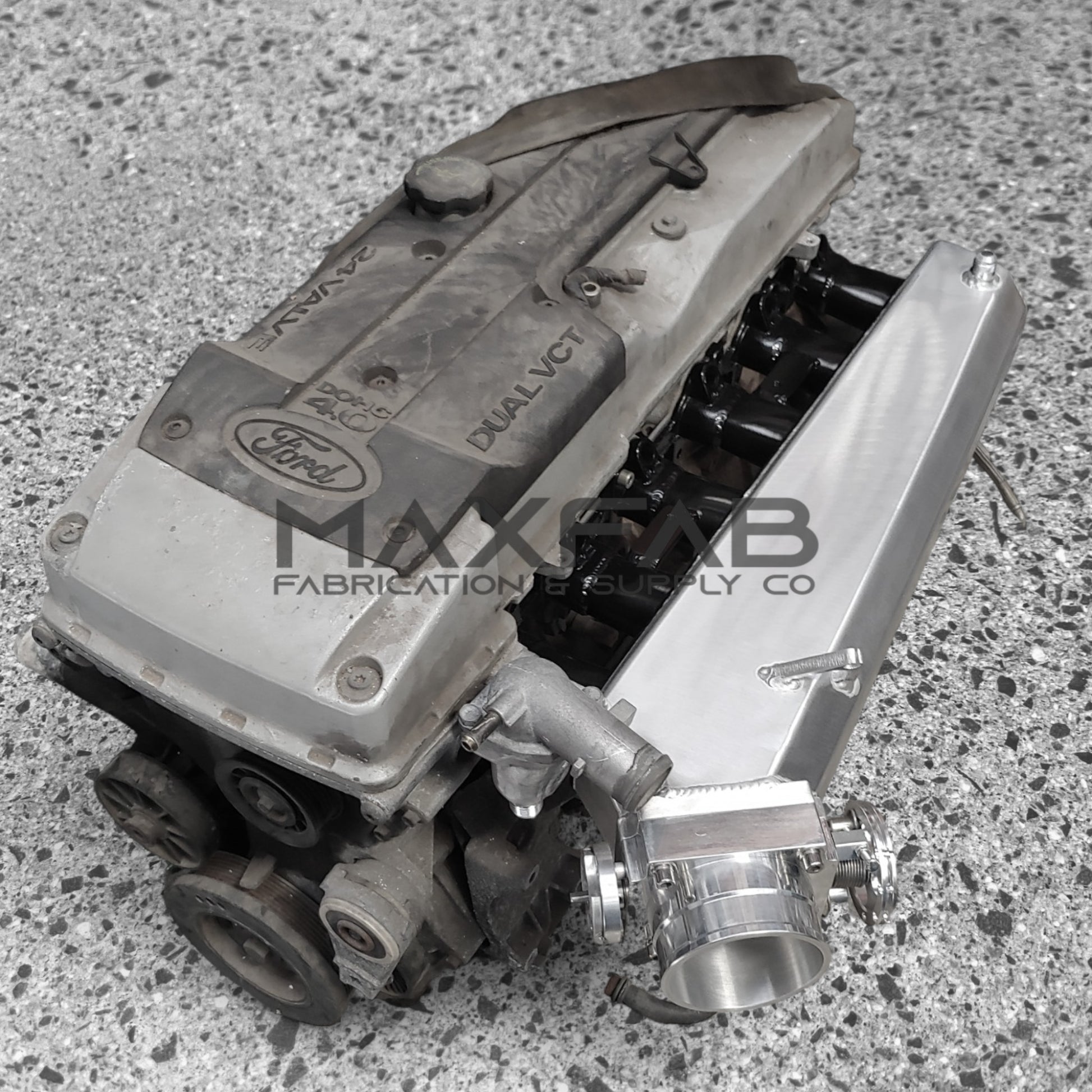

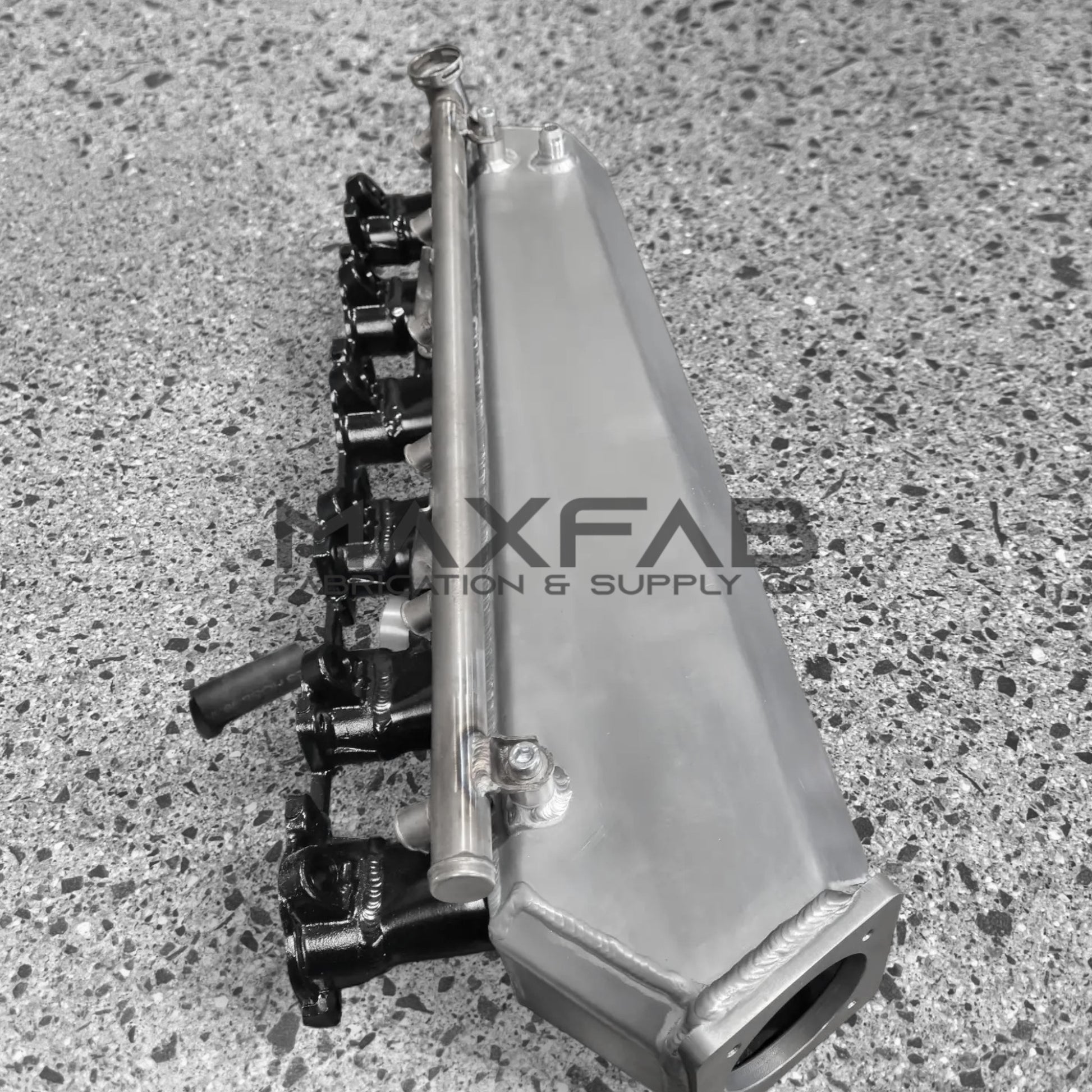

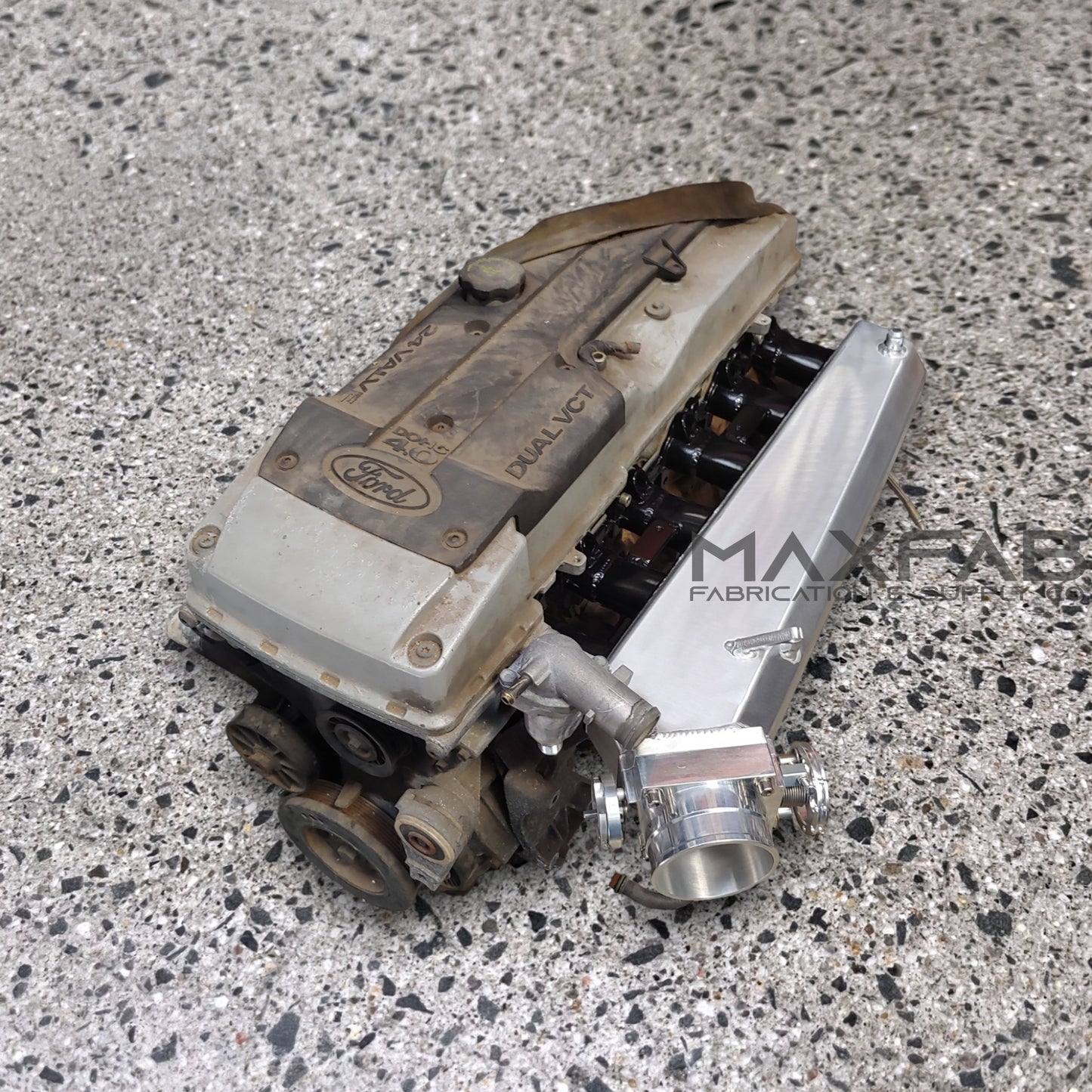

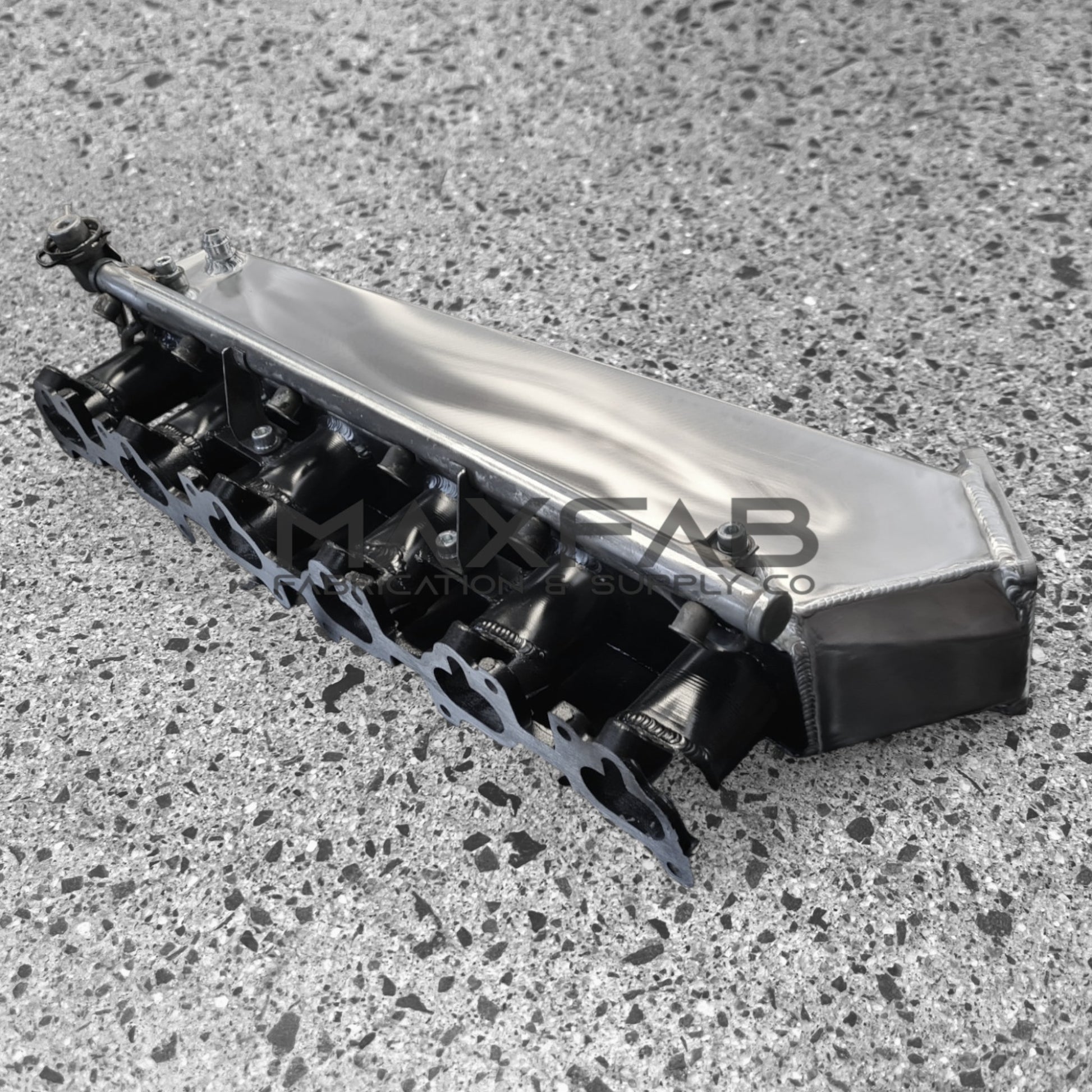

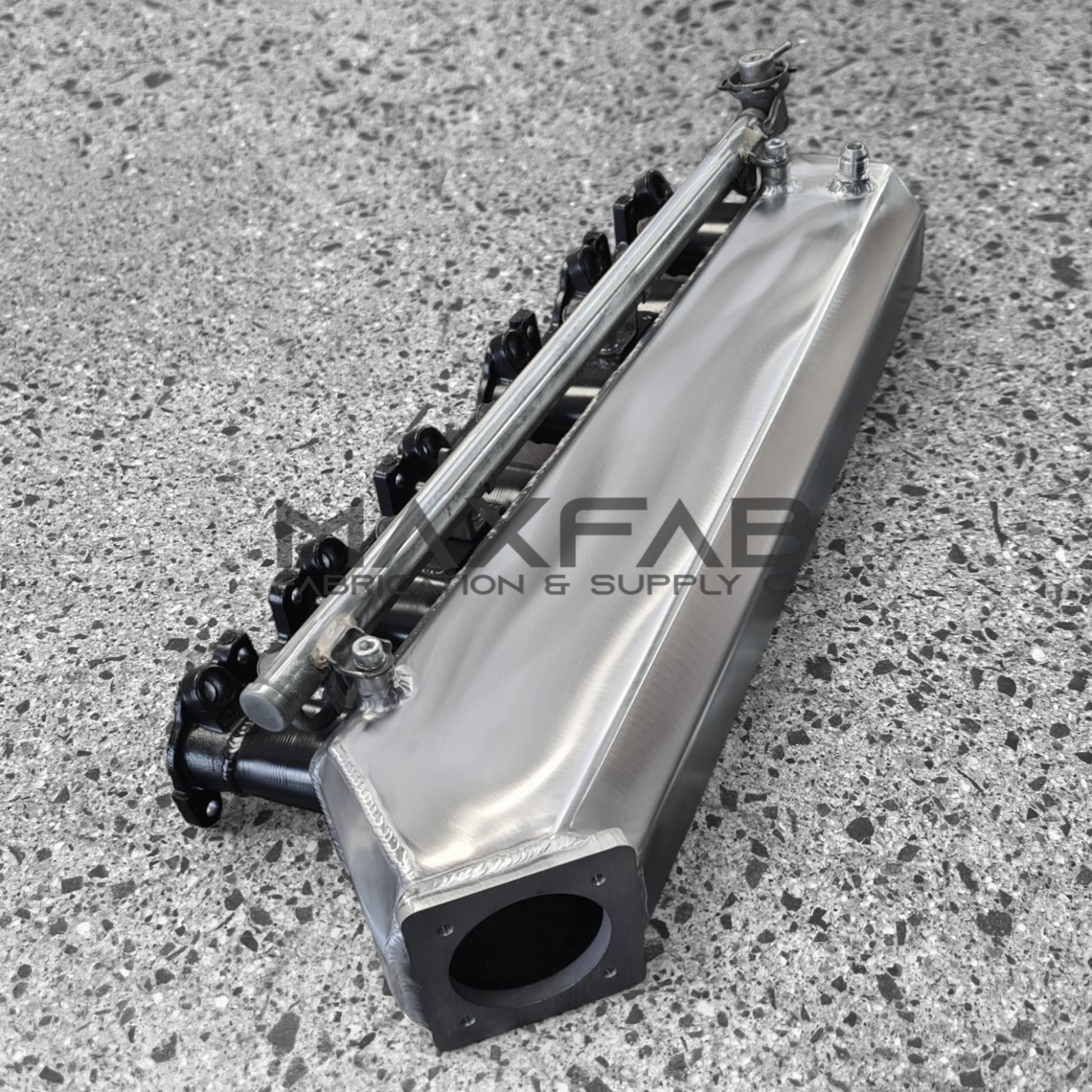

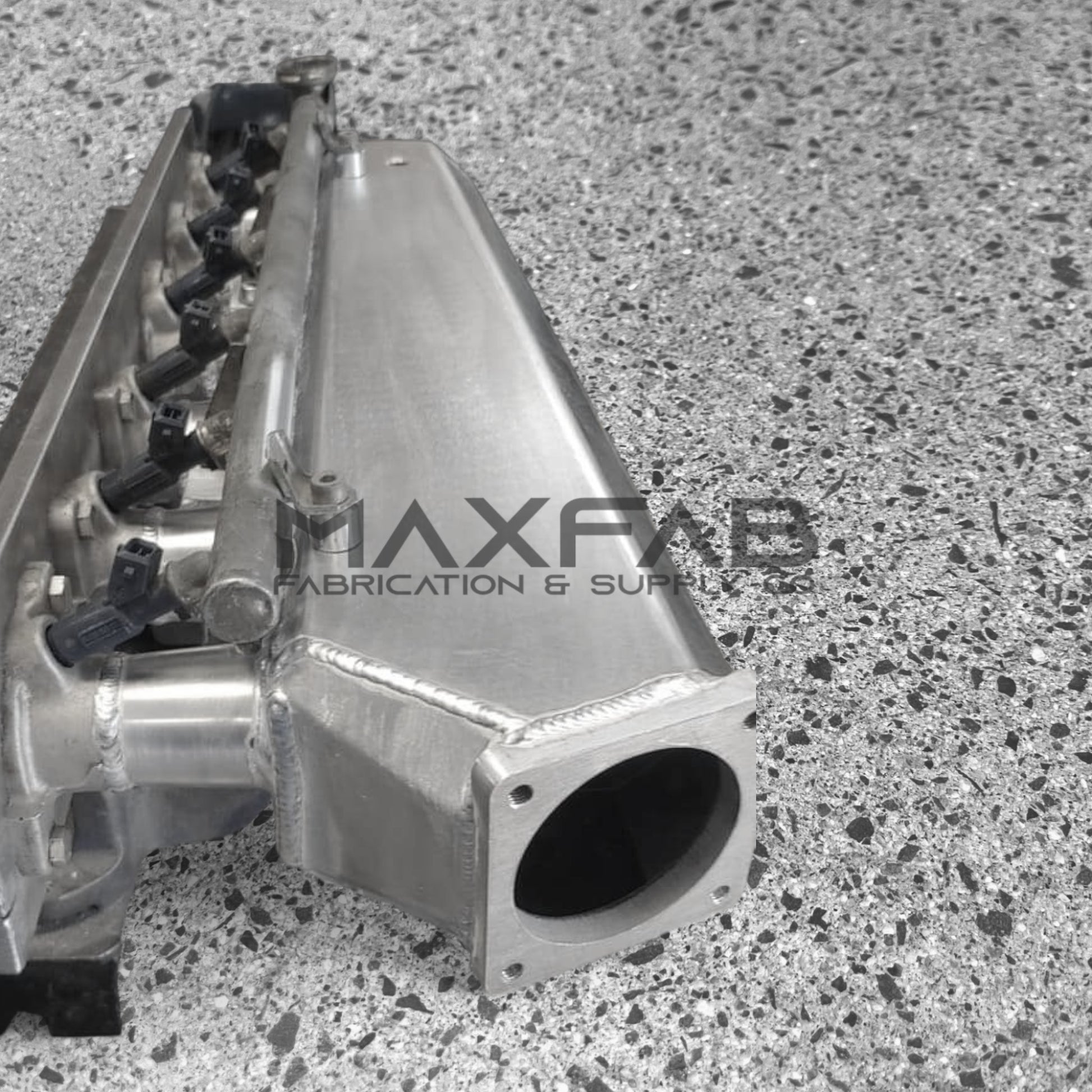

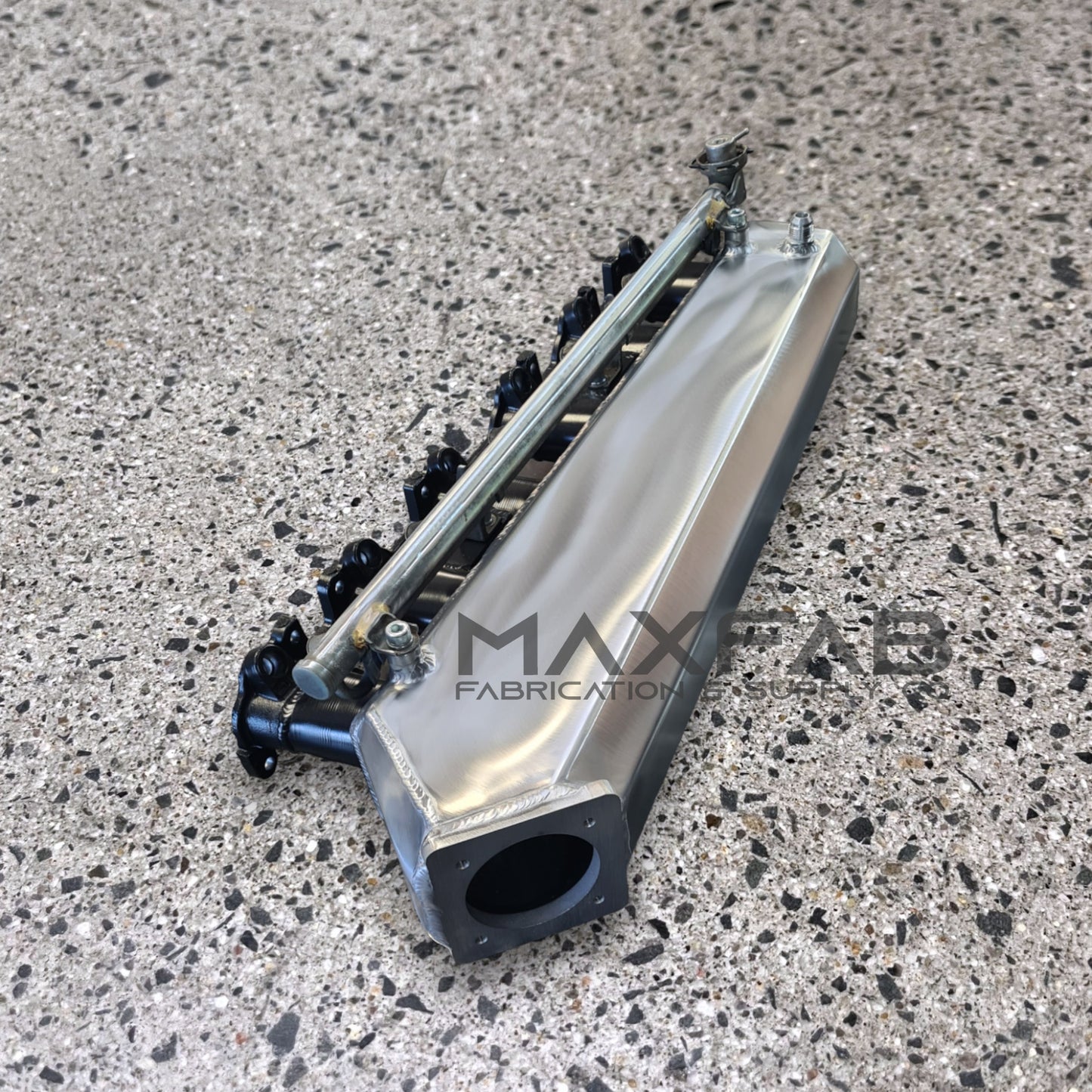

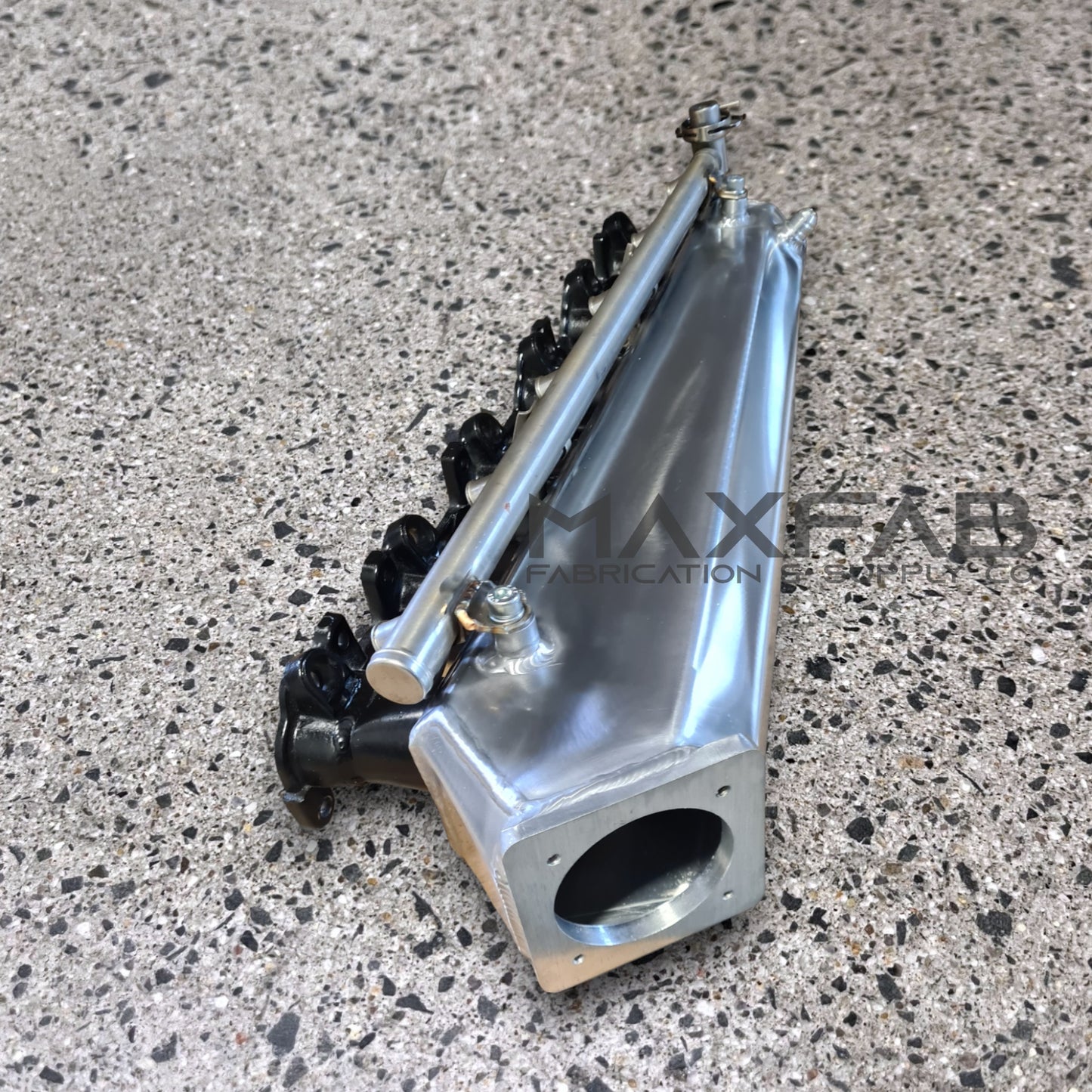

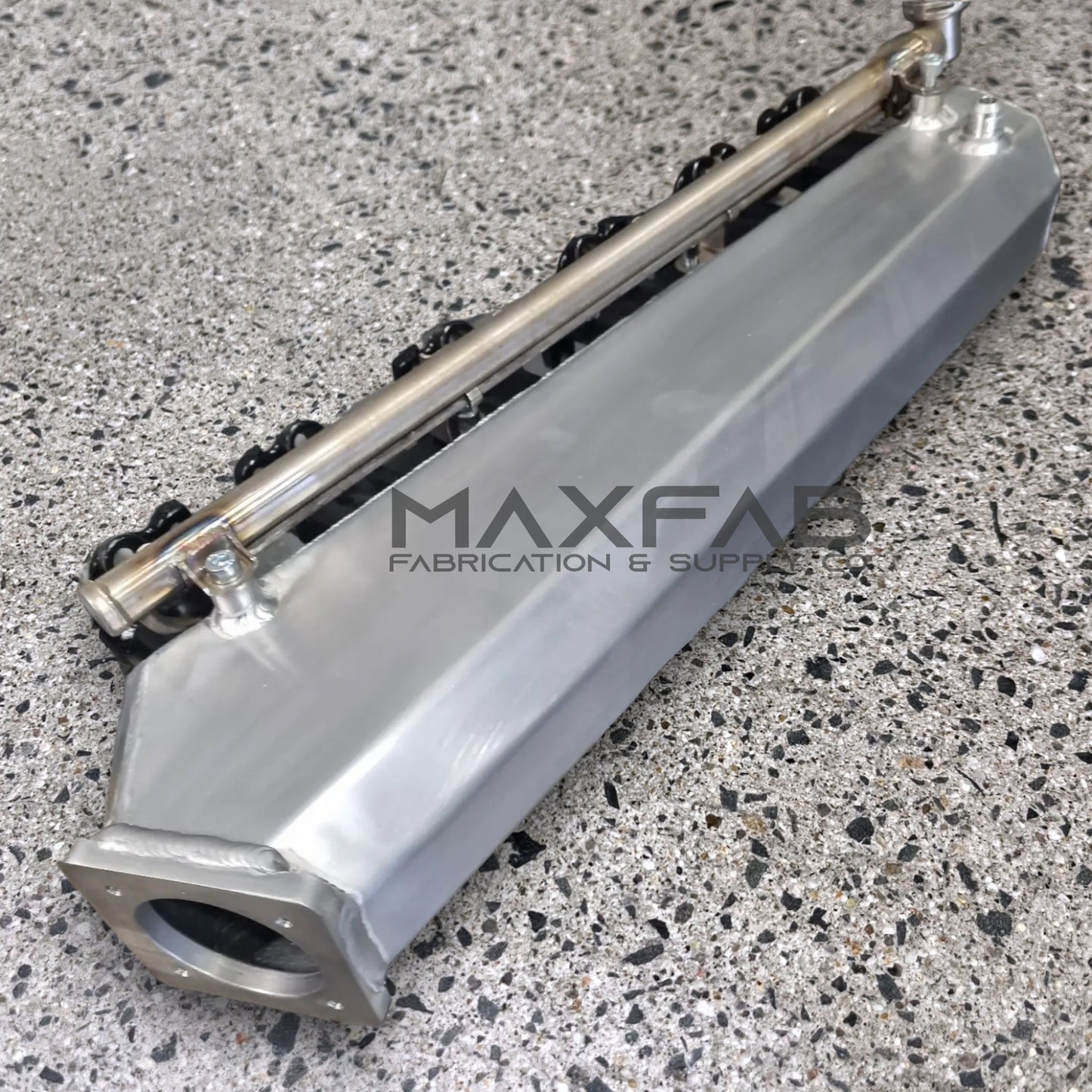

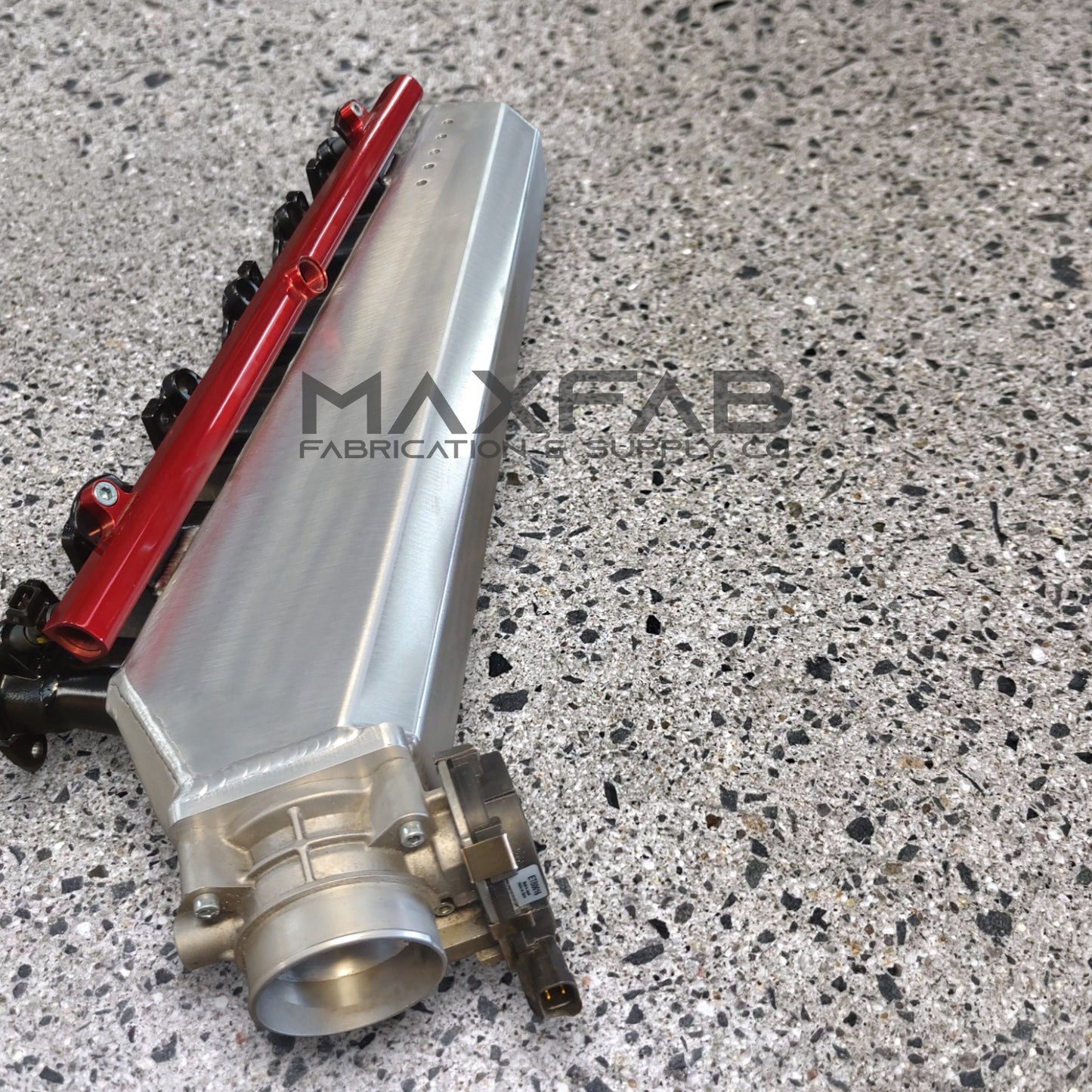

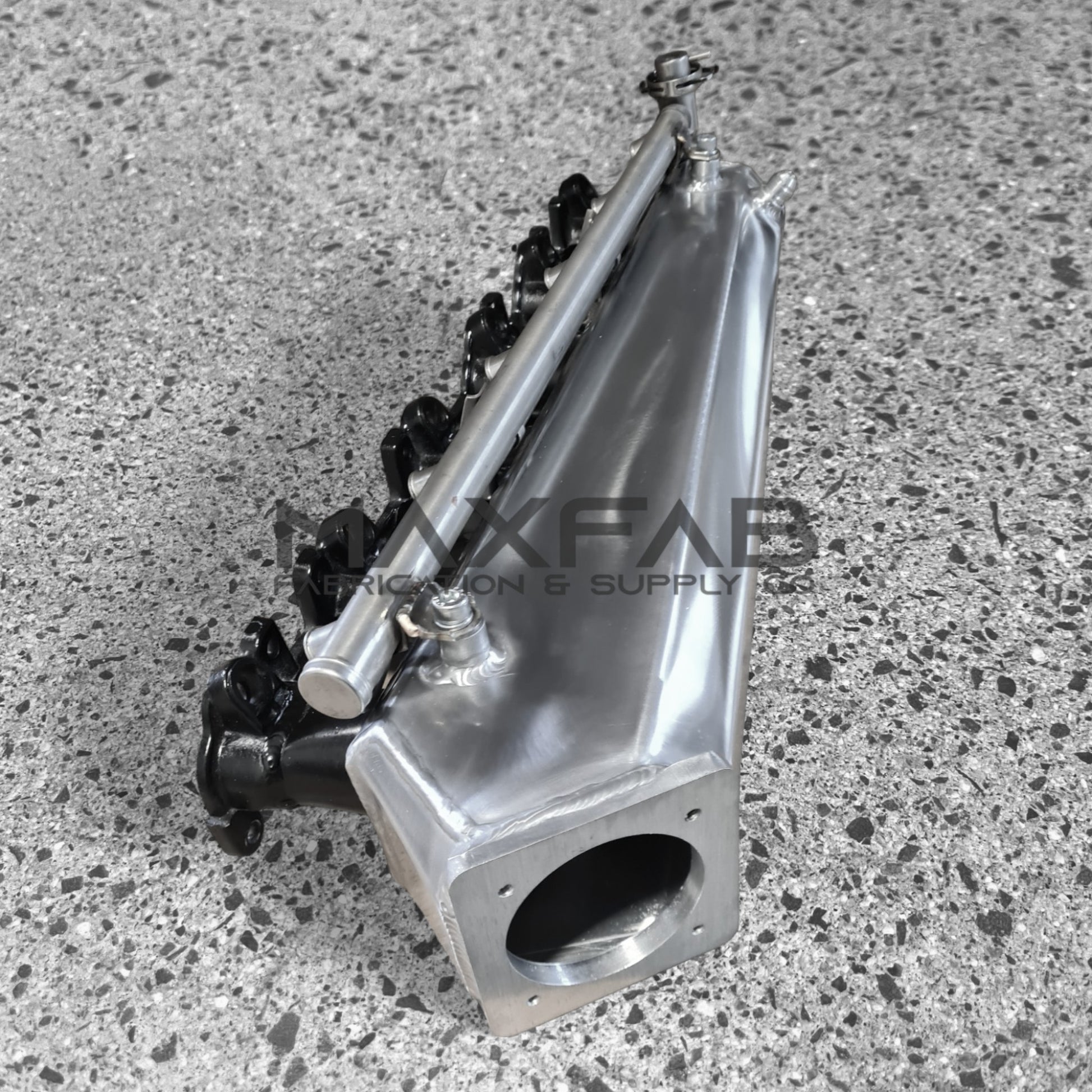

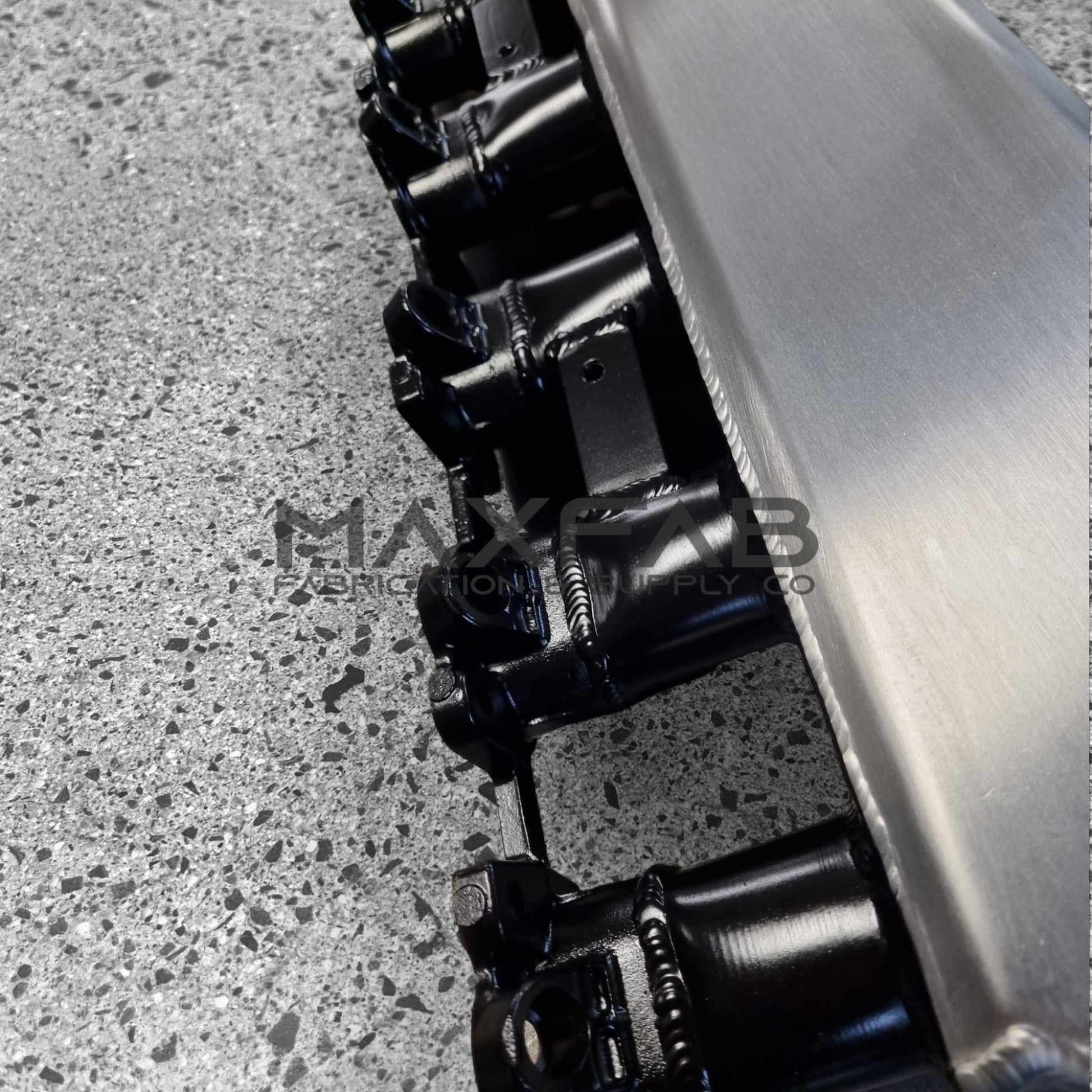

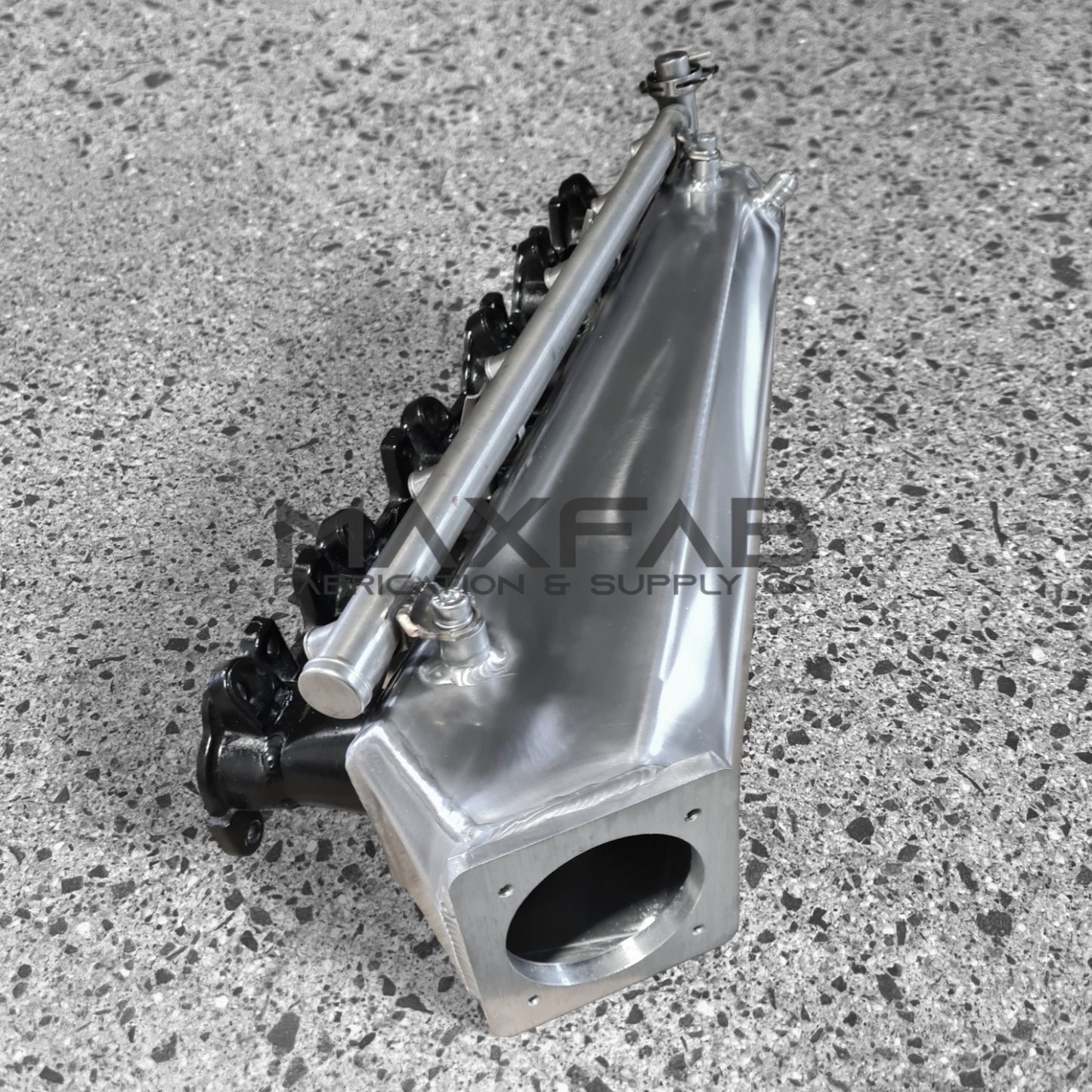

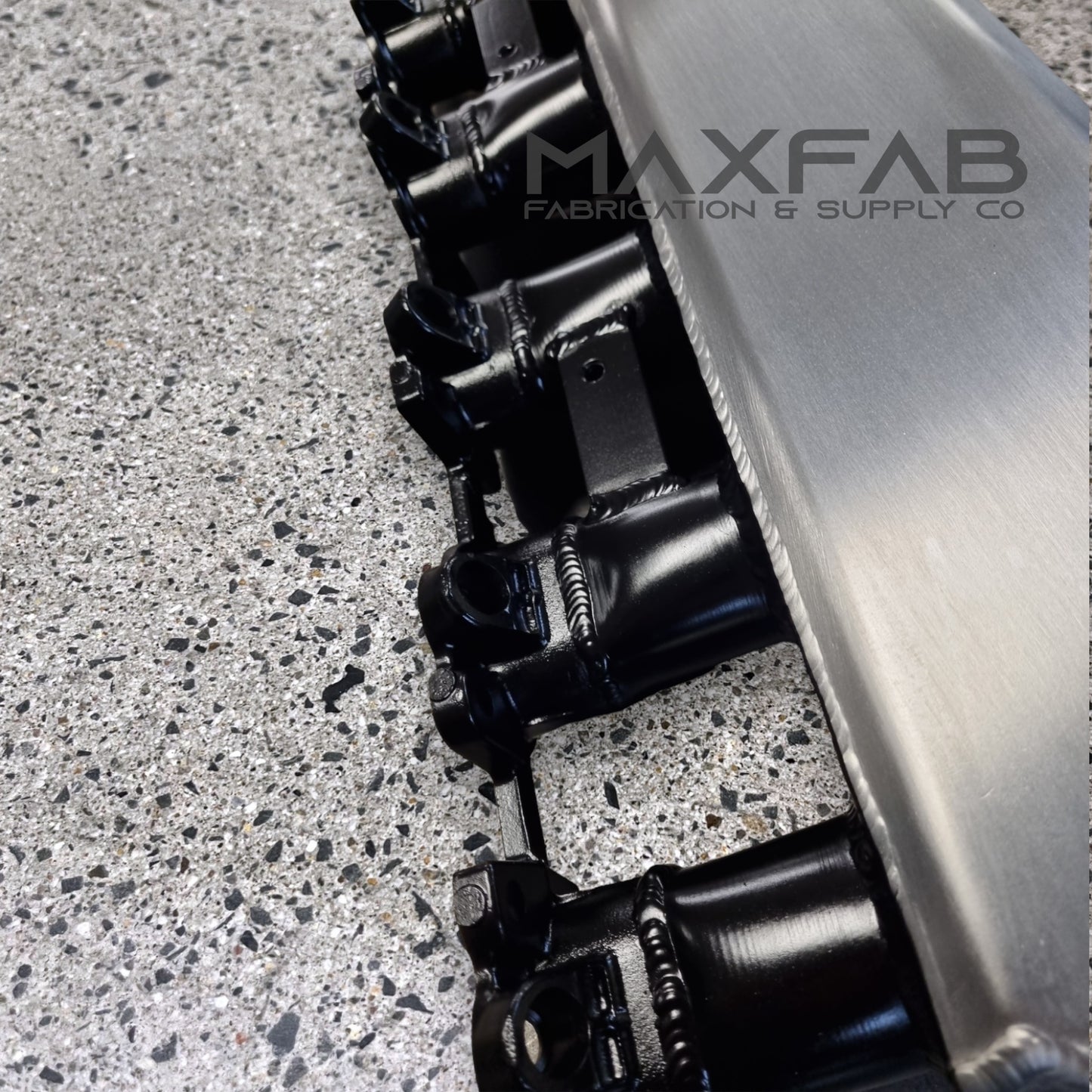

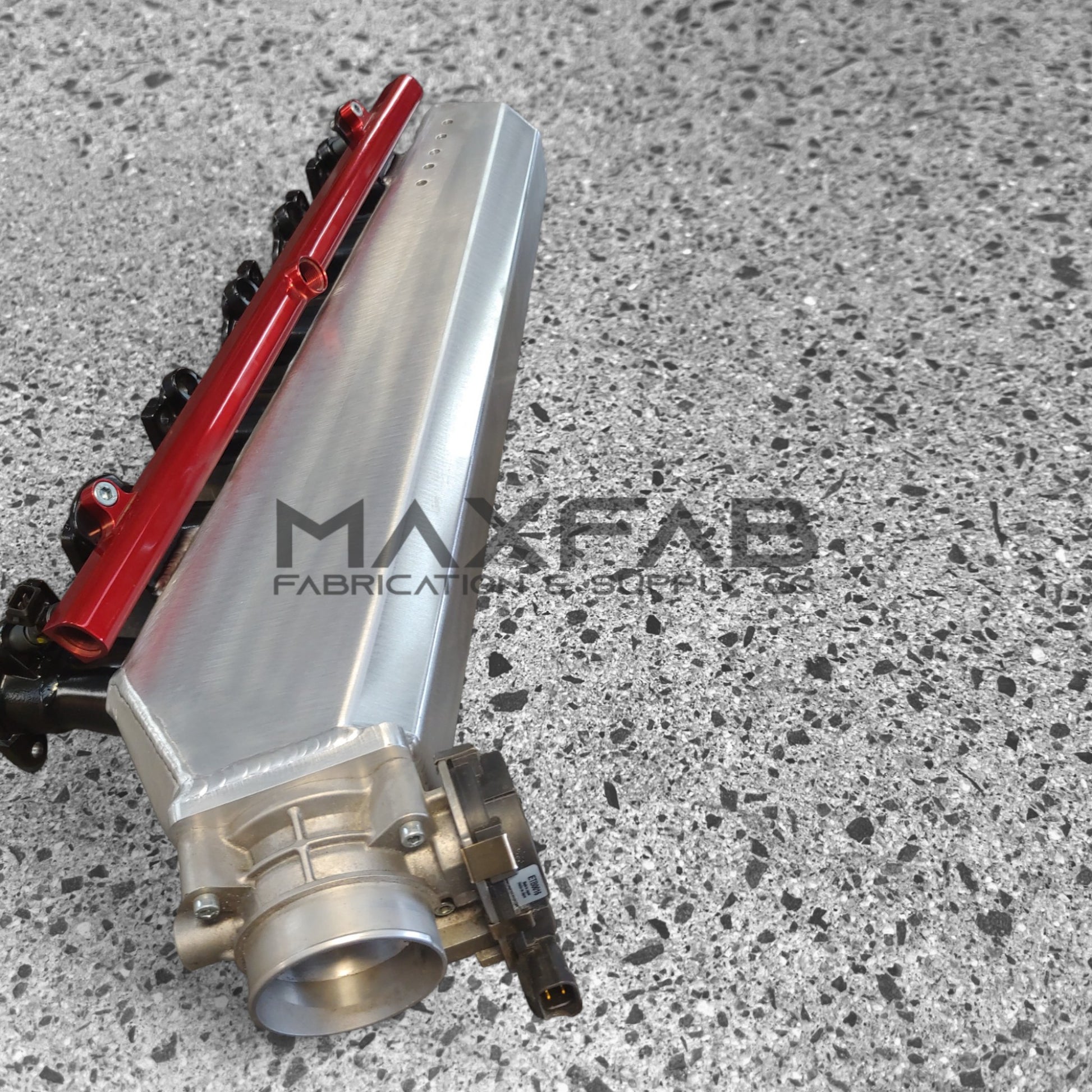

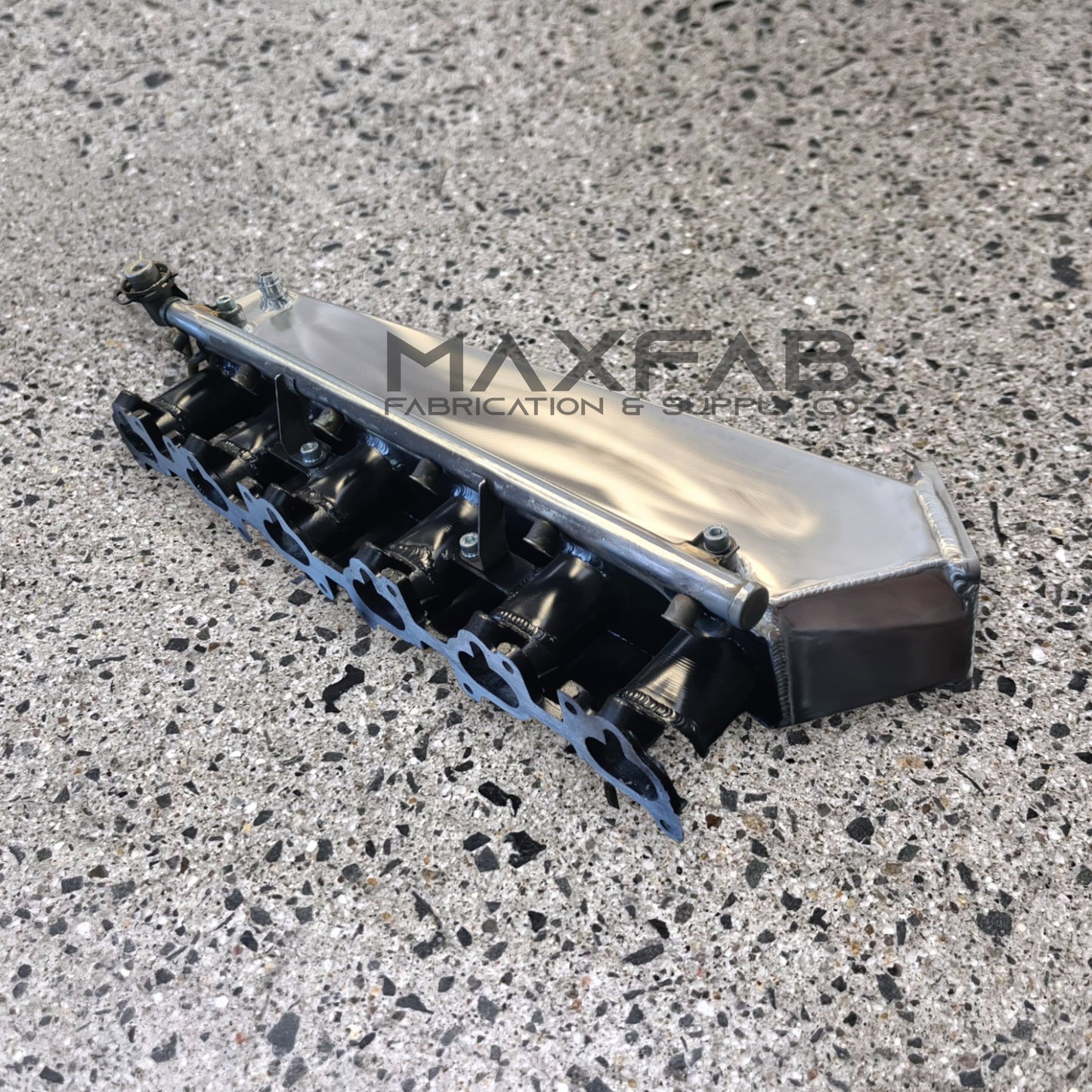

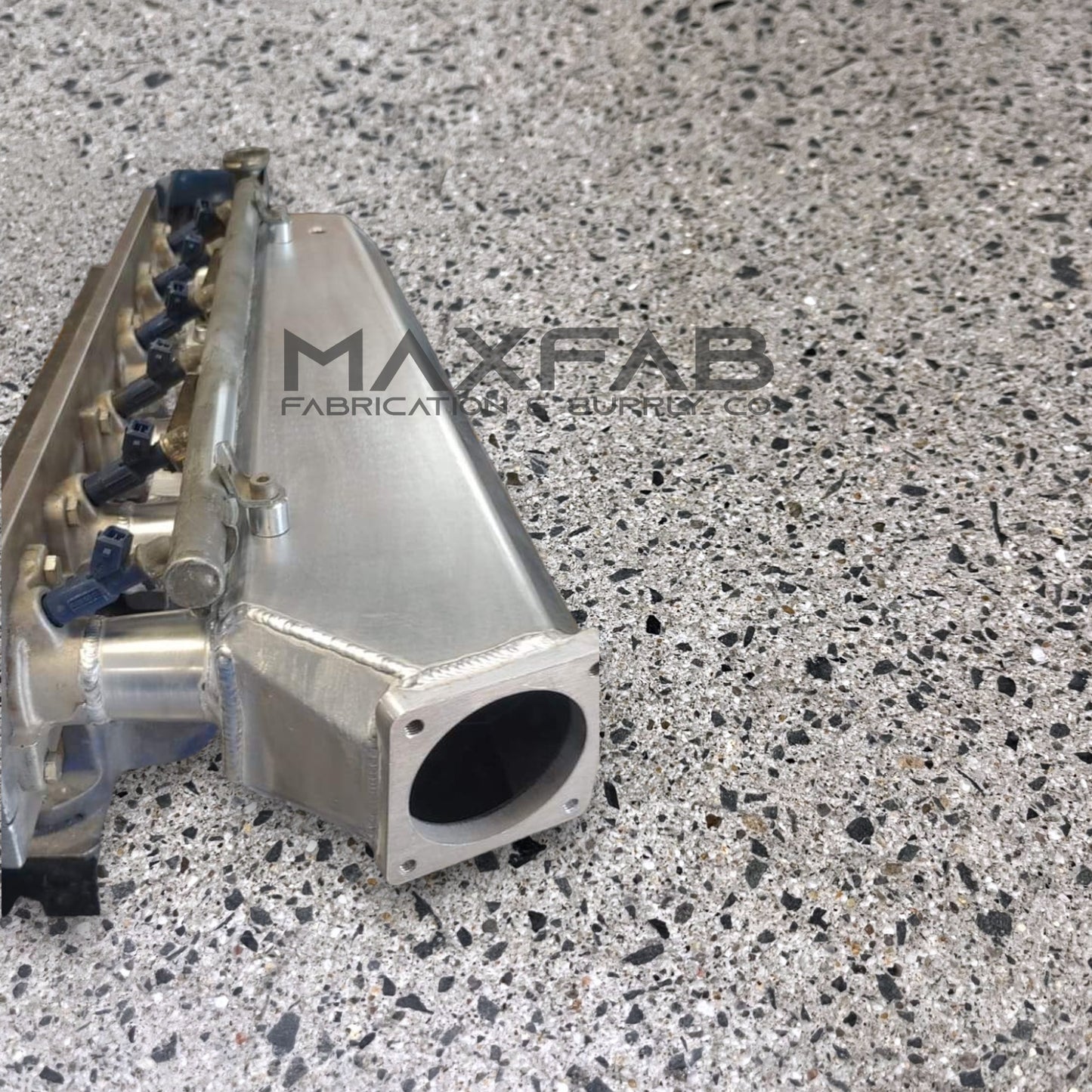

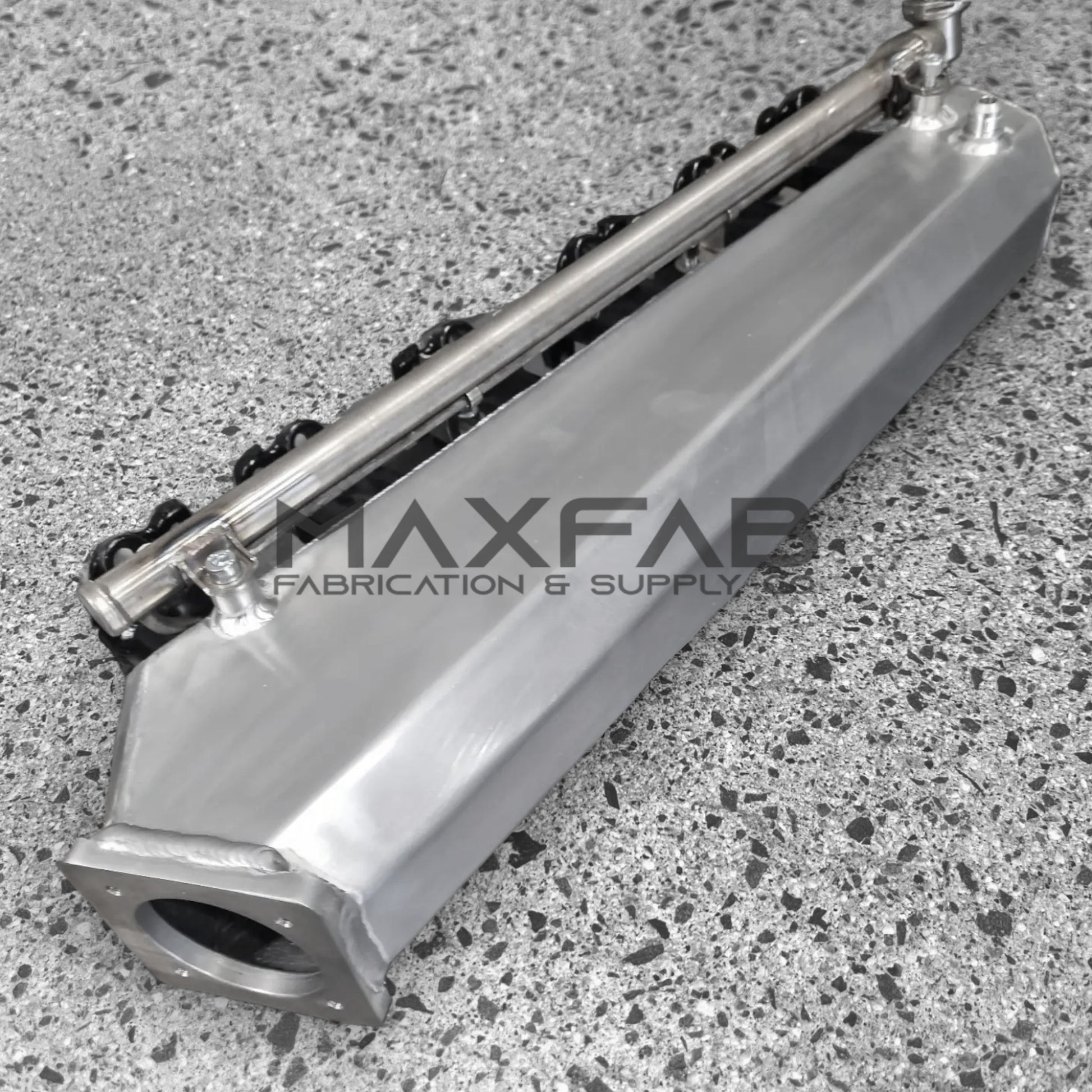

Intake manifold to suit Barra 4.0 Engines

Works with BA, BF,  FG etc,

AU intakes available as well, leave a comment in your checkout notes

Setup with 50mm internal trumpets

Vacuum block underneath for 6x 1/8  BSP fittings

MAP sensor port underneath

AN8 brake booster port on top

Setup to suit your throttle body, please let us know what T/B you are using in checkout notes

Fuel rail and thermostat housing need modifications to fit, if you send these to us we can set them up at no additional cost

Throttle body and fuel rail not included

If you send us your lower half to work from it will save you $50

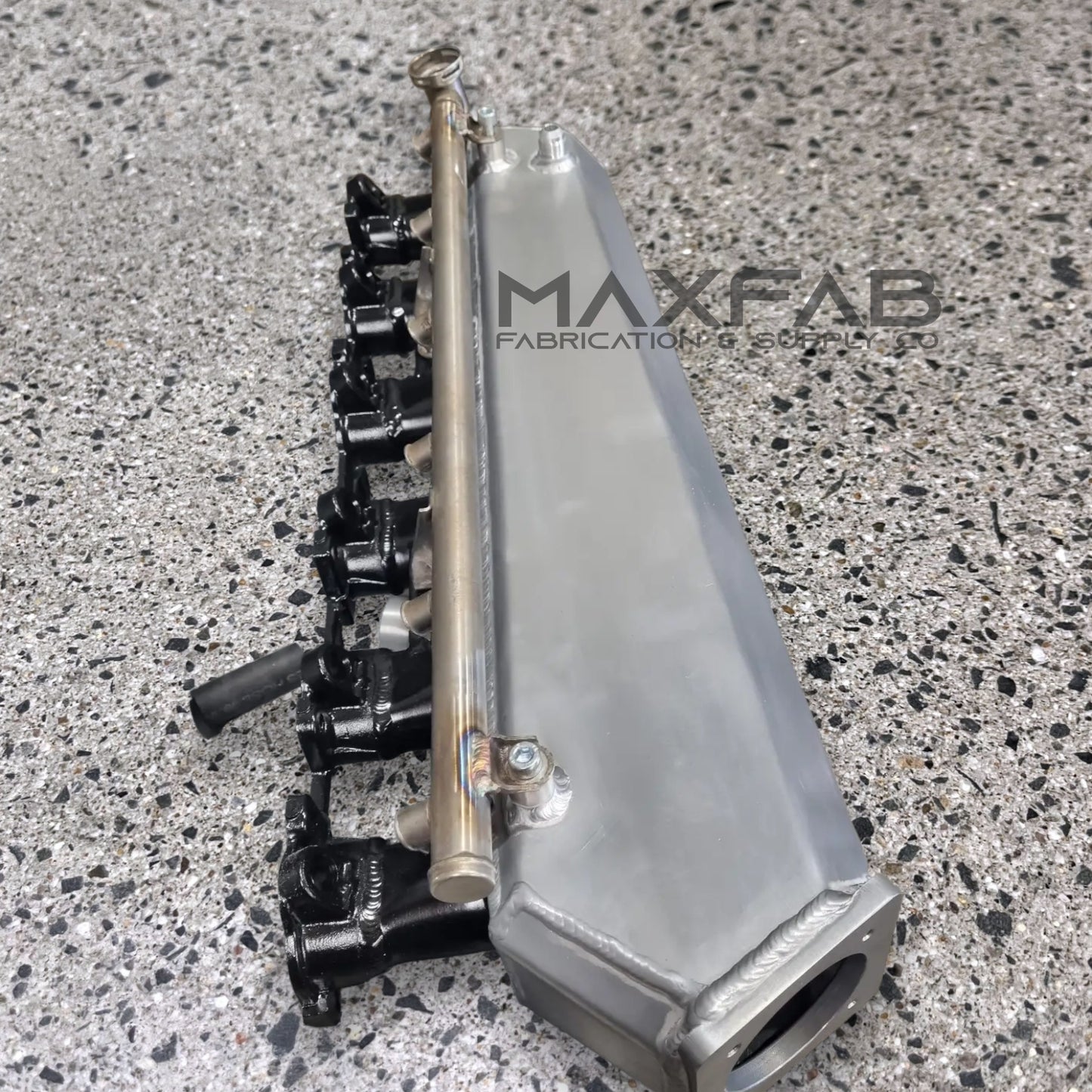

Factory fuel rail needs the outer mounting points shortened, these can be cut off and rewelded to suit

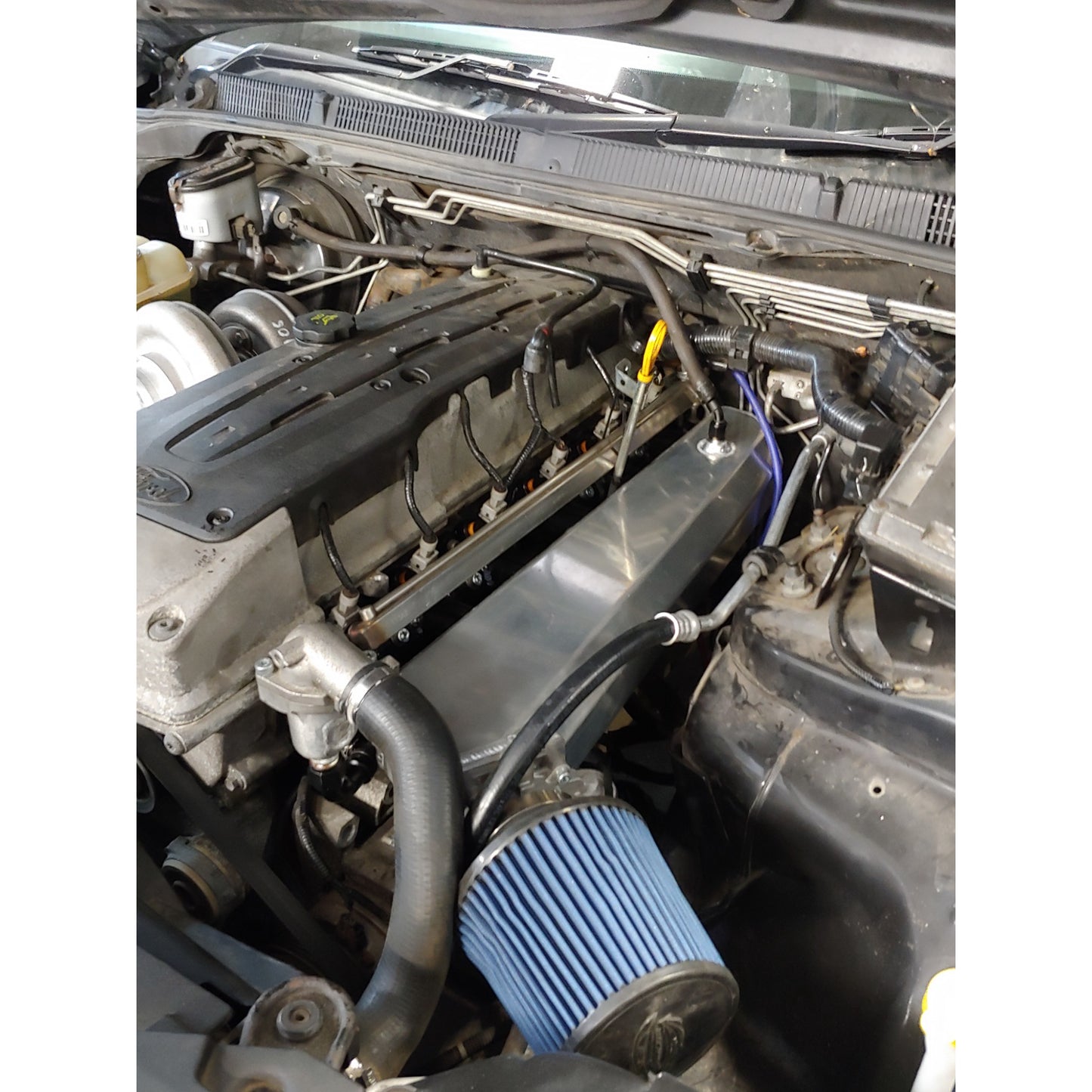

Wiring to throttle body will need to be extended, radiator top hose to thermostat housing and heater pipe out out of thermostat housing will need to be altered

We generally shorten the steel heater pipe back to #3 cylinder, fit a AN10 fitting on base of T/Stat housing and run a 90 degree fitting with push-lock hose to shortened steel pipe
