1UZ-FE Exhaust Manifolds

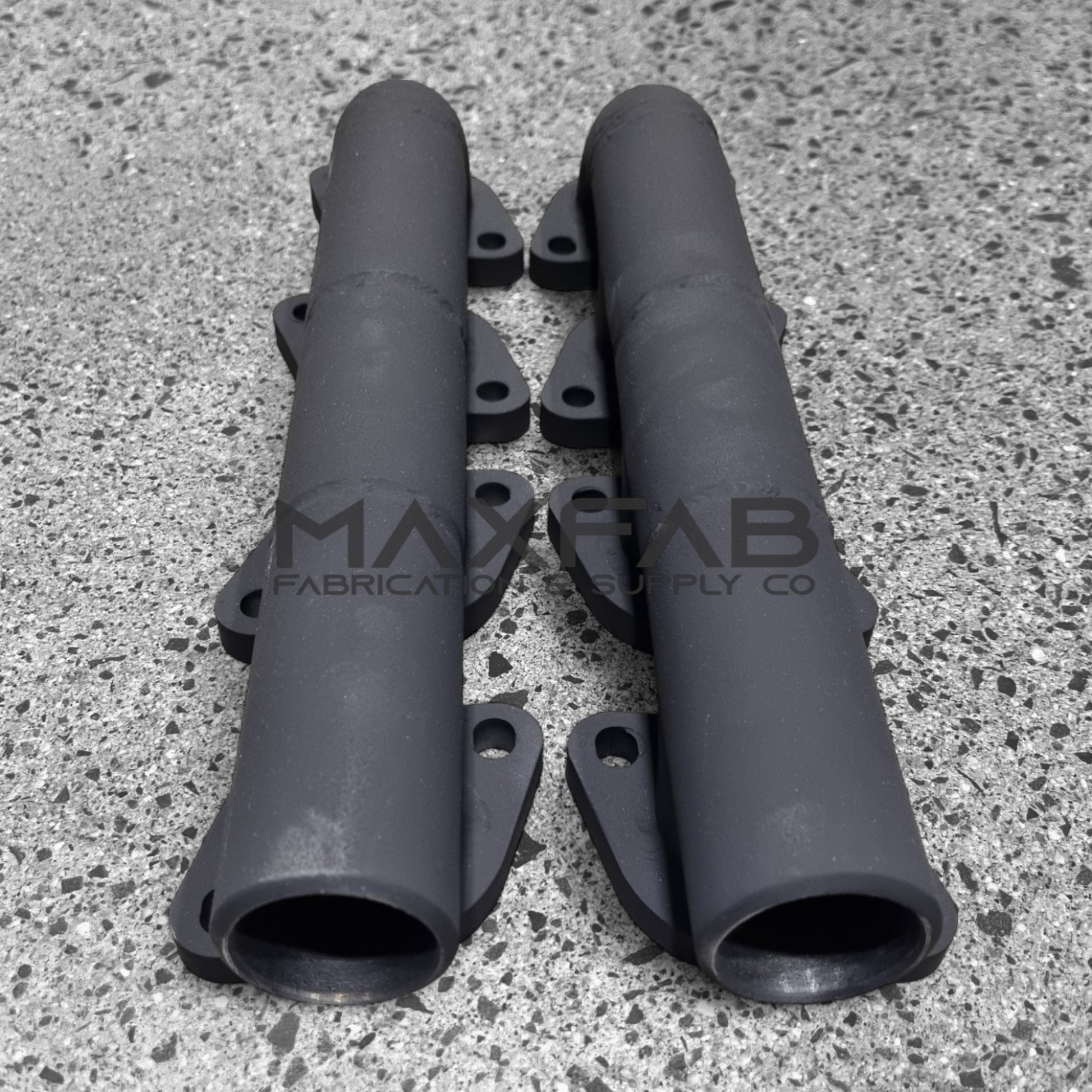

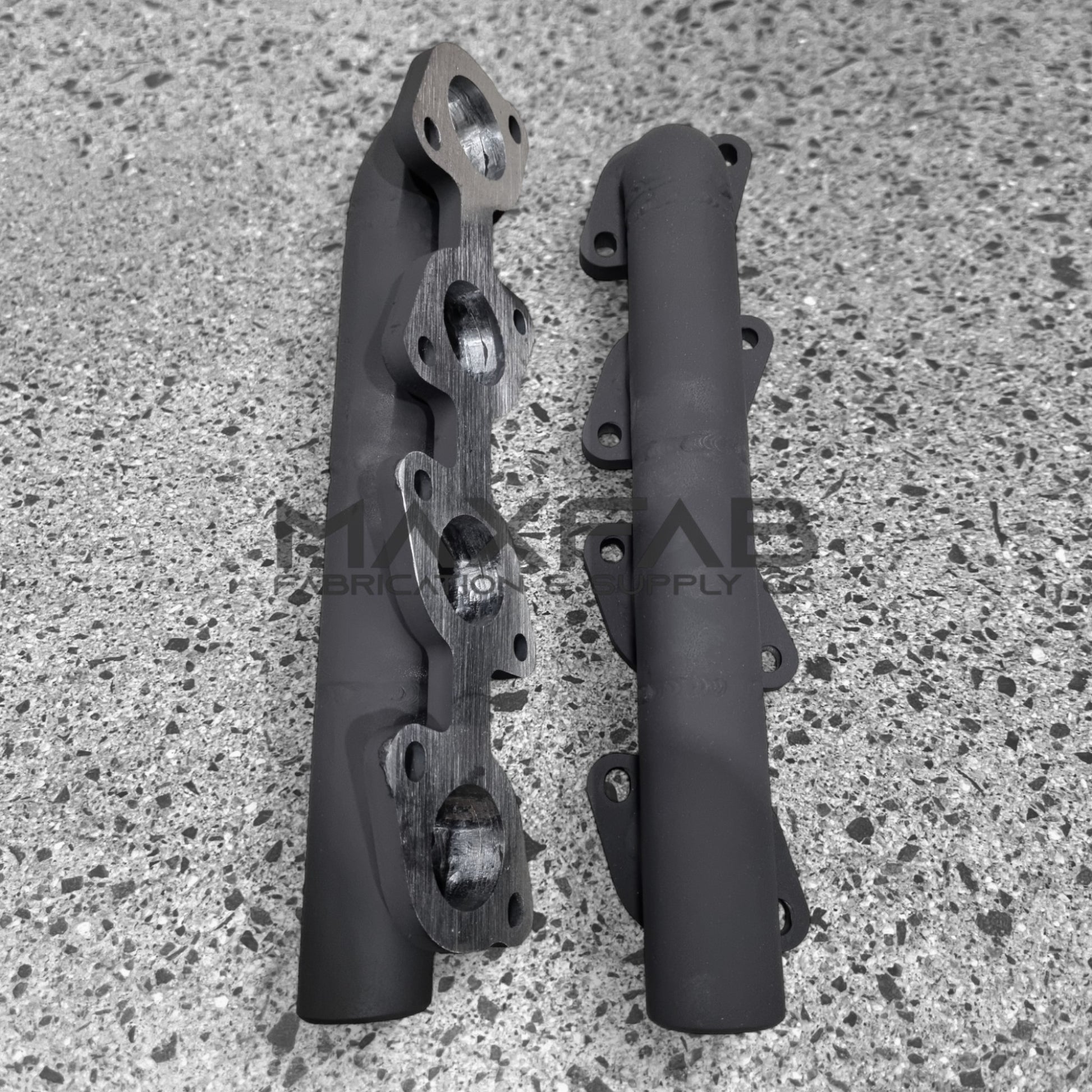

Log style exhaust manifolds suitable for Toyota & Lexus 1UZFE V8 engines,

We build these in-house to suit the UZ series of engines

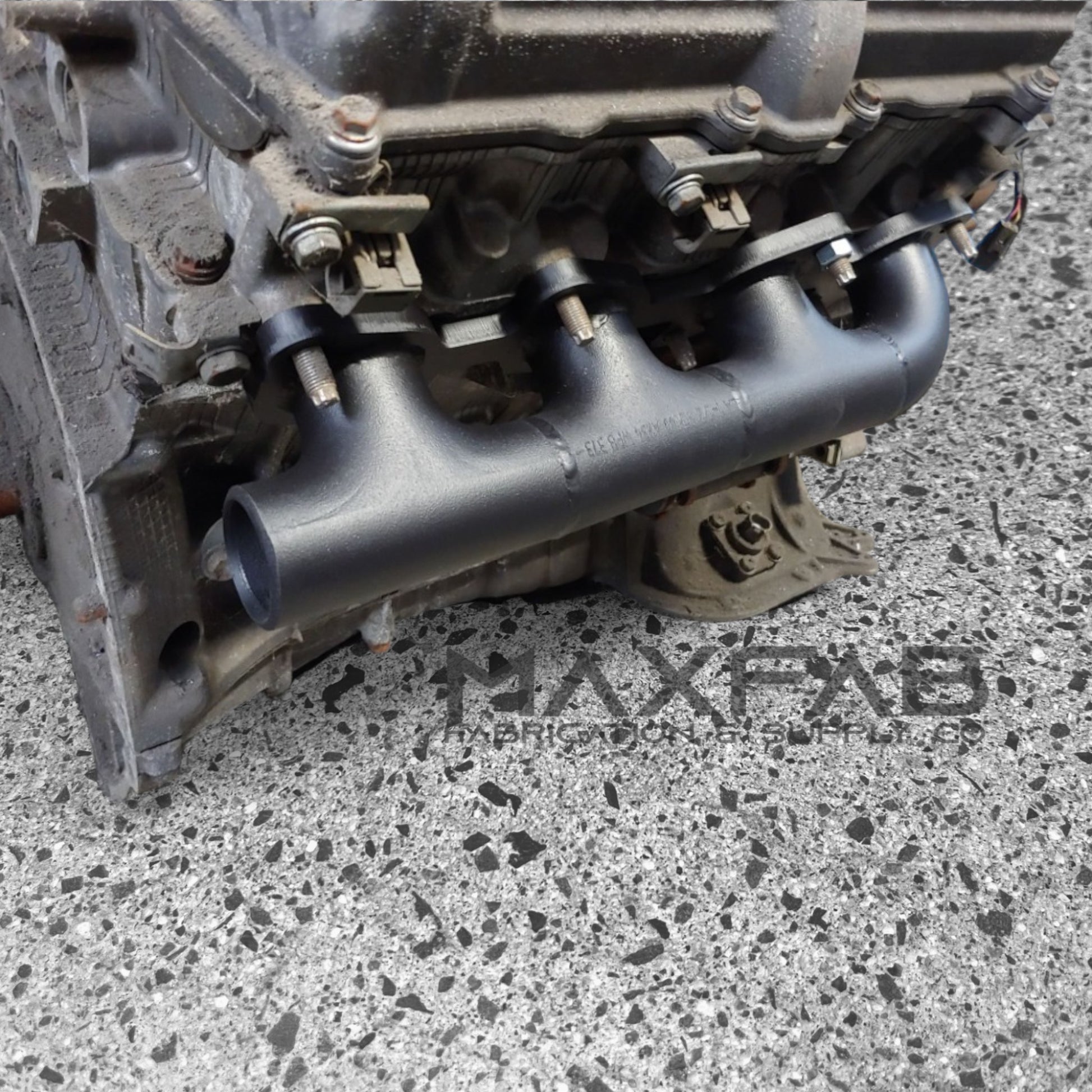

We've got two main types, block hugger at 72mm from flange mounting face to outside of tube and our regular length huggers at 92mm

From here we offer a couple of add-on's  -

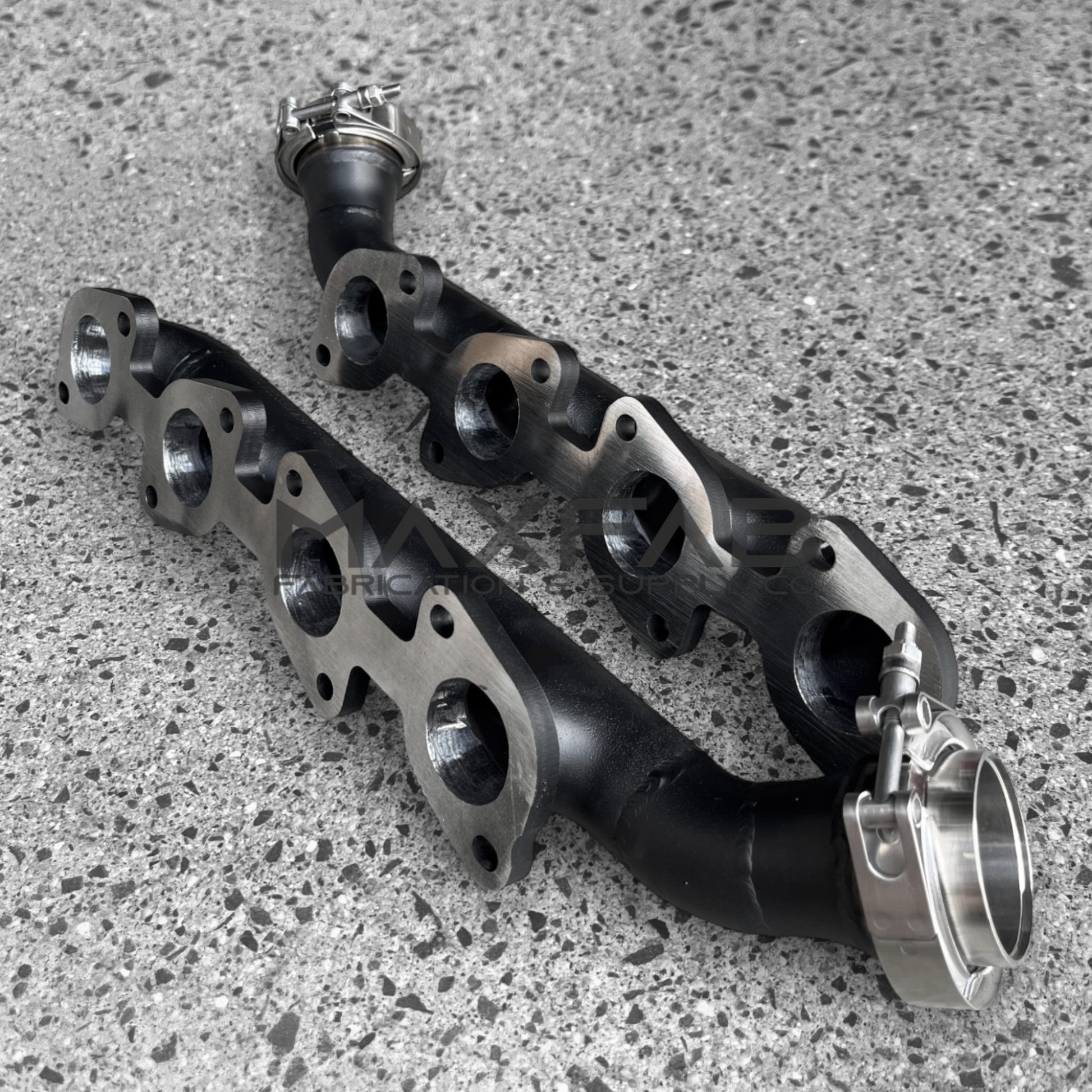

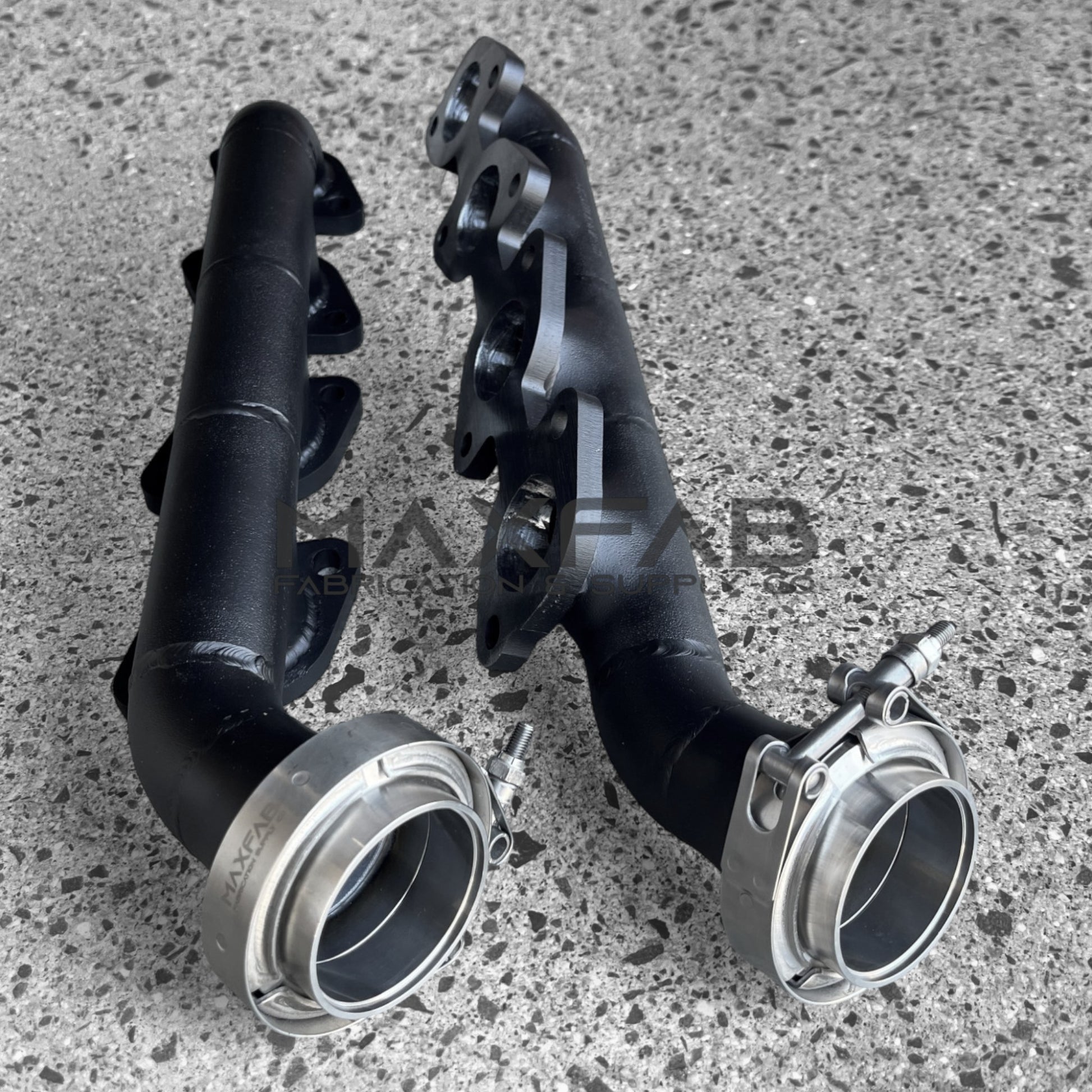

• A set of either 2" or 2.25" V-bands fitted to each
• Angled outlets, these face approx. 45' downward and follow the bellhousing, which make fitment and exhaust system fabrication easier

The 72mm block huggers are perfect for those tight conversions where its a mission to fit regular headers such as Hilux, Hiace and Surf swaps

Tried and proven for well over 15yrs

These don't fail like the ones made from thin wall exhaust tube

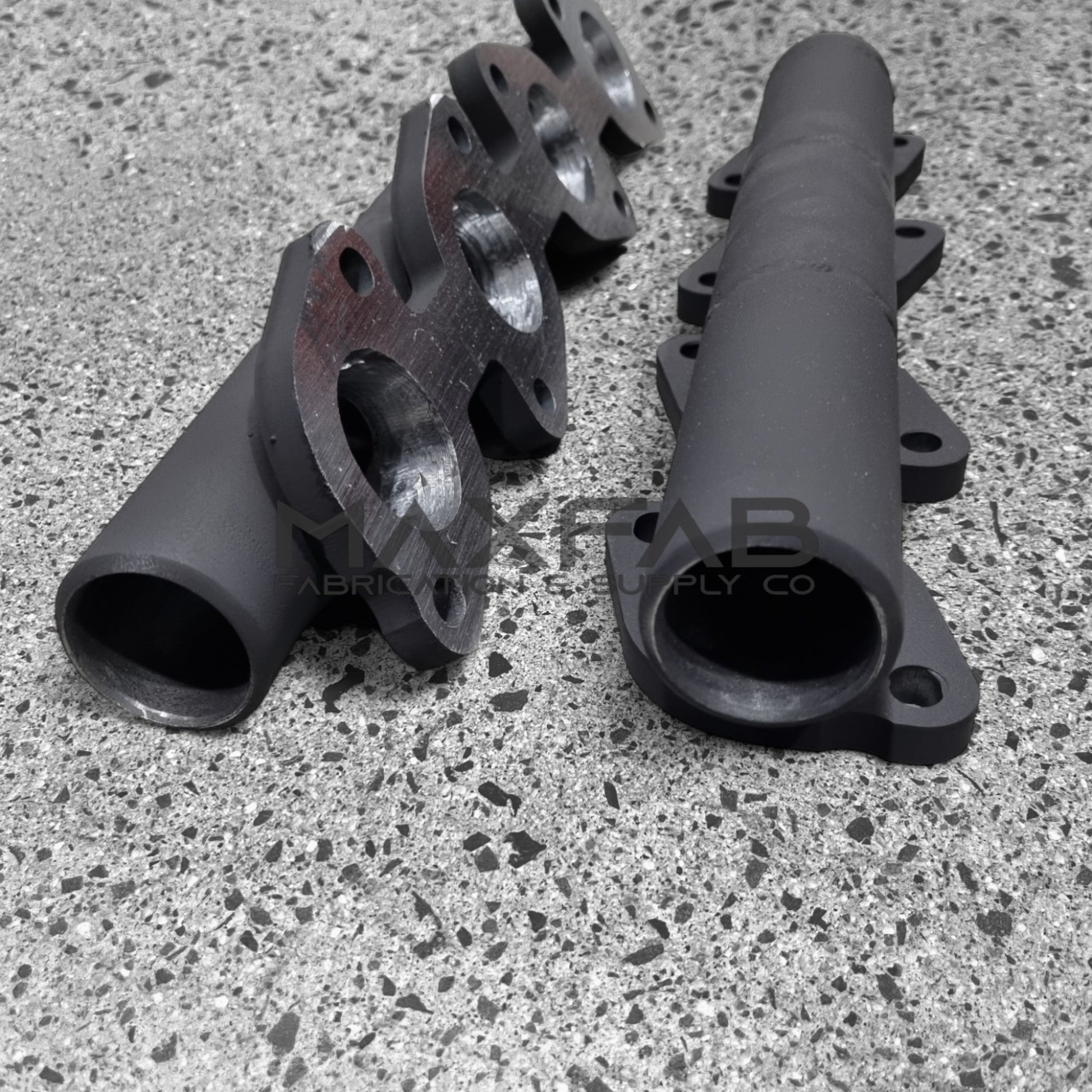

10mm or 12mm flanges, thick wall 1.5" SCHD40 pipe, fully TIG welded and coated in high temp black paint

V bands can be added as an optional extra as can angled turn downs so they point downward along the bellhousing,

72 and 92mm measurements are approximate, the tight headers are no 'taller' than 72mm

These are heavy, and weight close to 5kg each side, international shipping is possible but is pricey due to the weight

Pictures on some varients are just a sample, for vbands or angled ends you must select these from the options

Disclaimer:

We build these in-house to suit the UZ series of engines, these are not official Toyota items, nor are they sponsored or endorsed by Toyota or Lexus or their respective brands
